100202370001: DescriptionFederleiste 6mm SMD, 50 polig; File Size129KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

100202370001 Overview

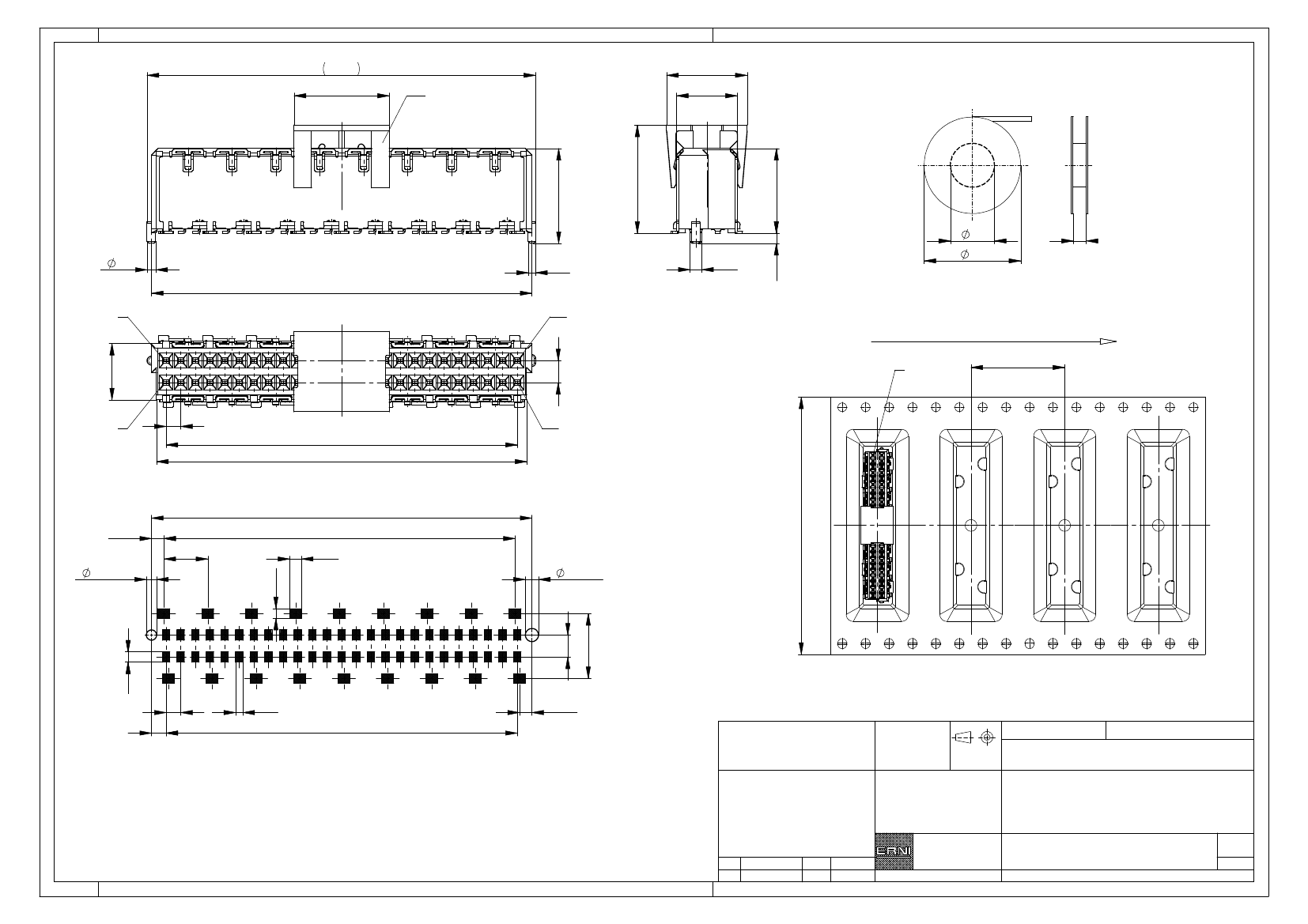

Federleiste 6mm SMD, 50 polig

Preview

Download Datasheet

View All

26,55

6,5

Ansaughaube

5,5

4,15

hood

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 400 Stück -

Packaging unit: 400 pcs

7,4

6,5

5,8

150

0,7

0,6

b25

0,5

0,8

330

44,5

Abspulrichtung -

Reel off Direction

3,85

1,5

24 x 1 = 24

25,3

a25

Leiterplatten-Layout Vorschlag /

PCB-Layout Proposal

0,85

1.)

0,7

±0,03

0,65

8 x 3 = 24

0,8

1.)

0,9

±0,03

Anforderungsstufe 1

Performance Level 1

Kontaktbereich vergoldet

Mating Area gold plating

4,45

1,5

Anschlussbereich verzinnt 4-6µm

Terminal Area 4-6µm tin plating

Koplanarität der Anschlüsse

≤

0,1mm

0,7

Coplanarity Area of Termination

≤

0,1mm

0,5

24 x 1 = 24

Proprietary notice pursuant to ISO 16016 to be observed.

0,85

Information:

Tolerances

All Dimensions

in mm

Scale

5:1

1.) Durchmesser des Bohrers /

Drill tool

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

13.02.2012

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Federleiste 6mm SMD, 50 polig

Female 6mm SMD, 50 contacts

www.ERNI.com

Class

100202370001

MSPEED
