DC-AC INVERTER UNIT
PS-DA0416-01(S)
(18 W DUAL OR QUAD OUTPUTS)
DESCRIPTION :
This low profile DC to AC Inverter is developed for dual or quad lamps.
Optimized for
NEC Display: NL10276BC30-18
(PRELIMINARY INFORMATION)
APPLICABLE LCD:
10.4 to 20 inches dual or quad lamp type
Lamp Voltage 620 Vrms
Lamp Current 4 x 6,0 mArms
Lamp Start Up Voltage 1.800 Vrms (Vin : 12 Vdc)
FEATURES :
Remote ON/OFF for 2 pairs independent or 4 CCFL
Open Lamp Detection
Wide Dimming Range
Wide Operating Temperature
RoHS compliant (S)
TEMPERATURE & HUMIDITY :
Operating Temperature Range
Storage Temperature Range
Humidity

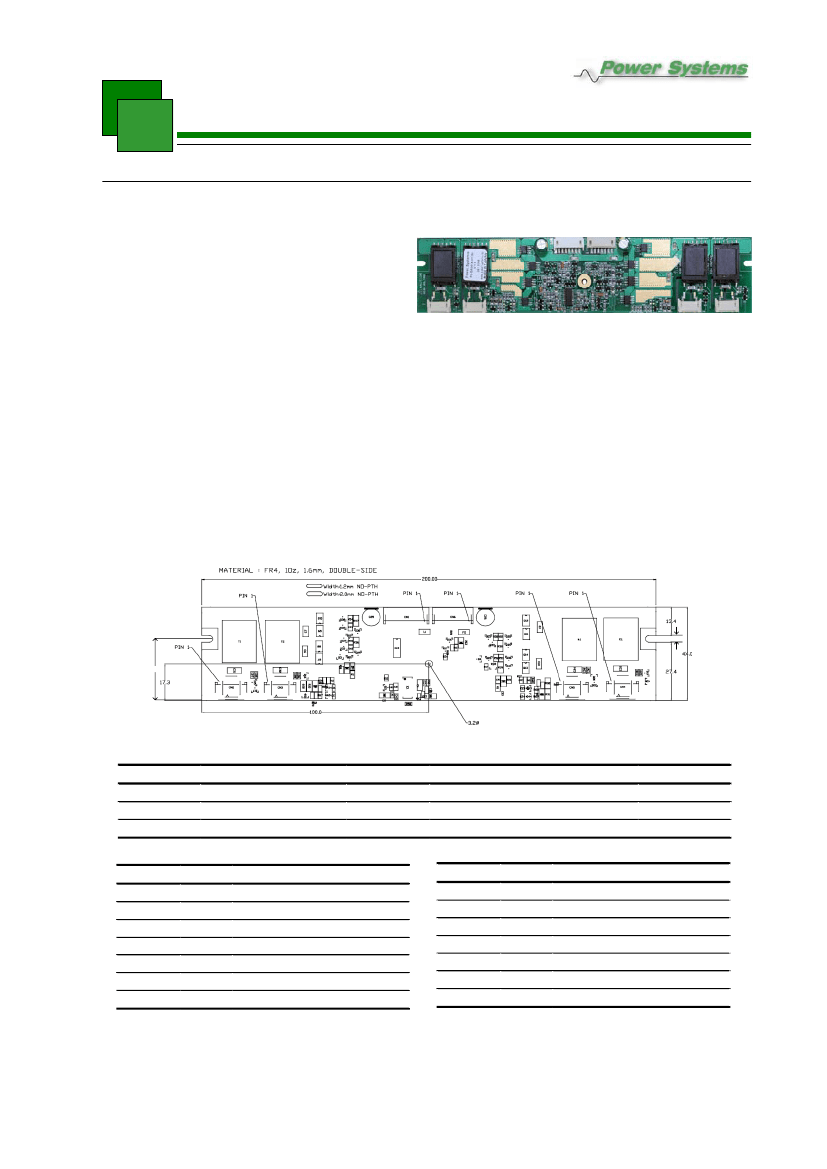

DIMENSIONS :
-10°C ~ +70°C
-20°C ~ +85°C
95 %RH max
Unit : mm
Weight :60 (g) typ.
L x B x H 200 x 44 x 14 mm
3.2
29.0
Note: Please use plastic screw in case of a non-insulating mounting base!
Components
No.
1
2
3
Part Description
PCB
Connector CN1 + CN6
Connector CN2 ~ CN5
Qty.
1
2
4
Material
UL94V-0 (FR-4 or CEM-3)
S7B-PH-K-S
SM02(8.0)B-BHS-1-TB
Note
t=1.6m m
JST or equal
JST or equal
Input side CN1:
Pin No. Symbols
Ratings
Vin
10.8 ~ 13.2 Vdc
CN 1-1
Vin
10.8 ~ 13.2 Vdc
CN 1-2
GND
-
CN 1-3
GND
-
CN 1-4
Vrm t 0 ~ 0.5 = OFF / 3.3 ~ Vin = ON
CN 1-5
N.C.
-
CN 1-6
Vbr
0 ~ 5.0 Vdc
CN 1-7
Input side CN6:
Pin No. Symbols
Ratings
Vin
10.8 ~ 13.2 Vdc
CN 1-1
Vin
10.8 ~ 13.2 Vdc
CN 1-2
GND
-
CN 1-3
GND
-
CN 1-4
Vrm t 0 ~ 0.5 = OFF / 3.3 ~ Vin = ON
CN 1-5
N.C.
-
CN 1-6
Vbr
0 ~ 5.0 Vdc
CN 1-7
Power Systems – The Power Solution
Web:
Email:
www.Power-Systems.de
Info@Power-Systems.de
Page (1)
Address: Hauptstr. 48 ; 74360 Ilsfeld-Auenstein / Germany
Tel. :
+ 49 / 70 62 / 67 59 - 6
Fax:
+ 49 / 70 62 / 67 59 - 800
Version 1.1.1, 28th February 2008
All specifications are subject to change without notice.
DC-AC INVERTER UNIT
PS-DA0416-01(S)
(18 W DUAL OR QUAD OUTPUTS)
Output side CN2 ~ CN5
Pin No.
CN 2-1
CN2-2
CN 2-3
Symbols
Vhigh
N.C.
Vlow
Ratings
620Vrm s (6.0 m Arm s )
-
(GND)
(PRELIMINARY INFORMATION)
ELECTRICAL CHARACTERISTICS :
Conditions
Parameters
Output Current
Output Current
Input Current
Frequency
Open Circuit Voltage
Symbols
Iout
Iout
Iin
F
Vopen
Vin (V)
12±1.2
12±0.6
12±1.2
12±1.2
11.4
Vbr (V)
0.0
5.0
0.0
0.0
0.0
Tu (°C)
-10
-10
-10
-10
-10
~ +70
~ +70
~ +70
~ +70
~ +70
Min.
5.5
-
-
50
1.550
Specification
Typ.
6.0
15
1.67
55
1.800
Max.
6.5
-
2.17
60
-
Unit
m Arm s
%
Adc
kHz
Vrm s
Note
Dut y 100 %
Dut y
Note 1 :
Note 2:
Please keep minimum of 2mm clearance (all directions) between inverter high voltage area as
marked on mechanical drawing and any conductors.
Before apply any control signal into inverter, please provide Vcc first. Please follow the reversed
sequence during power off. Power off control signal first, then power off Vcc.

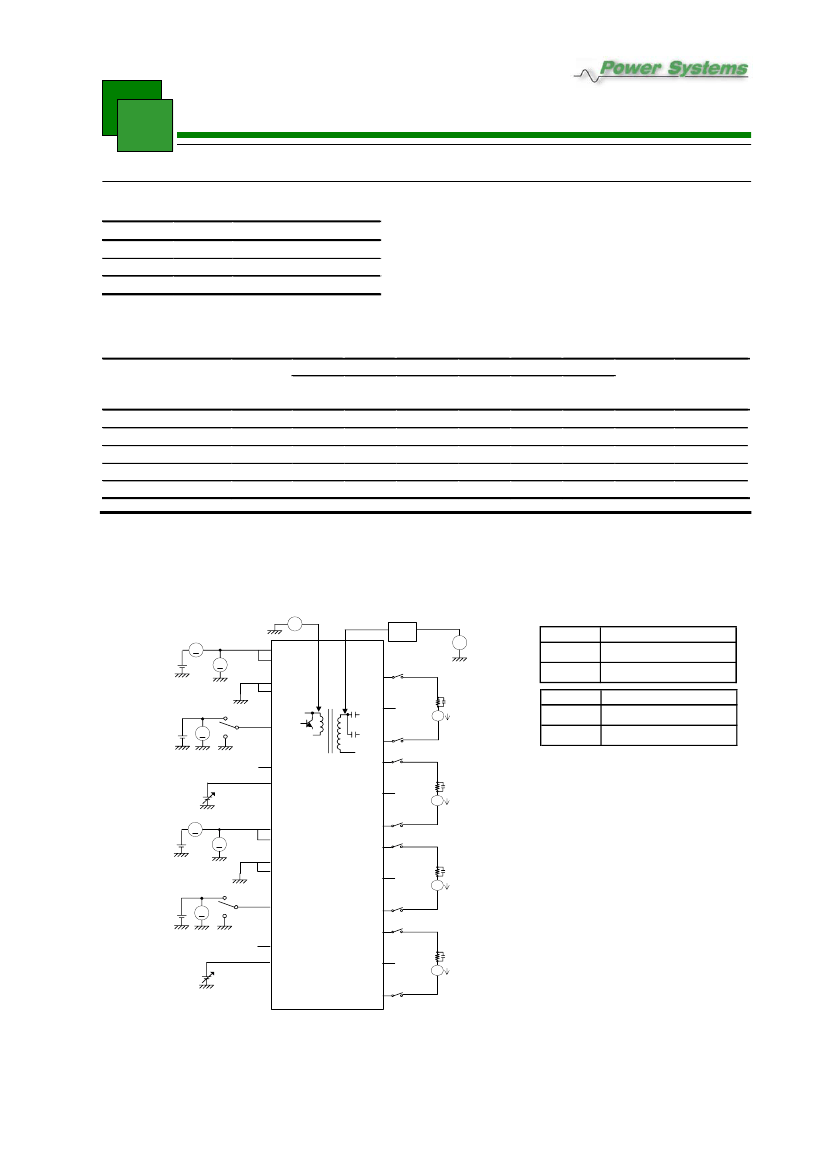

TEST CIRCUIT :
F
Iin
V
F
1000:1
PROBE
Vopen
CN1-1
CN1-2
CN2-1
SW3
CL1
Vin
10.8 ~ 13.2 V
A
V
~
SW 1
a
b
Operat io o f unit
Op erat io n
No n Op erat io n
Operat io o f unit
Op erat io n
No n Op erat io n
CN1-3
CN1-4
T1
Vrmt
0 / 3.3 Vdc
V
CN2-2
N.C.
RL1
SW 2
A
~
Iout
1
a
b
SW1
CN1-5
CN2-3
SW4
SW5
a
b
N.C.
CN1-6
CN1-7
CN3-1
Vbr
0 ~ 5.0 Vdc
CN3-2
N.C.
RL1
A
~
Iin
V
CN3-3
SW6
SW7
Iout
1
Vin
10.8 ~ 13.2 V
A
CN6-1
CN6-2
CN4-1
CN6-3
CN6-4
Vrmt
0 / 3.3 Vdc
V
CN4-2
N.C.
RL1
a
b
SW2
CN6-5
CN4-3
SW8
SW9
A
~
Iout
1
CN5-1
N.C.
CN6-6
CN6-7
CN5-2
N.C.
RL1
Vbr
0 ~ 5.0 Vdc
CN5-3
SW10
A
~
Iout
1
Power Systems – The Power Solution
Web:
Email:
www.Power-Systems.de
Info@Power-Systems.de
Page (2)
Address: Hauptstr. 48 ; 74360 Ilsfeld-Auenstein / Germany
Tel. :
+ 49 / 70 62 / 67 59 - 6
Fax:
+ 49 / 70 62 / 67 59 - 800
Version 1.1.1, 28th February 2008
All specifications are subject to change without notice.
DC-AC INVERTER UNIT
BACKLIGHT INVERTER INSTALLATION INSTRUCTION
Precautionary Notes Regarding the Use of This Inverter
When using this product, give due consideration to the precautionary notes described below
and ensure a safe design. Inappropriate use may result in electric shock, injury or fire.
WARNING
• This product is subject to high voltage. Do not touch it while the power is on. Failing to do so may result in electric shock.
CAUTION
• This product is designed for the lighting of a Cold Cathode Fluorescent Lamp. Do not use it with any other load.
• Store this product under the conditions defined in the specification document.
• Do not store this product in an environment where dust, dirt or corrosive gas (salt, acid, base, etc.) is present.
• This product is subject to high voltage. If there is a possibility that the user may touch the product, provide a proper
indication in order to draw the user’s attention.
• This product is designed for use with general electronic equipment. If it is to be used with medical equipment that directly
affects human life or for the control of transportation equipment to which passengers entrust their lives, provide thorough fail-
safe measures.
• Avoid using this product under high temperatures or high humidity or in an environment in which dust, dirt or any corrosive
gas (salt, acid, base, etc.) is present. Also, be careful not to allow the formation of dew condensation. It may result in
damage or electric shock.
• If the product does not have a built-in protective circuit (circuit breaker, fuse, etc.), it is recommended that a fuse be used at
the input stage to prevent the generation of smoke or fire in the event of a malfunction. Even when the product has a built-in
protective circuit (circuit breaker, fuse, etc.), the circuit may not function properly due to inappropriate operating conditions or
power-supply capacity. It is recommended that an appropriate protective circuit (circuit breaker, fuse, etc.) be provided
separately from the built-in circuit.
• Use the product only within the specified input voltage, output power, output voltage and operating temperature ranges.
Exceeding these values may result in damage, etc. Abnormal voltage may result in damage, etc.
• Provide a measure for the preventation of surge voltage due to lighting, etc. Abnormal voltage may result in damage, etc.
• To prevent problems arising form short-circuiting of the high-voltage section, provide appropriate measures to prevent the
entry of foreign substances following installation.
• This product is not designed to provide resistance to radiation.
HANDLING PRECAUTIONS
• This product uses thin wires. Observe the following precautions and handle it with care so as not to cause wire breakage.
Broken wire may result in damage, etc.
Do not stack multiple products on top of one another,
Do not allow the product to come in contact with tools, etc.
• Do not apply excessive stress during installation. It may cause chipping and cracking, resulting in damage, etc
• Provide a clearance of 2 mm or more between the high-voltage section of this product and the frame body on which the
product is installed and also the conductor section (pattern, pad, etc.)
