6 Watt P1dB, 800 MHz to 960 MHz, High Power
Amplifier, 37 dB Gain, 50 dBm IP3, 3 dB NF, SMA
TECHNICAL DATA SHEET
PE15A5041
The PE15A5041 is a 6 W typical high gain power coaxial amplifier operating in the 860 to 960 MHz frequency range. The
amplifier offers 6 Watts typ of P1dB power and a high 37 dB typical small signal gain with the gain flatness of ±1.25 dB
max. The amplifier requires typically a +12V DC power supply. The connectorized SMA module is unconditionally stable and
operates over the temperature range of -45°C and +65°C.
Features
•
•
•
•
800 to 960 MHz Frequency Range
Psat 6 Watts typ
Small Signal Gain: 37 dB typ
Gain Flatness ±1.25 dB max
•
50 Ohms Input and Output Matched
•
Unconditionally Stable
•
Regulated Supply
Applications
•
Military Radio
•
Communication Systems
•
High Gain Driver Power Amplifier
•
High Gain Output Power Amplifier
Electrical Specifications
(TA = +25°C, DC Voltage = 12Volts, DC Current = 1,800mA)
Description
Frequency Range
Small Signal Gain
Gain Flatness
Gain Variation at OTR*
Output Power at 1 dB Compression Point
Output 3rd Intercept Point
Reverse Isolation
Noise Figure
Spurious
Input VSWR
Output VSWR
Operating DC Voltage
Operating DC Current
Operating Temperature Range
.
-40
11.5
1.5:1
1.5:1
12
1,800
+37.5
+45
45
Minimum
800
34
Typical
37
±1
±1.5
+38
+50
55
3
Maximum
960
40
±1.25
2
Units
MHz
dB
dB
dB
dBm
dBm
dB
4
-60
1.8:1
1.8:1
13
2,100
+65
dB
dBc
Volts
mA
°C
*OTR= Base Plate Operating Temperature Range
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
6 Watt P1dB, 800 MHz to 960 MHz, High Power Amplifier, 37 dB Gain, 50 dBm IP3, 3 dB NF,
SMA
PE15A5041
PE15A5041 REV 1.0
1
6 Watt P1dB, 800 MHz to 960 MHz, High Power
Amplifier, 37 dB Gain, 50 dBm IP3, 3 dB NF, SMA
TECHNICAL DATA SHEET
Absolute Maximum Rating
Parameter
Source Voltage
RF input Power
Maximum Load VSWR
Storage Temperature
Operating Temperature (base-plate)
PE15A5041
Rating
+13
+15
3:1
-55 to +125
-45 to +65
Units
Volts
dBm
°C
°C
ESD Sensitive Material,
Transport material in
Approved ESD bags.
Handle only in approved
ESD Workstation.
.
Mechanical Specifications
Size
Length
Width
Height
.
2.08 in [52.83 mm]
1.45 in [36.83 mm]
0.5 in [12.7 mm]
SMA Female
SMA Female
Input Connector
Output Connector
Environmental Specifications
Temperature
Operating Range
..
-40 to +65 deg C
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
•
ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.
•
Heat Sink Required for Proper Operation, Unit is cooled by conduction to heat sink.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
6 Watt P1dB, 800 MHz to 960 MHz, High Power Amplifier, 37 dB Gain, 50 dBm IP3, 3 dB NF,
SMA
PE15A5041
PE15A5041 REV 1.0
2
6 Watt P1dB, 800 MHz to 960 MHz, High Power
Amplifier, 37 dB Gain, 50 dBm IP3, 3 dB NF, SMA
TECHNICAL DATA SHEET

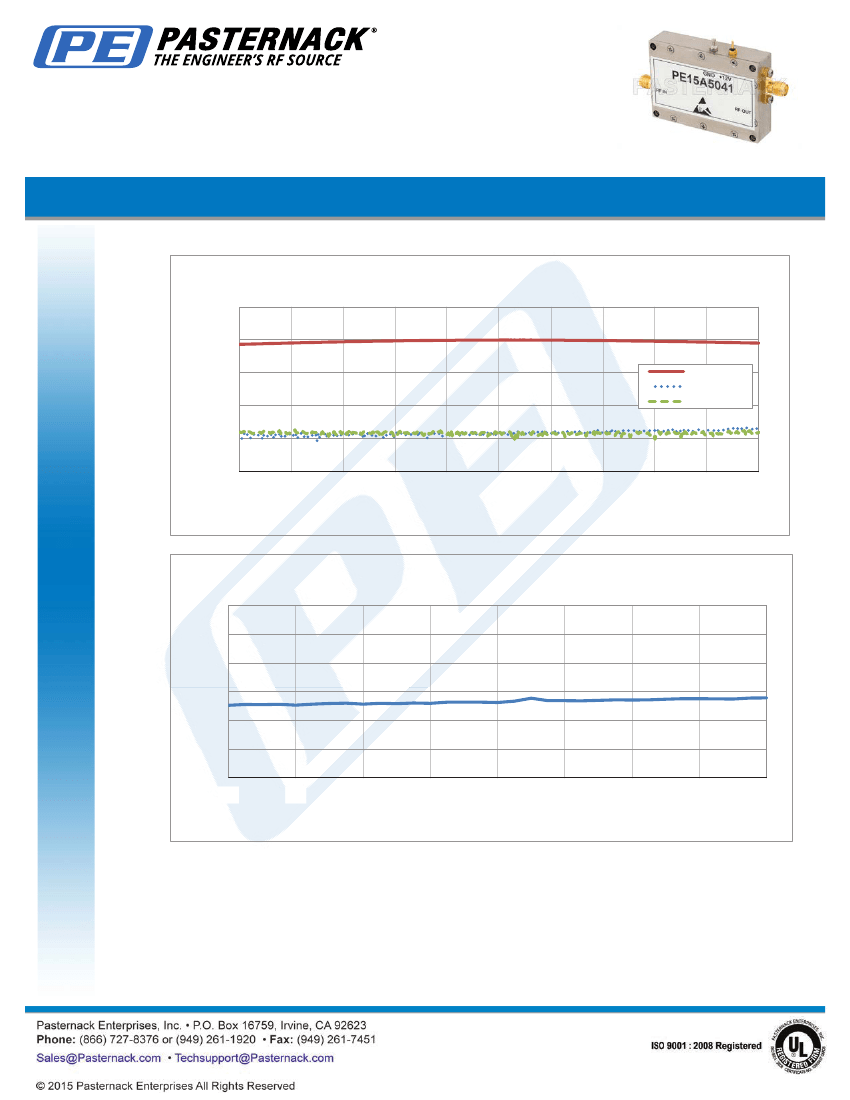

Typical Performance Data
PE15A5041
Gain and Return Loss
60
40
20
dB
0
-20
-40
750
775
800
825
850
875
Freq.(MHz)
900
925
950
975
1,000
Gain
Input RL
Output RL
Noise Figure
6
5
4
3
2
1
0
800
820
840
860
880
Freq.(MHz)
900
920
940
960
dB
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
6 Watt P1dB, 800 MHz to 960 MHz, High Power Amplifier, 37 dB Gain, 50 dBm IP3, 3 dB NF,
SMA
PE15A5041
PE15A5041 REV 1.0
3
6 Watt P1dB, 800 MHz to 960 MHz, High Power
Amplifier, 37 dB Gain, 50 dBm IP3, 3 dB NF, SMA
TECHNICAL DATA SHEET
PE15A5041
6 Watt P1dB, 800 MHz to 960 MHz, High Power Amplifier, 37 dB Gain, 50 dBm IP3, 3 dB NF, SMA from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
6 Watt P1dB, 800 MHz to 960 MHz, High Power Amplifier, 37 dB Gain, 50 dBm IP3, 3 dB NF, SMA
PE15A5041
URL:
http://www.pasternack.com/960-mhz-high-power-amplifier-37-db-gain-ip3-3-db-sma-pe15a5041-p.aspx
PE15A5041 REV 1.0
4
6 Watt P1dB, 800 MHz to 960 MHz, High Power Amplifier,
37 dB Gain, 50 dBm IP3, 3 dB NF, SMA
PE15A5041

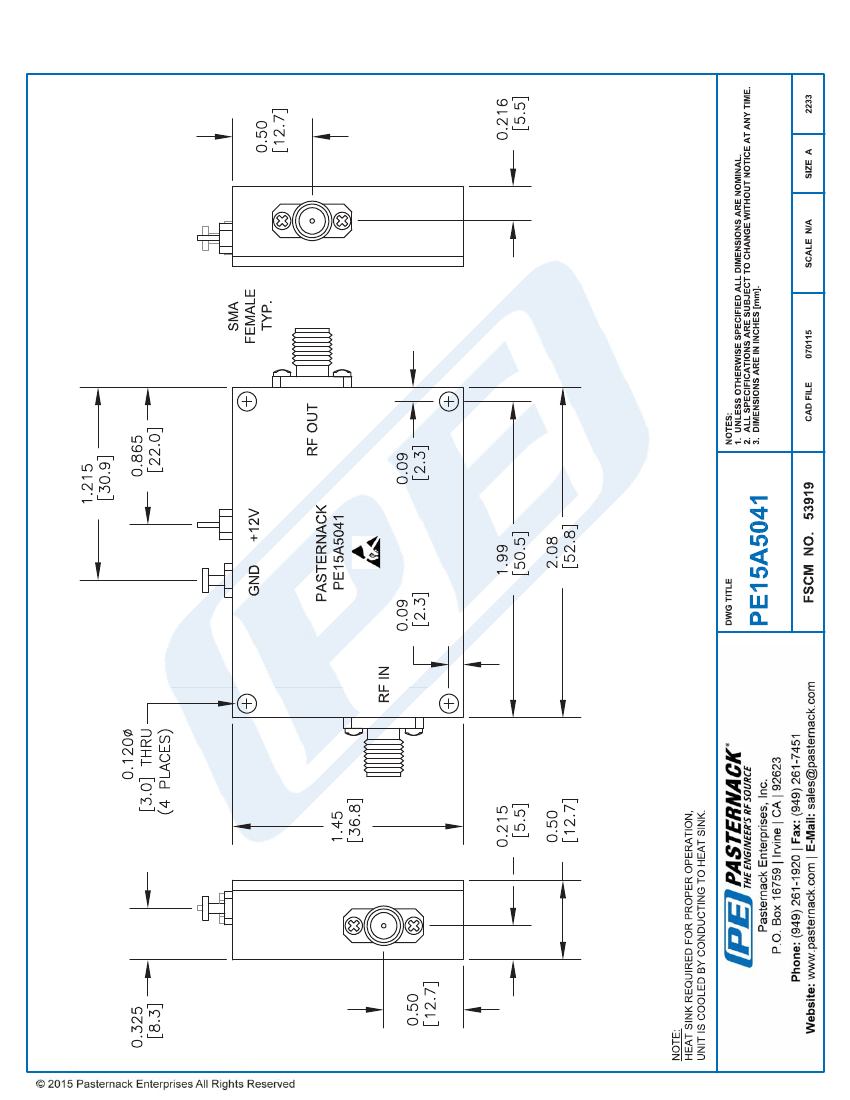

CAD Drawing
PE15A5041 REV 1.0
5
