EKA
Vishay Roederstein
Aluminum Electrolytic Capacitors, Radial Style
CHARACTERISTICS
• Polarized AI electrolytic capacitor
• High C·U product
• Very small dimensions
APPLICATIONS
•
General uses, industrial electronics, automotive electronics,
audio / video systems
• Smoothing, filtering, coupling, decoupling, timing elements
• Little space requirement
• Portable and mobile units
MAIN SPECIFICATIONS
Nominal Case Size (D x L)
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
Category Temperature Range
Endurance Test at Upper Category Temperature
Lifetime at 85°C and I
R
Lifetime at 40°C and I
R
Sectional Specifications
Detail Specifications
[mm]
[µF]
[%]
[V]
[°C]
[h]
[h]
[h]
6.3 to 350
-40 to 85
2000
3000
70000
IEC 384-4, CECC 30300, GP grade
CECC 30301-037, similar to DIN 45 910 Part 124
without quality assessment
5 x 11 to 18 x 40
1 to 22000
±
20
400, 450
-25 to 85
Climatic Category
IEC 68
DIN 40040
Failure Rate
[10
-9
/ h]
40 / 085 / 56
GPF
≤
90
25 / 085 / 56
HPF
Document Number 25014
Revision 20-Feb-01
www.vishay.com
13
EKA
Vishay Roederstein
DIMENSIONS
Nominal size D x L [in millimeters]
C
R
[
µ
F]
1.0
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1000
2200
3300
4700
6800
8 x 11.5
10 x 20
10 x 20
13 x 20
13 x 25
5 x 11
6.3 x 11
6.3 x 11
10 x 12.5
10 x 20
13 x 20
13 x 25
16 x 25
5 x 11
6.3 x 11
8 x 11.5
8 x 11.5
10 x 16
13 x 20
13 x 25
16 x 25
8 x 11.5
10 x 12.5
10 x 20
13 x 25
16 x 25
5 x 11
6.3 x 11
8 x 11.5
10 x 12.5
10 x 16
13 x 20
16 x 25
10 x 12.5
10 x 16
10 x 20
13 x 25
16 x 35.5
5 x 11
6.3 x 11
8 x 11.5
10 x 16
10 x 20
13 x 20
16 x 25
5 x 11
6.3 x 11
8 x 11.5
10 x 12.5
10 x 20
13 x 25
16 x 25
16 x 25
6.3 x 11
6.3 x 11
8 x 11.5
8 x 11.5
8 x 11.5
8 x 11.5
8 x 11.5
U
R
[V]
6.3
10
16
25
35
50
63
100
160
200
250
350
400
450
8 x 11.5
10 x 12.5
10 x 12.5 10 x 12.5
10 x 16
10 x 20
13 x 25
16 x 25
10 x 12.5 10 x 12.5
10 x 16
13 x 20
13 x 25
16 x 25
10 x 20
13 x 25
16 x 25
10 x 12.5 10 x 12.5 10 x 12.5
10 x 16
10 x 20
13 x 20
13 x 25
10 x 16
10 x 20
13 x 20
16 x 25
10 x 20
13 x 20
13 x 25
16 x 31.5 16 x 31.5
18 x 40
16 x 31.5 16 x 35.5
18 x 40
16 x 31.5 18 x 35.5
18 x 35.5
16 x 35.5 18 x 35.5
16 x 31.5 18 x 35.5
16 x 31.5 18 x 35.5
10000 16 x 25
16 x 35.5 18 x 35.5
15000 16 x 35.5 18 x 35.5
22000 18 x 40
•10% capacitance tolerance on request
LEAKAGE CURRENT
Formula for the calculation of the maximum leakage current for acceptance tests I
L
:
[Test conditions: U
R’
20°C, 2 minutes (U
R
≤100V)
/ 5 minutes (U
R
>100V)]
I
L2
[µA]
≤
0.01 • C
R
[µF] • U
R
[V]
I
L5
[µA]
≤
0.02 • C
R
[µF] • U
R
[V]
or 3µA
+15
for U
R
≤
100V
for U
R
> 100V
whichever is greater
LOW TEMPERATURE BEHAVIOR
Impedance Ratio Z(T2) / Z(T1) at 120Hz
T2 / T1
6.3
-25°C / +20°C
-40°C / +20°C
5
12
10
4
10
16
3
8
RATED VOLTAGE [V]
25
2
5
35
2
4
50 - 100
2
3
160
4
6
200 - 350
6
8
400, 450
12
-
www.vishay.com
14
Document Number 25014
Revision 20-Feb-01
EKA
Vishay Roederstein

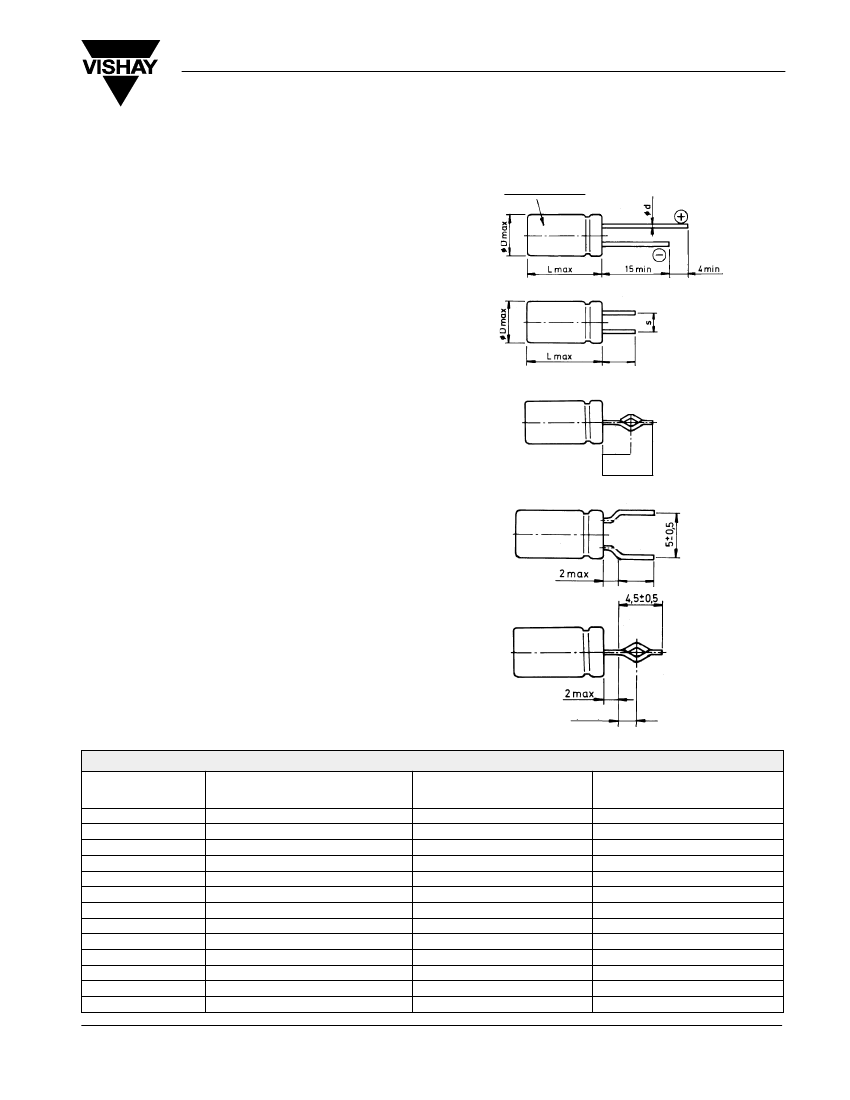

DIMENSIONS AND LEAD CONFIGURATION
Casing Insulation
5
≤
ØD
≤
18
Long leads
EKA 00...
5
≤
ØD
≤
18
Shortened leads
(S = 2 / 2.5 / 3.5 / 5 / 7.5mm)
EKA 05...
4.5
±
0.5
10
≤
ØD
≤
18
Leads shortened and formed
(S = 5 / 7.5mm)
EKA 06...
2
±
0.2
4.5
±
0.5
5
≤
ØD
≤
8
Leads bent open, shortened
(S = 5mm)
EKA 09...
2
±
0.2
4.5
±
0.5
5
≤
ØD
≤
8
Leads bent open,
shortened and formed
(S = 5mm)
EKA 06...
2 max.
Leads are solder-coated steel
Safety vent for ØD
≥
8mm
DIMENSIONS
[in millimeters]
NOMINAL SIZE
DXL
5 x 11
6.3 x 11
8 x 11.5
10 x 12.5
10 x 16
10 x 20
13 x 20
13 x 25
16 x 25
16 x 31.5
16 x 35.5
18 x 35.5
18 x 40
Document Number 25014
Revision 20-Feb-01
MAXIMUM SIZE
D
max.
X L
max.
5.5 x 12.0
6.8 x 12.0
8.5 x 12.5
10.5 x 14.5
10.5 x 18.0
10.5 x 22.0
13.5 x 22.0
13.5 x 27.0
16.5 x 27.0
16.5 x 33.5
16.5 x 37.5
18.5 x 37.5
18.5 x 42.0
LEAD
ød
±
0.05
0.5
0.5
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
LEAD SPACING
S
±
0.05
2.0
2.5
3.5
5.0
5.0
5.0
5.0
5.0
7.5
7.5
7.5
7.5
7.5
www.vishay.com
15
EKA
Vishay Roederstein
TECHNICAL AND ORDERING INFORMATION
If not indicated otherwise the following test conditions apply to
all electrical parameters:
T
a
= 20°C, p = 80-120 kPa, RH = 45-75%
C
R
U
R
tan
δ
R
ESR
I
R
Rated Capacitance at 120Hz
Rated Voltage
Max. Dissipation Factor at 120Hz
Max. Equivalent Series Resistance at 120Hz
Rated Alternating Current at 120Hz and
Upper Category Temperature
Ordering example:
EKA 2200µF / 25V,
±20%,
size: 16mm x 25mm
Leads: Long - Ordering code: EKA 00JG422E00
Leads: Short (4.5mm
±
0.5) - Ordering code: EKA 05...
Leads: Bent open, shortened - Ordering code: EKA 09...
Leads: Bent open, shortened and formed
Ordering code: EKA 06...
ELECTRICAL CHARACTERISTICS, WEIGHT AND ORDERING CODE
CAPACITANCE
RATED
120Hz
VOLTAGE
CR
UR
[V]
[
µ
F]
DIMENSIONS
DxL
[mm]
DISSIPATION
FACTOR
120Hz
EQUIVALENT
SERIES
RESISTANCE
120Hz [
Ω
]
RATED
CURRENT IR
120Hz, 85
°
C
[mA]
WEIGHT
ORDERING CODE
[g]
1000
2200
3300
4700
6800
10000
15000
22000
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
8 x 11.5
10 x 20
10 x 20
13 x 20
13 x 25
16 x 25
16 x 35.5
18 x 40
0.28
0.30
0.33
0.35
0.40
0.46
0.56
0.70
0.45
0.22
0.16
0.12
0.09
0.07
0.06
0.05
567
1012
1197
1624
2001
2501
3160
3821
1.1
2.5
2.5
3.8
4.5
7.0
11.0
16.0
EKA00PB410B00
EKA00DE422B00
EKA00DE433B00
EKA00GE447B00
EKA00GG468B00
EKA00JG510B00
EKA00JL515B00
EKA00KK522B00
220
330
470
1000
2200
3300
4700
6800
10000
15000
10
10
10
10
10
10
10
10
10
10
5 x 11
6.3 x 11
6.3 x 11
10 x 12.5
10 x 20
13 x 20
13 x 25
16 x 25
16 x 35.5
18 x 35.5
0.24
0.24
0.24
0.24
0.26
0.29
0.31
0.36
0.42
0.52
1.74
1.16
0.81
0.38
0.19
0.14
0.11
0.08
0.07
0.06
212
298
356
712
1023
1509
1893
2362
3018
3529
0.5
0.8
0.8
1.5
2.5
3.8
4.5
7.0
11.0
13.0
EKA00AA322C00
EKA00BA333C00
EKA00BA347C00
EKA00DC410C00
EKA00DE422C00
EKA00GE433C00
EKA00GG447C00
EKA00JG468C00
EKA00JL510C00
EKA00KL515C00
100
220
330
470
1000
2200
3300
4700
6800
10000
16
16
16
16
16
16
16
16
16
16
5 x 11
6.3 x 11
8 x 11.5
8 x 11.5
10 x 16
13 x 20
13 x 25
16 x 25
16 x 31.5
18 x 35.5
0.20
0.20
0.20
0.20
0.20
0.22
0.25
0.27
0.32
0.38
3.18
1.45
0.97
0.68
0.32
0.16
0.12
0.09
0.07
0.06
157
267
386
460
854
1271
1750
2222
2715
3374
0.5
0.8
1.1
1.1
2.0
3.8
4.5
7.0
9.0
13.0
EKA00AA310D00
EKA00BA322D00
EKA00PB333D00
EKA00DC347D00
EKA00DD410D00
EKA00GE422D00
EKA00GG433D00
EKA00JG447D00
EKA00JS468D00
EKA00KL510D00
www.vishay.com
16
Document Number 25014
Revision 20-Feb-01
EKA
Vishay Roederstein
ELECTRICAL CHARACTERISTICS, WEIGHT AND ORDERING CODE
CAPACITANCE
120Hz
CR
[
µ
F]
RATED
VOLTAGE
UR
[V]
DIMENSIONS
DxL
[mm]
DISSIPATION
FACTOR
120Hz
EQUIVALENT
SERIES
RESISTANCE
120Hz [
Ω
]
RATED
CURRENT IR
120Hz, 85
°
C
[mA]
WEIGHT
ORDERING CODE
[g]
330
470
1000
2200
3300
4700
6800
25
25
25
25
25
25
25
8 x 11.5
10 x 12.5
10 x 20
13 x 25
16 x 25
16 x 31.5
18 x 35.5
0.16
0.16
0.16
0.18
0.21
0.23
0.28
0.77
0.54
0.25
0.13
0.10
0.08
0.07
431
598
1042
1615
2082
2592
3228
1.1
1.5
2.5
4.5
7.0
9.0
13
EKA00PB333E00
EKA00DC347E00
EKA00DE410E00
EKA00GG422E00
EKA00JG433E00
EKA00JS447E00
EKA00KL468E00
47
100
220
330
470
1000
2200
3300
4700
35
35
35
35
35
35
35
35
35
5 x 11
6.3 x 11
8 x 11.5
10 x 12.5
10 x 16
13 x 20
16 x 25
16 x 35.5
18 x 35.5
0.14
0.14
0.14
0.14
0.14
0.14
0.16
0.19
0.21
4.74
2.23
1.01
0.68
0.47
0.22
0.12
0.09
0.07
131
220
386
549
717
1340
1900
2519
3060
0.5
0.8
1.1
1.5
2.0
3.8
7.0
11.0
13.0
EKA00AA247F00
EKA00BA310F00
EKA00PB322F00
EKA00DC333F00
EKA00DD347F00
EKA00GE410F00
EKA00JG422F00
EKA00JL433F00
EKA00KL447F00
220
330
470
1000
2200
3300
50
50
50
50
50
50
10 x 12.5
10 x 16
10 x 20
13 x 25
16 x 35.5
18 x 35.5
0.12
0.12
0.12
0.12
0.14
0.17
0.87
0.58
0.41
0.19
0.10
0.08
472
633
825
1540
2253
2721
1.5
2.0
2.5
4.5
11.0
13.0
EKA00DC322H00
EKA00DD333H00
EKA00DE347H00
EKA00GG410H00
EKA00JL422H00
EKA00KL433H00
33
47
100
220
330
470
1000
63
63
63
63
63
63
63
5 x 11
6.3 x 11
8 x 11.5
10 x 16
10 x 20
13 x 20
16 x 25
0.10
0.10
0.10
0.10
0.10
0.10
0.10
4.83
3.39
1.59
0.72
0.48
0.34
0.16
142
169
291
549
733
1027
1812
0.5
0.8
1.1
2.0
2.5
3.8
7.0
EKA00AA233J00
EKA00BA247J00
EKA00PB310J00
EKA00DD322J00
EKA00DE333J00
EKA00GE347J00
EKA00JG410J00
10
22
33
47
100
220
330
470
100
100
100
100
100
100
100
100
5 x 11
6.3 x 11
8 x 11.5
10 x 12.5
10 x 20
13 x 25
16 x 25
16 x 25
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
13.0
5.79
3.86
2.71
1.27
0.58
0.39
0.27
72
124
178
247
431
819
1113
1328
0.5
0.8
1.1
1.5
2.5
4.5
7.0
7.00
EKA00AA210L00
EKA00BA222L00
EKA00PB233L00
EKA00DC247L00
EKA00DE310L00
EKA00GG322L00
EKA00JG333L00
EKA00JG347L00
4.7
10
22
33
47
100
220
330
160
160
160
160
160
160
160
160
6.3 x 11
10 x 12.5
10 x 16
10 x 20
13 x 20
13 x 25
16 x 31.5
18 x 35.5
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
51.0
24.0
11.0
7.24
5.08
2.39
1.09
0.72
48
95
155
207
290
462
832
1147
0.8
1.5
2.0
2.5
3.8
4.5
9.0
13.0
EKA00BA147M00
EKA00DC210M00
EKA00DD222M00
EKA00DE233M00
EKA00GE247M00
EKA00GG310M00
EKA00JS322M00
EKA00KL333M00
Document Number 25014
Revision 20-Feb-01
www.vishay.com
17
京公网安备 11010802033920号
EEWORLD
