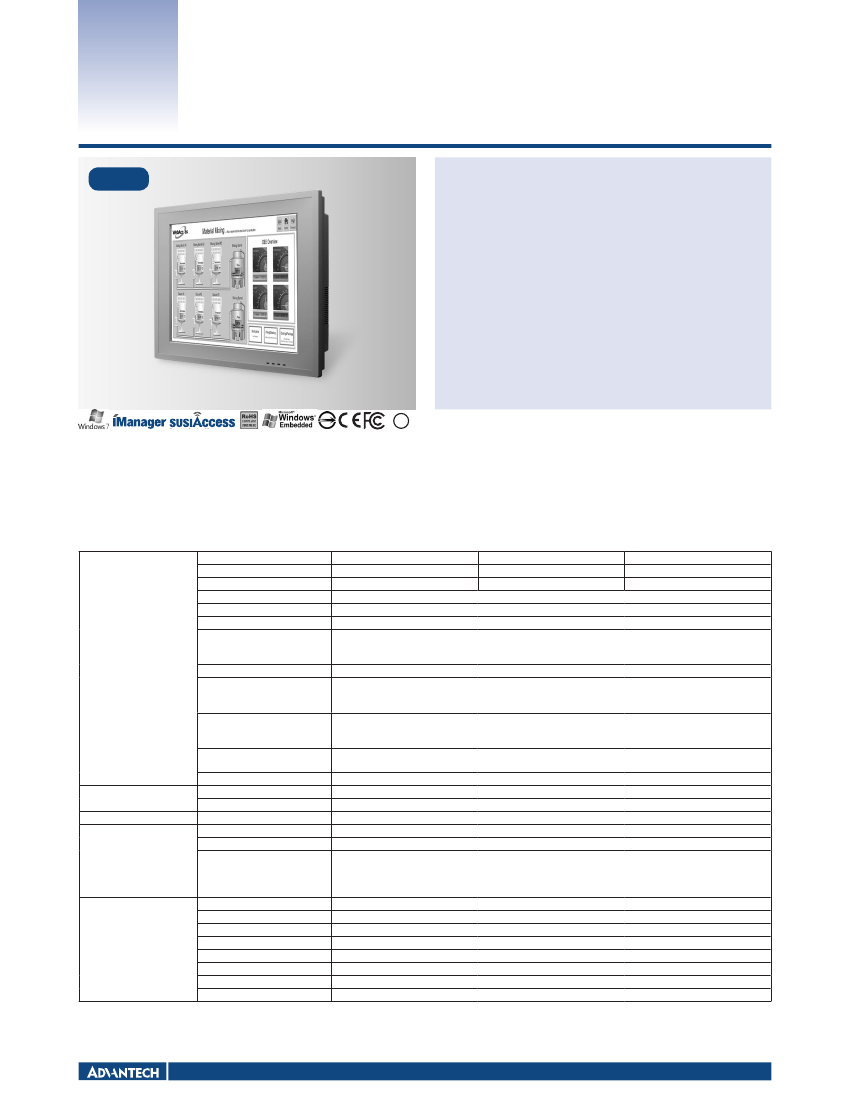

PPC-6170

NEW

17" Panel PC with Intel

Core™ i3 / i5 /

Celeron

Processor

Features

Intel

Core™ i3, i5, Celeron 1020E + Intel QM77 PCH

1X DDR3/DDR3L SODIMM support to 8 GB

Multiple expansion slots including one PCIe x4, one PCI + one PCIe x1, two

PCI (optional) and two PCIe x1 (optional)

Optional second HDD, supports Intel RAID

One isolated RS-232/422/485 port; (selectable in by BIOS)

One GPIO/RS-232 (8 channels, TTL level); (by swapping pin header)

Dual GbE, supports Intel AMT8.0

Supports iManager, SUSIAccess and Embedded Software APIs

Introduction

The PPC-6170 is a Panel PC with an Intel Core i3/i5 or Celeron processor, and a 17" color TFT LCD panel. It features extremely high computing power, modular design, excellent

connectivity, and can support virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Two expansion slots, dual hard drives

supporting Intel RAID, and one isolated RS-232/422/485 port make the PPC-6170 highly reliable, and provide a great solution for a wide range of applications.

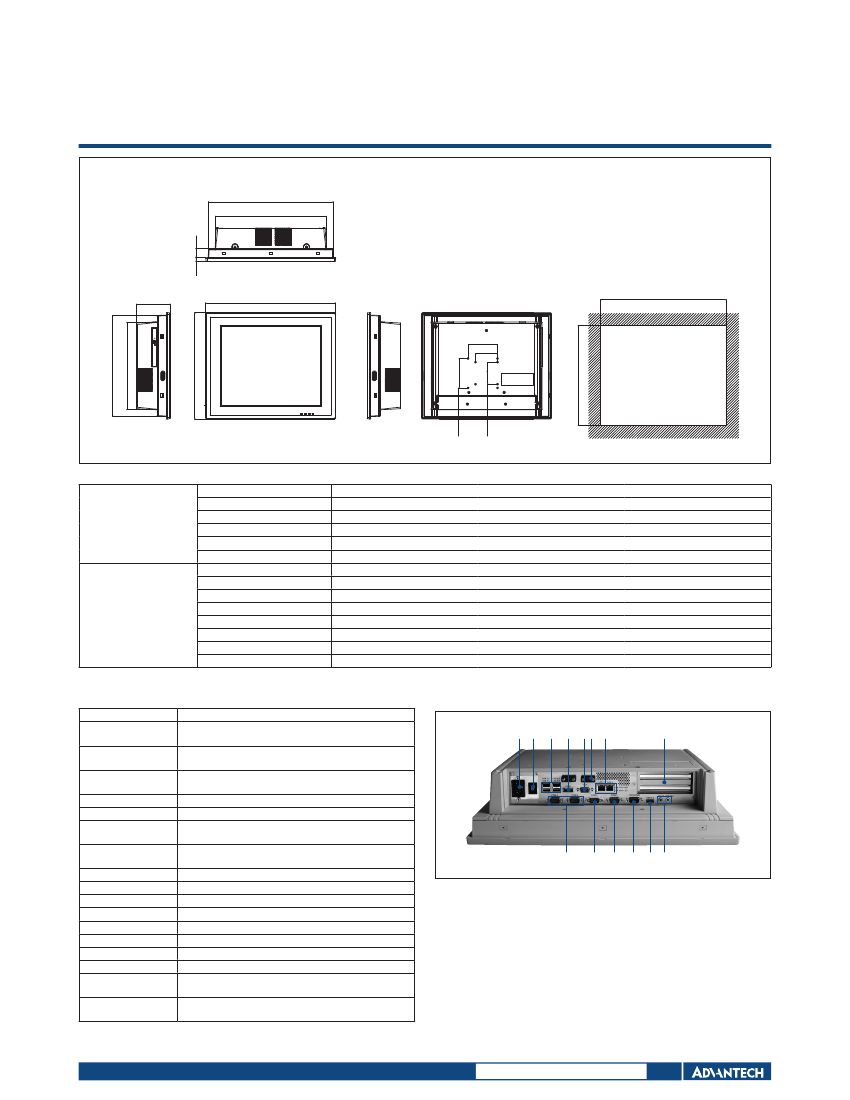

Specifications

Intel

Frequency

L3 Cache

Chipset

Memory

Storage 1

Storage 2

Processor System

Network (LAN)

I/O ports

Expansion Slots

Core i5-3610ME

Core i3-3120ME

Celeron 1020E

2.7 GHz

2.4 GHz

2.2 GHz

Intel QM77

1 x 204-pin SODIMM, DDR3 (1600 MHz) / DDRL (1333 MHz), supports up to 8 GB

1 x 2.5" SATA bay

Either one

Second 2.5" SATA bay (Intel RAID supported, optional)

Slim type 8X or above DVD +/- RW (optional)

2 x Gigabit Gigabit Ethernet connectors, Intel AMT supported (GbE1- Intel 82579LM, GbE2 – Intel 82583V)

4 x COM ports, 1 x isolated RS-232/422/485, 3 x RS-232

1 x GPIO/RS-232 (8 channels, TTL level); by pin header

3 x USB3.0 + 2 x USB2.0 ports

Either:

One PCI + one PCIe x1 (standard)

One x PCIe x 4 (in the accessory box)

1 x Full-size mini PCIe (Supports mSATA)

1 x half-size mini PCIe

Two 12V 60 x 60 x 13 (mm) with smart fan control, (70,000 hours continuous test @ 40° C)

442.0 x 362.0 x 113.5 (mm) (17.4" x 14.25" x 4.47")

7.5Kg (16.52lb)

Win XPE / Win XP Pro / WES7 32 & 64 bit / Windows 7 32 & 64 bit

150 W (max.)

100 - 240V

, 50/60Hz, 4-2A

With Core i5-3610ME is 65W

With Core i3-3120ME is 55W

With Celeron 847E is 53W

(Burn-in test 7.0 in Windows 7 32-bit)

17" TFT LCD (LED Backlight)

1280 x 1024

262K

0.264 x 0.264

85 (left), 85 (right), 80 (up), 80 (down)

350

1,000

50, 000 hrs (typical)

Additional Expansion

Physical Characteristics

OS Support

Fan

Dimensions

Weight

OS Support

Output Rating

Input Voltage

Power Consumption

Display Type

Max. Resolution

Colors

Dot Size (mm)

Viewing Angle

Luminance(cd/m2)

Contrast Ratio

Backlight Lifetime

Power Supply

LCD Display

Panel PCs

All product specifications are subject to change without notice

Last updated : 5-May-2015
