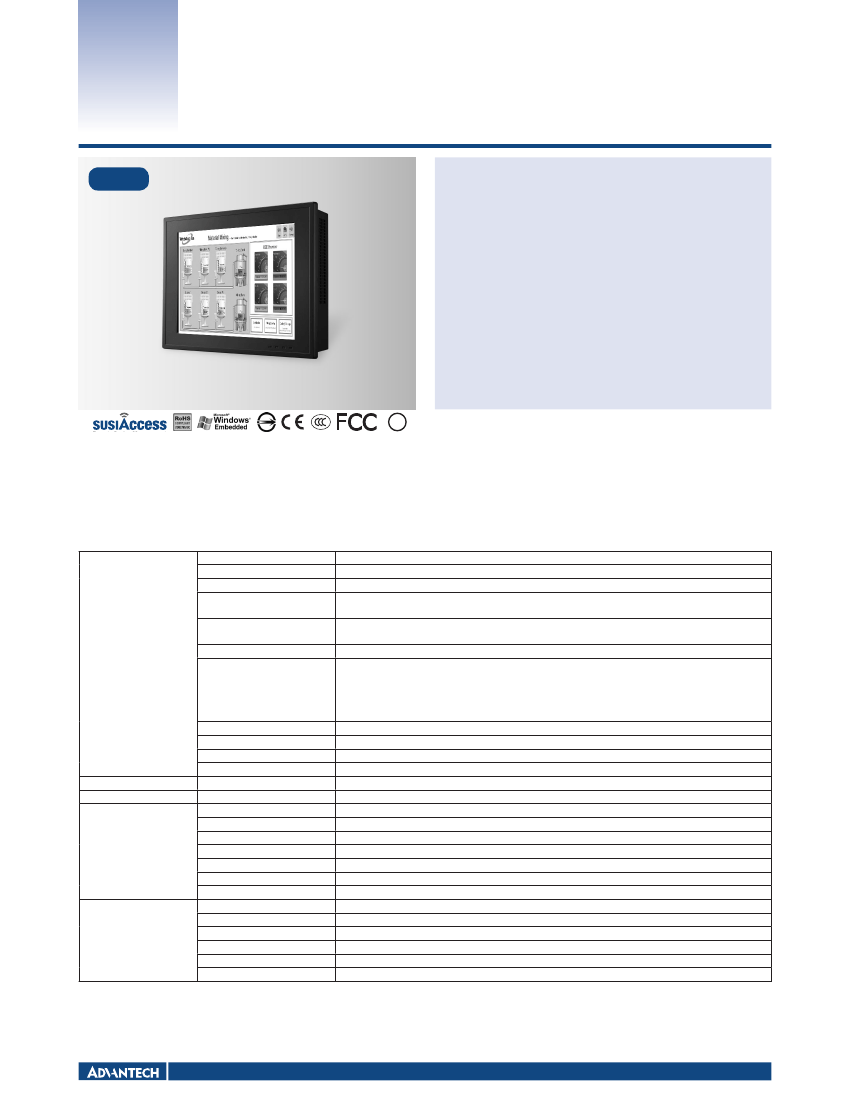

PPC-6120
NEW
12" Panel PC Supporting 4th Generation
Intel
®
Core™ i / Celeron
®
Processors
Features
12.1" TFT XGA LED Panel with resistive touchscreen
Supports 4th Generation Intel
®
Core™ i / Celeron
®
Processor
(Thermal Design Power: 35W/45W)
System memory supports 2 x 204-pin SODIMM DDR3/DDR3L total up to 16G
Supports 2 x Mini PCIe sockets, one is included mSATA function.
Optional one PCI/PCIe x1 expansion kit
Supports one isolated RS422/485 (terminal block)
1 x VGA and 1 x Display port
Dual GbE, supports Intel AMT9.0
LED backlight Auto dimming
C
UL
®
US
Introduction
The PPC-6120 is a 12" color TFT LCD Panel PC which supports 4th Generation Intel
®
Core™ i / Celeron
®
Processors. It features extremely high computing power, various connectors,
and can be installed in virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Four RS-232 ,one isolated RS422/485 and Dual
Gb Ethernet connectors support Intel AMT, one expansion slot make PPC-6120 highly reliable, and provides a great solution for versatile applications.
Specifications
CPU
Chipset
Memory
Storage
Bus Expansion
Processor System
Network (LAN)
I/O
Speaker
Watchdog Timer
Dimensions (W x H x D)
Weight
OS Support
Input Voltage
Display Type
Max. Resolution
Colors
Dot Size (mm)
Viewing Angle
Luminance (cd/m
2
)
Brightness Control
Touch Type
Resolution
Light Transmission
Controller
Software Driver Support
Durability (Touches)
4th Generation Intel
®
Core™ i / Celeron
®
Processor (Thermal Design Power: 35W/45W)
Intel Q87
Supports 2 x 204-pin SODIMM DDR3/DDR3L total up to 16G
2.5" SATA HDD bay x1
mSATA x1
1 x MiniPCIe (Standard)
1 x PCIe by 1 / 1 x PCI through riser (Optional)
2 x GbE, supports Intel AMT9.0
4 x USB3.0 (Ext.), 2 x USB2.0 (Int. pin head)
4 x RS-232 Serial ports, 1 x Isolated RS422/485 (1KV
DC
)
1 x Display Port 1.2
1 x DB15 VGA out
1 x Mic in, 1 x Line out
2 x 1W speakers
255 timer levels; setup by software
325 x 253.8 x 73.8
3.4KG
Win7(32bit and 64bit),Win8 (32bit and 64bit), Linux
DC 12 ~ 30 V
12.1" TFT LCD (LED Backlight)
1024 x 768
262K
0.24 x 0.24
80 (left), 80 (right), 70 (up), 70 (down)
600
Yes
Analog Resistive 5-wire
2048 x 2048
80+/-3%
RS-232 interface
Win7, Win8, Linux
36 million
OS Support
Power Supply
LCD Display
Touchscreen
Panel PCs
All product specifications are subject to change without notice
Last updated : 5-May-2015
PPC-6120

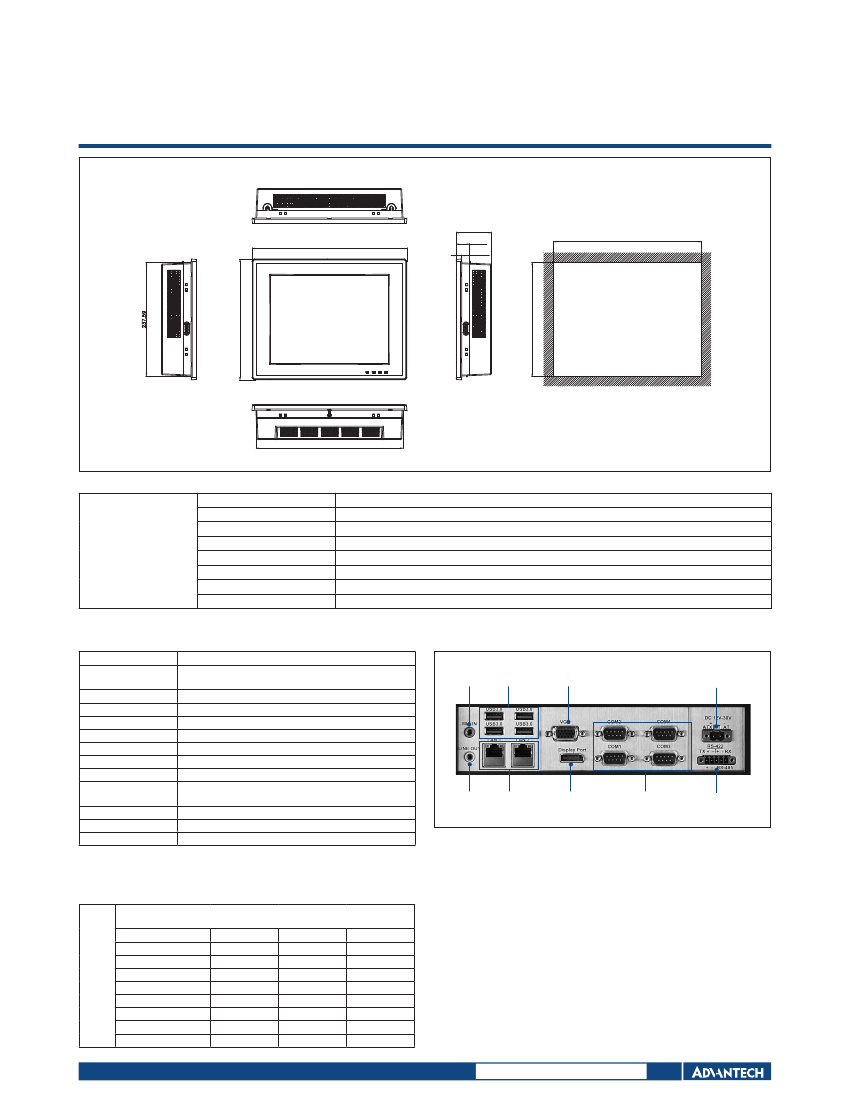

Dimensions
325.00
73.79
26.30
12.00
311.00
Unit: mm
253.80
240.00
CUT OUT
308.79
Environment
Operating Temperature
Storage Temperature
Relative Humidity
Shock
Vibration
EMC
Safety
Front Panel Protection
0 ~ 50°C (32 ~ 122°F)
-20 ~ 60°C (-4 ~ 140°F)
10 ~ 95% @ 40°C (non-condensing)
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64
BSMI, CE, FCC Class A
CB, CCC, BSMI, UL
IP65 compliant
Ordering Information
Description
12.1" 4th Generation Intel
®
Core™ i / Celeron Panel PC with
PPC-6120-RAE
Resi. T/S
1702002600
Power Cable UL/CSA (USA) 180D 125V10A 1.83M
1702002605
Power Cable 90D 220V EUROPEAN 250V/6A 1.8M
* PPC-174T-WL-MTE
Wall mount kit for PPC series
* PPC-ARM-A03
PPC ARM VESA Standard
* PPC-STAND-A1E
Stand For PPC Series (single acting hinge)
PPC-3100-VESAE
PPC-3100 VESA bracket module
PPC-WLAN-A1E
WiFi Module with Antenna Cable 28cm for PPC
Add-on box for PCI or PCIe expansion (include PCI / PCIe
PPC-6120-EXPE
riser card)
PS-DC19-150AE
19V DC 150W Power Adapter Module For PPC Product
2070012966
Image WES7P 32-bit Multi V4.12 PPC-6120
2070013226
Image WES7P 64-bit Multi V4.12 PPC-6120
* if you order Wall mount kit / ARM / Desktop stand, please also order PPC-3100-VESAE at
the same time.
Part No.
I/O
A
C
E
H
B
D
F
G
I
Supported CPUs
4th Generation Intel
®
Core™ i / Celeron
®
Processor
(Thermal Design Power: 35W/45W)
Type
Frequency
Cache
I7-4770TE
2.3GHz
8M
I5-4570TE
2.7GHz
4M
I3-4330TE
2.4GHz
4M
PENTIUM-G3320TE
2.3GHz
3M
Celeron-1820TE
2.2GHz
2M
I5-4590T
2.0GHz
6M
I3-4350T
3.1GHz
4M
I3-4340TE
2.6GHz
4M
TDP
45W
35W
35W
35W
35W
35W
35W
35W
A. MIC in
B. Line Out
C. USB 3.0 x 4
D. 10/100/1000 Mbps Ethernet x 2
E. VGA Port
F. Display Port
G. COM RS-232 x 4
H. DC Inlet
I. COM RS-422/485
CPU
