P. 70, P. 100, P. 140, P. 200
Vishay Draloric

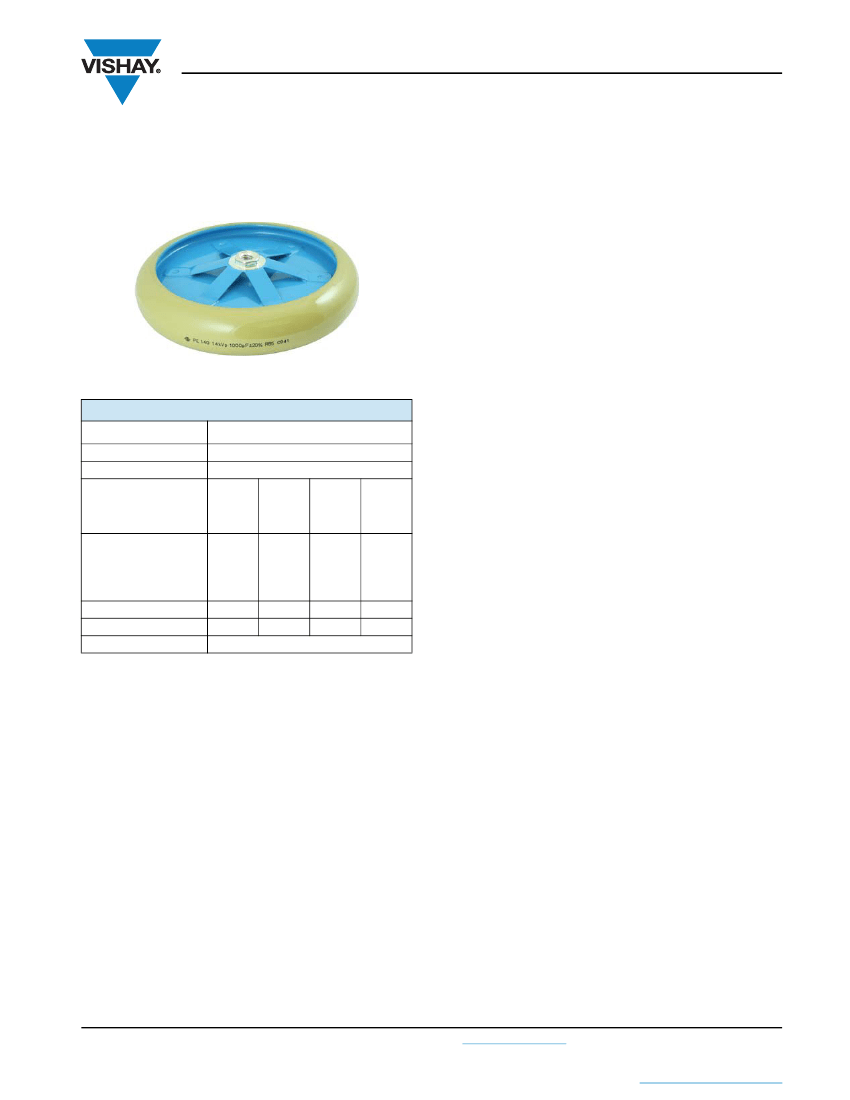

RF Power Plate Capacitors with Contoured Rim,
Class 1 Ceramic
FEATURES
• Low losses
• High reliability
• Wide range of capacitance values
APPLICATIONS
• Induction and dielectric heating
• Antenna units
• Filter, bypass and coupling circuits
CAPACITANCE RANGE
25 pF to 6.0 nF
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Type
PA 100
PC 100
PD 100
PE 100
11 000,
13 000,
14 000,
15 000
50
1600
VALUE
1
R7, R16, R42, R85, R230
PA 70
PC 70
PD 70
11 000,
12 000,
13 000,
14 000
25
800
PA 140
PC 140
PD 140
PE 140
12 000,
13 000,
14 000,
15 000,
16 000
100
3000
PA 200
PC 200
PD 200
PE 200
12 000,
13 000,
14 000,
15 000
160
6000
CAPACITANCE TOLERANCE
10 pF: ± 2 pF; ± 1 pF; ± 0.5 pF
10 pF: ± 20 %; ± 10 %; ± 5 %
CERAMIC DIELECTRIC
• R7 (TCC + 100 ppm/K)
• R16 (TCC + 100 ppm/K)
• R42 (TCC - 250 ppm/K)
• R85 (TCC - 750 ppm/K)
• R230 (TCC - 750 ppm/K)
Voltage (V
p
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
RATED VOLTAGE
• 11 kV
p
• 12 kV
p
• 13 kV
p
• 14 kV
p
• 15 kV
p
• 16 kV
p
Screw terminal/band terminal
MATERIAL
Capacitor elements made from Class 1 ceramic dielectric
with noble metal electrodes.
Flexible connection terminals made from copper/brass,
silver plated, to allow for series and parallel interconnection
DIELECTRIC STRENGTH TEST
200 % of rated voltage, 50 Hz
FINISH
Noble metal electrodes and terminals are protective
lacquered. The contoured insulating rim is additionally
glazed
DISSIPATION FACTOR
R7:
R16:
R42, R85, R230:
Max. 0.07 %
Max. 0.04 %
Max. 0.05 %
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo.
Measuring frequencies:
1 MHz (< 1 nF); 300 kHz or 100 kHz ( 1 nF)
ACCESSORIES ADDED
Two screws and washers (PD, PE)
INSULATION RESISTANCE
Min. 10 000 M (at 25 °C)
OPERATING TEMPERATURE RANGE
- 55 °C to + 100 °C
Document Number: 22082
Revision: 10-May-11
For technical questions, contact:
powcap@vishay.com
www.vishay.com
1
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P. 70, P. 100, P. 140, P. 200
Vishay Draloric
RF Power Plate Capacitors with Contoured Rim,
Class 1 Ceramic
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
CERAMIC
CAP.
VALUES
(pF)
RATED
VOLTAGE
(kV
P
)
RATED
POWER
(1)
(kvar)
RATED
CURRENT
(A
RMS
)
PD
PA, PC
TYPE P. 70
P#0070WJ250##BF1
P#0070WJ300##BF1
P#0070WJ400##BG1
P#0070WJ500##BG1
P#0070WJ600##BG1
P#0070WF800##BG1
P#0070WJ101##BH1
P#0070WH121##BH1
P#0070WH161##BH1
P#0070WJ201##BJ1
P#0070WJ251##BJ1
P#0070WJ301##BJ1
P#0070WH401##BJ1
P#0070WH501##BJ1
P#0070WF601##BJ1
P#0070WE801##BJ1
R85
R42
R16
R7
25
30
40
50
60
80
100
120
160
200
250
300
400
500
600
800
20
13
12
11
14
12
14
13
20
16
10
14
20
14
15
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
CERAMIC
CAP.
VALUES
(pF)
RATED
VOLTAGE
(kV
P
)
RATED
POWER
(1)
(kvar)
RATED
CURRENT
(A
RMS
)
PE
PD
PA, PC
TYPE P. 100
P#0100BJ500##BF1
P#0100BJ600##BF1
P#0100BJ800##BG1
P#0100BJ101##BG1
P#0100BJ121##BG1
P#0100WH161##BG1
P#0100BJ201##BH1
P#0100WJ251##BH1
P#0100WH301##BH1
P#0100WJ401##BJ1
P#0100WJ501##BJ1
P#0100WJ601##BJ1
P#0100WJ801##BJ1
P#0102WH102##BJ1
P#0100WH122##BJ1
P#0100WE162##BJ1
R85
R42
R16
R7
50
60
80
100
120
160
200
250
300
400
500
600
800
1000
1200
1600
13
11
14
40
13
15
14
13
40
35
25
15
15
40
15
30
Notes
• # 2
nd
digit: Code letter of terminal version A, C, D, E
• ## 14
th
to 15
th
digit: Capacitance tolerance code ± 20 % = 38; ± 10 % = 36; ± 5 % = 33
(1)
The surface temperature during operation must not exceed + 100 °C
www.vishay.com
2
For technical questions, contact:
powcap@vishay.com
Document Number: 22082
Revision: 10-May-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P. 70, P. 100, P. 140, P. 200
RF Power Plate Capacitors with Contoured Rim,
Class 1 Ceramic
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
CERAMIC
CAP.
VALUES
(pF)
RATED
VOLTAGE
(kV
P
)
RATED
POWER
(1)
(kvar)
RATED
CURRENT
(A
RMS
)
PE
PD
PA, PC
Vishay Draloric
TYPE P. 140
P#0140BJ101##BF1
P#0140BJ121##BF1
P#0140BJ161##BG1
P#0140BJ201##BG1
P#0140BJ251##BG1
P#0140WJ301##BG1
P#0140BJ401##BH1
P#0140WJ501##BH1
P#0140WH601##BH1
P#0140WH801##BH1
P#0140WJ102##BJ1
P#0140WJ122##BJ1
P#0140WJ162##BJ1
P#0140WH202##BJ1
P#0140WH252##BJ1
P#0140WF302##BJ1
P#0140WL302##BK1
R7
100
120
160
200
250
300
400
500
600
800
1000
1200
1600
2000
2500
3000
3000
15
67.5
R16
15
90
14
15
14
13
R42
90
45
30
20
14
90
13
12
16
R85
R230
90
45
(2)
(2)
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
CERAMIC
CAP.
VALUES
(pF)
RATED
VOLTAGE
(kV
P
)
RATED
POWER
(1)
(kvar)
RATED
CURRENT
(A
RMS
)
PE
PD
PA, PC
TYPE P. 200
P#0200BJ161##BF1
P#0200BJ201##BF1
P#0200BJ251##BF1
P#0200WJ301##BF1
P#0200WF401##BF1
P#0200BJ501##BG1
P#0200BJ601##BG1
P#0200BJ801##BH1
P#0200WJ102##BH1
P#0200WJ122##BH1
P#0200WJ162##BH1
P#0200WJ202##BJ1
P#0200WJ252##BJ1
P#0200WJ302##BJ1
P#0200WH402##BJ1
P#0200WH502##BJ1
P#0200WF602##BJ1
160
200
250
300
400
500
600
800
1000
1200
1600
2000
2500
3000
4000
5000
6000
15
112
14
12
15
15
14
150
150
60
40
25
R7
R16
R42
14
150
13
12
R85
Notes
• # 2
nd
digit: Code letter of terminal version A, C, D, E
• ## 14
th
to 15
th
digit: Capacitance tolerance code ± 20 % = 38; ± 10 % = 36; ± 5 % = 33
(1)
The surface temperature during operation must not exceed + 100 °C
(2)
Only PE type available
Document Number: 22082
Revision: 10-May-11
For technical questions, contact:
powcap@vishay.com
www.vishay.com
3
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P. 70, P. 100, P. 140, P. 200
Vishay Draloric
RF Power Plate Capacitors with Contoured Rim,
Class 1 Ceramic

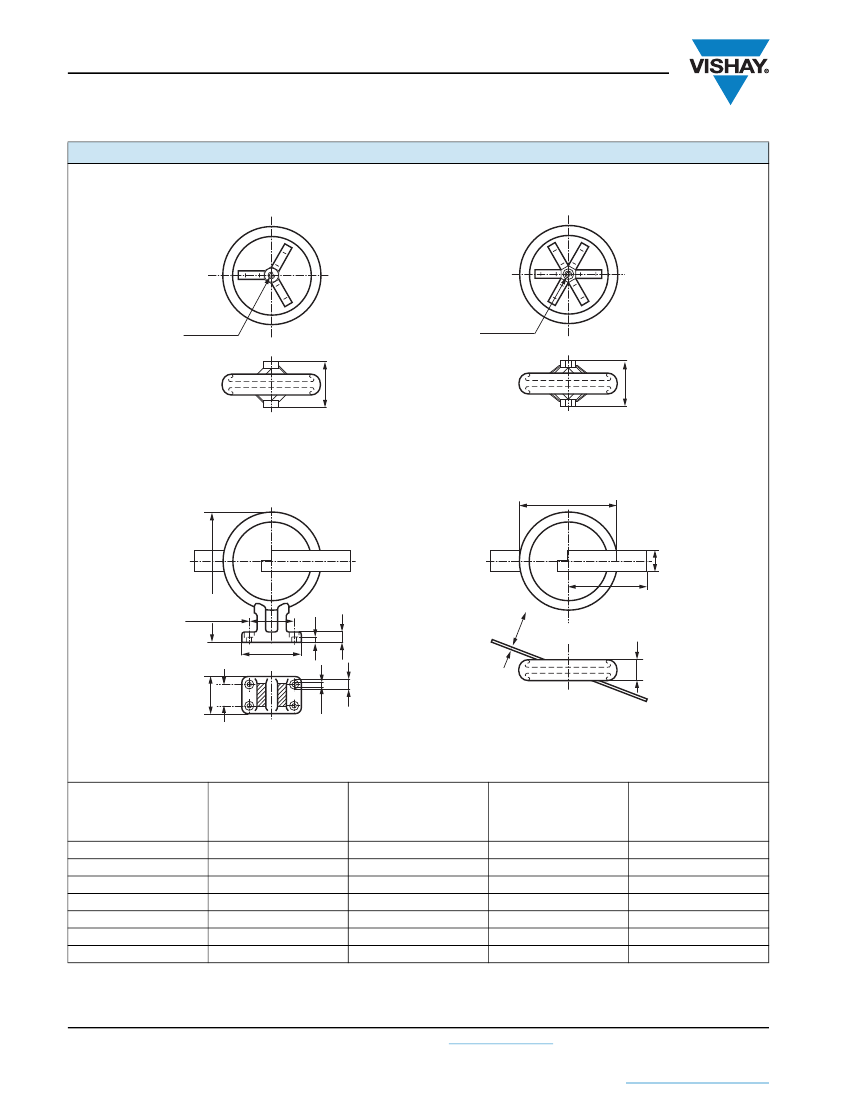

DIMENSIONS
in millimeters (inches)
PD
PE
Thread
size
3 finger terminals
Thread
size
6 finger terminals
W
1
W
1
not available as PE 70
Band terminals and ceramic base
D
PC
PA
L
2
H
66 ± 2
(2.60 ± 0.08)
5.0
(0.2)
10 (0.39)
85
30 ± 1
(1.18 ± 0.04) (3.35)
13 (0.51)
50 (1.97)
6.4 + 0.4
(0.25 + 0.02)
L
1
0.3
(0.012)
Band terminals
W
2
TYPE
PA 70
PC 70
PD 70
(2)
PA 100
PC 100
PD 100
PE 100
100 (3.52)
M8
40 ± 1 (1.58 ± 0.04)
30 (1.81)
146 (5.75)
140 (5.51)
30 (1.18)
PA 140
PC 140
PD 140
PE 140
140 (5.51)
M8
40 ± 1 (1.58 ± 0.04)
30 (1.81)
186 (7.32)
140 (5.51)
30 (1.18)
PA 200
PC 200
PD 200
PE 200
200 (7.87)
M10
45 ± 1 (1.77 ± 0.04)
32 (1.26)
246 (9.69)
200 (7.87)
30 (1.18)
Diameter D
max.
Thread size
Width W
1
Width W
2
Height H
Length L
1
Length L
2
(1)
70 (2.76)
M6
35 ± 1 (1.38 ± 0.04)
30 (1.81)
116 (4.57)
100 (3.94)
15 (0.59)
Notes
(1)
Dimension W will vary depending upon capacitance
2
(2)
Type PE 70 is not available
www.vishay.com
4
For technical questions, contact:
powcap@vishay.com
Document Number: 22082
Revision: 10-May-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
