DLP2ADN201HL4B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> DLP2ADN201HL4B

DLP2ADN201HL4B: Description4 FUNCTIONS, 5 V, 0.15 A, DATA LINE FILTER; CategoryAnalog mixed-signal IC filter; File Size468KB，9 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

DLP2ADN201HL4B Overview

4 FUNCTIONS, 5 V, 0.15 A, DATA LINE FILTER

DLP2ADN201HL4B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	EIA STD PACKAGE SIZE 0804, 8 PIN
Reach Compliance Code	compli
ECCN code	EAR99
Samacsys Descripti	DLP2ADN_L4B Series EMI Suppression Filter 200Ω at 100MHz 90mA 5V
Other features	BAG
Maximum DC resistance	3.2 Ω
filter type	DATA LINE FILTER
high	0.82 mm
Minimum insulation resistance	100 MΩ
length	2 mm
Installation type	SURFACE MOUNT
Number of functions	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance	200 OHM Ω
method of packing	BULK
physical size	L2.0XB1.0XH0.82 (mm)/L0.079XB0.039XH0.032 (inch)
Rated current	0.09 A
Rated voltage	5 V
width	1 mm

Preview

Download Datasheet

View All

Reference Only

Spec No.JEFL243E-0010E-01

P1/9

Chip Common Mode Choke Coil Arrays

DLP2ADA□□□HL4□

1.Scope

2.Part Numbering

Ａ

900

H L

(1)

(2) (3) (4)

(5)

(6)

(7) (8)

(1) Chip Common Mode Choke Coil

(2) Structure (P : Film Type)

(3) Dimension (L×W)

(4) Type

(5) Category: A:High Cut off Frequency 6~8GHz(Typ.)

(ex.)

Reference Specification

This reference specification applies to Chip Common Mode Choke Coil Arrays DLP2ADA Series.

(9) (10)

(6) Impedance (Typ. at 100MHz)

(7) Circuit (H : Characteristic Impedance 100Ω system)

(8) Features

(9) Number of Line

(10) Packaging Code

L : Taping / B : Bulk

3.Rating

Customer

Part Number

Murata

Part Number

Common Mode Impedance

Rated

Withstanding

(at 100MHz, Under

Voltage Voltage

Standard Testing Condition)

Rated

Current

Resistance

Insulation

Resistance

DLP2ADA350HL4L

DLP2ADA350HL4B

DLP2ADA670HL4L

DLP2ADA670HL4B

DLP2ADA900HL4L

DLP2ADA900HL4B

35Ω±20%

67Ω±20%

90Ω±20%

Storage Temperature

5V(DC) 12.5V(DC)

150mA 0.8Ω±25%

130mA 1.0Ω±25%

120mA 1.4Ω±25%

: -40 to +85°C

100MΩ

min.

Operating Temperature : -40 to +85°C

4. Standard Testing Conditions

Unless otherwise specified>

Temperature : Ordinary Temperature 15 to 35°C

Humidity : Ordinary Humidity 25 to 85%(RH)

In case of doubt>

Temperature : 20 ± 2°C

Humidity : 60 to 70%(RH)

Atmospheric Pressure : 86 to106kPa

5.Style and Dimensions

0.5±0.1

0.25±0.1

0.82±0.1

■

Equivalent Circuits

(1)

(2)

(3)

(4)

0.25±0.15

1.0±0.1

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(6)

(7)

(8)

No polarity.

□ ：

Electrode

(in mm)

2.0±0.1

■

Unit Mass(Typical value)

0.009g

6.Marking

No Marking.

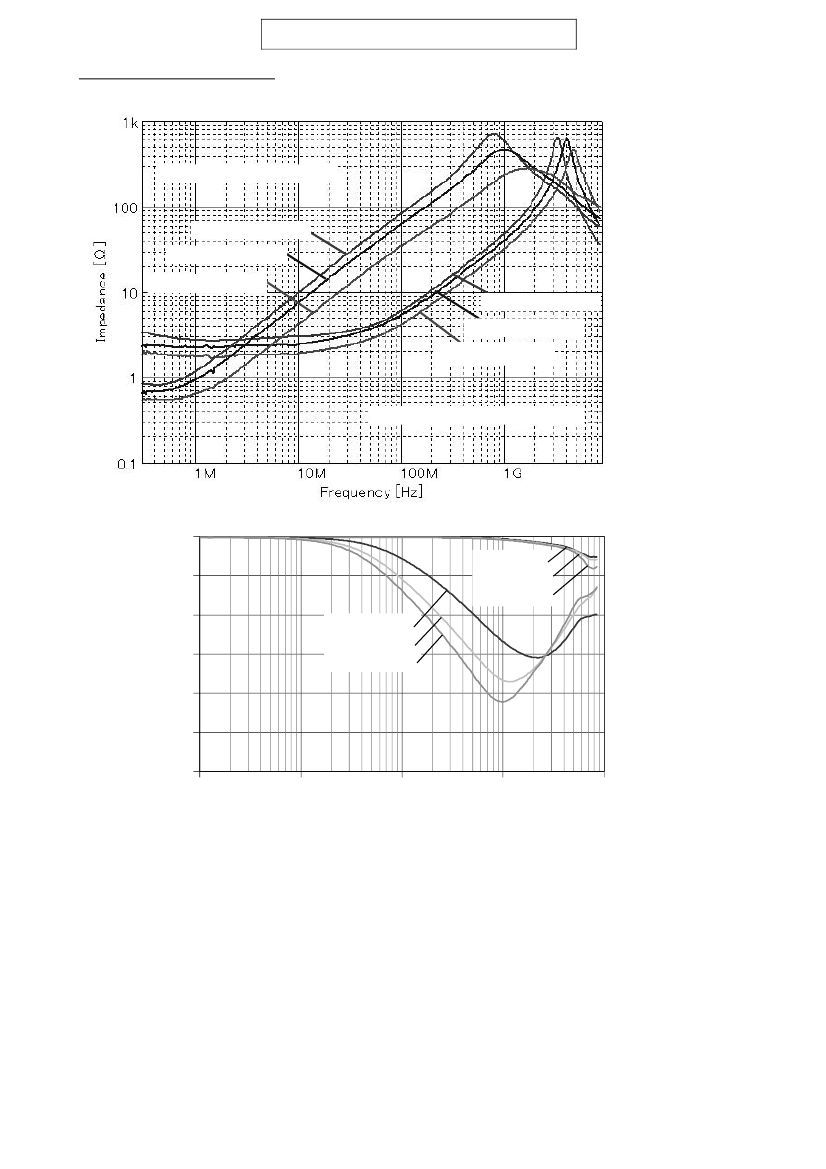

MURATA MFG.CO.,LTD

DLP2ADN201HL4B Related Products

	DLP2ADN201HL4B	DLP2ADN121HL4B	DLP2ADN281HL4B	DLP2ADN900HL4B	DLP2ADN670HL4B	DLP2ADA900HL4B	DLP2ADA670HL4B	DLP2ADA350HL4B	DLP2ADN161HL4B	DLP2ADN241HL4B
Description	4 FUNCTIONS, 5 V, 0.15 A, DATA LINE FILTER	4 FUNCTIONS, 5 V, 0.15 A, DATA LINE FILTER	4 FUNCTIONS, 5 V, 0.15 A, DATA LINE FILTER	4 FUNCTIONS, 5 V, 0.15 A, DATA LINE FILTER	4 FUNCTIONS, 5 V, 0.15 A, DATA LINE FILTER	4 FUNCTIONS, 5 V, 0.15 A, DATA LINE FILTER	4 FUNCTIONS, 5 V, 0.15 A, DATA LINE FILTER	4 FUNCTIONS, 5 V, 0.15 A, DATA LINE FILTER	4 FUNCTIONS, 5 V, 0.15 A, DATA LINE FILTER	4 FUNCTIONS, 5 V, 0.15 A, DATA LINE FILTER
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BAG	BAG	BAG	BAG	BAG	BAG	BAG	BAG	BAG	BAG
Maximum DC resistance	3.2 Ω	2 Ω	4.6 Ω	1.7 Ω	1.3 Ω	1.4 Ω	1 Ω	0.8 Ω	2.5 Ω	3.8 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	0.82 mm	0.82 mm	0.82 mm	0.82 mm	0.82 mm	0.82 mm	0.82 mm	0.82 mm	0.82 mm	0.82 mm
Minimum insulation resistance	100 MΩ	100 MΩ	100 MΩ	100 MΩ	100 MΩ	100 MΩ	100 MΩ	100 MΩ	100 MΩ	100 MΩ
length	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	4	4	4	4	4	4	4	4	4	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output impedance	200 OHM Ω	120 OHM Ω	280 OHM Ω	90 OHM Ω	67 OHM Ω	90 OHM Ω	67 OHM Ω	35 OHM Ω	160 OHM Ω	240 OHM Ω
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
physical size	L2.0XB1.0XH0.82 (mm)/L0.079XB0.039XH0.032 (inch)	L2.0XB1.0XH0.82 (mm)/L0.079XB0.039XH0.032 (inch)	L2.0XB1.0XH0.82 (mm)/L0.079XB0.039XH0.032 (inch)	L2.0XB1.0XH0.82 (mm)/L0.079XB0.039XH0.032 (inch)	L2.0XB1.0XH0.82 (mm)/L0.079XB0.039XH0.032 (inch)	L2.0XB1.0XH0.82 (mm)/L0.079XB0.039XH0.032 (inch)	L2.0XB1.0XH0.82 (mm)/L0.079XB0.039XH0.032 (inch)	L2.0XB1.0XH0.82 (mm)/L0.079XB0.039XH0.032 (inch)	L2.0XB1.0XH0.82 (mm)/L0.079XB0.039XH0.032 (inch)	L2.0XB1.0XH0.82 (mm)/L0.079XB0.039XH0.032 (inch)
Rated current	0.09 A	0.12 A	0.08 A	0.13 A	0.14 A	0.12 A	0.13 A	0.15 A	0.1 A	0.08 A
Rated voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
width	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-	-	-	Lead free	Lead free
