SERIES:
SJ1-351X
│

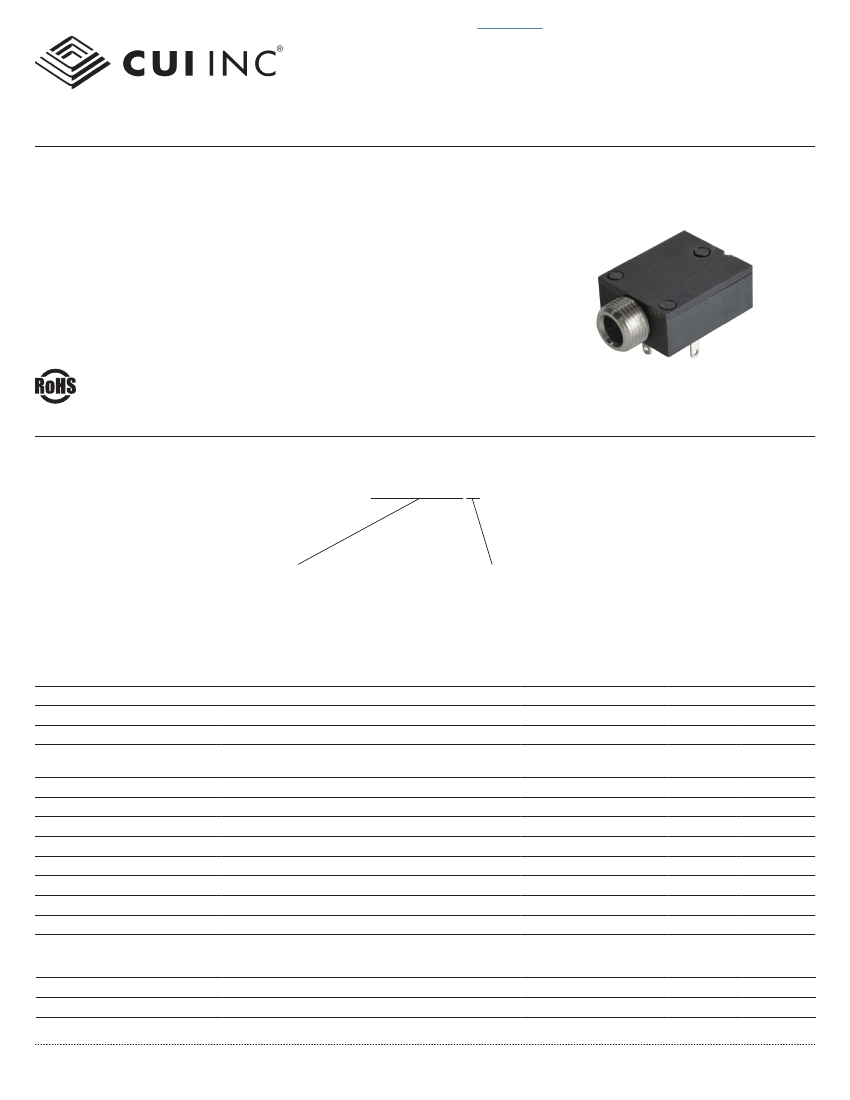

DESCRIPTION:
3.5 MM AUDIO JACKS
FEATURES
• low profile design
• threaded with nut
• switch options include:
– no switch
– tip switch
– tip and ring switch
PART NUMBER KEY
SJ1 - 351
X
Base Number
Switch Options:
3 = no switch
4 = tip switch
5 = tip and ring switch
SPECIFICATIONS
parameter
rated input voltage
rated input current
contact resistance
1
insulation resistance
voltage withstand
insertion/withdrawal force
terminal strength
operating temperature
life
flammability rating
RoHS
Notes:
conditions/description
min
typ
12
max
1
units
Vdc
A
mΩ
mΩ
MΩ
Vac
kg
g
°C
cycles
between terminal and mating plug
between terminal in a closed circuit
at 500 Vdc
at 50/60 Hz for 1 minute
0.3
any direction for 10 seconds
-25
5,000
UL94V-0
2011/65/EU
100
50
30
500
3
500
85
1. When measured at a current of less than 100 mA / 1 kHz
SOLDERABILITY
parameter
wave soldering
conditions/description
dipped in solder pot for 5±0.5 seconds at
min
255
typ
260
max
265
units
°C
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
SJ1-351X
│
DESCRIPTION:
3.5 MM AUDIO JACKS
date
04/19/2017
│
page
3 of 4

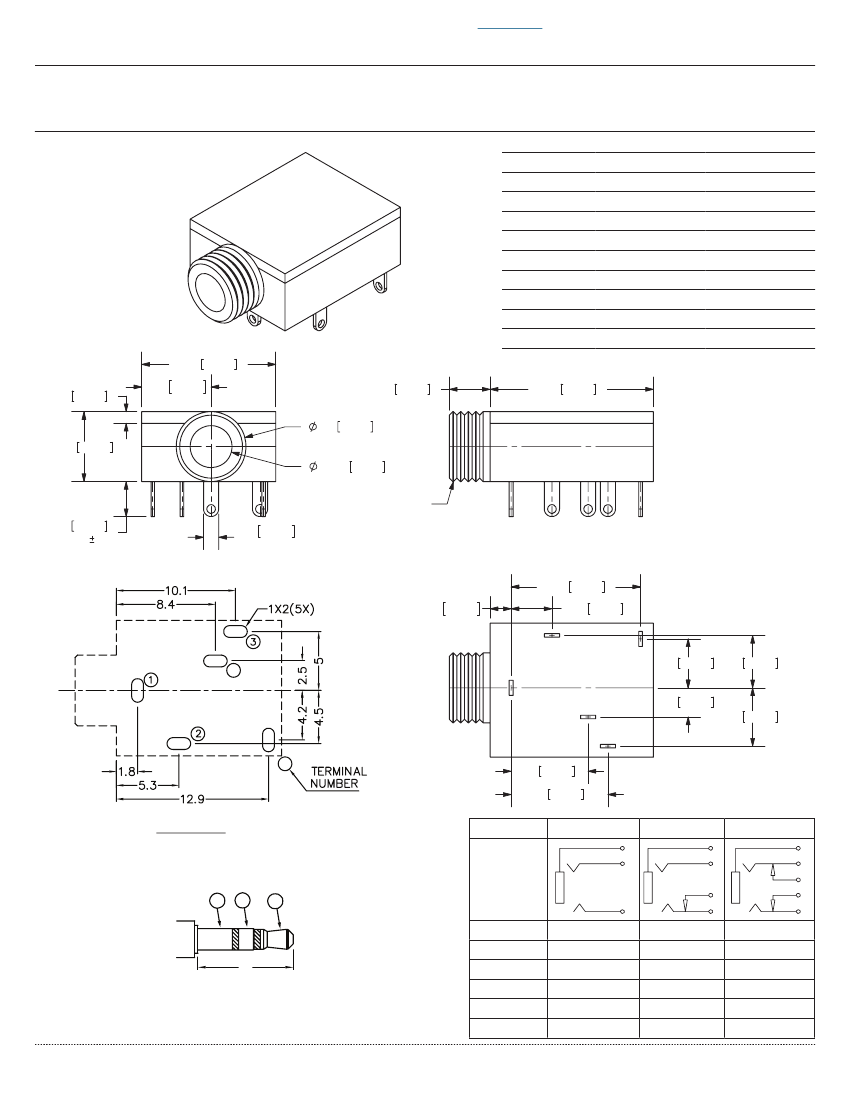

MECHANICAL DRAWING (CONTINUED)
units: mm[inches]
TOLERANCE:
±0.1mm
M6X0.5
8.0 0.315
0.6 0.024
+0.2
-0.1
1.5 0.059
0.8 0.031
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
SJ1-351X
│
DESCRIPTION:
3.5 MM AUDIO JACKS
date
04/19/2017
│
page
4 of 4
REVISION HISTORY
rev.
1.0
1.01
1.02
1.03
description
initial release
new template applied

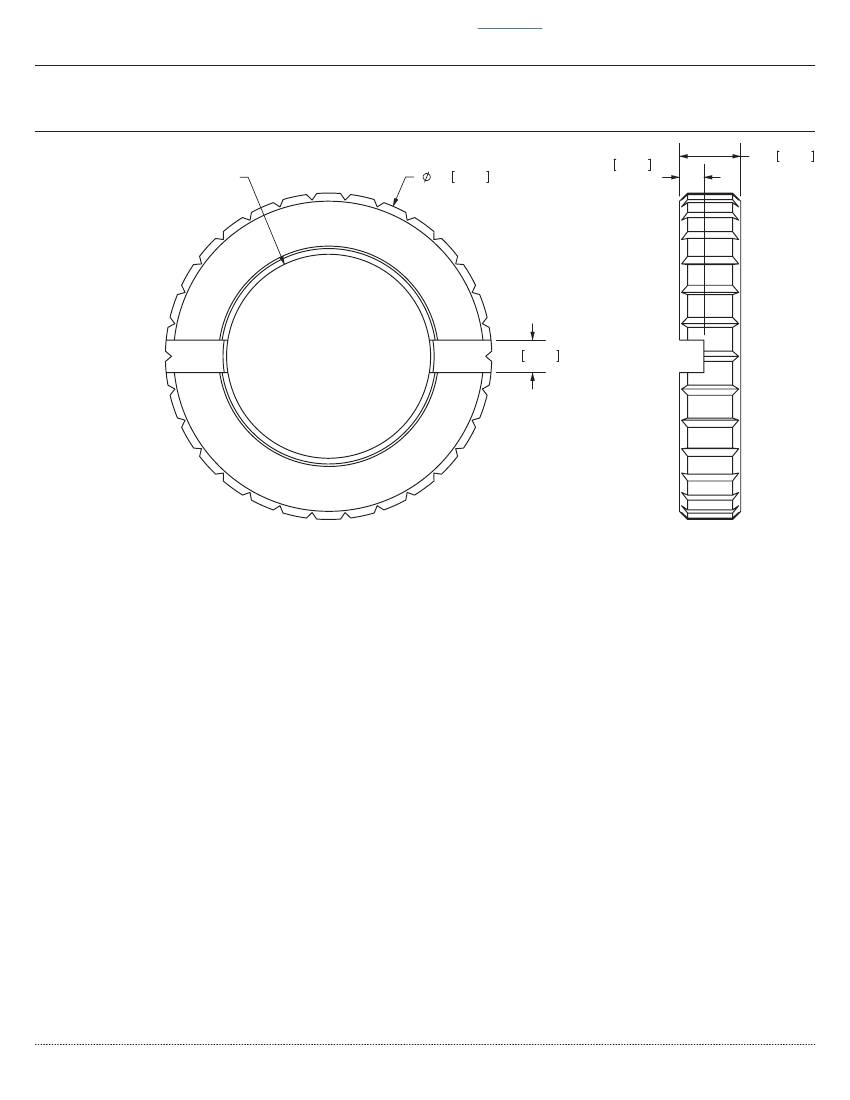

nut drawing added
changed top cover to PBT
date
09/06/2006
09/10/2011
01/25/2012
04/19/2017
The revision history provided is for informational purposes only and is believed to be accurate.
Headquarters
20050 SW 112th Ave.
Tualatin, OR 97062
800.275.4899
CUI offers a one (1) year limited warranty. Complete warranty information is listed on our website.
Fax 503.612.2383
cui.com
