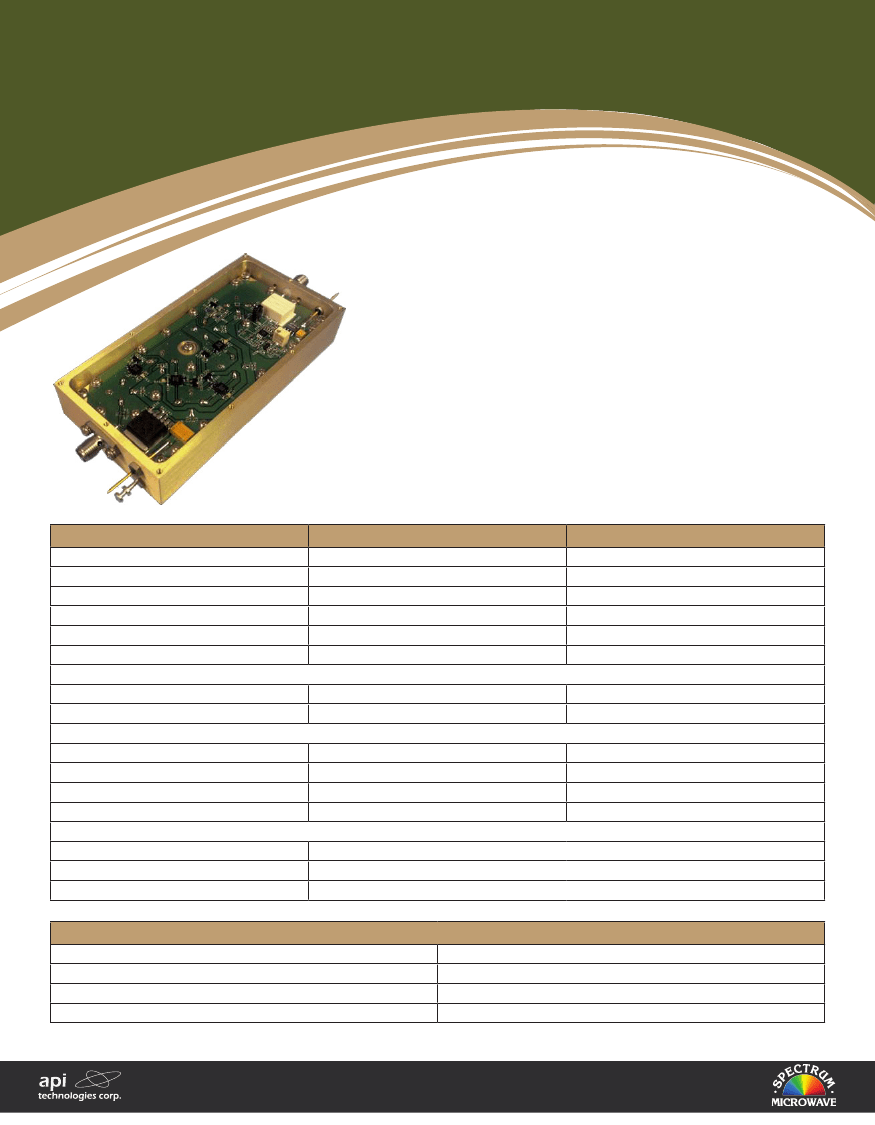

Automatic Gain Controlled Amplifier
500-800 MHz
Model BXMF1042
FEATURES
• Automatic Output Control
• Wide Bandwidth
• High RF Input Damage Protection
• Group Delay +/- 1 ns
The Model BXMF1042 allows the user to anticipate receiver power
levels and automatically adjust the output power to a desired level.
With optional gain stages from 25 to 40 dB, this modular family of
Low Phase Noise AGCs can be used for multiple applications from 50
MHz to 2000 MHz. Designed for rugged military environments, these
units can be customized with an optional time delay adjustment
feature as well as a phase modulation compression to accommodate
for peak power variations. These AGCs are also designed to
minimize group delay with Group Delay performance of as low as
+/-1 ns typical.
Parameter
Frequency Range
Nominal Output Power
Input Dynamic Range
Noise Figure
1 dB Compression Point
Aquisition Time (10% / 90% rise time)
Input VSWR
Output VSWR
Supply Voltage
Supply Current
Secondary Supply Voltage
Secondary Supply Current
Housing Size
RF Connectors
Operate Case Temp. (Min. / Max. Values)
Typical
500-800 MHz
0 dBm
-45 to 0 dBm
6 dB
17 dBm
250 µs
1.75:1
1.75:1
+15 volts
1500 mA
+5 volts
100 mA
4.00” L x 2.00” W x 0.780” H
Gold Plated Pins or SMA Female
-40°C to +85°C
Min. / Max.
500-800 MHz
0 dBm
-45 to 0 dBm
7 dB
17 dBm
250 µs
2.0:1
2.0:1
+15 volts
1500 mA
+5 volts
100 mA
Maximum (No Damage) Ratings
Storage Temperature
Operating Temperature (Case)
DC Voltage @ 25°C
Input Drive @ 25°C
-65°C to +125°C
-40°C to +85°C
+18 VDC / 8 VDC
+24 dBm
Rev 2.24.12
apitech.com
• 888.553.7531 •
spectrummicrowave.com
Automatic Gain Controlled Amplifier
500-800 MHz
Model BXMF1042
Customization and Options
Products in this new AGC amplifier line can be customized
with both an optional time delay adjustment feature, as well
as a phase modulation compression feature to accommodate
for peak power variations. For the full range of options, please
contact sales at (888) 853-7531 or e-mail sales@apitech.com.

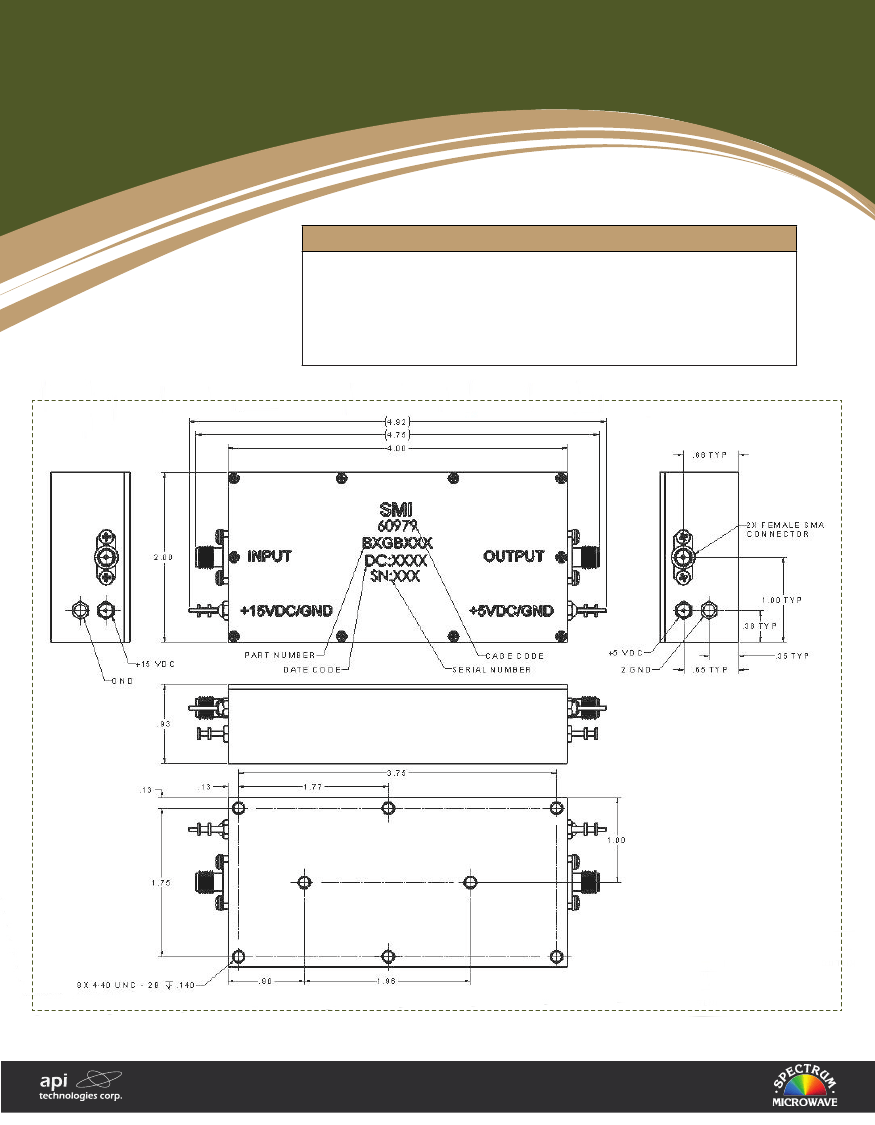

Outline Drawing
Rev 2.24.12
apitech.com
• 888.553.7531 •
spectrummicrowave.com
