LG35M5600BP342235 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> LG35M5600BP342235

LG35M5600BP342235: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 5600uF, Through Hole Mount, ROHS COMPLIANT; CategoryPassive components capacitor; File Size71KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

LG35M5600BP342235 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 5600uF, Through Hole Mount, ROHS COMPLIANT

LG35M5600BP342235 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1685872885
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	5600 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	5.88 mA
Manufacturer's serial number	LG
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	1950 mA
surface mount	NO
Delta tangent	0.35
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

YAGEO CORPORATION

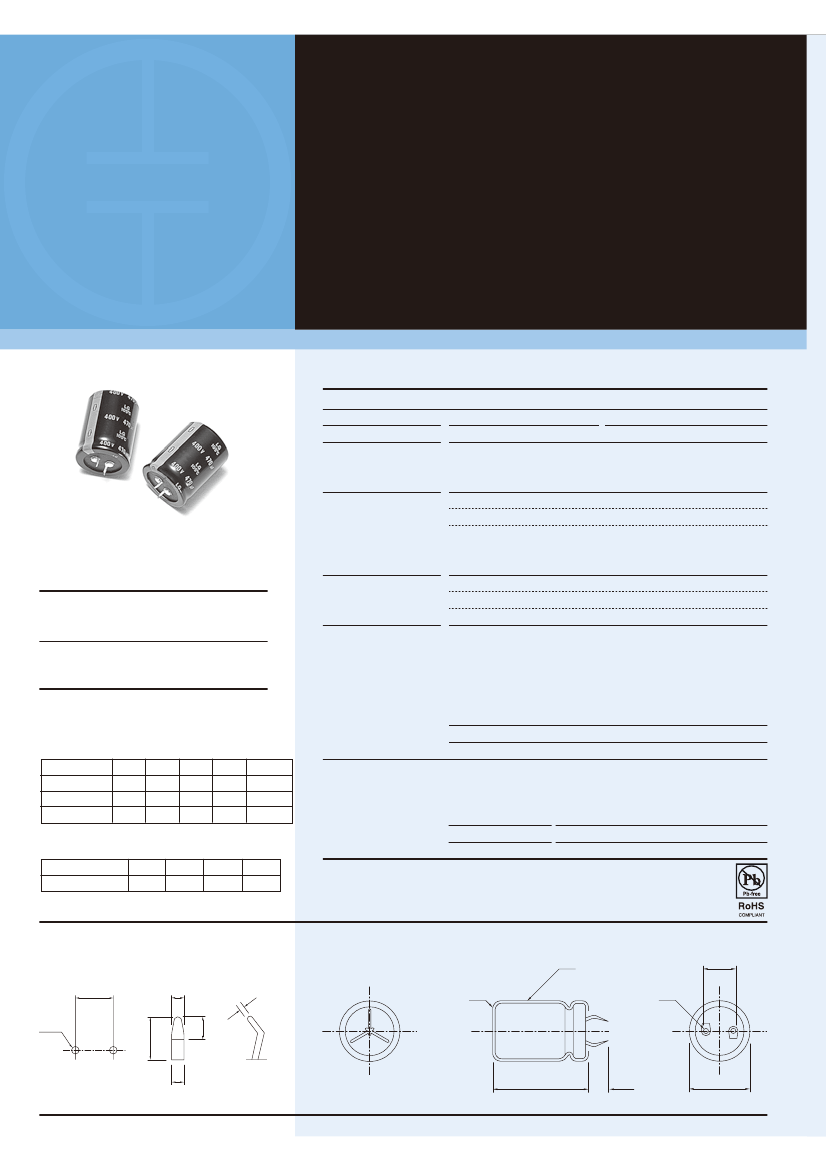

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Size Aluminum

Electrolytic Capacitors

[ For 105°C, 2000 Hours General ]

For Printed Circuit Board High-Performance Aluminum Electrolytic Power

Supply Input and Output Filter Capacitors

ELECTRICAL CHARACTERISTICS

Rated Voltage Range

6.3 to 100VDC

160 to 450VDC

-25 to+105°C

Operating Temperature Range -40 to +105°C

Capacitance Tolerance

Leakage Current

±20% (At 20°C,120Hz)

I = 0.02CV, L = 20m/m, I = 0.03CV or 3mA Whichever is smaller.

(At 25°C, After 5 Minutes)

Where, I; Leakage Current (µA) C: Nominal Capacitance (µF) V; Rated Voltage (V)

D.F (%)

* Note : 15% For D = 35m/m or L = 20m/m (At 20°C, 120Hz)

DESCRIPTION

(LG Series 105°C 2000 Hours

Assured)

(W V = 6.3 ~ 100V For Capacitor Whose Capacitance Exceeds 1000µF

The value of D.F (%) is increased by 2% for every addition of 1000µF.)

Low Temperature

Characteristics

Rated Voltage (V)

Z(-25°C) / Z(20°C)

Z(-40°C) / Z(20°C)

6.3~16

50~63

80~100

160~400

450

LG type capacitors are combined with snaplock

terminals for easy to mount on P.C. Board.

They are ideally suitable to be used in switching

power supplies and other industrial or commercial

applications.

(120Hz)

20°C after the rated voltage with maximum ripple current is applied for 2000

hours

at 105°C.

Capacitance Change

±20% of the Inital Value

Multiplier for Ripple Current

Frequency(Hz)

6.3~100V

160~250V

315~450V

0.88

0.85

0.88

0.90

0.88

0.9

120

1.00

1.15

1.10

10K~00K

1.16

1.20

1.15

D.F

Leakage Current

25°C

after exposing them for 1000 hours at 105°C without voltage applied.

Capacitance Change

D.F

Leakage Current

±20% of the Inital Value

150% of the Intial Specitied Value

Temperature(°C)

Factor

2.37

2.17

1.67

105

1.00

DIAGRAM OF DIMENSIONS

Location of P.C.B. Holes

Vinyl Sleeve

Unit : mm

10 0.5

0.9

Botton Plate

Negative

3.0

2m/m x 2

5.8 1.0

1.5

Safety Device

L+2 Max.

5.8 1

D 1
