Part Number

Search

SQCSVA470JA11A

Description
Ceramic Capacitor, Multilayer, Ceramic, 250V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size123KB,6 Pages
ManufacturerAVX
Environmental Compliance
Download Datasheet Parametric View All

SQCSVA470JA11A Overview

Ceramic Capacitor, Multilayer, Ceramic, 250V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

SQCSVA470JA11A Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1765484279
package instruction, 0603
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARDS: MIL-PRF-123, MIL-PRF-55681
capacitance0.000047 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high0.762 mm
JESD-609 codee4
length1.6 mm
Manufacturer's serial numberSQCS
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance5%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, 7 INCH
positive tolerance5%
Rated (DC) voltage (URdc)250 V
seriesSQCS
size code0603
surface mountYES
Temperature characteristic codeC0G
Temperature Coefficient30ppm/Cel ppm/°C
Terminal surfacePalladium/Silver (Pd/Ag)
Terminal shapeWRAPAROUND
width0.813 mm

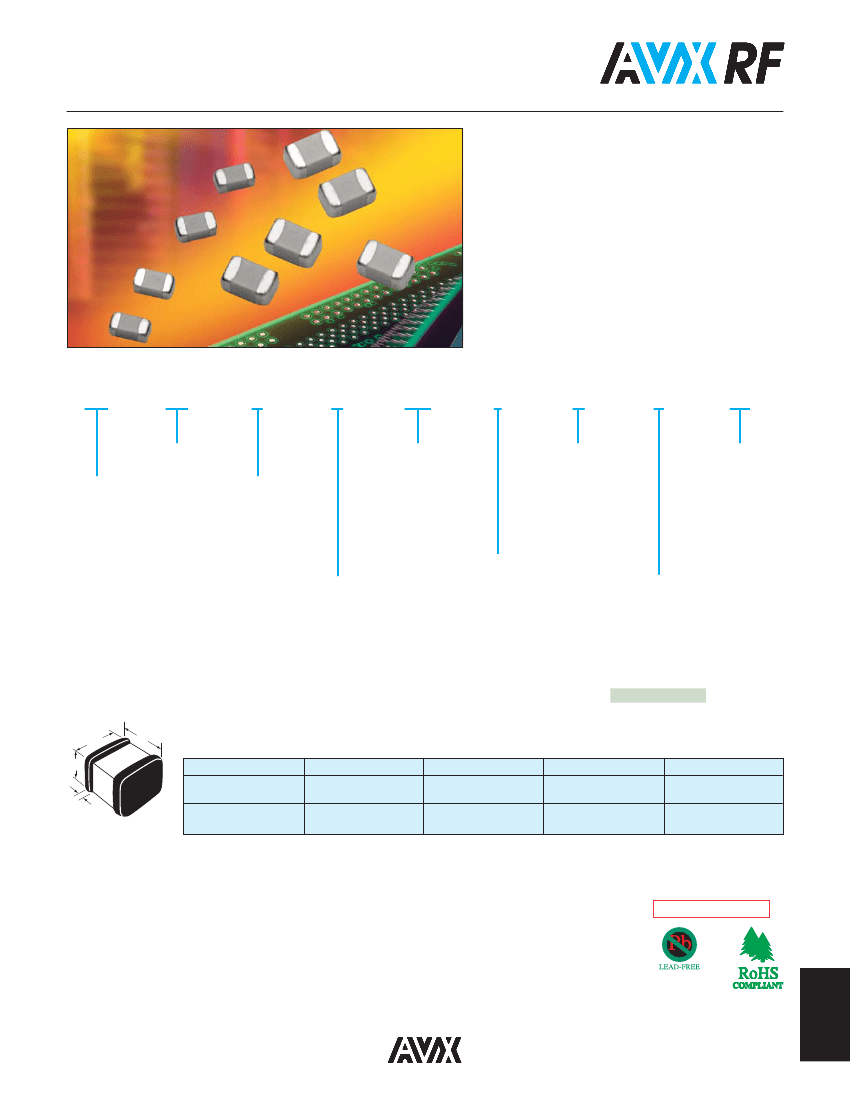

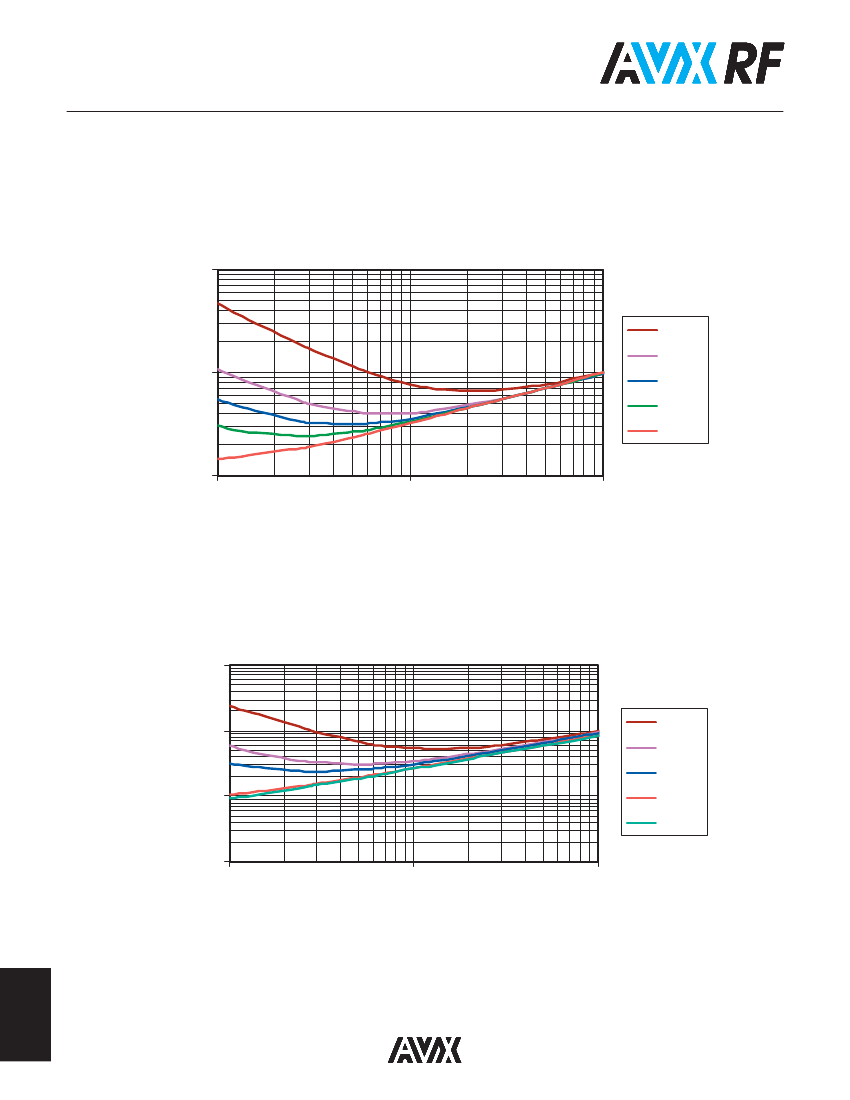

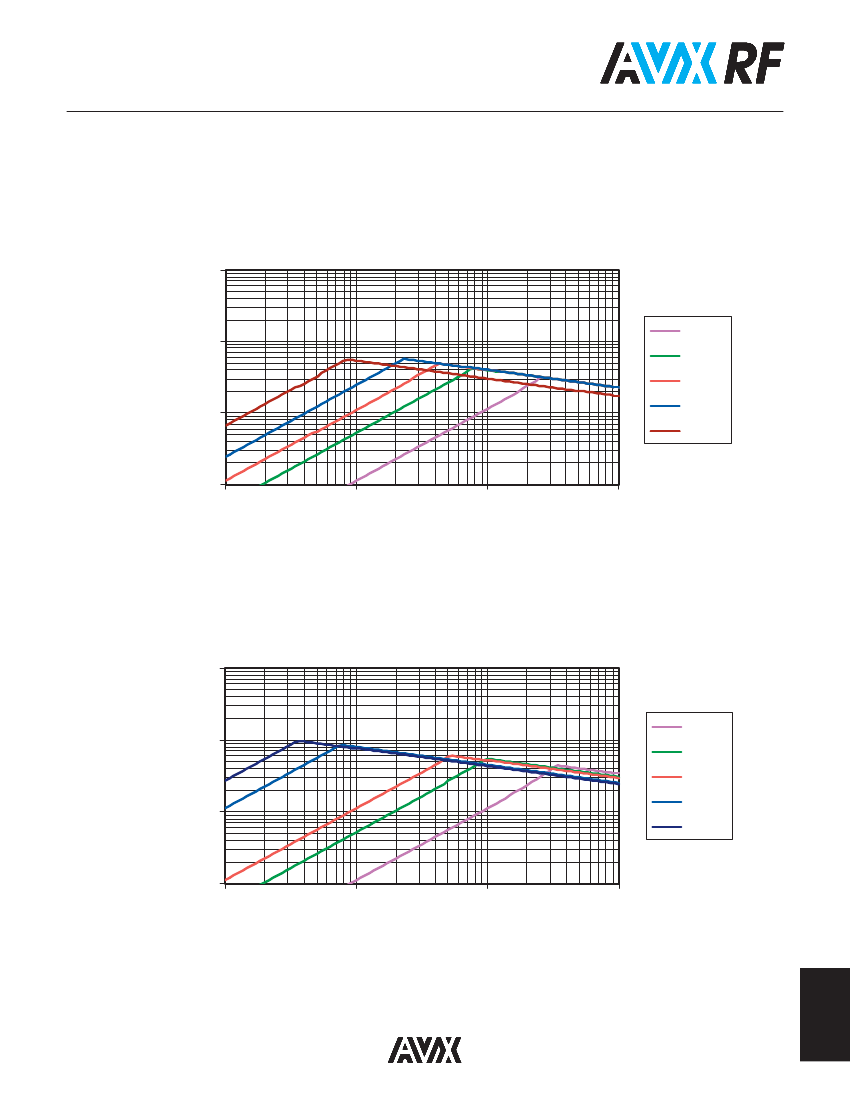

Microwave MLC’s
SQCS (0603) SQCF (0805) Ultra Low ESR MLC
FEATURES:
Low ESR
High Q
High Self Resonance
Capacitance Range 0.1 pF to 240 pF
EIA Size
APPLICATIONS:
RF Power Amplifiers
Low Noise Amplifiers
Filter Networks
Point to Point Radios
HOW TO ORDER
SQ
CS
Case Size
CS = 0603
CF = 0805
V
A
100
Capacitance
J
A
Failure Rate
Code
A = Not
Applicable
T
1A
Packaging Code
1A = 7" Reel Unmarked
ME = 7" Reel Marked
* Vertical T&R available
* 500 piece reels available
AVX Style
Voltage
Code
V = 250V
EIA Capacitance Code in pF.
First two digits = significant
figures or “R” for decimal
place.
Third digit = number of zeros
or after “R” significant figures.
Temperature
Coefficient Code
A = 0±30ppm/°C
Capacitance
Tolerance Code
A = ±.05 pF
B = ±.1 pF
C = ±.25 pF
D = ±.5 pF
F = ±1%
G = ±2%
J = ±5%
Termination
Style Code
**1
= Pd/Ag
**7
= Ag/Ni/Au
J = Nickel Barrier
Sn/Pb (60/40)
**T
= 100% Tin
(Standard)
**RoHS compliant
W
T
L
MECHANICAL DIMENSIONS:
Case
SQCS
inches (millimeters)
Width (W)
.032±.006
(.813±.152)
.049±.008
(1.24±.200)
A 1J
10
Length (L)
.063±.006
(1.60±.152)
.079±.008
(2.01±.200)
Thickness (T)
.030 Max.
(.762)
.045 Max.
(1.14)
Band Width (bw)
.014±.006
(.357±.152)
.014±.006
(.357±.152)
bw
SQCF
TAPE & REEL:
All tape and reel specifications are in compliance with EIA RS481 (equivalent to IEC 286 part 3).
—8mm carrier
—7" reel = 4000 pcs (500 piece options)
Not RoHS Compliant
LEAD-FREE COMPATIBLE
COMPONENT
For RoHS compliant products,
please select correct termination style.
