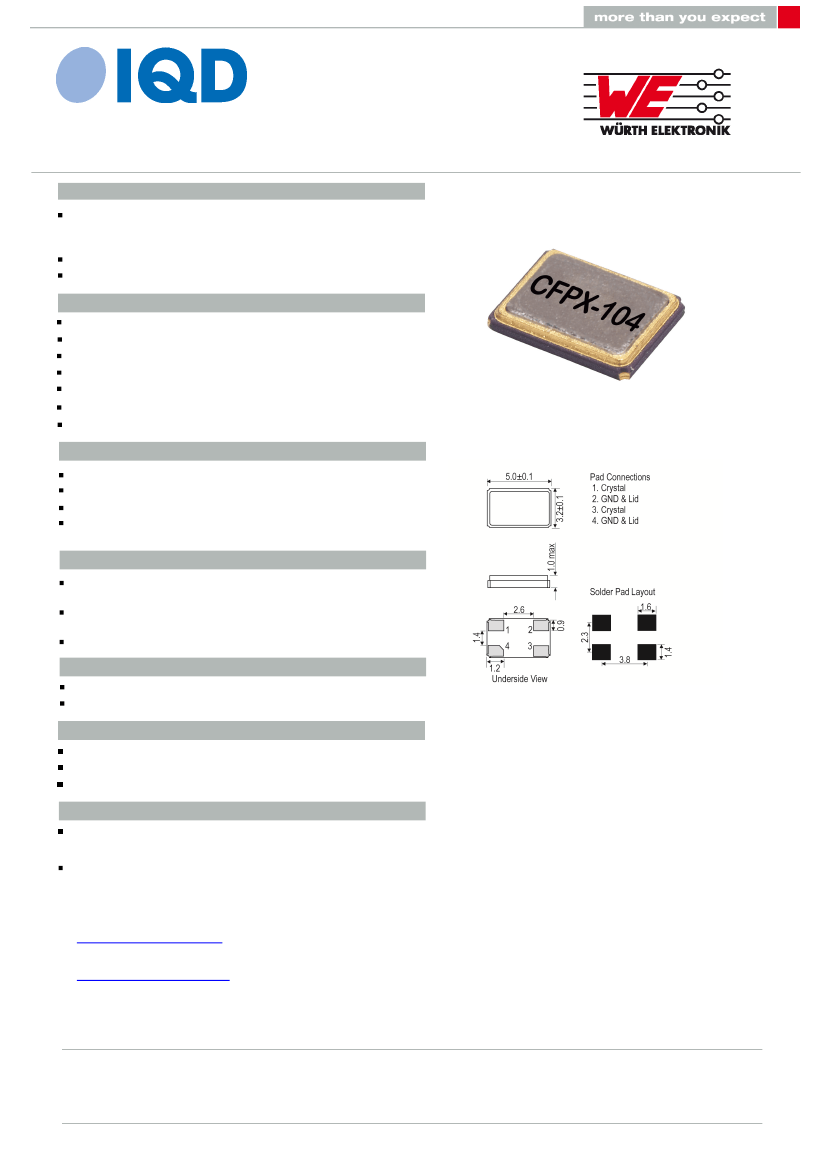

Quartz Crystal Specification
IQD Part No. + Packaging: LFXTAL033644Reel
Wurth Part No.
830033644
Description
Standard 5x3.2mm SMD crystal with four pads.
Ceramic package with a seam sealed metal lid, hermetically
sealed.
Model
CFPX-104
Model Issue number
9
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
24.5760MHz
±50.00ppm
@ 25°C
±
50.00ppm
-10.00 to 60.00°C
Fundamental
±3ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
18.00pF
7pF max
100µW max
40.00Ω max
Shock: 1500G, 0.5ms, 3 times in each of 3 mutually
perpendicular planes
Vibration: 20G (20Hz-2000Hz), 1.52mm amplitude, 20mins in
3 mutually perpendicular planes, 4 cycles
Storage Temperature Range: -55 to 125°C
Manufacturing Details
RoHS Terminations
RoHS Reflow Temp
Compliance
Au 0.3um~1.0um
260degC 3s
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
USEFUL LINKS
Toolbox:
www.we-online.com/toolbox
Product Catalog:
www.we-online.com/products
CONTACT INFORMATION:
Würth Elektronik eiSos GmbH & Co. KG
Max-Eyth-Str. 1, 74638 Waldenburg, Germany
Tel: +49(0) 7942 945-0
Printed on 9 Nov 18 10:14 using WE Part Data Sheet V1.00018
Email: eiSos@we-online.de
Web: www.we-online.com
Page 1 of 1
