ECHU1C223JX9: DescriptionCAPACITOR, METALLIZED FILM, POLYPHENYLENE SULPHIDE, 16 V, 0.022 uF, SURFACE MOUNT, 1306; CategoryPassive components capacitor; File Size101KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

ECHU1C223JX9 Overview

CAPACITOR, METALLIZED FILM, POLYPHENYLENE SULPHIDE, 16 V, 0.022 uF, SURFACE MOUNT, 1306

ECHU1C223JX9 Parametric

Parameter Name	Attribute value
Maker	Panasonic
package instruction	, 1206
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.022 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPHENYLENE SULPHIDE
Installation features	SURFACE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	16 V
size code	1206
surface mount	YES
Terminal shape	WRAPAROUND

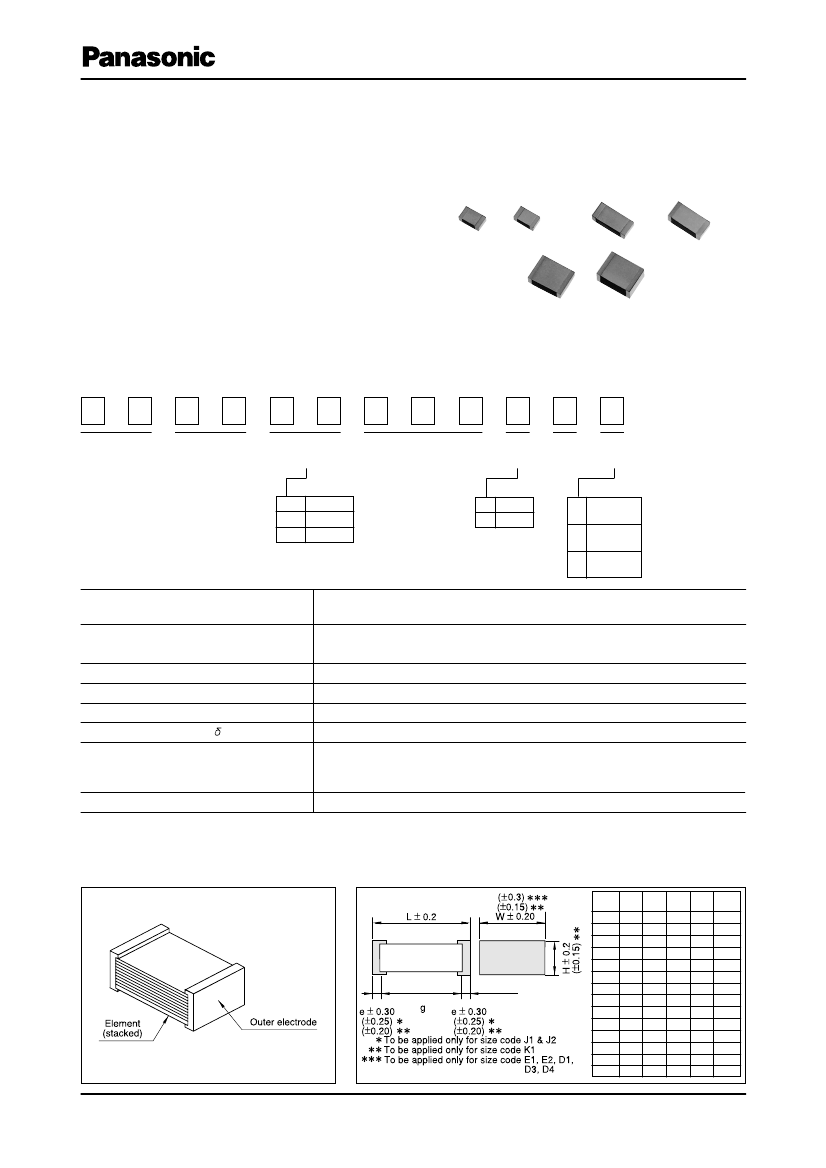

Preview

Download Datasheet

View All

Plastic Film Capacitors

Stacked Metallized PPS Film Chip Capacitor

Type:

ECHU(X)

Stacked metallized PPS film as dielectric with simple

mold-less construction

IFeatures

•

Small in size (minimum size 1.6 mm

✕

0.8 mm)

•

85 ˚C, 85 %RH, W.V.

✕

1.0 for 500 hours

•

For reflow soldering

•

RoHS directive compliant

IRecommended

Applications

•

Time-constant

•

Filtering

•

Oscillation and resonance

IExplanation

of Part Numbers

1

2

3

4

5

6

7

8

9

10

11

12

E

C

H

U

Rated voltage

Capacitance

X

Cap. Tol. Suffix

Suffix

Product code

Dielectric &

construction

01 10 VDC

1C 16 VDC

1H 50 VDC

G ±2 %

J ±5 %

ISpecifications

Category temp. range

(Including temperature-rise on unit surface)

Rated voltage

Capacitance range

Capacitance tolerance

Withstand voltage

Dissipation factor (tan )

Insulation resistance (IR)

Soldering conditions

−55

℃

to

＋125

℃

10 VDC，16 VDC，50 VDC

Tape width

Reel diameter

❈

Tape width 8 mm

and diameter

8 mm

5

size ø180 mm ø330 mm reel is

prepared.

12 mm

9

size ø330 mm

(50 VDC: 0.12 µF or more: Derating or rated voltage by 1.25 % /

℃at

more than 105

℃)

0.00010 µF to 0.22 µF (E12)

±2

%(G),

±5

%(J)

Between terminals : Rated volt. (VDC)

✕

150 % 60 s

tanδ≦0.6 % (20

℃,

1 kHz)

10 VDC：IR≧3000 MΩ (20

℃,

10 VDC, 60 s)

16 VDC：IR≧3000 MΩ (20

℃,

10 VDC, 60 s)

50 VDC：IR≧3000 MΩ (20

℃,

50 VDC, 60 s)

Reflow soldering : 260 ˚C max. and 95 sec max. at more than 220 ˚C (Temp. at cap. surface)

❈

Please consult us for flow soldering

❈

In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage, please

refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

IConstruction

IDimensions

in mm (not to scale)

saize

code

K1

J1

J2

H1

H2

H3

G1

G2

G3

E1

E2

D1

D3

D4

L

1.6

2.0

3.2

4.8

6.0

W

0.8

1.25

1.6

2.5

3.3

4.1

H

0.7

0.9

1.1

0.9

1.1

1.5

1.1

1.5

2.1

1.5

2.1

1.9

2.5

2.8

e

0.35

0.45

0.65

0.80

g

≧0.4

≧0.6

≧1.0

≧2.0

Design, Specifications are subject to change without notice.

Ask factory for technical specifications before purchase and/or use.

Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.

ECHU1C223JX9 Related Products

	ECHU1C223JX9	ECHU01223GX9	ECHU01223JX9	ECHU01223JX5	ECHU1H223JX9	ECHU1C223GX9	ECHU1H223GX9	ECHU1H223GX5
Description	CAPACITOR, METALLIZED FILM, POLYPHENYLENE SULPHIDE, 16 V, 0.022 uF, SURFACE MOUNT, 1306	CAPACITOR, METALLIZED FILM, POLYPHENYLENE SULPHIDE, 16 V, 0.022 uF, SURFACE MOUNT, 1306	CAPACITOR, METALLIZED FILM, POLYPHENYLENE SULPHIDE, 16 V, 0.022 uF, SURFACE MOUNT, 1306	CAPACITOR, METALLIZED FILM, POLYPHENYLENE SULPHIDE, 16 V, 0.022 uF, SURFACE MOUNT, 1306	CAPACITOR, METALLIZED FILM, POLYPHENYLENE SULPHIDE, 16 V, 0.022 uF, SURFACE MOUNT, 1306	CAPACITOR, METALLIZED FILM, POLYPHENYLENE SULPHIDE, 16 V, 0.022 uF, SURFACE MOUNT, 1306	CAPACITOR, METALLIZED FILM, POLYPHENYLENE SULPHIDE, 16 V, 0.022 uF, SURFACE MOUNT, 1306	CAPACITOR, METALLIZED FILM, POLYPHENYLENE SULPHIDE, 50 V, 0.022 uF, SURFACE MOUNT, 1310
capacitance	0.022 µF	0.0220 uF	0.0220 uF	0.022 µF	0.022 µF	0.022 µF	0.022 µF	0.022 µF
Capacitor type	FILM CAPACITOR	Metallized film	Metallized film	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYPHENYLENE SULPHIDE	polyphenylene sulfide	polyphenylene sulfide	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
Installation features	SURFACE MOUNT	surface mount	surface mount	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	125 °C	125 Cel	125 Cel	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 Cel	-55 Cel	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
size code	1206	1306	1306	0805	1210	1206	1210	1310
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Maker	Panasonic	-	-	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
package instruction	, 1206	-	-	, 0805	, 1210	, 1206	, 1210	, 1310
Reach Compliance Code	unknown	-	-	unknown	unknown	unknown	compliant	compli
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
negative tolerance	5%	-	-	5%	5%	2%	2%	2%
Number of terminals	2	-	-	2	2	2	2	2
Package shape	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH	-	-	TR, 7 INCH	TR, 13 INCH	TR, 13 INCH	TR, 13 INCH	TR, 7 INCH
positive tolerance	5%	-	-	5%	5%	2%	2%	2%
Rated (DC) voltage (URdc)	16 V	-	-	10 V	50 V	16 V	50 V	50 V
surface mount	YES	-	-	YES	YES	YES	YES	YES
