CARDINAL COMPONENTS, INC.
SERIES
CJDE
CJDL
The Cardinal Cappuccino Crystal Oscillator Dual LVDS/LVPECL 10MHz - 250MHz
Features
•
•
•
•
•
•
•
2.5V or 3.3V supply voltage-
configurable
10MHz to 250MHz LVDS and
LVPECL outputs- configurable
Better than 2Hz tuning resolution
Low power, typically 23mA LVDS and
54mA LVPECL
Temperature range: -40°C to +85°C
Stability: ± 25 / ± 50ppm
Phase Jitter (12kHz – 20 MHz) 0 .9ps
RMS
•
•
•
•
Applications
Multimedia
Computing
Networking, etc.
Switches between 2 Frequencies
Part Numbering Example:
CJD
CJD E 5P L Z - A7 BR - XXX.XXX / XXX.XXX TS
L
S = 2.5V
L = 3.3V
E
5P
Z
Z=T&R
A7
OPERATING TEMP.
A7 = -40°C to +85°C
BR
STABILITY
BR = ± 25ppm
BP= ± 50ppm
XXX.XXX
FREQ. "0"
10-250 MHz
Pin 2 Logic "0"
/
XXX.XXX
FREQ. "1"
TS
TRI-STATE
TS = Tri-State
SERIES OUTPUT
PACKAGE
CJD
L = LVDS 5 = 5 X 3.2 C*
E = LVPECL
7 = 5 X 7 C*
VOLTAGE OPTIONS
10-250 MHz
Pin 2 Logic "1"
5P = 5 X 3.2 P*
7P = 5 X 7 P*
Specification
Waveform
Frequency
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Frequency Stability vs. Temp. Range
Input Current
Phase Jitter
Start-Up Time
Enable/ Disable Input Voltage
Aging/ Year
P* = Plastic
C* = Ceramic
LVDS/ LVPECL
10MHz to 250MHz
-40°C to +85°C
-55°C to +125°C
2.5V, 3.3V
±25ppm/ ±50ppm
23/54mA
.9ps Typical
10ms Max
VIH
≥
0.7VDD or No Connection, VIL
≤
0.3VDD or Ground
±3ppm Max
145 Route 46 West
Wayne, NJ 07470
1 of 15
Tel: (973)785-1333
Fax: (973)785-0053
E-Mail: sales@cardinalxtal.com
Web: www.cardinalxtal.com
CARDINAL COMPONENTS, INC.
CJDE/ CJDL 10MHz - 250MHz
Description
The Cardinal Cappuccino crystal oscillator is based on a high performance integrated circuit designed for use
in Cardinal’s continued expanding leadership products in the programmable frequency control industry.
Cardinal’s new Cappuccino design is today state of the art in oscillators. The Cappuccino line product features
10MHz to 1.5GHz with CJDL/ CJDE ranging 10MHz to 250MHz Output, 2.5V or 3.3V Supply Voltage,
LVDS/ LVPECL commercial -20°C to +70ºC and industrial temperature range -40°C to +85ºC.
Cardinal’s new CJDL/ CJDE series is competitively priced and has the lowest typical power consumption
23/54mA LVDS/ LVPECL (70% less power than the Fox XpressO™ oscillator), lowest jitter and best phase
noise over 10kHz to 20MHz vs. the traditional fixed frequency quartz oscillators and Surface Acoustic Wave
oscillators. Cardinal’s programming centers utilize modern robotics, for testing, programming and 100% final
testing as we do with all our programmable offerings. The Cardinal CJDL/ CJDE series line is offered in both
ceramic and low cost plastic industry standard packages.
Cardinal’s Cappuccino line fits in all applications requiring a reference frequency including Multimedia,
Computing, Networking, consumer etc.
Absolute Maimum Ratings
Item
Input Voltage
Output Voltage
Positive Supply Voltage
Storage Temperature
Symbol
V
I
V
O
V
DD
Condition
-0.5 to V
DD
+ 0.5
-0.5 to V
DD
+ 0.5
4.2
-55 to +125
Unit
V
V
V
°C
145 Route 46 West
Wayne, NJ 07470
2 of 15
Tel: (973)785-1333
Fax: (973)785-0053
E-Mail: sales@cardinalxtal.com
Web: www.cardinalxtal.com
CARDINAL COMPONENTS, INC.
CJDE/ CJDL 10MHz - 250MHz
DC Electric Characteristics (T = 25°C)
Unless stated otherwise, the data presented here was taken over the following parameters, V
DD
= 3.3V ± 10% or
2.5V ± 5%, Ta = -40°C to +85°C (industrial)
Item
Power Supply Voltage
Power Supply (V
DD
, LVDS I
DD
LVPECL I
DD
GND pins)
Current w/Output Disabled
Rise Time
Symbol
V
DD
V
DD
I
DD
I
DD
I
OED
T
VDD
Min
2.97
2.375
Specification
Typ
Max
3.3
2.5
23
54
16
3.63
2.625
Units
V
V
mA
mA
mA
μS
100
Item
AC Characteristics
Outputs
Freguency Range
Stability
Operating Temperature
Differential Output Voltage
V
OD
Magnitude Change
Offset Voltage
V
OS
Magnitude
Duty Cycle
Rise Time
Fall Time
Freguency Range
Stability
Operating Temperature
Output High Voltage
Output Low Voltage
Differential Duty Cycle
Rise Time
Fall Time
Symbol
Min
Specification
Typ
Max
Units
F
LVDS
V
OD
∆
VOD
V
OS
∆V
OS
ODC
LVDS
t
R
t
F
F
LVPECL
10
-25
-40
175
250
+25
+85
350
50
1.25
50
55
350
350
250
+25
+85
V
DD
- .6
V
DD
- 1.6
52
250
250
200
100
50
LVDS
(OUT, OUTn)
LVPECL
(OUT, OUTn)
V
OH
V
OL
DODC
LVPECL
t
R
t
F
OE
LOW/HIGH
OE
LOW/HIGH
OE
HIGH/LOW
45
125
150
10
-25
-40
V
DD
- 1.03
V
DD
- 1.85
48
150
150
MHz
ppm
°C
mV
mV
V
mV
%
ps
ps
MHz
ppm
°C
V
V
%
ps
ps
ns
ns
ns
ps rms
ps
ps
OE Turn On Time
(<50MHz)
OE Turn On Time
(>50MHz)
OE Turn Off Time
Phase Jitter (12kHz to 20MHz)
Jitter
Period Jitter
tjit
t
RMS, DIFF
t
p-p, DIFF
0.4
0.9
3
30
1.5
4.5
45
145 Route 46 West
Wayne, NJ 07470
3 of 15
Tel: (973)785-1333
Fax: (973)785-0053
E-Mail: sales@cardinalxtal.com
Web: www.cardinalxtal.com
CARDINAL COMPONENTS, INC.
CJDE/ CJDL 10MHz - 250MHz
Performance Characteristic Curves
Unless otherwise specified, data is characterized over temperature range -40°C to +85°C and voltage range 2.2V -
3.63V.
I
DD
vs. V
DD
LVDS Idd vs Frequency
(Typcial and Worst Case)
30
Idd (mA)
25
20
15
10
0
50
100
150
200
250
Frequency (MHz)
Condition=max
Condition=typical 3.3V
Condition=2.5V
Figure 1.
LVDS I
DD
vs. Frequency, V
DD
LVPECL Idd* vs Frequency
(Typical and Worst Case)
25
Idd (mA)
20
15
10
0
50
100
150
200
250
Frequency (MHz)
Condition=max
Condition=typical 3.3V
Condition=typical 2.5V
Figure 2.
LVPECL I
DD
vs. Frequency, V
DD
, Temp.
*Note: LVPECL Idd does not include output current
Add 32 mA to include output current
145 Route 46 West
Wayne, NJ 07470
4 of 15
Tel: (973)785-1333
Fax: (973)785-0053
E-Mail: sales@cardinalxtal.com
Web: www.cardinalxtal.com
CARDINAL COMPONENTS, INC.
CJDE/ CJDL 10MHz - 250MHz
OE Turn-on and Turn-off Times
Notes:
•
These measurements were all performed with an AC coupled output so that leakage currents do not affect
the timing of the measurement. This results in all outputs floating to the midpoint of the signal levels when
off.
•
When LVDS is disabled the output goes to the common mode voltage (approximately 1.25V).
•
When LVPECL is disabled the output goes to tri-state level which floats to Vol.

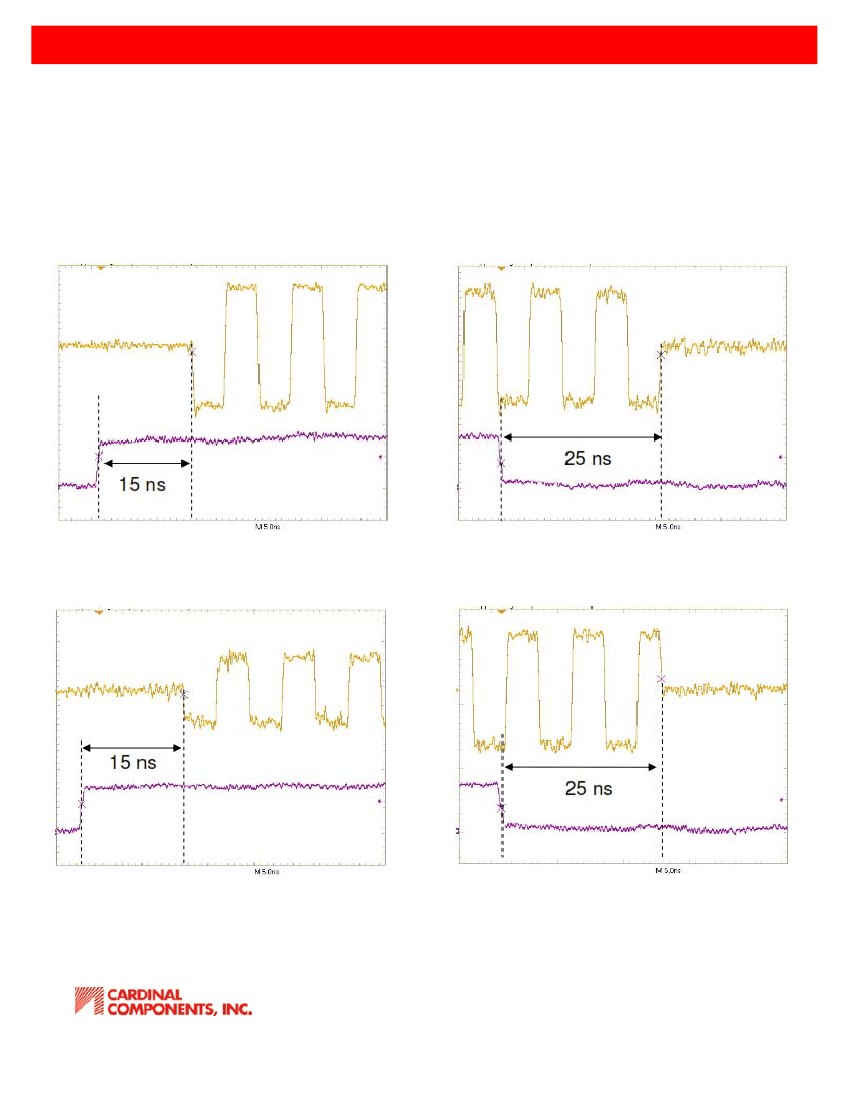

Figure 3.
2.5V LVDS OE Enabled Time
Figure 4.
2.5V LVDS OE Disabled Time
Figure 5.
3.3V LVDS OE Enabled Time
Figure 6.
3.3V LVDS OE Disabled Time
145 Route 46 West
Wayne, NJ 07470
5 of 15
Tel: (973)785-1333
Fax: (973)785-0053
E-Mail: sales@cardinalxtal.com
Web: www.cardinalxtal.com
