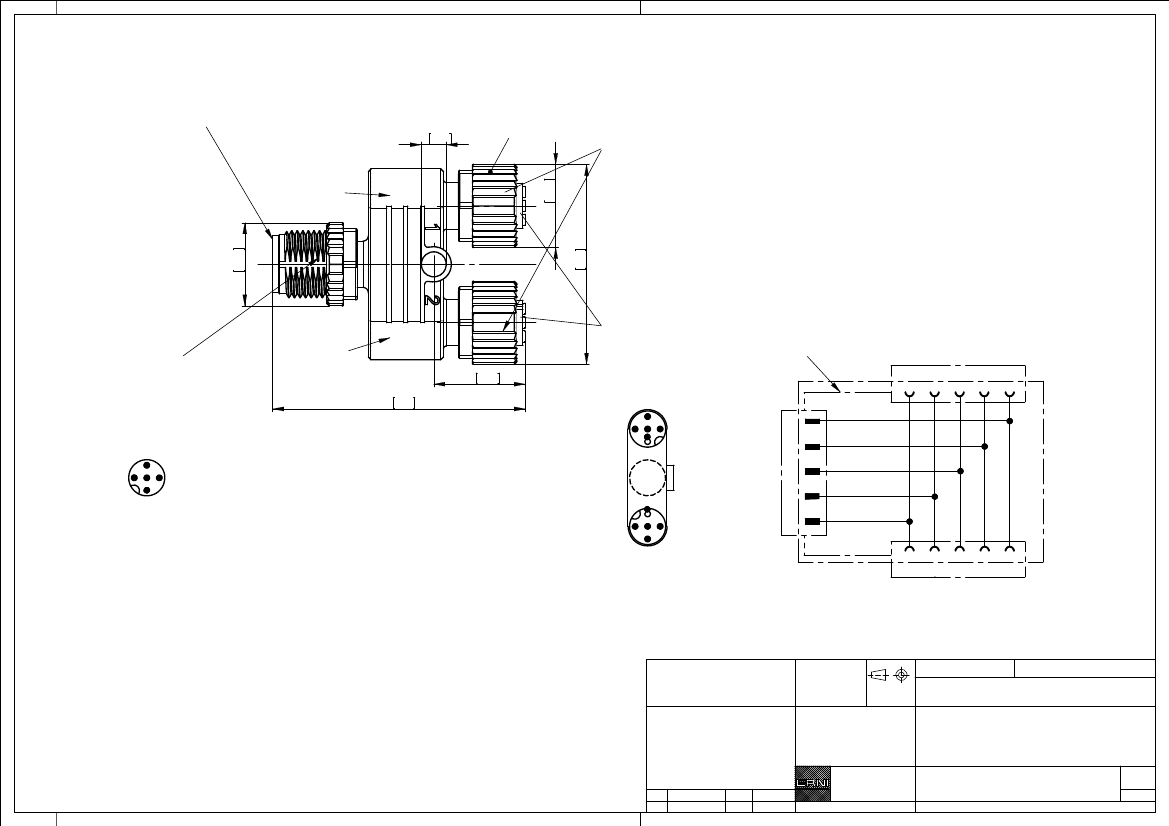

TECHNISCHE SKIZZE /
Technical sketch
Isolierkörper grün zulässig
BAUTEILE / FERTIGUNGSHINWEISE
Piece parts / Manufacturing notices
Imprint see technical sketch
insulation body green allowed
- Aufdruck mittels Tampondruck entspr. techn. Skizze
Ø
4,5 0,18
vermessingt
brass coating
Ø
15 0,59
vernickelt 4-6
µm
nickel plating 4-6
µ
m
- Gute Chemikalien- und Ölbeständigkeit. Beim Einsatz aggressiver Medien ist die
Materialbeständigkeit applikationsbezogen zu überprüfen.
ERNI-Art.- Nr.
Part No.
ERNI
XXXXXX
Good chemical and oil resistance. When using agressive media, material
resistance based on application must be checked.
Ø
15 0,59
Stecker M12 /
M12 male
5-polig /
5 pin
2x
Buchse M12 /
M12 female
5-polig / 5
pin
36 1,41
vernickelt 4-6
µm
nickel plating 4-6
µ
m
Production date
e.g.: KW07 2010
072010
Isolierkörper grün zulässig
insulation body green allowed
16,5 0,65
STROMLAUFPLAN /
Schematic diagram
shield
1. Buchse M12 /
1. female M12
5
4
3
2
1
47 1,85
4
3
5
1
1
2
Stecker M12 / 3
4
1
5
3
2
Ansicht: Steckgesicht; Kontaktbelegung /
2
View: mating face; pin assignment
male M12
2
1
5
4
3
4
5
5
4
3
2
1
SPECIFICATIONS Circular Connector
T e chn i cal Sp e ci fi cati o ns
Type:
Pin assignment:
Coding:
Connection:
Temperature range:
Packaging:
Mate ri al s & F i ni sh
Contact material:
a) male
b) female
Contact finish, mating zone:
a) male
b) female
Insulation material:
Stand ard ap p l i c.
Val ue
T-coupler M12 male -
2 x M12 female, black
5 pin / 5 pin
A-coding
Screw locking
M12x1 (0,6 Nm)
-25
…
+85°C
1 piece per bag
El e ctri cal Data
Rated (nominal) voltage; max.
Rated current; per contact, max.
Rated impulse voltage
Stand ard ap p l i c.
IEC 61-076-2-101
IEC 61-076-2-101
IEC 61-076-2-101
Val ue
60 V AC/DC
4A
0,8 kV
Information:
Tolerances
2. Buchse M12 /
2. female M12
Artikel-Nr. /
Part No.
CAN/DeviceNet 394890
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
A p p ro val s
Protection class
(mated and locked) IEC 60529
Pollution degree
Insulation category
IEC 60664-1
RoHS compliant
Scale
All Dimensions
in mm [in]
2:1
IP67
3
I
Yes
Standard description CuZn39Pb3F50
Standard description CuNi2Si HV160U
Thickness of plating 0,5 µm Au over 2 µm Ni
Thickness of plating 0,8 µm Au (partial)
Standard description Elastollan R 3000 A
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
16.07.2010
Index
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.
CCA M12, 5 pin/2 x M12, 5 pin
A-coding
www.ERNI.com
Class
394891
