RM06DLN2492 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RM06DLN2492

RM06DLN2492: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.1W, 24900ohm, 50V, 0.5% +/-Tol, -100,100ppm/Cel, 0603,; CategoryPassive components The resistor; File Size337KB，13 Pages; ManufacturerTA-I Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

RM06DLN2492 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 24900ohm, 50V, 0.5% +/-Tol, -100,100ppm/Cel, 0603,

RM06DLN2492 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	924172465
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
JESD-609 code	e3
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.45 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
method of packing	TR, Paper, 7 Inch
Rated power dissipation(P)	0.1 W
resistance	24900 Ω
Resistor type	FIXED RESISTOR
series	RM(STANDARD)
size code	0603
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Tolerance	0.5%
Operating Voltage	50 V

RM06DLN2492 Preview

Thick Film Chip Resistors

( Lead-Free for RM series standard )

Document No.

TRM-XX0S002G

Revise Date

page number

2016/06/06

1/13

Halogen-Free

1. Scope：

This specification applies for the RM series of thick film chip resistors made by TA-I.

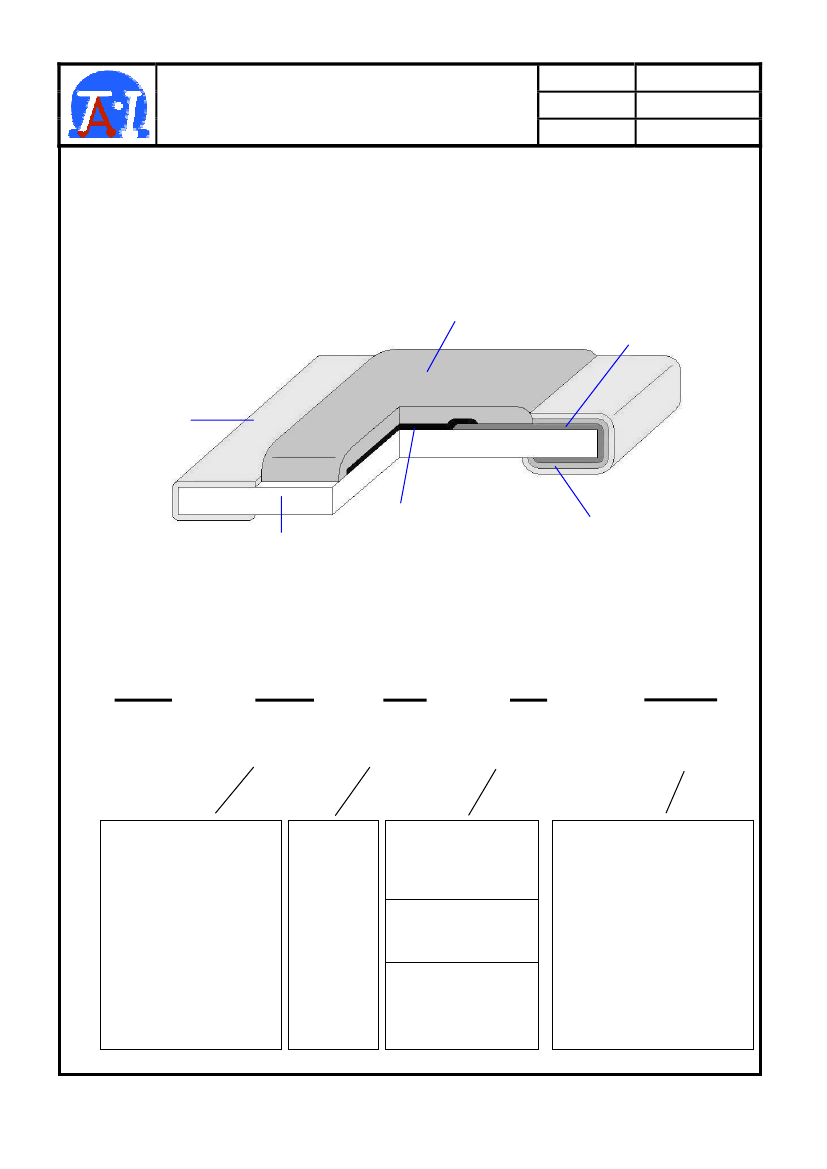

2. Construction：

Over Coat (Color : Black)

Conductor

Sn Plating

Resistive Element

Ceramic Substrate

Ni Plating

3. Type Designation：

Product Code

RM : Chip Resistor

Size

Power Rating

Tolerance

Packaging

103

Nominal

Resistance

01-01005(0402) 1/32W

02-0201(0603) 1/20W

04-0402(1005) 1/16W

06-0603(1608) 1/10W

10-0805(2012) 1/8W

12-1206(3216) 1/4W

13-1210(3226) 1/3W

20-2010(5025) 3/4W

25-2512(6432) 1 W

J-±5%

G-±2%

F-±1%

D-±0.5%

B-±0.1%

T-Paper Tape

E-Embossed Tape

3 digits, e.g.,:

(E-24) 103 = 10kΩ

0 = 0Ω

4 digits, e.g., :

(E-96) 1540 = 154Ω

43R2 = 43.2Ω

+N：Lead-Free

Special

L : 06 – 2mm pitch

paper Tape

TA-I TECHNOLOGY CO., LTD

Thick Film Chip Resistors

( Lead-Free for RM series standard )

Document No.

TRM-XX0S002G

Revise Date

page number

2016/06/06

2/13

Halogen-Free

4. Dimensions：

UNIT: mm

Type

RM01

RM02

RM04

RM06

RM10

RM12

RM13

RM20

RM25

0.4

±0.02

0.60±0.03

+0.1

1.00

-0.05

1.60±0.10

0.50±0.05

0.20±0.10

0.25±0.10

+0.2

0.30

-0.1

0.40±0.20

0.50±0.25

0.32±0.05

0.2

±0.02

0.30±0.03

0.1

±0.03

0.1±0.05

0.1±0.03

0.15±0.05

0.13

±0.02

0.23±0.03

0.80±0.10

0.30±0.20

0.45±0.10

2.00±0.10

3.10±0.10

5.00±0.15

6.30±0.20

1.25±0.10

1.55±0.10

2.55±0.10

2.50±0.15

3.20±0.20

0.40±0.20

0.50±0.30

0.60±0.30

0.50±0.10

0.55±0.10

0.60±0.10

TA-I TECHNOLOGY CO., LTD

Thick Film Chip Resistors

( Lead-Free for RM series standard )

Document No.

TRM-XX0S002G

Revise Date

page number

2016/06/06

3/13

Halogen-Free

5. Ratings & Characteristics：

Type

Power

Rating

at 70℃

1/32W

1/20W

Rating

Voltage

Refer

5.2

Refer

5.2

Max.

Working

Voltage

15V

25V

Max.

Over-

T.C.R

Load (PPM/

℃

)

Voltage

30V

50V

±300

±200

+600

-200

±100

±200

50V

100V

+500

-200

±400

±100

±200

±400

±100

±200

±400

±100

RM12

1/4W

Refer

5.2

200V

400V

±200

±400

±100

RM13

1/3W

Refer

5.2

200V

400V

±200

±400

±100

RM20

3/4W

Refer

5.2

200V

400V

±200

±400

±100

RM25

Refer

5.2

200V

400V

±200

±400

10Ω-560kΩ

10Ω-1MΩ

10Ω-560kΩ

10Ω-1MΩ

10Ω-560kΩ

10Ω-1MΩ

10Ω-560kΩ

10Ω-1MΩ

10Ω-560kΩ

10Ω-1MΩ

Resistance Range(Ω)

B(±0.1%)

E-96&E-24

D(±0.5%)

E-96&E-24

F(±1%)

E-96&E-24

10Ω

≦

＜100Ω

100Ω-10KΩ

10Ω-3MΩ

1-9.1Ω

100Ω~1MΩ

10Ω≦R<100Ω

10Ω≦R<100Ω 10Ω≦R<100Ω

1MΩ<R≦10MΩ

1Ω-9.1Ω

100Ω~499KΩ

100Ω~1MΩ

G(±2%)

E-24

10Ω

≦

＜100Ω

10Ω-3MΩ

1-9.1Ω

J(±5%)

E-24

10Ω

≦

＜100Ω

100Ω

≦

1MΩ

10Ω-10MΩ

1-9.1Ω

RM01

RM02

100Ω

≦

1MΩ 100Ω

≦

1MΩ

RM04

1/16W

Refer

5.2

10Ω-10MΩ

1Ω-9.1Ω

10Ω-10MΩ

1Ω-9.1Ω

10MΩ≦R≦20MΩ 10MΩ≦R≦20MΩ

10Ω-560kΩ

10Ω-1MΩ

1M<R≦10MΩ

1Ω-9.1Ω

10Ω-1MΩ

1M<R≦10MΩ

1Ω-9.1Ω

10Ω-1MΩ

1M<R≦10MΩ

1Ω-9.1Ω

10Ω-1MΩ

1M<R≦10MΩ

1Ω-9.1Ω

10Ω-1MΩ

1M<R≦10MΩ

1Ω-9.1Ω

10Ω-1MΩ

1M<R≦10MΩ

1Ω-9.1Ω

10Ω-10MΩ

1Ω-9.1Ω

10Ω-10MΩ

1Ω-9.1Ω

10M<R≦20MΩ

10Ω-10MΩ

1Ω-9.1Ω

10Ω-10MΩ

1Ω-9.1Ω

10M<R≦20MΩ

10Ω-10MΩ

1Ω-9.1Ω

10Ω-10MΩ

1Ω-9.1Ω

10MΩ<R≦20MΩ

10Ω-10MΩ

1Ω-9.1Ω

10Ω-10MΩ

1Ω-9.1Ω

10MΩ<R≦20MΩ

10Ω-10MΩ

1Ω-9.1Ω

10Ω-10MΩ

1Ω-9.1Ω

10MΩ<R≦20MΩ

10Ω-10MΩ

1Ω-9.1Ω

10Ω-10MΩ

1Ω-9.1Ω

10MΩ<R≦20MΩ

RM06

1/10W

Refer

5.2

50V

100V

RM10

1/8W

Refer

5.2

150V

300V

OΩ THICK FILM CHIP RESISTORS

Type

RM01

RM02

RM04

RM06

RM10

RM12

RM13

RM20

RM25

Rated Current

0.5A

( RM01 / 02： -55℃

+125℃ )

Max Overload Current

2.5A

Resistance Range

50mΩ MAX

Operating Temp (℃)： -55℃

+155℃

Note： Except for the above standardized products, we also provide the customized products.

TA-I TECHNOLOGY CO., LTD

Thick Film Chip Resistors

( Lead-Free for RM series standard )

Document No.

TRM-XX0S002G

Revise Date

page number

2016/06/06

4/13

Halogen-Free

5.1. Derating Curve：

For resistors operated at ambient temperature over 70

℃

, power rating shall be

derated in accordance with figure 1.

P max.

Power ratio (%)

125

RM01/02

RM04/06/10

RM12/13/20/25

Ambient Temp. (

°C

)

Figure 1

5.2. Rated Voltage：

The rated voltage is calculated by the following formula:

P*R

E=Rated Voltage(V)

P=Rated Power(W)

R=Resistance Value(Ω)

E.G.：What is RM06JTN102 the rated voltage ?

RM06JTN102

P:1/10W

;

R:102 = 1KΩ = 1000Ω

0.1(W) * 1000(Ω)

= 10 (V)

TA-I TECHNOLOGY CO., LTD

Thick Film Chip Resistors

( Lead-Free for RM series standard )

Document No.

TRM-XX0S002G

Revise Date

page number

2016/06/06

5/13

Halogen-Free

6. Reliability Tests :

Test Items

Temperature Coefficient

of Resistance

Reference

standard

IEC60115-1-4.8

JIS-C5201-1-4.8

Condition of Test

-55½ +125

℃

Test Limits

△R

Refer 5.0

±(1%

+ 0.05Ω )

Remarks :

01005& 0201 :

±(3%

+ 0.1Ω)

0402 :

±(2%

+ 0.1Ω )

0Ω : 50mΩ or less

Short Time Overload

IEC60115-1-4.13

JIS-C5201-1-4.13

2.5 X rated voltage

for

5 sec

Intermittent Overload

EC60115-1-4.39

JIS-C5201-1-4.39

3.0 X rated voltage or Max Overloading

(5.0% + 0.1Ω)

voltage ,1sec “ON” , 25sec “OFF” ,10000 cycles

(Remarks :

0Ω : 50mΩ or less

01005 & 0201-NA , 0402 2.5 X RCWV * )

0.1%,0.5%,1%:±(1.0%+0.05Ω)

2%,5%:±(3.0%+0.1Ω)

Remarks :

01005& 0201 :

±(5.0%+0.1Ω)

0402 :

±(3.0%+0.1Ω)

0Ω : 100mΩ or less

0.1%,0.5%,1%:±(1.0%+0.05Ω)

2%, 5%:±(3.0%+0.1Ω)

Remarks :

01005&0201:

±(5.0%+0.1Ω)

0402:

±(3.0%+0.1Ω)

0Ω : 100mΩ or less

0.1%,0.5%,1%:±(0.5%+0.05Ω)

2%, 5%:±(1.0%+0.05Ω)

Remarks :

01005& 0201:

±(3.0%+0.1Ω)

0Ω : 50mΩ or less

At least 95% of surface area

of electrode shall be covered

with new solder.

0.1%,0.5%,1%:±(0.5%+0.05Ω)

2%,5%:±(1.0%+0.05Ω)

Remarks :

01005& 0201

±(1.0%+0.1Ω)

0Ω: 50mΩ or less

No abnormalities such as

flashover,

burning

dielectric

breakdown shall appear.

≧1GΩ

Remarks : 01005 :

≧100MΩ

0.1%,0.5%,1%:±(1.0%+0.05Ω)

2%,5%:±(2.0%+0.1Ω)

Remark :

01005 :

±(3.0%+0.1Ω)

0201 :

±(2.0%+0.1Ω)

0Ω: 50mΩ or less

0.1%,0.5%,1%:±(0.5%+0.05Ω)

2%, 5%:±(1.0%+0.05Ω)

Remarks :

01005 :

±(3.0%+0.05Ω)

0201

±(3.0%+0.1Ω)

0Ω: 50mΩ or less

Endurance (Load Life)

IEC60115-1-4.25.1 1000 hours at rated voltage, 70℃ , 1.5hours

JIS-C5201-1-4.25.1 “ON “, 0.5hour “OFF”

Load Life with Humidity

IEC60115-1-4.24

JIS-C5201-1-4.24

1000 hours at rated voltage , 40±2℃,

90~95% RH 1.5hours “ON “, 0.5hour “OFF”

Rapid Change

of Temperature

IEC60115-1-4.19

JIS-C5201-1-4.19

-55℃ (30 min. ) / +155

℃(30

min. ) 5 cycles

Solderability

IEC60115-1-4.17

JIS-C5201-1-4.17

245±5℃ solder, 2±0.5 sec dwell.

Solder : Sn96.5 / Ag3.0 / Cu0.5

Robustness of Termination

(Bending)

IEC60115-1-4.33

JIS-C5201-1-4.33

3mm deflection

2mm deflection (RM20,25)

Dielectric Withstanding

Voltage (Voltage Proof)

Insulation Resistance

IEC60115-1-4.7

JIS-C5201-1-4.7

IEC60115-1-4.6

JIS-C5201-1-4.6

Applying voltage :

01005 & 0201 : 50V , 0402 & 0603 : 300V

The other 500V for a minute .

Applying voltage 100V for 1 minute.

Remark : 01005 & 0201 50V

Resistance to Dry Heat

IEC60115-1-4.23.2 155±5℃ for 96±4Hrs

JIS-C5201-1-4.23.2 Remark : 01005 & 0201 125±5℃

Resistance to Solder Heat

IEC60115-1-4.18

JIS-C5201-1-4.18

270

±5℃

solder , 10

±1

sec dwell .

Note* : RCWV : Rated continuous working voltage

TA-I TECHNOLOGY CO., LTD

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
