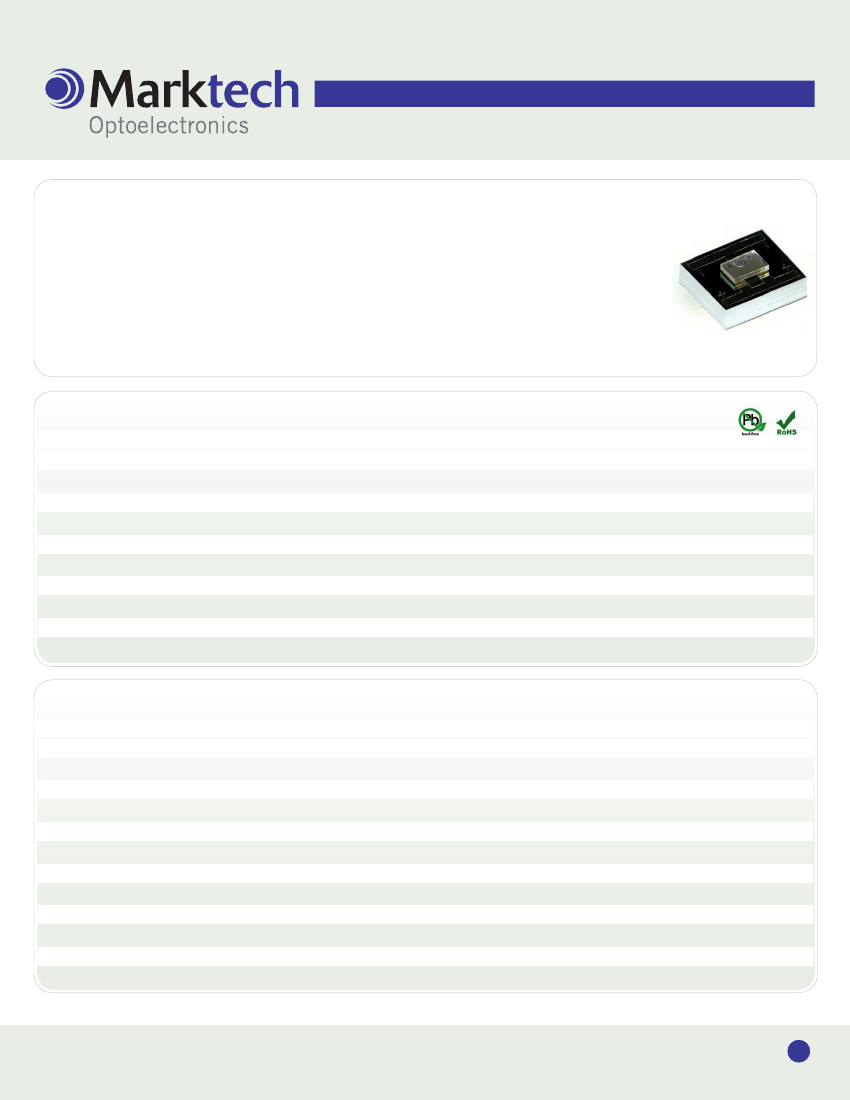

Ultraviolet LED Chip
Product No:
MT C325-UV
Peak Emission Wavelength:
325
nm
The
MTC325-UV
UV chip is specifically designed for applications requiring high
radiant power output and
custom packaging solutions.
FE A T UR E S
AP PL I C A TI O N S
>
High-Power UV LED Chip
>
High Reliability
>
Chip Size:
400um
x
620um
>
Analytical Instruments for Bio Chemical, Medical
and Scientific Analysis
>
Photo Catalyst / UV Curing
>
Medical Phototherapy
View of "Die on Silicon Submount (Large)"
Absolute Maximum Ratings (Ta=25ºC)
IT E M S
SY M BO L
RA TI N GS
UNIT
Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature*1
IF
VR
Topr
Tstg
Tsol
40
5
-30 ~ +80
-40 ~ +100
300
mA
V
ºC
ºC
ºC
*1: Within 5 seconds.
Electrical & Optical Characteristics (Ta = 25ºC)*1
IT E MS
SY MB O L
C O N D ITI O N S
MI N .
TYP
MAX .
UN I T
Peak Wavelength
Power Output
Spectral Line Half Width
Forward Voltage
Viewing Angle
Reverse Current
λp
PO
∆λ
VF
2Ө
1/2
IR
IF=20mA
IF=20mA
IF=20mA
IF=20mA
IF=20mA
VR=5V
320
1.0
--
--
--
--
325
1.5
9
5.0
144
--
330
--
--
5.5
--
1
nm
mW
nm
V
deg
µA
*1: All measurements were made using a Au-plated TO5 header without an encapsulant.
2014-05-01
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
1
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com

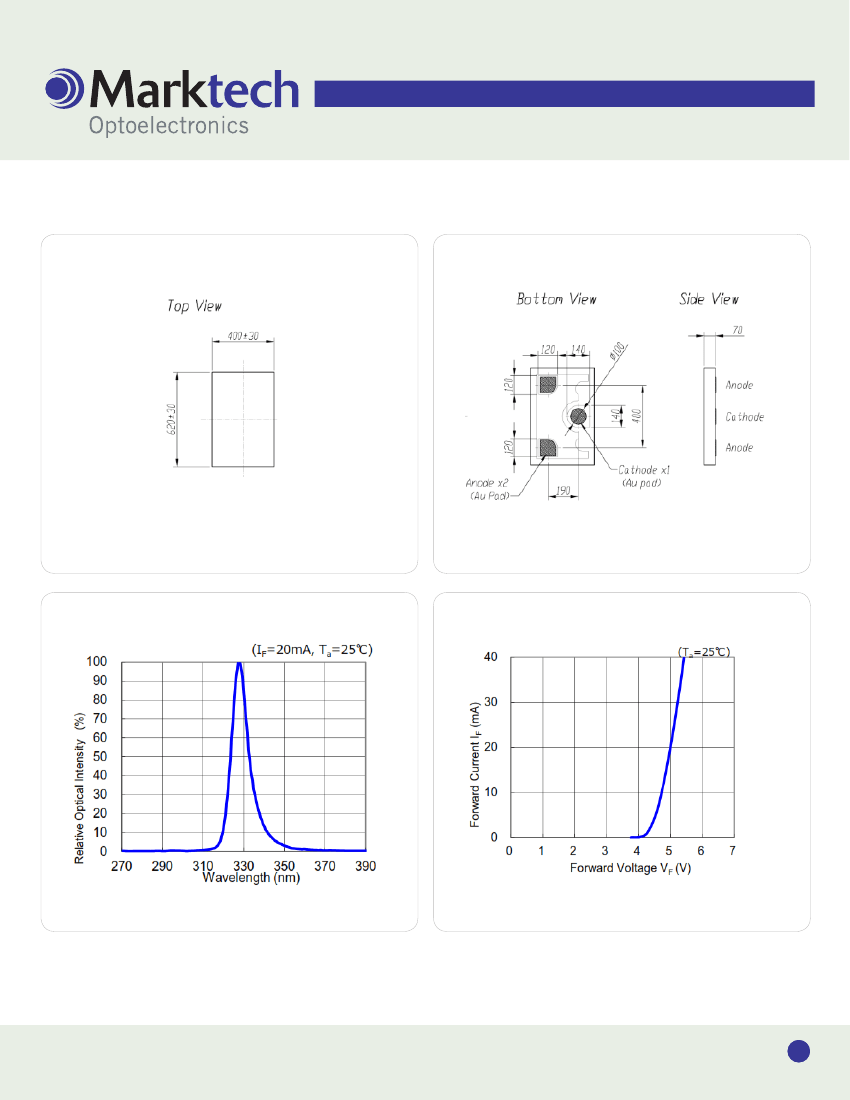

Ultraviolet LED Chip
Product No:
M T C
325
- U V
Unit:
um
2014-05-01
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
2
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com

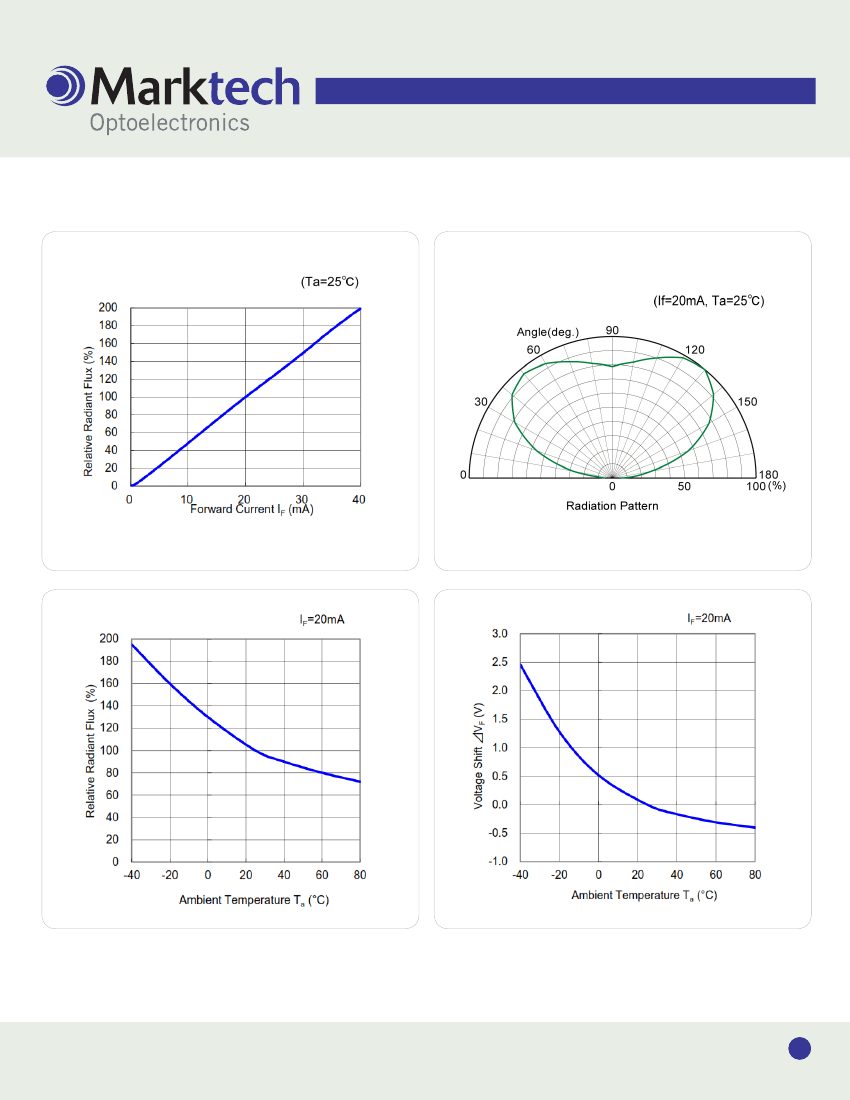

Ultraviolet LED Chip
Product No:
M T C
325
- U V
2014-05-01
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
3
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com

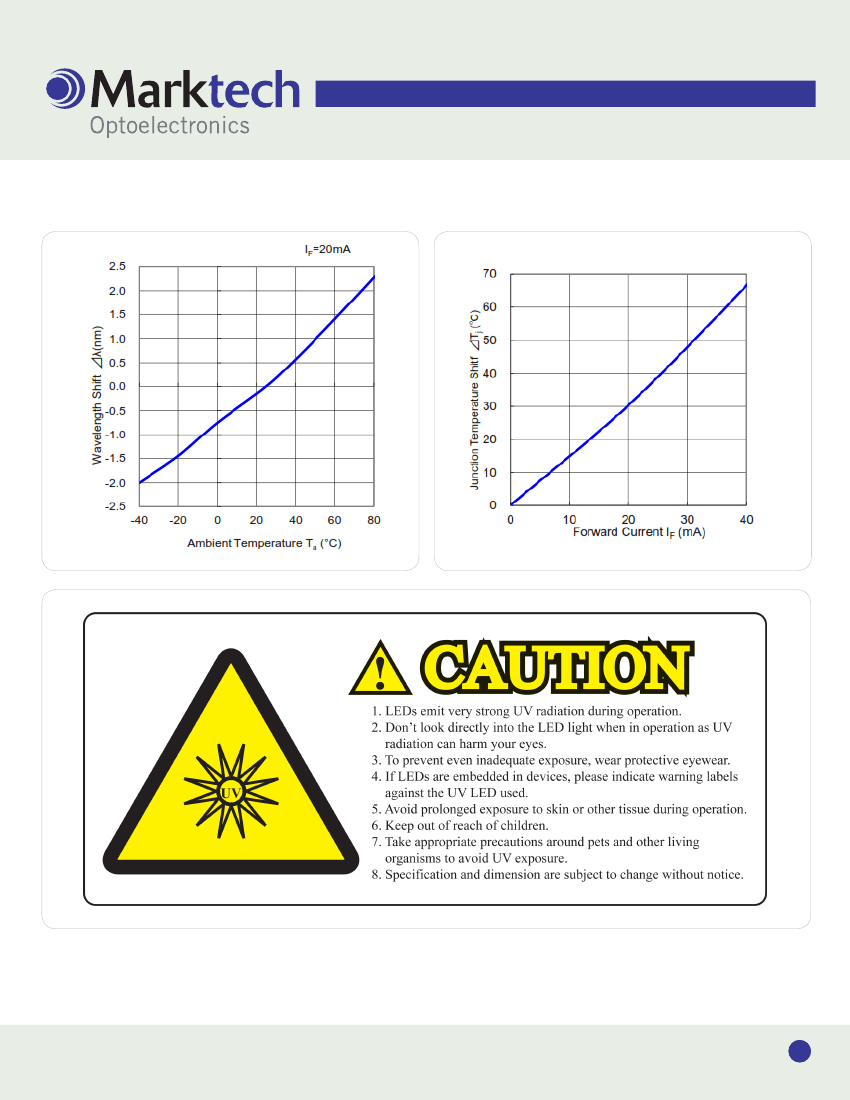

Ultraviolet LED Chip
Product No:
M T C
325
- U V
