QBHP684U-XXU Series
1W High Power LED
----------------------------------------------------------------------------------------------------------------------------------------
QT-Brightek High Power Series
1.0 W High Power LED
Part No.: QBHP684U-XXU Series
XX = Color Code
U = 350mA
Product: QBHP684U-XXU Series
Date: April 24, 2015
Version# 2.0
Page 1 of 11
QBHP684U-XXU Series
1W High Power LED
----------------------------------------------------------------------------------------------------------------------------------------
Table of Contents:
Introduction ........................................................................................................................................... 3
Electrical / Optical Characteristic (T
A
=25
o
C) ......................................................................................... 4
Absolute Maximum Rating .................................................................................................................... 4
Characteristic Curves ............................................................................................................................ 7
Solder Profile & Footprint ...................................................................................................................... 8
Packing ................................................................................................................................................. 9
Labeling ................................................................................................................................................ 9
Ordering Information ........................................................................................................................... 10
Revision History .................................................................................................................................. 11
Disclaimer ........................................................................................................................................... 11
Product: QBHP684U-XXU Series
Date: April 24, 2015
Version# 2.0
Page 2 of 11
QBHP684U-XXU Series
1W High Power LED
----------------------------------------------------------------------------------------------------------------------------------------
Introduction
Feature:
Package in tape and reel
1W High Bright LED
Low thermal resistance < 6°C/W
Super high flux and luminance
AlInGaP technology for R, S and Y
InGaN technology for IB and IG
ESD Protection (IB and IG)
ESD protection up to 8KV
Description:
This 1W high bright high power LED has compact
size of 3.6 x 3.6mm. It is ideal for both in door and
outdoor lighting
Application:
Architectural and outdoor lighting
Household appliances
General lighting
Certification & Compliance:
TS16949
ISO9001
RoHS Compliant

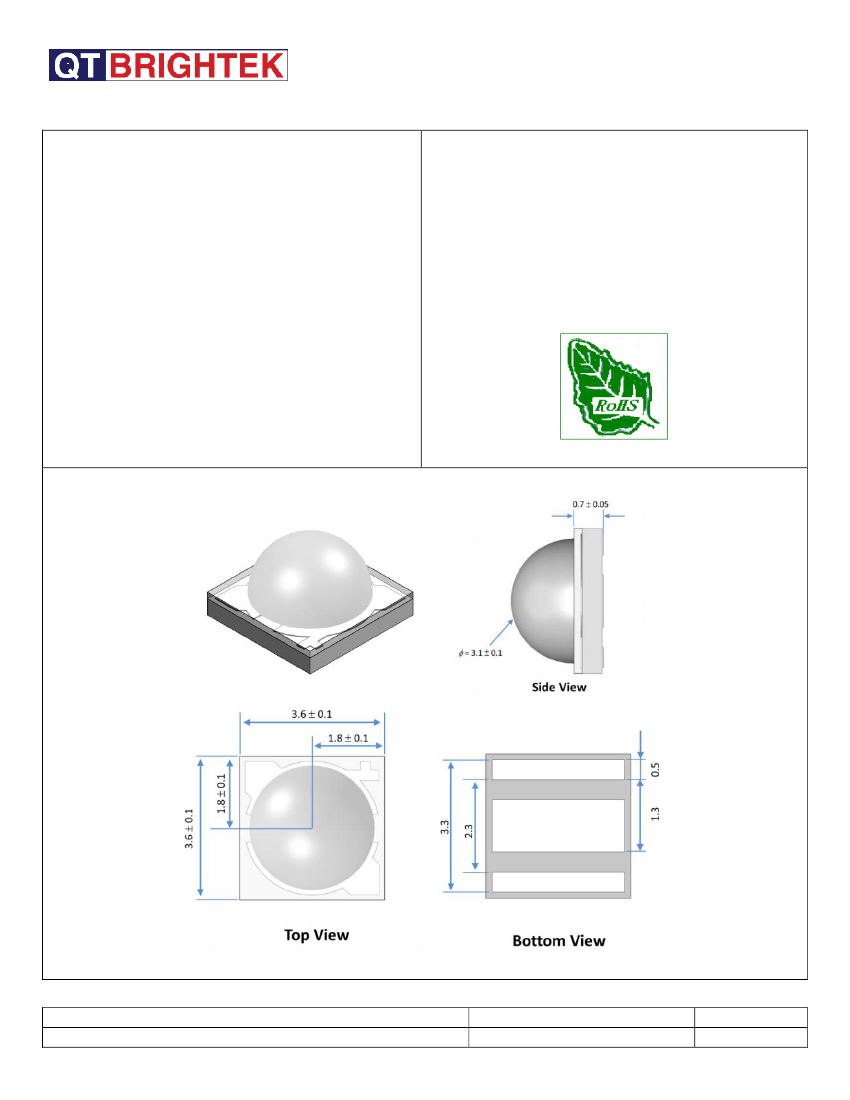

Dimension:
Units: mm / tolerance = +/-0.1mm
Product: QBHP684U-XXU Series
Date: April 24, 2015
Version# 2.0
Page 3 of 11
QBHP684U-XXU Series
1W High Power LED
----------------------------------------------------------------------------------------------------------------------------------------

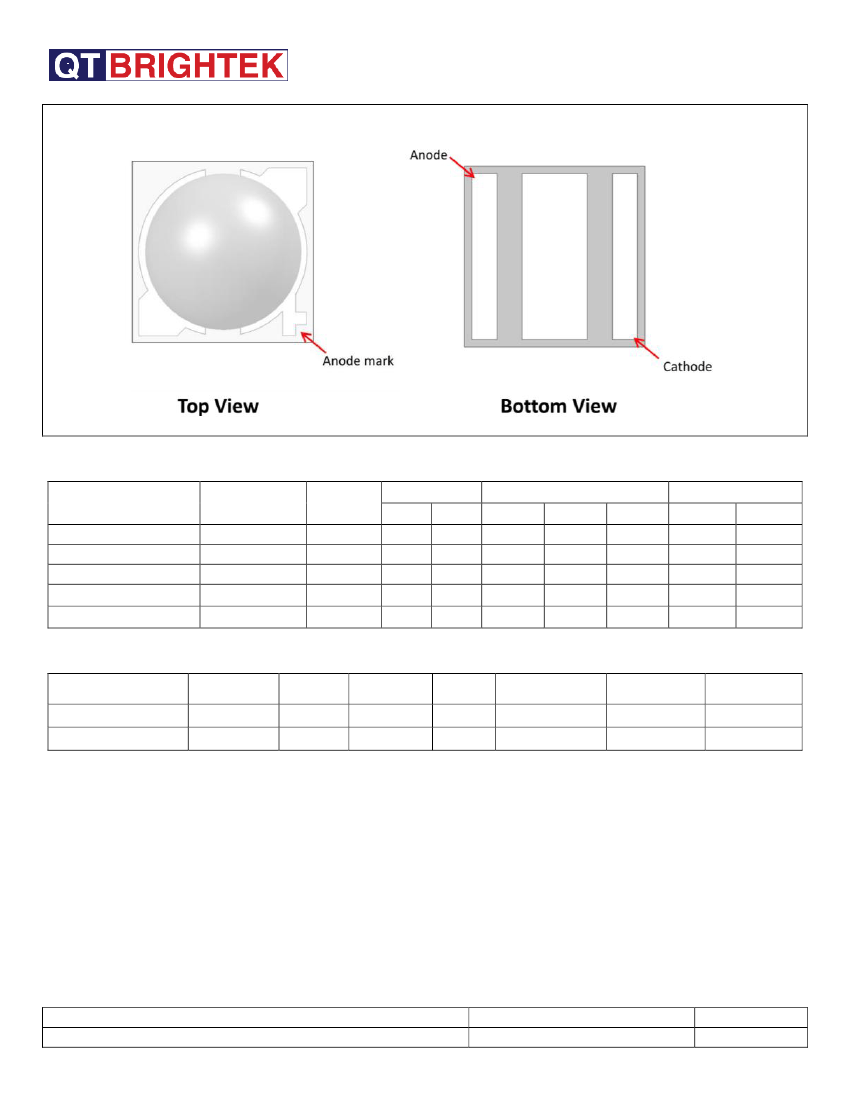

Pad Configuration:
Electrical / Optical Characteristic (T
A
=25
o
C)
Product
QBHP684U-RU
QBHP684U-SU
QBHP684U-YU
QBHP684UE-IGU
QBHP684UE-IBU
Color
Red
Deep Red
Yellow
True Green
Blue
I
F
(mA)
350
350
350
350
350
V
F
(V)
Typ. Max.
2.4
2.8
2.4
2.8
2.4
2.8
3.4
3.8
3.4
3.8
λ
D
(nm)
Typ.
Min.
Max.
620
625
630
650
660
670
585
590
595
520
525
530
450
455
460
Φv (lm)
Min.
Typ.
45
55
15
20
50
60
90
110
10
20
Absolute Maximum Rating
Material
P
d
(mW)
I
F
(mA) I
FP
(mA)* V
R
(V)
1000
1000
5
5
T
OP
(
o
C)
-40 to +85
-40 to +85
T
ST
(
o
C)
-40 to +100
-40 to +100
T
SOL
(
o
C)
240
240
AlInGaP (R/S/Y)
1.96
700
InGaN (IB/IG)
2.66
700
*Duty 1/10 @ 0.1ms Pulse Width
Product: QBHP684U-XXU Series
Date: April 24, 2015
Version# 2.0
Page 4 of 11
QBHP684U-XXU Series
1W High Power LED
----------------------------------------------------------------------------------------------------------------------------------------
Forward Voltage V
F
for AlInGaP @ I
F
=350mA
Bin
D
E
F
G
Min.
2.0
2.2
2.4
2.6
Max.
2.2
2.4
2.6
2.8
Unit
V
Forward Voltage V
F
for InGaN @ I
F
=350mA
Bin
I
J
K
L
Min.
3.0
3.2
3.4
3.6
Max.
3.2
3.4
3.6
3.8
Unit
V
Luminous Flux Φv for Red @ I
F
=350mA
Bin
RE
RF
RG
RH
RI
Min.
45
55
65
75
85
Max.
55
65
75
85
95
Unit
lm
Luminous Flux Φv for Deep Red @ I
F
=350mA
Bin
RB
Min.
15
Max.
25
Unit
lm
Luminous Flux Φv for Yellow @ I
F
=350mA
Bin
AB
AC
AD
Min.
50
60
70
Max.
60
70
80
Unit
lm
Luminous Flux Φv for True Green @ I
F
=350mA
Bin
GB
GC
GD
GE
GF
Min.
90
100
110
120
130
Max.
100
110
120
130
140
Unit
lm
Product: QBHP684U-XXU Series
Date: April 24, 2015
Version# 2.0
Page 5 of 11
