SPECIFICATION OF FLCA SERIES
FEATURES
1. High resistance to heat and humidity.
2. Resistance to mechanical shocks and pressure.
3. Accurate dimensions for automatically surface
mounted.
APPLICATIONS
1. Computer products. (Hard Disk , Floppy Disks..Etc.)
2. Communication products. (like : Cordless Phone..Etc.)
3. Modems , OA products , TV set , VCRs..Etc.
4. Countermeasures for complying with CE ,
FCC VDE or VCCl radialiated emissions.
ORDERING CODE
(1) PRODUCT SERIES CODE
(2) SIZE CODE
(3) INDUCTANCE
(4) INDUCTANCE TOLERANCE
( J : ±5%, K : ±10%, M : ±20%)
(5) TAPING

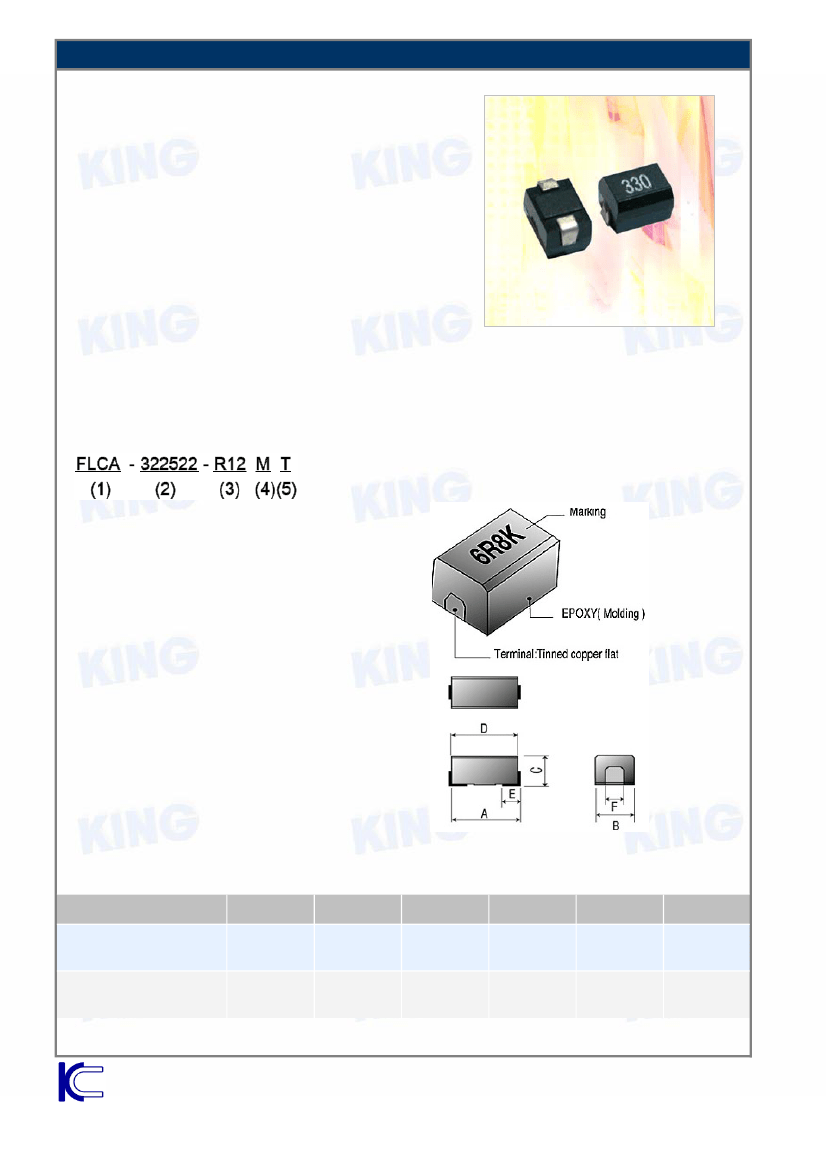

SHAPE & DIMENSIONS
SIZE CODE
FLCA-322522
(1210)
FLCA-453232
(1812)
A
3.2±0.3
B
2.5±0.2
C
2.2±0.2
D
2.9±0.2
E
0.6
UNIT:mm (inch)
F
1.0
(0.040)
1.2
(0.047)
(0.126±0.012) (0.098±0.008) (0.087±0.008) (0.114±0.008)
(0.024)
1.0
(0.040)
4.5±0.3
3.2±0.2
3.2±0.2
4.2±0.2
(0.177±0.012) (0.126±0.008) (0.126±0.008) (0.165±0.008)
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County,Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
1
FLCA.A01
WOUND CHIP INDUCTORS
→
FLCA-322522 SERIES
ELECTRICAL CHARACTERISTICS
Inductance
ORDERING CODE
FLCA-322522-R12□T
FLCA-322522-R15□T
FLCA-322522-R18□T
FLCA-322522-R22□T
FLCA-322522-R27□T
FLCA-322522-R33□T
FLCA-322522-R39□T
FLCA-322522-R47□T
FLCA-322522-R56□T
FLCA-322522-R68□T
FLCA-322522-R82□T
FLCA-322522-1R0□T
FLCA-322522-1R2□T
FLCA-322522-1R5□T
FLCA-322522-1R8□T
FLCA-322522-2R2□T
FLCA-322522-2R7□T
FLCA-322522-3R3□T
FLCA-322522-3R9□T
FLCA-322522-4R7□T
FLCA-322522-5R6□T
FLCA-322522-6R8□T
FLCA-322522-8R2□T
FLCA-322522-100□T
FLCA-322522-120□T
FLCA-322522-150□T
FLCA-322522-180□T
FLCA-322522-220□T
FLCA-322522-270□T
FLCA-322522-330□T
FLCA-322522-390□T
FLCA-322522-470□T
FLCA-322522-560□T
FLCA-322522-680□T
FLCA-322522-820□T
FLCA-322522-101□T
(μH)
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
K±10%
Q
Min
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
20
M±20%
Test
Frequency
(MHz)
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
Self Resonant
Frequency
(MHz)TYP
500
450
400
350
320
300
250
220
180
160
140
120
100
85
80
75
70
60
55
50
47
43
40
36
33
28
25
23
18
17
16
15
13
12
11
10
DC
Resistance
(Ω)max
0.22
0.25
0.28
0.32
0.36
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.75
0.85
0.90
1.00
1.10
1.20
1.30
1.50
1.60
1.80
2.00
2.10
2.50
2.80
3.30
3.70
5.00
5.60
6.40
7.00
8.00
9.00
10.00
11.00
IDC
(mA)max
450
450
450
450
450
450
450
450
450
450
450
400
390
370
350
320
290
260
250
220
200
180
170
150
140
130
120
110
80
70
65
60
55
50
45
40
□
Means the inductance tolerance, J±5%
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County,Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
2
FLCA.A01
WOUND CHIP INDUCTORS
→
FLCA-453232 SERIES
ELECTRICAL CHARACTERISTICS
Inductance
ORDERING CODE
FLCA-453232-R10□T
FLCA-453232-R12□T
FLCA-453232-R15□T
FLCA-453232-R18□T
FLCA-453232-R22□T
FLCA-453232-R27□T
FLCA-453232-R33□T
FLCA-453232-R39□T
FLCA-453232-R47□T
FLCA-453232-R56□T
FLCA-453232-R68□T
FLCA-453232-R82□T
FLCA-453232-1R0□T
FLCA-453232-1R2□T
FLCA-453232-1R5□T
FLCA-453232-1R8□T
FLCA-453232-2R2□T
FLCA-453232-2R7□T
FLCA-453232-3R3□T
FLCA-453232-3R9□T
FLCA-453232-4R7□T
FLCA-453232-5R6□T
FLCA-453232-6R8□T
FLCA-453232-8R2□T
FLCA-453232-100□T
FLCA-453232-120□T
FLCA-453232-150□T
FLCA-453232-180□T
FLCA-453232-220□T
FLCA-453232-270□T
FLCA-453232-330□T
FLCA-453232-390□T
FLCA-453232-470□T
FLCA-453232-560□T
FLCA-453232-680□T
FLCA-453232-820□T
FLCA-453232-101□T
FLCA-453232-121□T
FLCA-453232-151□T
FLCA-453232-181□T
FLCA-453232-221□T
FLCA-453232-271□T
FLCA-453232-331□T
FLCA-453232-391□T
FLCA-453232-471□T
FLCA-453232-561□T
FLCA-453232-681□T
FLCA-453232-821□T
FLCA-453232-102□T
(μH)
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
K±10%
Q
Min
35
35
35
35
40
40
40
40
40
40
40
40
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
40
40
40
40
40
40
40
40
40
30
30
30
20
M±20%
Test
Frequency
(MHz)
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.252
Self Resonant
Frequency
(MHz)TYP
300
280
250
220
200
180
165
150
145
140
135
130
100
80
70
60
55
50
45
40
35
33
27
25
20
18
17
15
13
12
11
10
10
9
9
8
8
6
5
5
4
4
3.5
3
3
3
3
2.5
2.5
DC
Resistance
(Ω)max
0.18
0.20
0.22
0.24
0.25
0.26
0.28
0.30
0.32
0.36
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.75
0.80
0.90
1.00
1.10
1.20
1.40
1.60
2.00
2.50
2.80
3.20
3.60
4.00
4.50
5.00
5.50
6.00
7.00
8.00
8.00
9.00
9.50
10.00
12.00
14.00
18.00
26.00
30.00
30.00
35.00
40.00
IDC
(mA)max
800
770
730
700
665
635
605
575
545
520
500
475
450
430
410
390
380
370
355
330
315
300
285
270
250
225
200
190
180
170
160
150
140
135
130
120
110
110
105
102
100
92
85
80
62
50
50
30
30
□
Means the inductance tolerance, J±5%
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County,Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
3
FLCA.A01
WOUND CHIP INDUCTORS

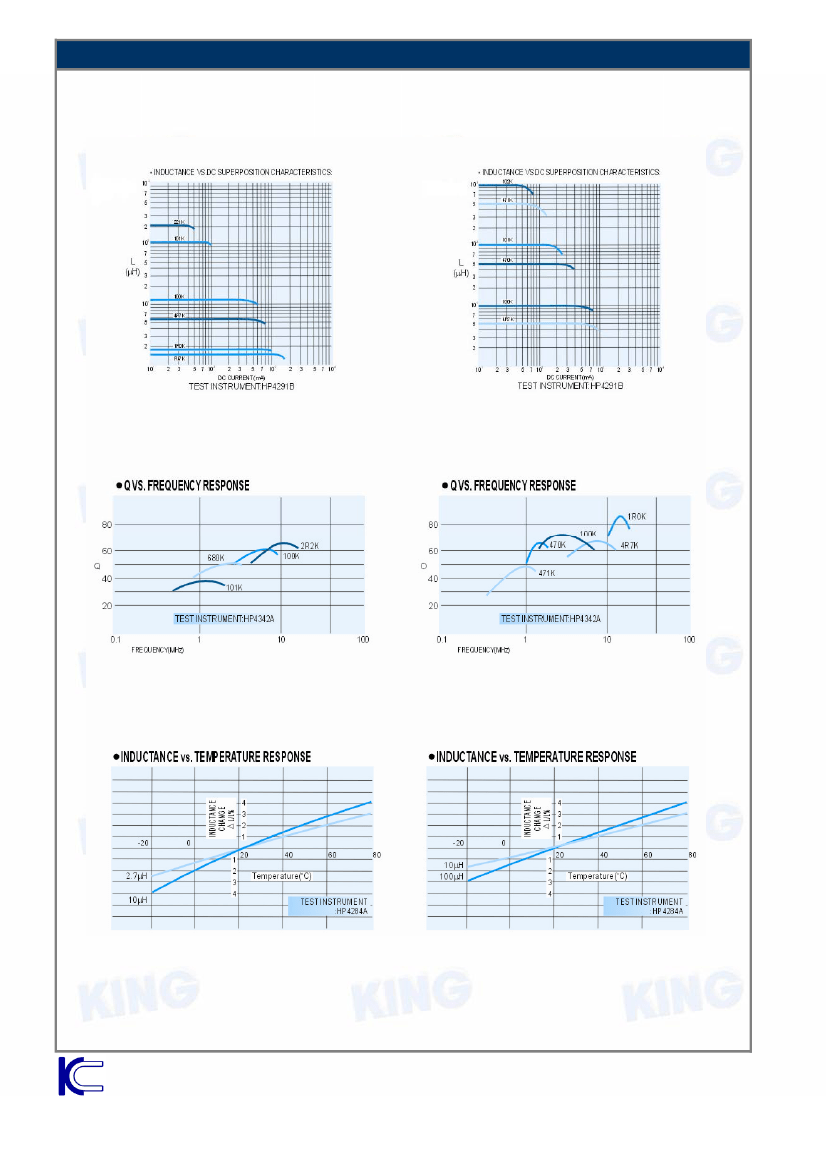

→FLCA
SERIES
FLCA-322522
FLCA-453232
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County,Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
4
