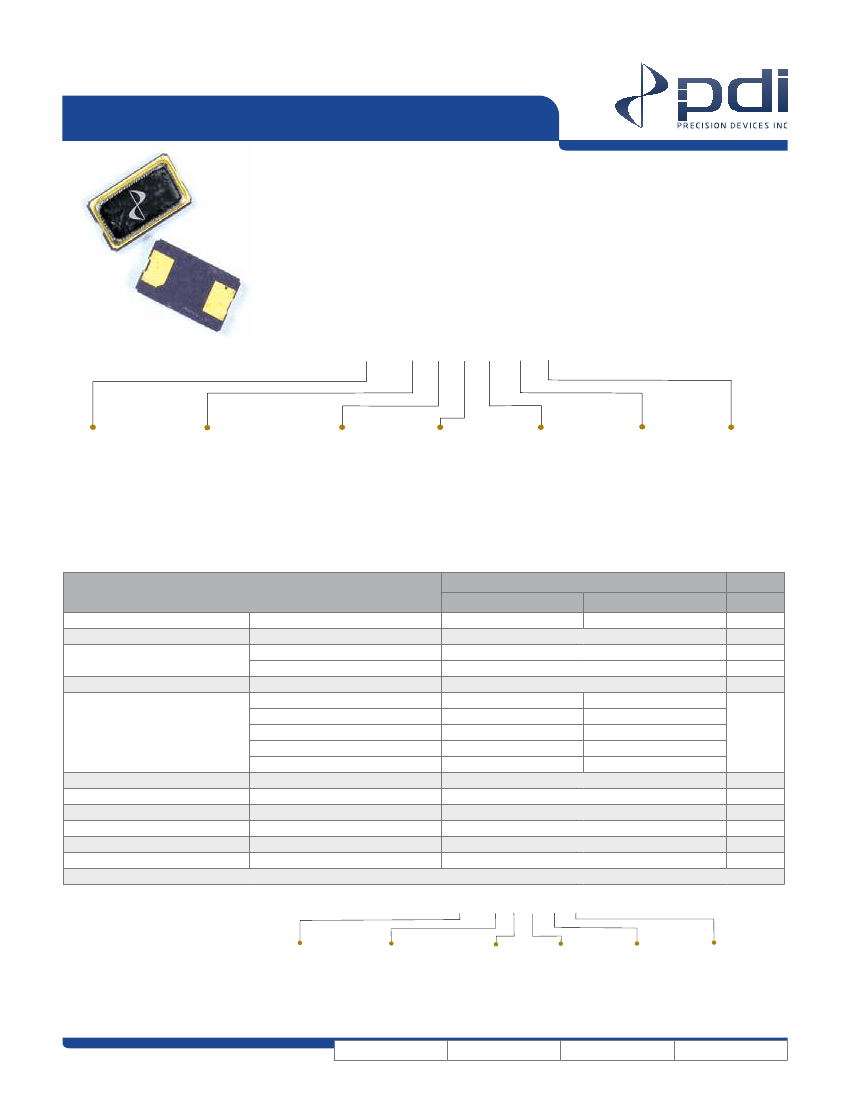

C6-Series Specifications
6.00L x 3.50W x 1.10H
(mm)
PDI
C6-Series
is a hermetically sealed quartz crystal in a seam-welded ceramic
SMT package. This crystal, designed to meet your most demanding specification,
is available in standard or custom frequencies and/or with customized parameters.
PDI provides quick-turn sampling for your proto-typing needs, mass production
capability, and competitive pricing.
ex)
C6—25000X—F—B—C—B—18—2—X
*
*(X) for standard or assigned for custimization.
FREQUENCY
MODE
TOLERANCE
FREQUENCY
OPERATING
LOAD
PAD CONFIG
08000X – 99999X
=
F
= Fundamental
@ 25°C
STABILITY
TEMPERATURE
08-99
= pF
2
= 2 Pads
8.0000MHz -
3
= 3rd Overtone
A
= ±10
B
= ±25
A
= 0 to +70°C
SE =
Series
4
= 4 Pads
99.999MHz -
B
= ±25
C
= ±50
B
= -20 to +70°C
C10000 – C11000
=
C
= ±50
E
= ±100
D
= -40 to +85°C
100.00MHz -
S
= Special
S
= Special
S
= Special
110.00MHz -
See below for legacy part numbering configuration for parts designed prior to 02-01-2014, which are still available
Parameter
Frequency Range
*1
Frequency Tolerance
Temperature Range
*1
Frequency Stability
*1
Equivalent Series Resistance
(Maximum)
Drive Level (Typical)
Shunt Capacitance (Maximum)
Load Capacitance (Typical)
Aging (Maximum)
Seal Method
Insulation Resistance
Mode
Fundamental
3rd Overtone
Units
MHz
ppm
°C
°C
ppm
8.000000 to 60.000000
40.000000 to 110.000000
@ +25°C
Per Option
Operating
Per Option
Storage
- 55 to +125
Over Operating Temperature
Per Option
8.000000 to 10.000000 MHz
60
N/A
10.000000 to 14.000000 MHz
50
N/A
14.000000 to 20.000000 MHz
40
N/A
20.000000 to 60.000000 MHz
30
N/A
40.000000 to 110.000000 MHz
N/A
80
100
5.0
Per Option
Per Year
±5.0
Seam Weld
500MΩ Minimum @100Vdc ±15V
*1 - Not all Frequency/Stability/Temperature combinations are available.
Ω
uW
pF
pF
ppm
ex)
C6—25000X—F—C—B—18—R—X
*
Legacy Part Numbering Configuration
FREQUENCY
09000X – 99999X
=
9.0000MHz -
99.999MHz -
C10000 – C11000
=
100.00MHz -
110.00MHz -
MODE
F
= Fundamental
3
= 3rd Overtone
FREQUENCY
STABILITY
B
= ±25
C
= ±50
D
= ±100
S
= Special
SIZE:
A
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
S
= Special
CAGE:
A
LOAD
08-99
= pF
SE =
Series
PACKAGE
R
= Tape & Reel
REV:
NA
1
of
3
C6-Series
6.00 x 3.50 x 1.10
(mm)

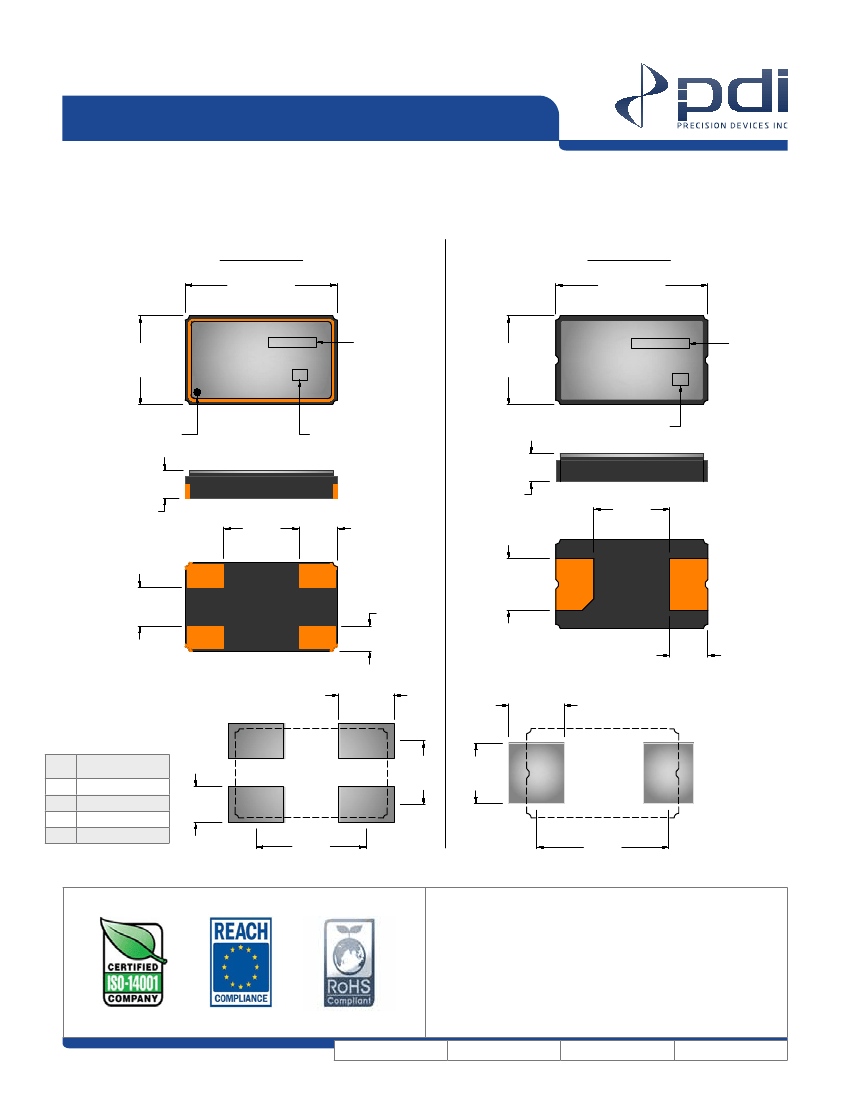

PA C K A G E D I M E N S I O N S
Decimal XXX = ± .008, XX = ± .02 Metric [XXX = ± .20], [XX = ± .50]
4-Pad Option
Top View
.236 ±.006
[6.00 ±.15]
PDI P/N
Frequency
Date Code
Last 7 digits
of PDI P/N
Top View
2-Pad Option
.236 ±.008
[6.00 ±.20]
.138 ±.006
[3.50 ±.15]
.138 ±.008
[3.50 ±.20]
PDI P/N
Frequency
Date Code
Traceability Code
Last 7 digits of
PDI P/N
Pin 1
Traceability Code
.043 Max
[1.10 Max]
.043 Max
[1.10 Max]
.118
[3.00]
1
2
.059
[1.50]
.079
[2.00]
.118
[3.00]
.059
[1.50]
4
3
.039
[1.00]
Bottom View
.087
[2.20]
3
Bottom View
Recommended Land Pattern
(Top View)
4
.059
[1.50]
Recommended Land Pattern
(Top View)
.086
[2.20]
.098
[2.50]
PIN
1
2
3
4
CONNECTION
Crystal
Ground/Cover
Crystal
Ground/Cover
.055
[1.40]
.094
[2.40]
1
2
.173
[4.40]
.205
[5.20]
NOTES:
Terminals are Au.
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Specifications subject to change without notice, last updated 4/1/13.
REV:
NA
SIZE:
A
CAGE:
A
2
of
3
C6-Series
6.00 x 3.50 x 1.10
(mm)

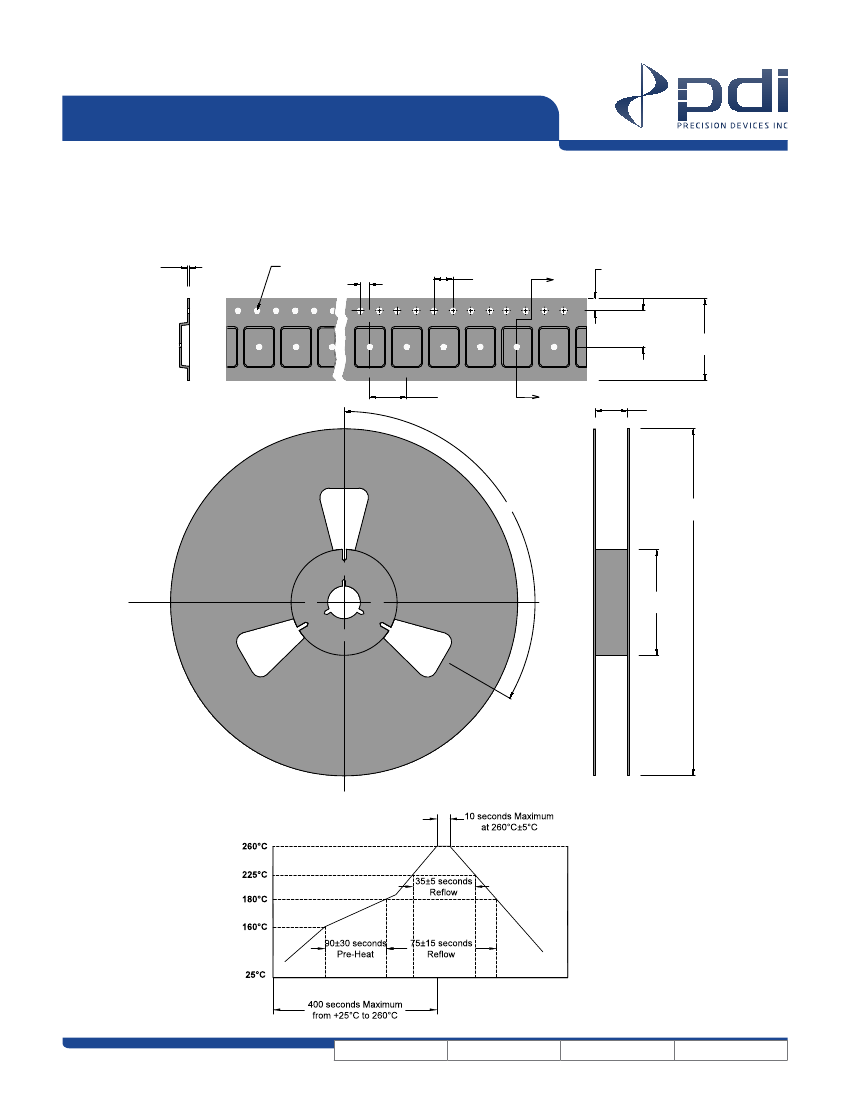

1.
Material: Black Conductive Polystyrene or equivalent.
2.
10 Sprocket Hole pitch cumulative tolerance of ±.008
3.
Camber in compliance with EIA 481
4.
Empty pockets: Trailing end (Minimum) 200 mm. and Leading end (Minimum) 400 mm.
5.
Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
.012±.002
[0.30±.05]
Ø.059
[Ø1.50]
.069
[1.75]
.079
[2.00]
.157 Typ.
[4.00 Typ.]
A
.295
[7.50]
.630 ±.012
[16.00 ±.30]
Section A-A
.315 Typ.
[8.00 Typ.]
A
.538
[16.20]
120°
Ø7.09
[Ø180.00]
3.15
[80.00]
REV:
NA
SIZE:
A
CAGE:
A
3
of
3
