N364AA-0075 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> N364AA-0075

Preview

N364AA-0075: DescriptionRF N Connector, 1 Contact(s), Male, Panel Mount, Cable Mount, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size723KB，1 Pages; ManufacturerJYEBAO Co., Ltd.

Download Datasheet Parametric View All

N364AA-0075 Overview

RF N Connector, 1 Contact(s), Male, Panel Mount, Cable Mount, Crimp Terminal, Locking, Plug

N364AA-0075 Parametric

Parameter Name	Attribute value
Objectid	304321735
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
subject depth	1.055 inch
Body diameter	0.827 inch
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF N CONNECTOR
Contact point gender	MALE
Contact resistance	1 mΩ
Contact style	COAX
Dielectric withstand voltage	2100VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE AND PANEL
Number of ports	1
Maximum operating frequency	1.5 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Panel mounting	YES
reliability	COMMERCIAL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1

Preview

Download Datasheet

View All

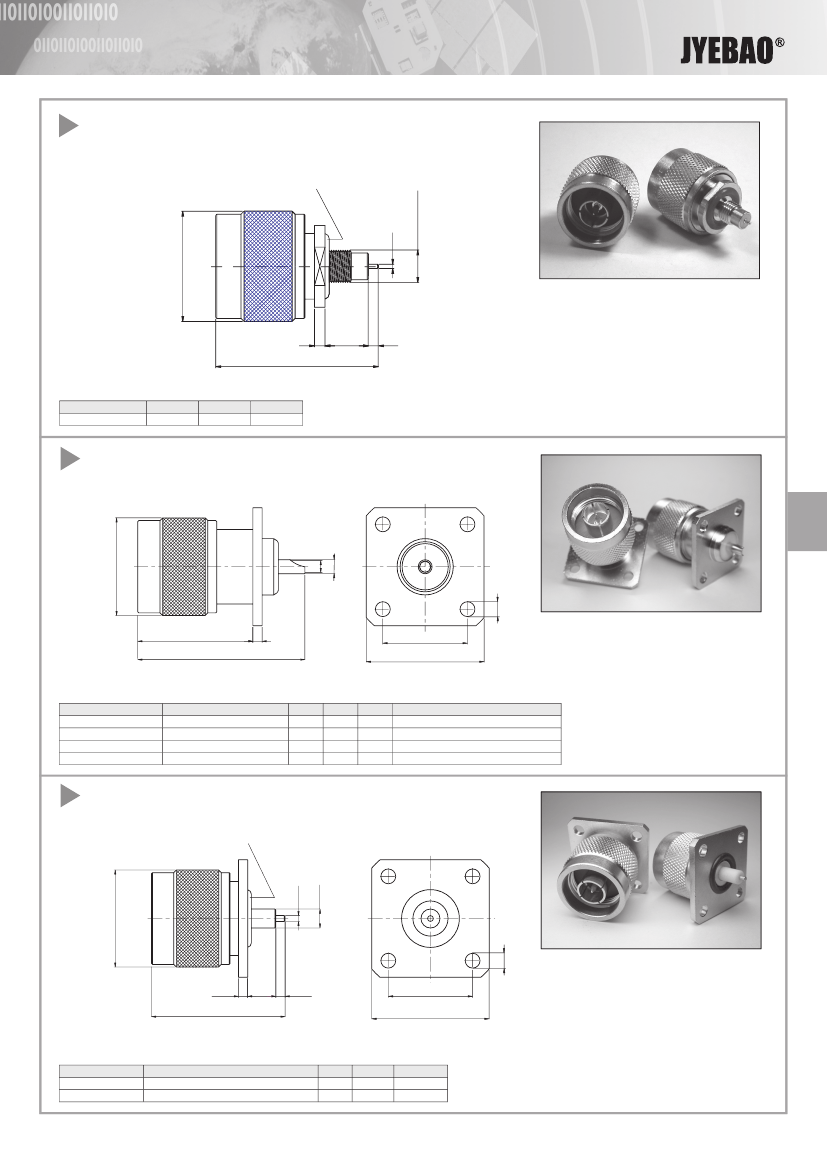

N PLUG FOR BULKHEAD

GASKET

1/4-36UNS-2B

ø21

(ø.827)

2

(.079)

31

(1.220)

8.3

(.327)

1.9

(.075)

Part Number

N3505A-0000

M.H.

43

Weight

27.95g

Material

A11

N PLUG FOR PANEL RECEPTACLE

ø0.8

(ø.031)

ø21

(ø.827)

øD

ød

24.8

(.976)

36

(1.417)

2

(.079)

18.24

(.718)

25.4 S.Q.

(1.000 S.Q.)

Part Number

N364A-0000

N364AA-0000

N364A-0075

N364AA-0075

Measurements

ød=2.4(.094) øD=3.15(.124)

ød=1.25(.049) øD=1.98(.078)

ød=2.4(.094) øD=3.15(.124)

ød=1.25(.049) øD=1.98(.078)

M.H.

25

Weight Material

45.56g

A11

42.12g

A11

Remarks

A=Shell 20mm HEX

Impedance=75ohm

Impedance=75ohm; A=Shell 20mm HEX

N PLUG FOR PANEL RECEPTACLE

GASKET

ø21

(ø.827)

ø1.27

(ø.050)

ø4.1

(ø.161)

2

(.079)

L

L1

L2

18.24

(.718)

25.4 S.Q.

(1.000 S.Q.)

Part Number

N364AL-0000

N364AL1-0000

Measurements

L=28.9(1.138) L1=6.1(.240) L2=2.0(.079)

L=28.8(1.134) L1=3.5(.138) L2=4.5(.177)

M.H.

102

Weight

36.30g

35.36g

Material

A11

Material & Plating: See Page 437

Mounting Hole (M.H.): See Page 439

ø3.2x4

(ø.126x4)

ø3.2x4

(ø.126x4)

www.jyebao.com.tw

Tel : 886-2-29029282

Fax: 886-2-29029283

E-mail: jyebao@jyebao.com.tw
