August 24, 2009
SMD INDUCTOR DR352-1 SERIES
Features
Surface Mount Beads
Operating Temp. -20°C to +80°C
Tinned Leads with Leaded Solder is Available
(note 7)
Custom Impedance Values Available
ELECTRICAL SPECIFICATIONS AT 25ºC
IMPEDANCE (Ω)
25MHz
100MHz
25
38
R
DC
(mΩ)
0.60
I
RATED
MAX
(A)
0.50

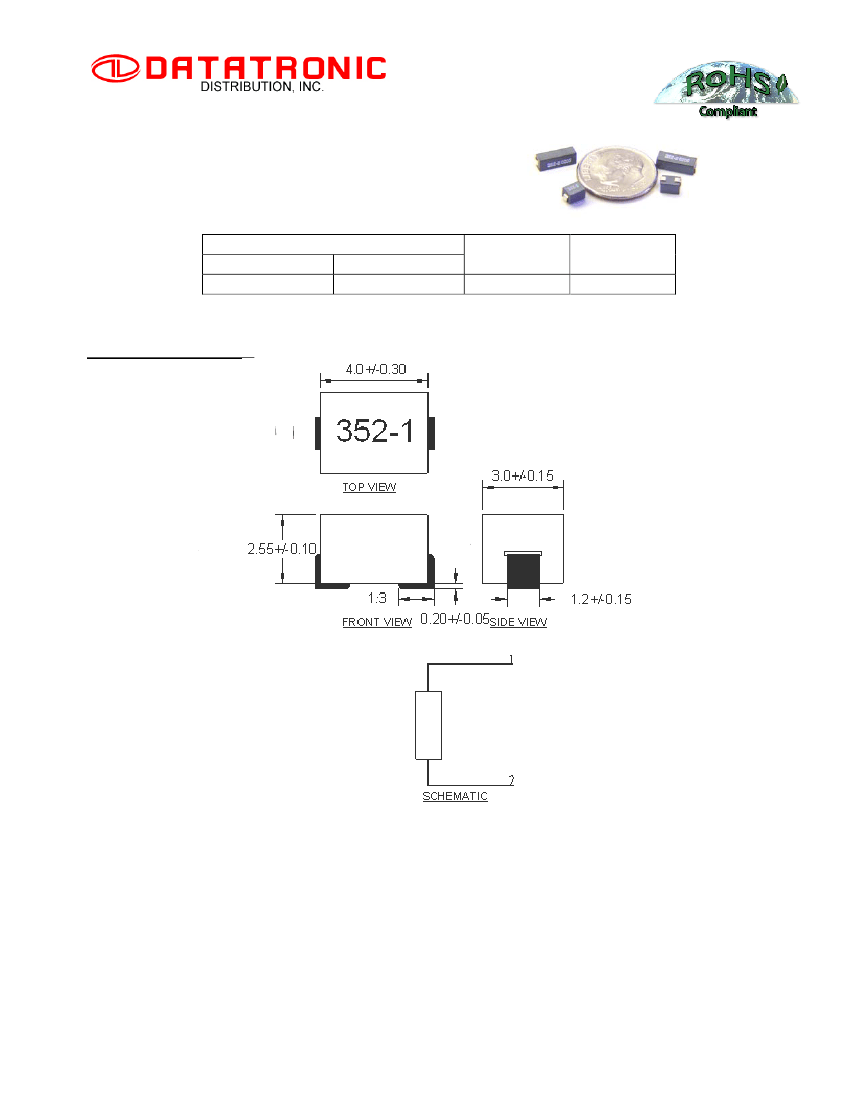

MECHANICAL OUTLINES
Notes:
1. All dimensions are shown in millimeter “mm”
2. General tolerance
0.2mm,
unless other specified
3. I
rms
for an approximate 45C temperature rise
4. I
sat
for an approximate 20% drop maximum of the nominal value
5. Tape and reel quantity, 500 pcs/reel
6. For non-RoHS parts replace DR prefix with 42- (e.g. DR352-1 becomes 42-352-1)
7. Terminal finish is compliant to RoHS requirements. Solder in accordance with J-STD-020D.
DATATRONIC
:
28151 Highway 74, Romoland, CA 92585 Tel: 951-928-7700 Fax: 951-928-7701 Email: ddisales@datatronics.com
499 King’s Road, Hong KongTel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290
All specifications are subject to change without notice.
