S80C196KC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> S80C196KC

S80C196KC: Description16-BIT, 20 MHz, MICROCONTROLLER, PQFP80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size293KB，25 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric View All

S80C196KC Overview

16-BIT, 20 MHz, MICROCONTROLLER, PQFP80

S80C196KC Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	QFP

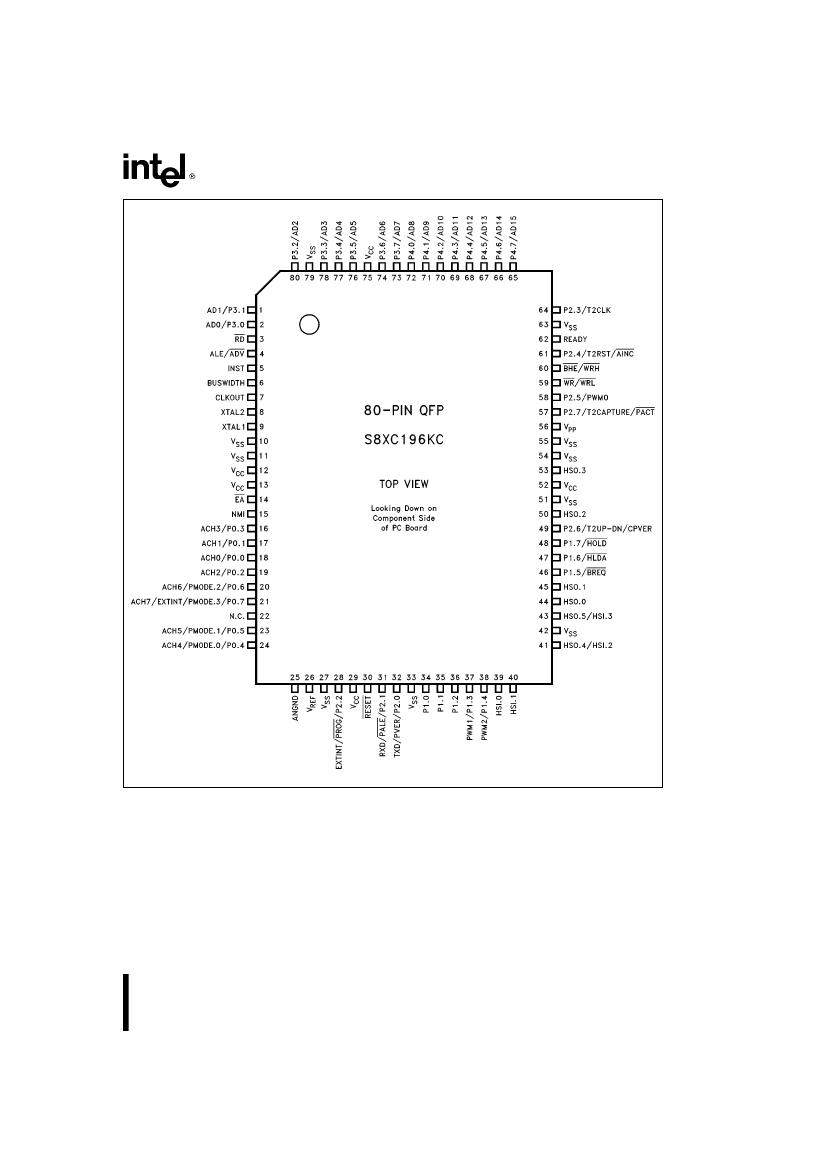

package instruction	QFP-80
Contacts	80
Reach Compliance Code	compliant
Has ADC	YES
Other features	FOUR SOFTWARE TIMERS; DYNAMIC BUS SIZING
Address bus width	16
bit size	16
boundary scan	NO
CPU series	8096
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PQFP-G80
length	20 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	40
Number of serial I/Os	1
Number of terminals	80
Number of timers	1
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP80,.7X.9,32
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	488
RAM (number of words)	488
rom(word)	0
Maximum seat height	3.15 mm
speed	16 MHz
Maximum slew rate	75 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

8XC196KC 8XC196KC20

COMMERCIAL EXPRESS CHMOS

MICROCONTROLLER

87C196KC

83C196KC

80C196KC

16 and 20 MHz Available

488 Byte Register RAM

28 Interrupt Sources 16 Vectors

Peripheral Transaction Server

1 4

16 x 16 Multiply (20 MHz)

2 4

32 16 Divide (20 MHz)

Powerdown and Idle Modes

Five 8-Bit I O Ports

16-Bit Watchdog Timer

Extended Temperature Available

16 Kbytes of On-Chip OTPROM

16 Kbytes ROM

ROMless

Dynamically Configurable 8-Bit or

16-Bit Buswidth

Full Duplex Serial Port

High Speed I O Subsystem

16-Bit Timer

16-Bit Up Down Counter with Capture

3 Pulse-Width-Modulated Outputs

Four 16-Bit Software Timers

8- or 10-Bit A D Converter with

Sample Hold

HOLD HLDA Bus Protocol

OTPROM One-Time Programmable

Version

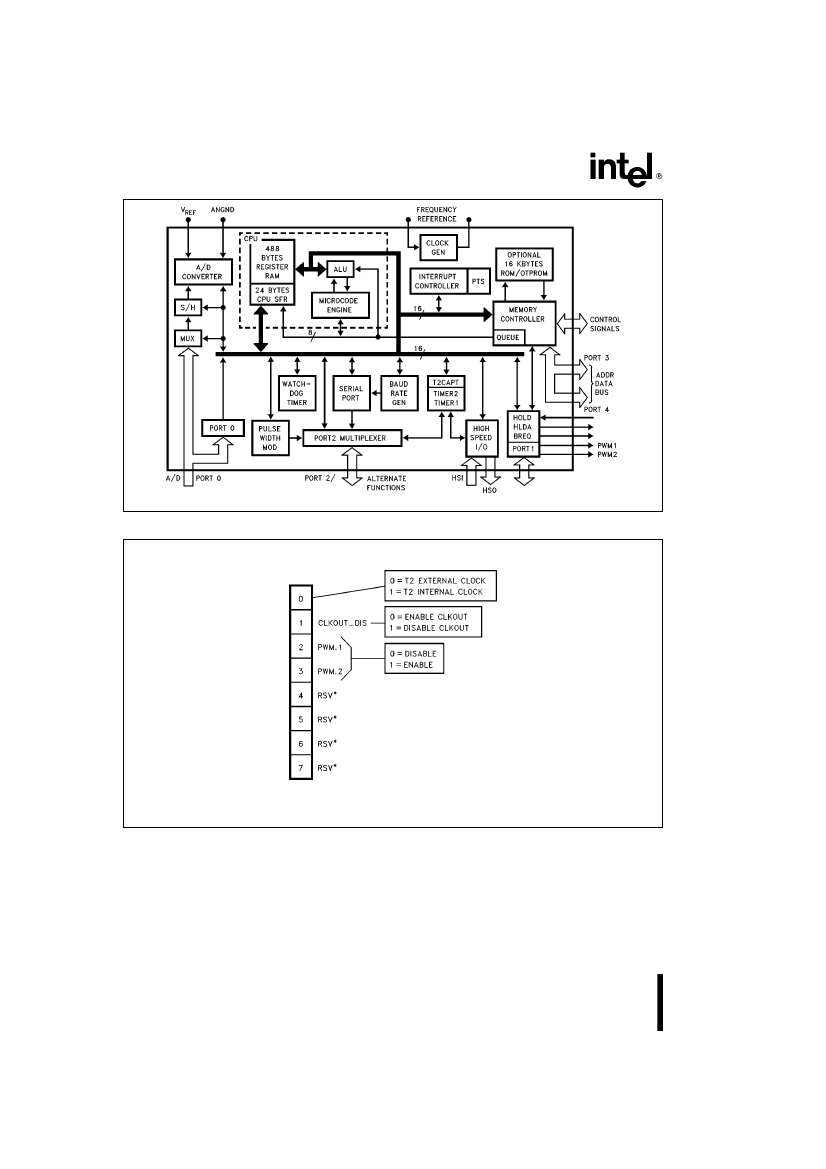

The 80C196KC 16-bit microcontroller is a high performance member of the MCS 96 microcontroller family

The 80C196KC is an enhanced 80C196KB device with 488 bytes RAM 16 and 20 MHz operation and an

optional 16 Kbytes of ROM OTPROM Intel’s CHMOS III process provides a high performance processor

along with low power consumption

The 87C196KC is an 80C196KC with 16 Kbytes on-chip OTPROM The 83C196KC is an 80C196KC with 16

Kbytes factory programmed ROM In this document the 80C196KC will refer to all products unless otherwise

stated

Four high-speed capture inputs are provided to record times when events occur Six high-speed outputs are

available for pulse or waveform generation The high-speed output can also generate four software timers or

start an A D conversion Events can be based on the timer or up down counter

With the commercial (standard) temperature option operational characteristics are guaranteed over the tem-

perature range of 0 C to

70 C With the extended (Express) temperature range option operational charac-

teristics are guaranteed over the temperature range of

40 C to

85 C Unless otherwise noted the specifi-

cations are the same for both options

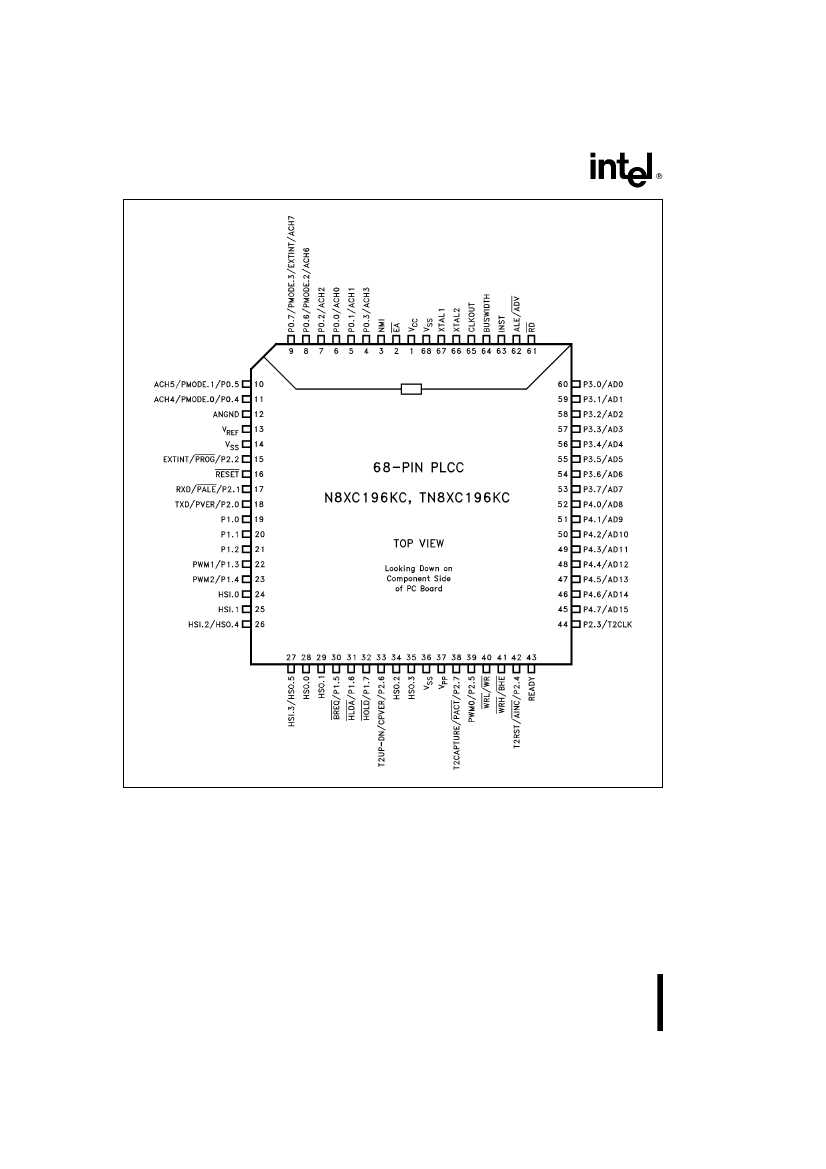

See the Packaging information for extended temperature designators

Other brands and names are the property of their respective owners

Information in this document is provided in connection with Intel products Intel assumes no liability whatsoever including infringement of any patent or

copyright for sale and use of Intel products except as provided in Intel’s Terms and Conditions of Sale for such products Intel retains the right to make

changes to these specifications at any time without notice Microcomputer Products may have minor variations to this specification known as errata

INTEL CORPORATION 1995

November 1994

Order Number 270942-005
