SMF201A~SMF207A
Elektronische Bauelemente
Voltage 50 V ~ 1000 V
2.0 Amp High Efficiency Recovery Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
SMA
B
A
C
Ideal for surface mount applications
Easy pick and place
Built-in strain relief
MECHANICAL DATA
Case: Molded plastic SMA
Epoxy: UL 94V-0 rate flame retardant
Polarity: Color band denotes cathode
Mounting position: Any
H
D
G
E
F
REF.
E
F
G
H
Millimeter
Min.
Max.
-
0.203
4.80
5.28
0.76
1.52
0.15
0.305
PACKAGE INFORMATION
Package
SMA
MPQ
5K
Leader Size
13’ inch
REF.
A
B
C
D
Millimeter
Min.
Max.
1.24
1.65
3.99
4.60
2.40
2.90
1.90
2.44
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.)
Part Number
Parameter
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified
Current.375”(9.5mm) Lead Length at
T
A
=55°C
Peak Forward Surge Current, 8.3ms single
half sine-wave superimposed on rated load
Maximum Instantaneous Forward Voltage
@ 2A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
T
J
=25°C
T
J
=125°C
Symbol
V
RRM
V
RMS
V
DC
I
F
I
FSM
V
F
I
R
T
RR
R
θJL
R
θJC
C
J
T
J
,T
STG
SMF
201A
SMF
202A
SMF
203A
SMF
204A
SMF
205A
SMF
206A
SMF
207A
Unit
V
V
V
A
A
50
35
50
100
70
100
200
140
200
400
280
400
2
50
600
420
600
800
560
800
1000
700
1000
1.3
5
200
150
30
35
50
-55~150
1.5
1.7
V
μA
Maximum Reverse Recovery Time
1
Typical Thermal Resistance
Typical Junction Capacitance
2
Operating & Storage Temperature
250
500
nS
°C/W
pF
°C
Notes:
1. Reverse Recovery Time test condition：I
F
=0.5A, I
R
=1A, I
RR
=0.25A
2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
27-Aug-2013 Rev.C
Page 1 of 2
SMF201A~SMF207A
Elektronische Bauelemente
Voltage 50 V ~ 1000 V
2.0 Amp High Efficiency Recovery Rectifiers

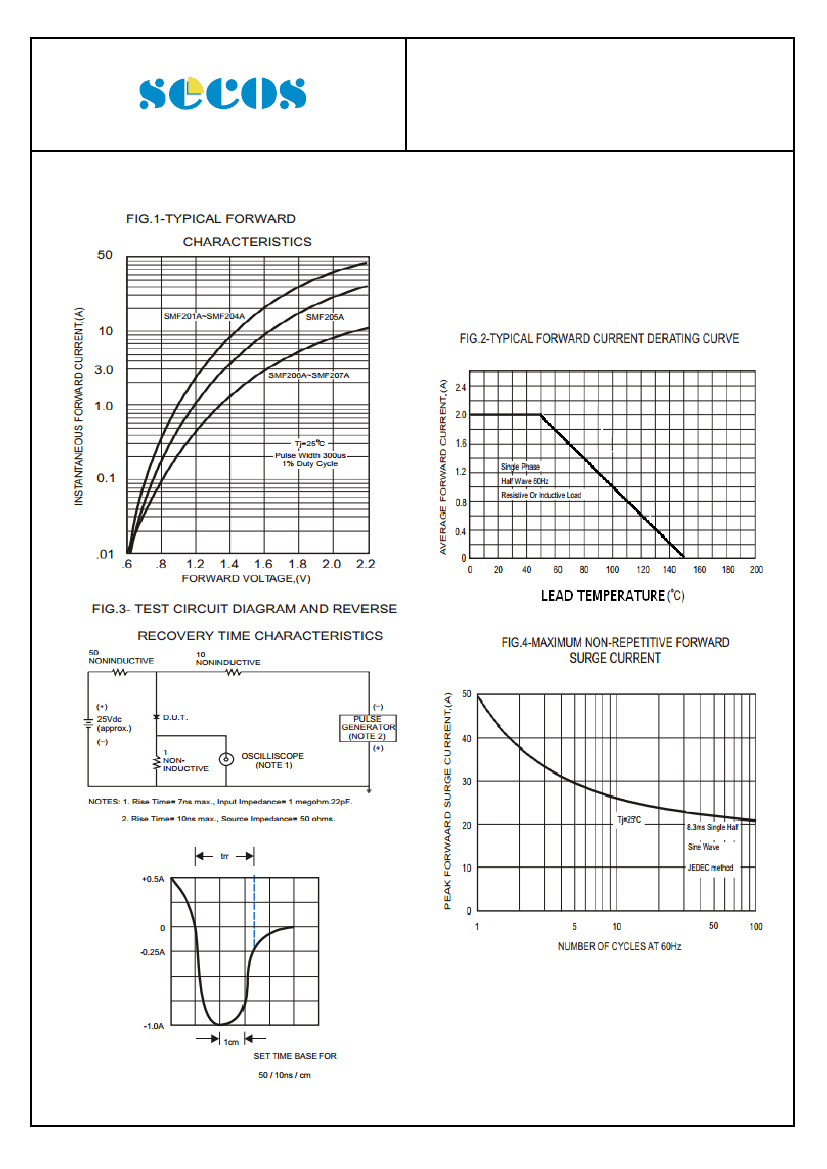

RATINGS AND CHARACTERISTIC CURVES
