364914: Description64 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

364914 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	364914	-	-	View	Buy Now

364914 Overview

64 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER

364914 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	ROHS COMPLIANT
body width	0.437 inch
subject depth	0.7 inch
body length	3.701 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact style	SQ PIN-SKT
DIN compliance	YES
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

2,5

-0,2

c32

85,5

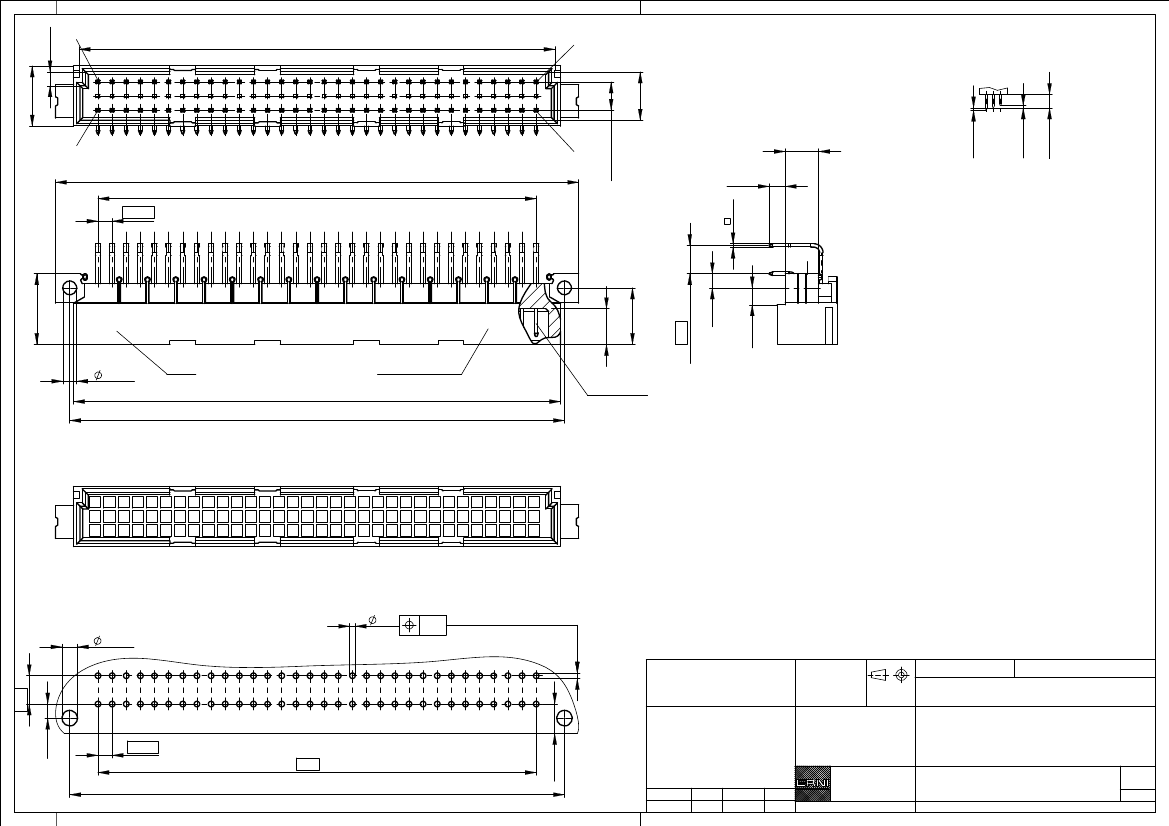

Stecklänge / mating length

ESL

max.11,1

2x2,54=5,08

8,7

+0,2

a32

max.94

31x2,54=78,74

2,54

±0,1

-0,4

0,6

E =

early mate, late break

/ voreilend

S = standard

L = late mate, early break / nacheilend

2 x 2,54 (=5,08)

12,7

10,2

-0,2

2,54

Datum

2,5

+0,1

date

Anforderungsstufe

class

87,5

88,9

Stecklänge

mating length

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

3,05

XXXXXXX

ERNI

RC 2

6,4

-0,1

+0,1

a b c

Anforderungsstufe 2 = 400 Steckzyklen / performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Lötanschluss 0,6x0,6mm

/ solder terminal 0,6x0,6mm

Berduckung siehe Zeichnung 294905

Leiterplatten-Lochbild /

PCB drillhole pattern

±0,1

2,8

2 x 2,54 (= 5,08)

+0,1

0,05

alle Löcher/

marking see drawing 294905

all holes

Proprietary notice pursuant to ISO 16016 to be observed.

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

5,3

±0,1

2,54

31 x 2,54 (=78,74)

88,9

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

08.12.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste C 64 Löt

Male Connector C64 solder

www.ERNI.com

Class

364914
