MAFA 5000 Series Erbium Doped Fiber Preamplifier
PRELIMINARY DATASHEET | FEBRUARY 2017
FIBER OPTICS
Optical/Electrical Characteristics
Property
Note
1
Unit
Limit
14
Models
17
-45/-4
17
+/- .25
≤
+/-3.0 dB
≤
3.5 dB
+/- 0.3
5.5
Comments
Operating Input Power
Total Output Saturated
Power
Flatness
Noise Figure
Output Power Stability
Power Consumption
(Steady state)
Pin (dBm)
Min/Max
Po (dBm)
ΔG
(dB)
NF (dB)
(dB)
Psys(W)
Typ
Nominal
Typ
Typ
Max
Max
-45/-4
14
+/-.25
≤
+/-3.0 dB
≤
3.5 dB
+/- 0.3
3
Recommended
Before Splitter (if installed)
Note 2, 3
Note 4
Note 5
Note 6
Note 7
Notes:
1)
2)
3)
4)
5)
6)
7)
Unless stated otherwise, all specifications apply over the full operating temperature and humidity ranges
Measurement variations
Measured @ 25°C, Pin
≈
-4.0 dBm.
λ
≈
1555 nm
Measured @ 25°C, Pin_total
≈
-20.0 dBm,
Δλ
≈
from 1530 nm to 1562 nm
Measured @ 25°C, Pin
≈
-30 dBm.
λ
≈
1555 nm
Over polarization and temperature
Max - power consumption @ -20ºC or +70ºC of case temperatures
General and Mechanical Specifications
Property
Operating Wavelength
Operating Case Temperature
Storage Temperature
Operating Humidity
Voltage Supply Range
Optical Connectors
Dimensions (mm)
Requirement
1530nm ~ 1562nm
0°C to 65°C
-40°C to 85°C
up to 95%
+5VDC
SC, FC, E2000, LC
70 x 90 x 15
Comments
Standard
Standard*
Standard
Non-condensing
All versions
User Specified
All versions
* - Extended temperature range of –20°C to +70°C is also possible
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
EMCORE is a registered trademark of EMCORE Corporation in the U.S. and other countries.
MAFA 5000 Series Erbium Doped Fiber Preamplifier
PRELIMINARY DATASHEET | FEBRUARY 2017
FIBER OPTICS

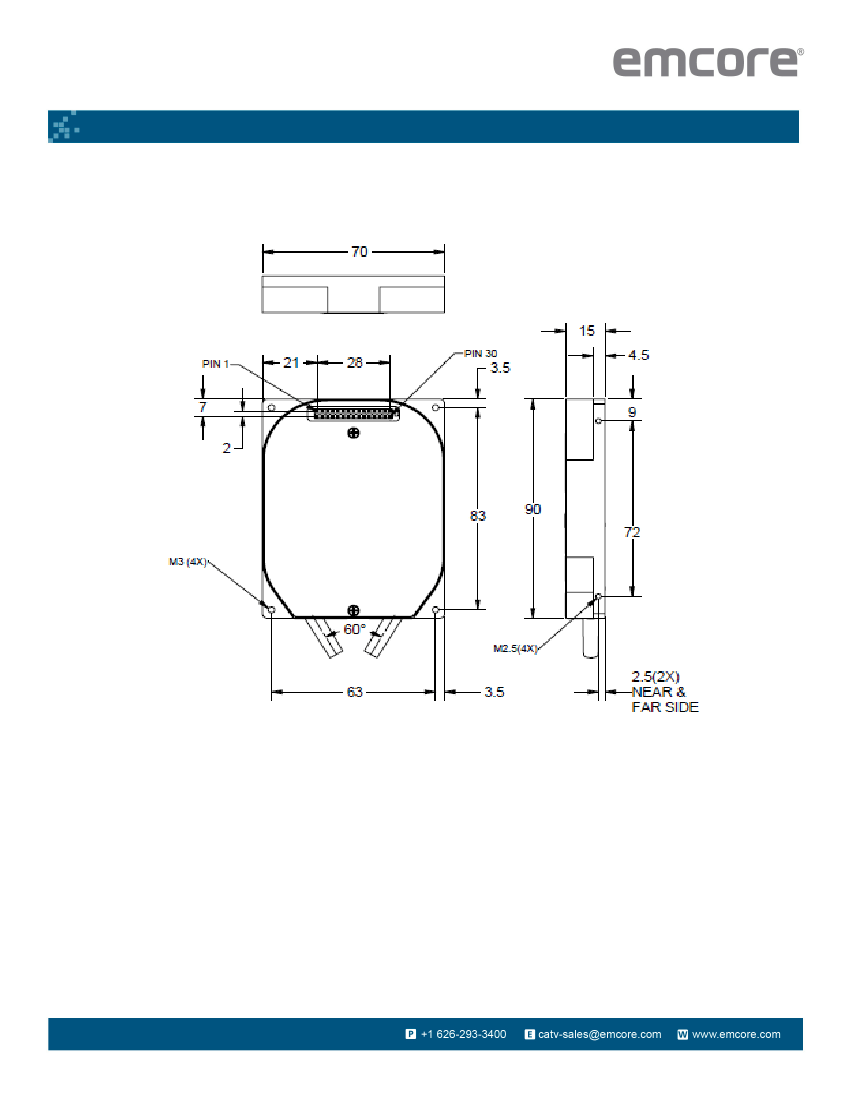

Outline Drawing (dimensions in mm)
Compliance and Reliability Information
Class 3B Laser Safety
221,000 hours MTBF at 50°C per Telcordia SR-332, Issue 2
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
EMCORE is a registered trademark of EMCORE Corporation in the U.S. and other countries.
MAFA 5000 Series Erbium Doped Fiber Preamplifier
PRELIMINARY DATASHEET | FEBRUARY 2017
FIBER OPTICS
Electrical Connector Pinout
PIN #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Designation
5VDC
+5VDC
+5VDC
+5VDC
GND
GND
RS232_Rx
RS232_Tx
GND
GND
NC
EDFA_Reset (TTL active high)
EDFA_Disable (TTL active high)
Pout_Mute (TTL active high)
EDFA_Temp_Alarm (TTL active high)
PIN #
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Designation
NC
Pump_Temp_Alarm (TTL active high)
Pump_Bias_Alarm (TTL active high)
Loss_Input_Power (TTL active high)
Loss_Output_Power (TTL active high)
GND
GND
Input Power Mon
Output Power Mon
GND
GND
RxD
TxD
+5VDC
+5VDC
* - SAMTEC, TMM-115-01-L-D
Ordering Information
MAFA5000
-□□-□□□□-□□□-□□
Saturated
Output
Power
dBm
14
= 14
Number of
Output Ports
Input
Connector Type
1 = SC/APC
2 = FC/APC
17
= 17
3 = E2000 / APC
02
= 2 ports
4 = LC / APC
03
= 3 ports
04
= 4 ports
Output
Connectors
Type
1 = SC / APC
2 = FC / APC
3 = E2000 /
APC
4 = LC / APC
Required
Power
Supply
1 = +5VDC
Model
Future
Use
Logo &
Customer
Specifics
0
= Emcore
Logo
Temperature
Option
S = Standard
01
= 1 port
P = Preamp
0 = NA
E = Extended
Example:
MAFA5000-0S-1401-111-P0: MAFA5000 gain block, with EMCORE logo, standard temperature range, 14 dBm saturated output power, 1 output port,
SC/APC connector on input, SC/APC connector on output, +5VDC power supply required, preamplifier
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
EMCORE is a registered trademark of EMCORE Corporation in the U.S. and other countries.
MAFA 5000 Series Erbium Doped Fiber Preamplifier
PRELIMINARY DATASHEET | FEBRUARY 2017
FIBER OPTICS
Laser Safety Information
This component product classified as a Class 3B laser product based on the maximum optical output power defined below.
