AQ132A221MA13A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 200V, 20% +Tol, 20% -Tol, A, 30ppm/Cel TC, 0.00022uF, Surface Mount, 1111, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size624KB，4 Pages; ManufacturerAVX; Environmental Compliance; Related ProductsFound5parts with similar functions to AQ132A221MA13A

Download Datasheet Parametric View All

AQ132A221MA13A Overview

Ceramic Capacitor, Multilayer, Ceramic, 200V, 20% +Tol, 20% -Tol, A, 30ppm/Cel TC, 0.00022uF, Surface Mount, 1111, CHIP, ROHS COMPLIANT

AQ132A221MA13A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	, 1111
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS:MIL-PRF-55681; MIL-PRF-123
capacitance	0.00022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.676 mm
JESD-609 code	e4
length	2.79 mm
Manufacturer's serial number	AQ
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
series	AQ
size code	1111
surface mount	YES
Temperature characteristic code	A
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Palladium/Silver (Pd/Ag)
Terminal shape	WRAPAROUND
width	2.79 mm
Base Number Matches	1

Preview

Download Datasheet

View All

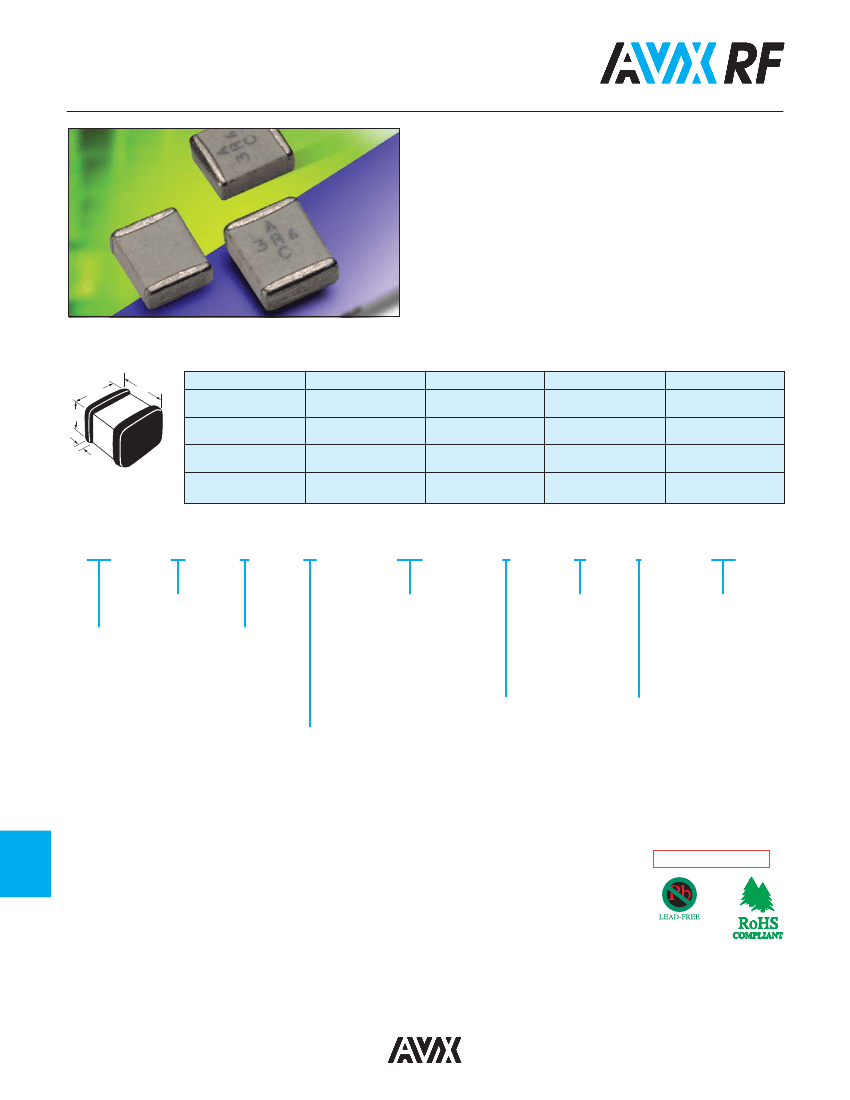

Microwave MLC’s

AQ Series

These porcelain and ceramic dielectric multilayer capacitor

(MLC) chips are best suited for RF/ Microwave applications

typically ranging from 10 MHz to 4.2 GHz. Characteristic is a

fine grained, high density, high purity dielectric material imper-

vious to moisture with heavy internal palladium electrodes.

These characteristics lend well to applications requiring:

1) high current carrying capabilities;

2) high quality factors;

3) very low equivalent series resistance;

4) very high series resonance;

5) excellent stability under stresses of changing volt-

age, frequency, time and temperature.

MECHANICAL DIMENSIONS:

inches (millimeters)

Width (W)

.055±.015

(1.40±.381)

.055±.015

(1.40±.381)

.110±.020

(2.79±.508)

.110±.010

(2.79±.508)

Case

AQ11

AQ12

Length (L)

.055±.015

(1.40±.381)

.055 + .015 - .010

(1.40+ .381 - .254)

.110±.020

(2.79±.508)

.110 + .020 - .010

(2.79 +.889 -.254)

Thickness (T)

.020/.057

(.508/1.45)

.020/.057

(.508/1.45)

.030/.102

(.762/2.59)

.030/.102

(.762/2.59)

Band Width (bw)

.010 + .010 -.005

(.254 +.254 -.127)

.010 + .010 -.005

(.254 +.254 -.127)

.015±.010

(.381±.254)

.015±.010

(.381±.254)

A 1J

AQ13

AQ14

HOW TO ORDER

100

Case

Size

AVX Style

AQ11, AQ12,

AQ13, AQ14

(See Chart)

Capacitance

Voltage

Code

5 = 50V

1 = 100V

E = 150V

2 = 200V

9 = 300V

7 = 500V

EIA Capacitance Code in pF.

First two digits = significant

figures or “R” for decimal

place.

Third digit = number of zeros

or after “R” significant figures.

Failure Rate

Code

A = Not

Applicable

Packaging*

Code

3A = 13" Reel Unmarked

ME = 7" Reel Marked

RE = 13" Reel Marked

WE = Waffle Pack Marked

BE = Bulk Marked

Temperature

Coefficient Code

M = +90±20ppm/°C (AQ11/12/13/14)

A = 0±30ppm/°C (AQ11/12/13/14)

C = 15% (“J” Termination only) (AQ12/14)

Capacitance

Tolerance

Code

B = ±.1 pF

C = ±.25 pF

D = ±.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

N = ±30%

Termination

Style Code

1 = Pd/Ag (AQ11/13 only)

7 = Ag/Ni/Au (AQ11/13 only)

J = Nickel Barrier Sn/Pb

(60/40) - (AQ12/14 only)

T = 100% Tin (AQ12/14 only)

PACKAGING

Standard Packaging = Waffle Pack (maximum quantity is 80)

Not RoHS Compliant

TAPE & REEL:

All tape and reel specifications are in compliance with EIA RS481

(equivalent to IEC 286 part 3).

LEAD-FREE COMPATIBLE

COMPONENT

Sizes SQCA through SQCB, CDR11/12 through 13/14.

—8mm carrier

—7" reel: ≤0.040" thickness = 2000 pcs

≤0.075" thickness = 2000 pcs

—13" reel: ≤0.075" thickness = 10,000 pcs

For RoHS compliant products,

please select correct termination style.

156
