AQ132A221MA1ME: DescriptionCeramic Capacitor, Multilayer, Ceramic, 200V, 20% +Tol, 20% -Tol, A, 30ppm/Cel TC, 0.00022uF, Surface Mount, 1111, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size1MB，113 Pages; ManufacturerAVX; Environmental Compliance; Related ProductsFound5parts with similar functions to AQ132A221MA1ME

Download Datasheet Parametric View All

AQ132A221MA1ME Overview

Ceramic Capacitor, Multilayer, Ceramic, 200V, 20% +Tol, 20% -Tol, A, 30ppm/Cel TC, 0.00022uF, Surface Mount, 1111, CHIP, ROHS COMPLIANT

AQ132A221MA1ME Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	, 1111
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS:MIL-PRF-55681; MIL-PRF-123
capacitance	0.00022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.676 mm
JESD-609 code	e4
length	2.79 mm
Manufacturer's serial number	AQ
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
series	AQ
size code	1111
surface mount	YES
Temperature characteristic code	A
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Palladium/Silver (Pd/Ag)
Terminal shape	WRAPAROUND
width	2.79 mm
Base Number Matches	1

Preview

Download Datasheet

View All

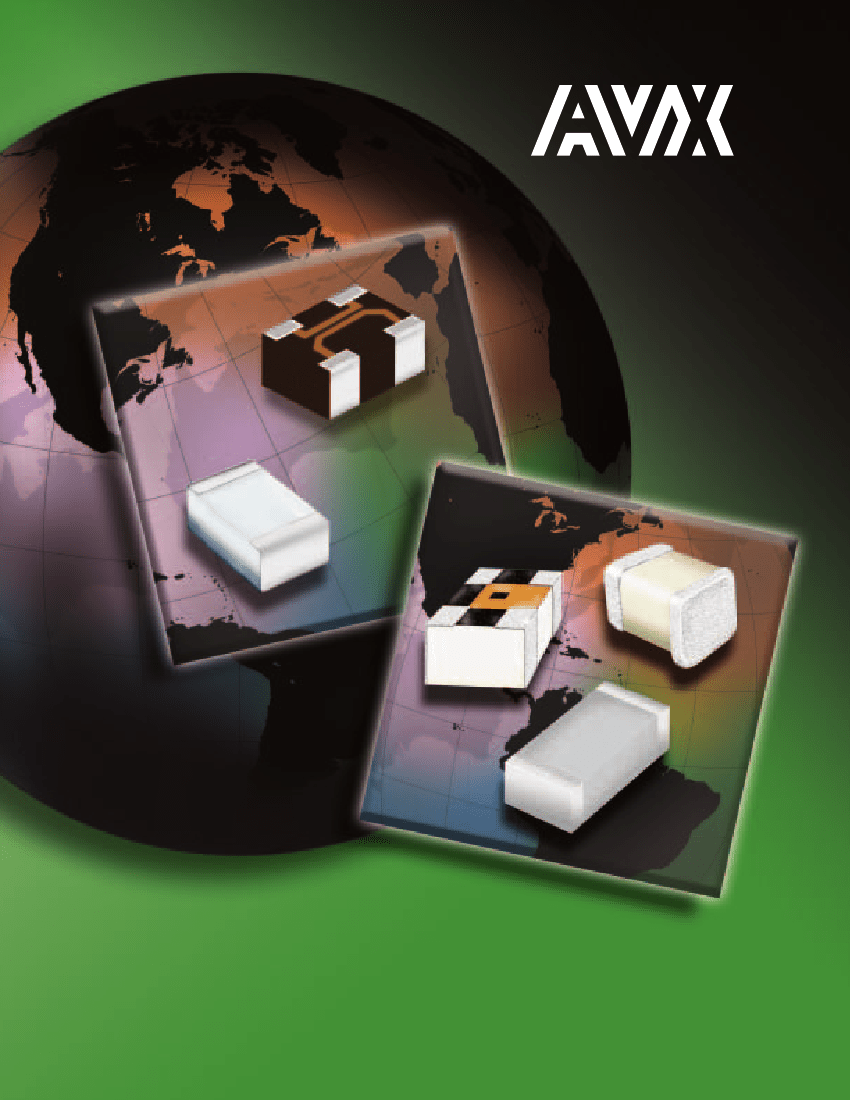

A KYOCERA GROUP COMPANY

AVX

RF Microwave/Thin-Film

Products

RF/Microwave Products

Table of Contents

Company Profile

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thin-Film RF/Microwave Technology – Accu-F

/ Accu-P

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-24

Thin-Film Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thin-Film Chip Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thin-Film Chip Capacitors for RF Signal and Power Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Accu-F

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Accu-P

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0201 Typical Electrical Tables – Accu-P

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0402 Typical Electrical Tables – Accu-P

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12-13

0603 Typical Electrical Tables – Accu-F

/ Accu-P

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0805 Typical Electrical Tables – Accu-F

/ Accu-P

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1210 Typical Electrical Tables – Accu-P

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

High Frequency Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17-19

Environmental / Mechanical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Performance Characteristics RF Power Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Application Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22-23

Automatic Insertion Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thin-Film RF/Microwave Inductor Technology – Accu-L

– L0603/L0805

. . . . . . . . . . . . . . . . . .

25-30

SMD High-Q RF Inductor – Accu-L

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

26-29

Environmental Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thin-Film RF/Microwave Directional Couplers – CP0402/CP0603/CP0805/DB0805 3dB 90°

. . . .

31-67

CP0402 High Directivity LGA Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32-35

CP0603 High Directivity LGA Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36-40

CP0402 and CP0603 Test Jigs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CP0603 SMD Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42-44

CP0603 SMD Type – High Directivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CP0805 Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

46-49

CP0805 and CP0603 Test Jigs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DB0805 3dB 90° Couplers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51-62

DB0805 3dB 90° Test Jigs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thin-Film RF/Microwave Harmonic Low Pass Filter – LP0603/LP0805

. . . . . . . . . . . . . . . . . . . .

64-71

LP0603 Test Jigs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

67-68

LP0805 Test Jigs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Thin-Film RF/Microwave Products – Designer Kits

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

72-74

RF/Microwave Multilayer Capacitors (MLC)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

75-89

Porcelain Capacitors (+90±20ppm/°C)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

76-79

• AQ06 (0.063" x 0.032") - Cap. Range: 0.1 to 120pF

• AQ11; AQ12 (0.055" x 0.055") - Cap. Range: 0.1 to 100pF

• AQ13; AQ14 (0.110" x 0.110") - Cap. Range: 0.1 to 1000pF

Hi-Q NP0 Capacitors (0±30ppm/°C)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

• AQ06 (0.063" x 0.032") - Cap. Range: 0.1 to 120pF

• AQ11; AQ12 (0.055" x 0.055") - Cap. Range: 0.1 to 1000pF

• AQ13; AQ14 (0.110" x 0.110") - Cap. Range: 0.1 to 5100pF

Hi-K RF Capacitors (±15%)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

78-79

• AQ12 (0.055" x 0.055") - Cap. Range: 0.001 to 0.010µF

• AQ14 (0.110" x 0.110") - Cap. Range: 0.005 to 0.1µF

MIL-PRF-55681 “BG” Voltage Temperature Limits (+90±20ppm/°C)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

80-82

• CDR11BG; CDR12BG (0.055" x 0.055") - Failure Rate Level: M, P, R, S

• CDR13BG; CDR14BG (0.110" x 0.110") - Failure Rate Level: M, P, R, S

MIL-PRF-55681 “BP” Voltage Temperature Limits (0±30ppm/°C)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

80-82

• CDR11BP; CDR12BP (0.055" x 0.055") - Failure Rate Level: M, P, R, S

• CDR13BP; CDR14BP (0.110" x 0.110") - Failure Rate Level: M, P, R, S

Performance Curves

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

83-87

Automatic Insertion Packaging

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hi-Q

High RF Power MLC Surface Mount Capacitors

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RF/Microwave C0G (NP0) Capacitors

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

90-93

Ultra Low ESR “U” Series, C0G (NP0)

91-93

RF/Microwave AQ 12 & 14 and “U” Series Designer Kits

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

94-97

Introduction to Microwave Capacitors

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

98-110

• 0402 (0.040" x 0.020"), 0603 (0.060" x 0.030"), 0805 (0.080" x 0.050"), 1210 (0.125" x 0.100")

. . . . . . . . . . . . . . . . . .
