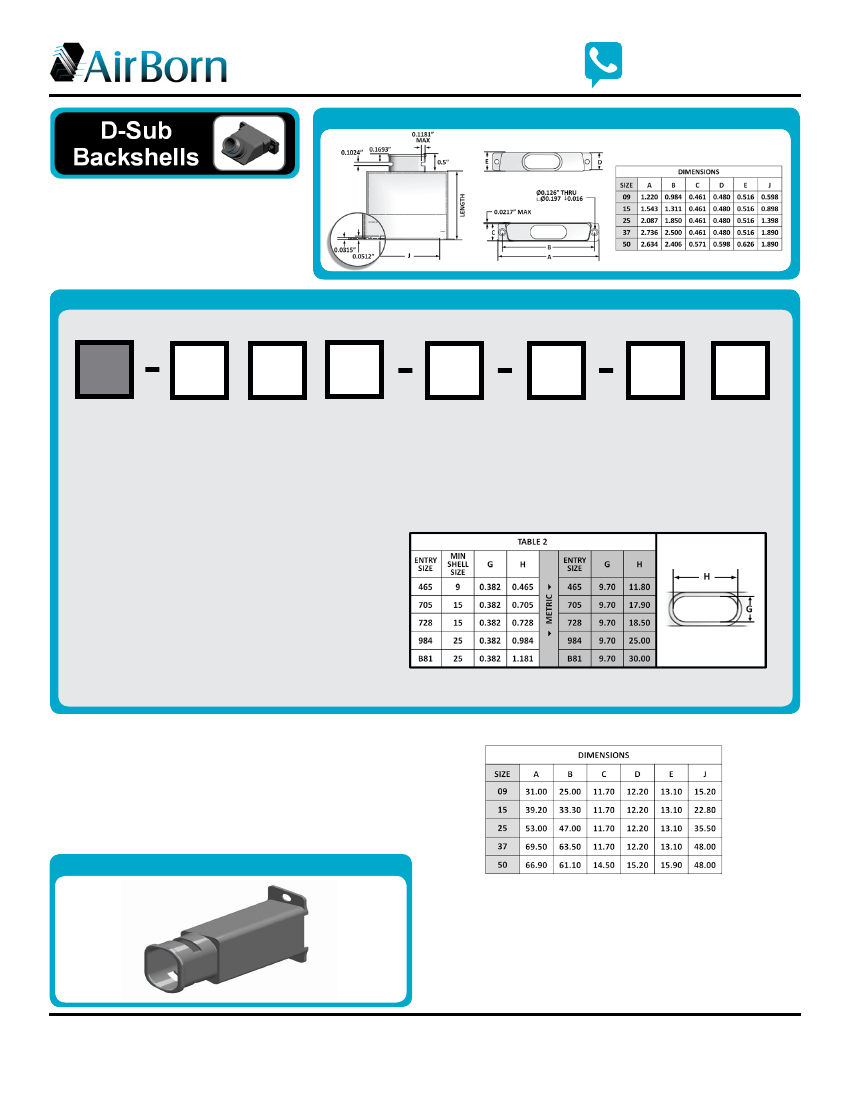

DH 5 – Banding Backshell with Thin
Walls, Elongated Top Entry and Slot
Option for use with RFI Comb
For use with D-Subminiature and
MIL-DTL-24308 connectors.
ORDER FORM
ENTER
CODE
ENTER
CODE
ENTER
CODE
Sample Part Number Format: DH-152-009-XXX-0030
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
DH
SERIES
Banding Backshells
with Thin Walls for
D-Subminiature
Connectors
MATERIAL
1 – Aluminum
alloy
STYLE
5 – Elongated
top entry and
slot option for
RFI comb*
PLATING
2 – Nickel-plated
aluminum
6 – Gold-plated
nickel
SIZE
009 – 9 Contacts
015 – 15 Contacts
025 – 25 Contacts
037 – 37 Contacts
050 – 50 Contacts
ENTRY SIZE
See Table 2 below
HARDWARE
00 – None
SH – Slot head
screw with clip
AH – Allen head
screw with clip
JP – Jackpost
LENGTH
30 – 30 mm
40 – 40 mm
50 – 50 mm
60 – 60 mm
NOTES
* RFI comb sold separately
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
MATERIALS and FINISHES
Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy
Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½
Electrodeposited per SAE AMS-QQ-P-416, Type II, Class 2
Gold per ASTM B488 Type II, Grade C, Class 2 over
electroless nickel per MIL-C-26074 Class 4
Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640, Type 1 or
AISI-303 or EN 10088-3 1½4305, passivated per SAE AMS-2700, Method 2
Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M
Passivated per SAE AMS-2700, Method 2
METRIC
(for reference, only)
DH-152-009-XXX-0030
DH5-PNB-1
