009010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Other integrated circuit (IC)> 009010

009010: Description164 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size77KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Compare View All

009010 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	009010	-	-	View	Buy Now

009010 Overview

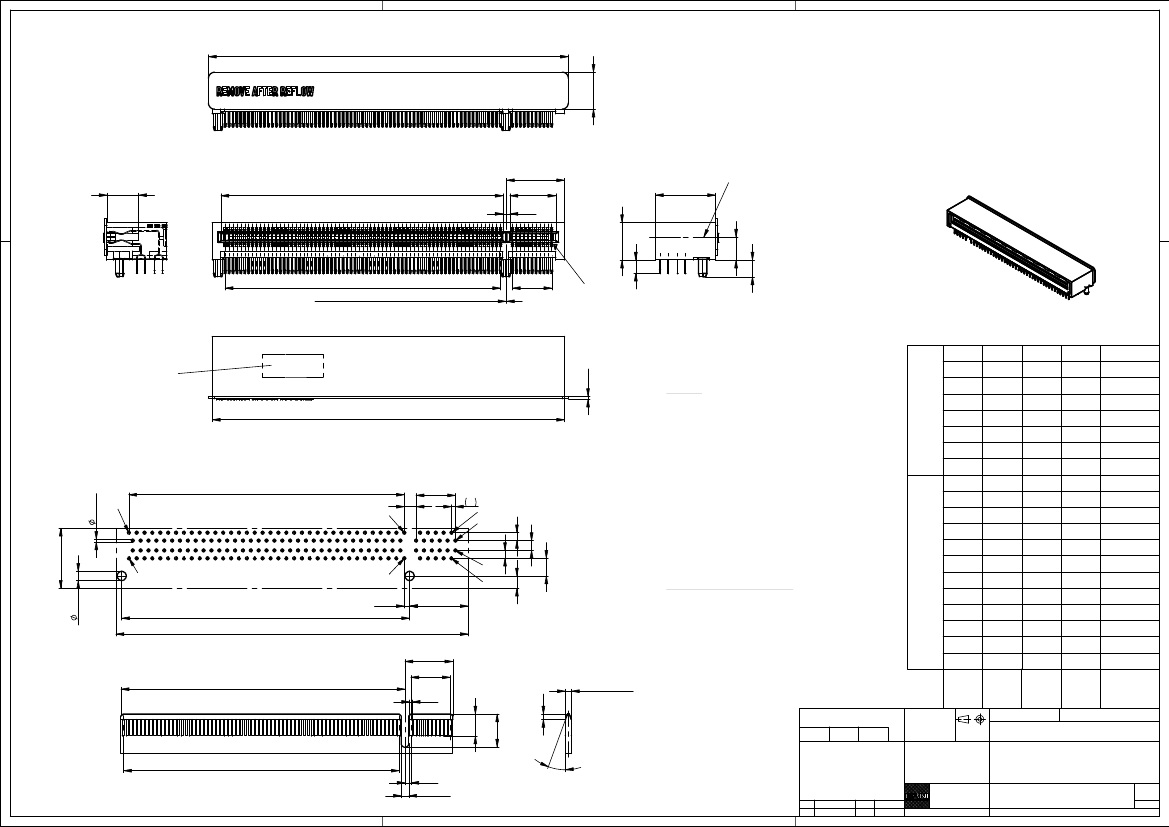

164 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

view with dust cover

91,44

±0,25

Detail contact area

8,03

71,66

14,75

11,66

1,78

15,24

9,39

±0,25

Mittellinie Leiterplatte

centerline of daughter card

M 1:1

Offset von Führungssteg zu Referenzzapfen

0,15

PIN 1

Offset from guiding bar to reference peg

XXXX_XX ERNI RC X

009816

0,66

009716

14,7

9,4

20,3

14,7

9,4

20,3

9,4

20,3

14,7

9,4

14,7

20,3

14,7

9,4

Maß "A"

11,18

5,84

16,69

11,18

5,84

16,69

5,84

16,69

11,18

5,84

11,18

16,69

11,18

5,84

Maß "B"

3,18

2,54

3,18

2,54

3,18

2,54

3,18

2,54

Maß "C"

min. 0,8 µm Au

min. 0,127 µm Au

min. 0,8 µm Au

min. 0,127 µm Au

min. 0,8 µm Au

min. 0,127 µm Au

min. 0,8 µm Au

min. 0,127 µm Au

min. 0,8 µm Au

min. 0,127 µm Au

min. 0,8 µm Au

min. 0,127 µm Au

Oberfläche

Steckbereich

Datum

Date code (see notes)

NOTES :

89,5

009616

85 Ohm

009516

009416

009316

009216

009116

009071

009070

009069

009051

009049

Material: LCP GF 30 schwarz

Material: LCP GF 30 black

Lochbild für Leiterplatte ( Bestückungsseite)

Board hole pattern (component mounting side)

1.)

B82

B12

2,5

Galvanik: min. 1,27 µm Unternickelung

über gesamten PIN - Bereich

Gold - Flash im Lötbereich

0,7

±0,08

Plating: min. 1,27 µm Ni entire contact

Gold - Flash plating on contact tails

1.) Fertiglochdurchmesser

finished viadiameter (PTH)

100 Ohm

15,24

3,12

A82

2,35 (2x)

A12

1,35

73,15

89,5

14,9

4,48

Package: Tray ( 20 pcs. )

Connector printing / labeling:

according to drawing 294775

009031

009030

009029

009012

009011

009010

12,14

daughter card layout

72,15

009009

1,57 across pads

1,4

Ident.-Nr.

0,71

5,59

Part - No.

Dim "A"

Scale

Dim "B"

Dim "C"

plating

contact area

Proprietary notice pursuant to ISO 16016 to be observed.

Information / Tolerances:

Sofern nichts anderes angegeben /

Tolerances

All Dimensions

in mm

2:1

8,41

unless otherwise notes

70 x 1 = 70

1,49

1,91

±0,05

20°

.xx

.xxx

±0

±0,127

±0,05

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

10.06.2014

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Abgew. PCI Express STV 164pol.

RT. Angle PCI Express 164 pins

Layout proposal is in accordance with the PCI Express spezification

www.ERNI.com

Class

284635

PCIEXP
