Part Number

Search

54ALS05/BCBJC

Description
Inverter, TTL, CDIP14
Categorylogic    logic
File Size115KB,2 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

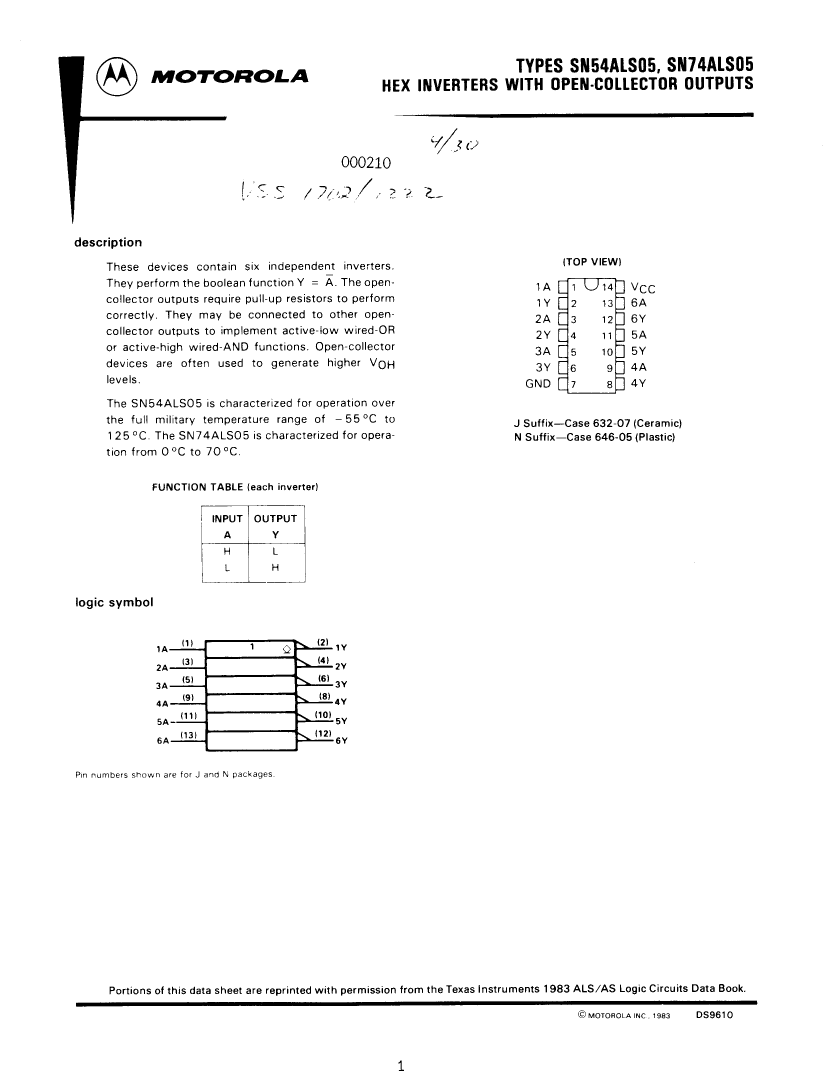

54ALS05/BCBJC Overview

Inverter, TTL, CDIP14

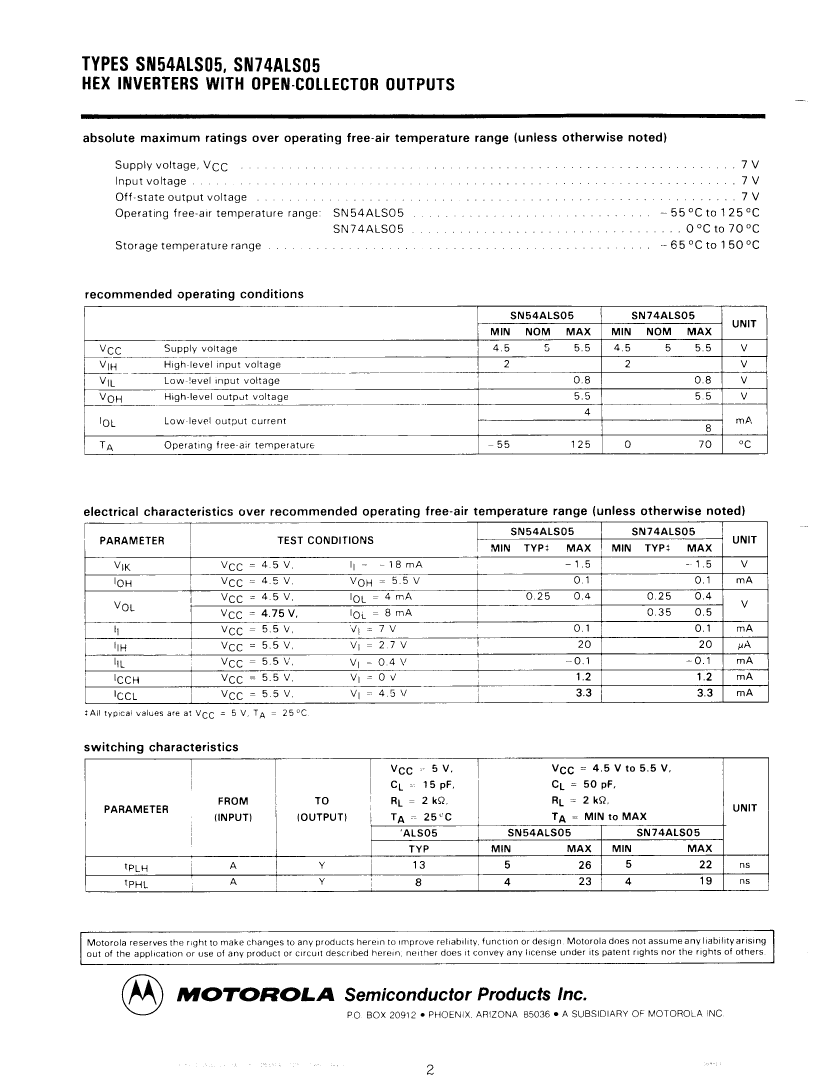

54ALS05/BCBJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid105352349
package instructionDIP, DIP14,.3
Reach Compliance Codeunknown
JESD-30 codeR-XDIP-T14
JESD-609 codee0
Logic integrated circuit typeINVERTER
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristicsOPEN-COLLECTOR
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Certification statusNot Qualified
Schmitt triggerNO
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
