SAW Components
SAW RF low loss filter
Satellite CSS
Series/type:
Ordering code:
Date:
Version:
B1658
B39172-B1658-B510
January 18, 2013
2.2
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SAW Components
SAW RF low loss filter
Data sheet
Application
s
Low loss RF filter for satellite CSS
s
Usable passband 46.0 MHz
s
Balanced to balanced operation
B1658
1688.42 MHz
Features
s
s
s
s
s
s
s
s
0.6
1
3
1.1
Package size 3.0 x 3.0 x 1.1 mm
3
Maximum height of 1.225 mm
Package code QCC8F
RoHS compatible
Approximate weight 0.037 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Electrostatic Sensitive Device
(ESD)
1.5
1.5
7
5
bottom view
1.8
side view
3.0
top view
3.0
Pin configuration
s
s
s
s
s
s
1
2
5
6
3,7
4,8
Input
Input
Output
Output
To be grounded
Case ground
Please read
cautions and warnings and
important notes
at the end of this document.
2
January 18, 2013
SAW Components
SAW RF low loss filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
B1658
1688.42 MHz
T = –40 ˚C to +85 ˚C
Z
S
= 150
Ω
(balanced) and matching network
Z
L
= 150
Ω
(balanced) and matching network
min.
typ.
@ 25 ˚C
1688.42
max.
—
MHz
Nominal frequency
f
N
—
Maximum insertion attenuation
α
max
1665.42 ... 1711.42 MHz
Pass bandwidth
α
rel
< 1.5 dB
—
3.2
5.0
dB
B
1.5 dB
—
61.8
—
MHz
Amplitude ripple (p-p)
∆α
1665.42 ... 1711.42 MHz
Input return loss
Output return loss
Group delay ripple (p-p)
∆τ
1665.42 ... 1711.42 MHz
Differential to common mode ratio
(|S
dd21
/S
cd21
|)
1665.42 ... 1711.42 MHz
Deviation from linear phase (rms)
in any 30 MHz band
1665.42 ... 1711.42 MHz
Relative attenuation
α
50.00 ... 1606.36 MHz
1770.48 ... 2000.00 MHz
2000.00 ... 6000.00 MHz
—
10.0
10.0
1.2
13.0
13.0
2.0
—
—
dB
dB
dB
—
15.0
40.0
ns
22.0
30.0
—
dB
—
5.0
8.0
˚
40.0
36.0
15.0
44.0
42.0
—
—
—
—
dB
dB
dB
Please read
cautions and warnings and
important notes
at the end of this document.
3
January 18, 2013
SAW Components
SAW RF low loss filter
Data sheet
Matching network
(element values depend on PCB layout)
L
p1
= 22nH
L
p2
= 22nH
Lp1
Lp2
B1658
1688.42 MHz
Maximum ratings
Operable temperature range T
Storage temperature range T
stg
DC voltage
ESD voltage
Input power at
1668.42...1708.42MHz P
IN
1)
–40/+85
–40/+85
0
50
1)
0
˚C
˚C
V
V
dBm
machine model, 1 pulse
source impedance 150
Ω
V
DC
V
ESD
acc. to JESD22-A115A (machine model), 1 negative & 1 positive pulse.
Please read
cautions and warnings and
important notes
at the end of this document.
4
January 18, 2013
SAW Components
SAW RF low loss filter
Data sheet

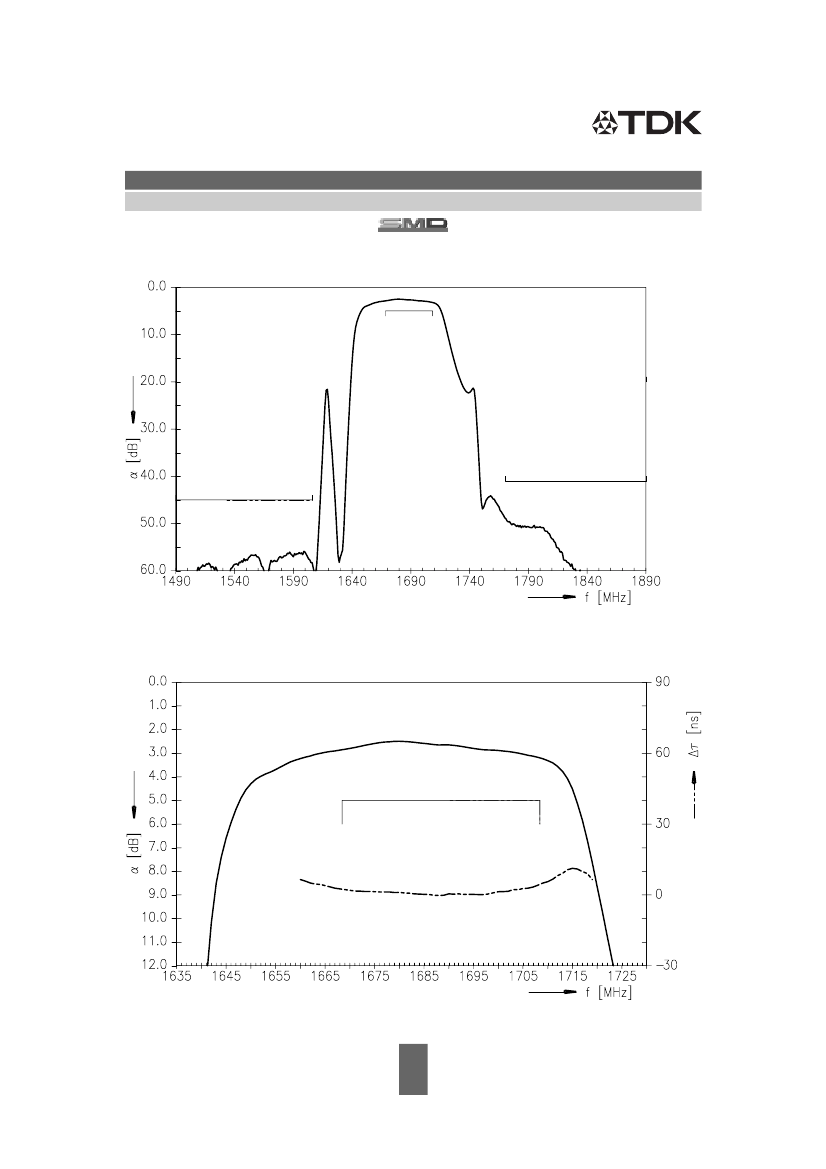

Transfer function
B1658
1688.42 MHz
Transfer function (passband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
January 18, 2013
