FOXSDLF120R-20 Overview

Resistance Weld SMD Crystal

Resistance Weld SMD Crystal
Page 1 of 3
Model: HC49SDLF
RoHS Compliant / Pb Free
http://www.foxonline.com/need_a_sample.htm
Rev. 5/5/2014
FEATURES
• Stock Standard
(see page 2)
• Tolerances to 10 PPM
• Fundamental to 40 MHz
• Stabilities to 5 PPM

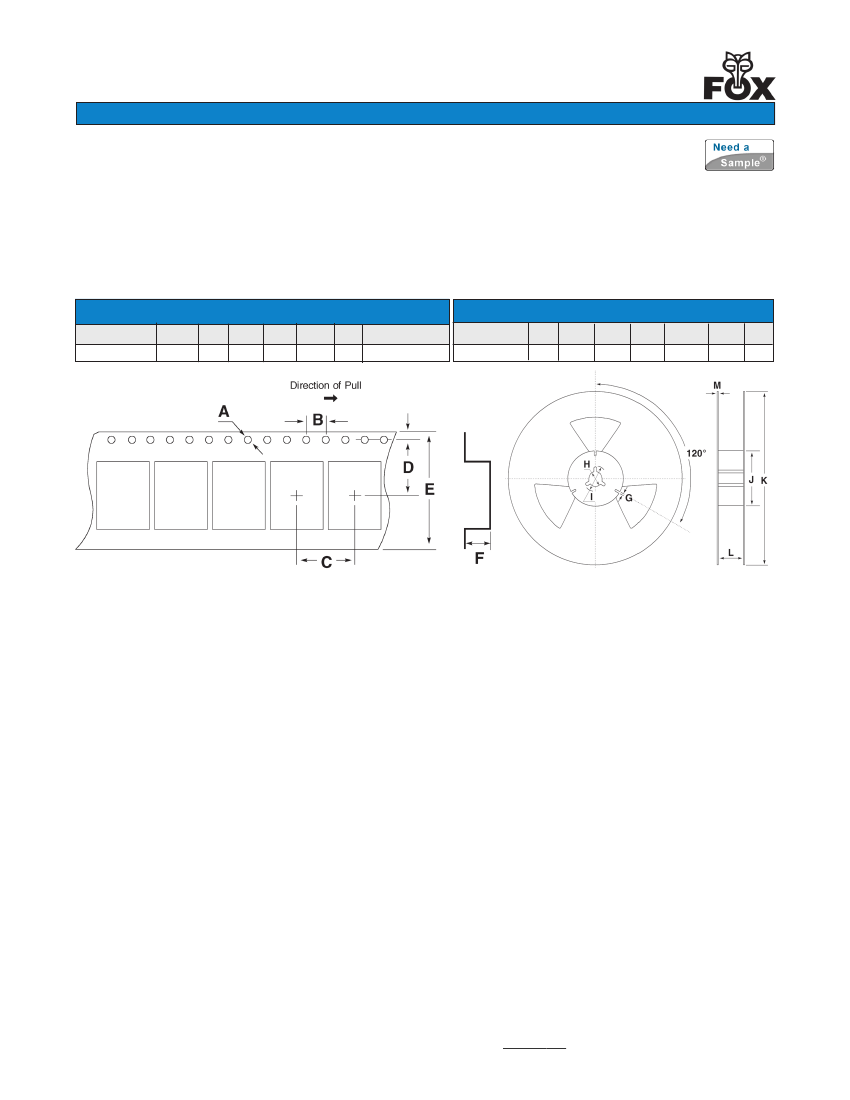

• Tape and Reel
(1,000 pcs. STD)
• Temperatures to -55ºC ~ +125ºC
• 3.2mm Height Max
(HC49SSDLF)
OPTIONS
10.3 Max
4.5 Max
• PART NUMBER
Part Number
278LF-Frequency-xxxxx
Model Number
HC49SDLF
Frequency Range (MHz)
3.200 ~ 80.000
3.8 Max
• STANDARD SPECIFICATIONS
1
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Temperature Range
Operating
(T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (Co)
Load Capacitance
(C
L
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish:
1
2
MAX
(unless otherwise noted)
3.200 ~ 80.000 MHz
±50 PPM
1,3
±50 PPM
1
-20ºC ~ +70ºC
2
-40ºC ~ +125ºC
7pF
10 pF ~ Series
(Customer Specified)
100uW
±3 PPM
260ºC / 10 Seconds
1
Sn/Ag/Cu
0.75±0.35
13.9 Max
11.7 Max
5.0 Max
Recommended
HC49SD Solder Pad Layout
15.0±0.1
2.0±0.1
4.0±0.1
Other tolerances, stabilities available. Consult Fox Customer Service for specific requirements.
Operating temperature ranges to -55ºC ~
+
125ºC available.
3
Crystal has a ±30ppm tolerance specification for all standard part numbers. These part numbers
are listed on page 2 of this datasheet.
Note: Dimensional drawing is for reference to critical specifications defined by size measure¬ments.
Certain non-critical visual attributes, such as side castellations, etc. may vary.
All specifications subject to change without notice.
All dimensions are in millimeters.
TERMINATION FINISH: Sn/3.0Ag/0.5Cu
Frequency Range
(MHz)
3.200 ~ 3.500
3.500+ ~ 4.000
4.000+ ~ 5.000
5.000+ ~ 6.000
6.000+ ~ 7.000
7.000+ ~ 9.000
9.000+ ~ 13.000
13.000+ ~ 20.000
20.000+ ~ 40.000
27.000 ~ 70.000
70.000+ ~ 80.000
Operating Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3rd OT
3rd OT
Max ESR
300
200
150
120
100
80
60
40
30
100
80
Fox Electronics
5570 Enterprise Parkway
Fort Myers, Florida 33905
USA +1.239.693.0099
FOXonline.com
FAX +1.239.693.1554
An Integrated Device Technology, Inc. company
