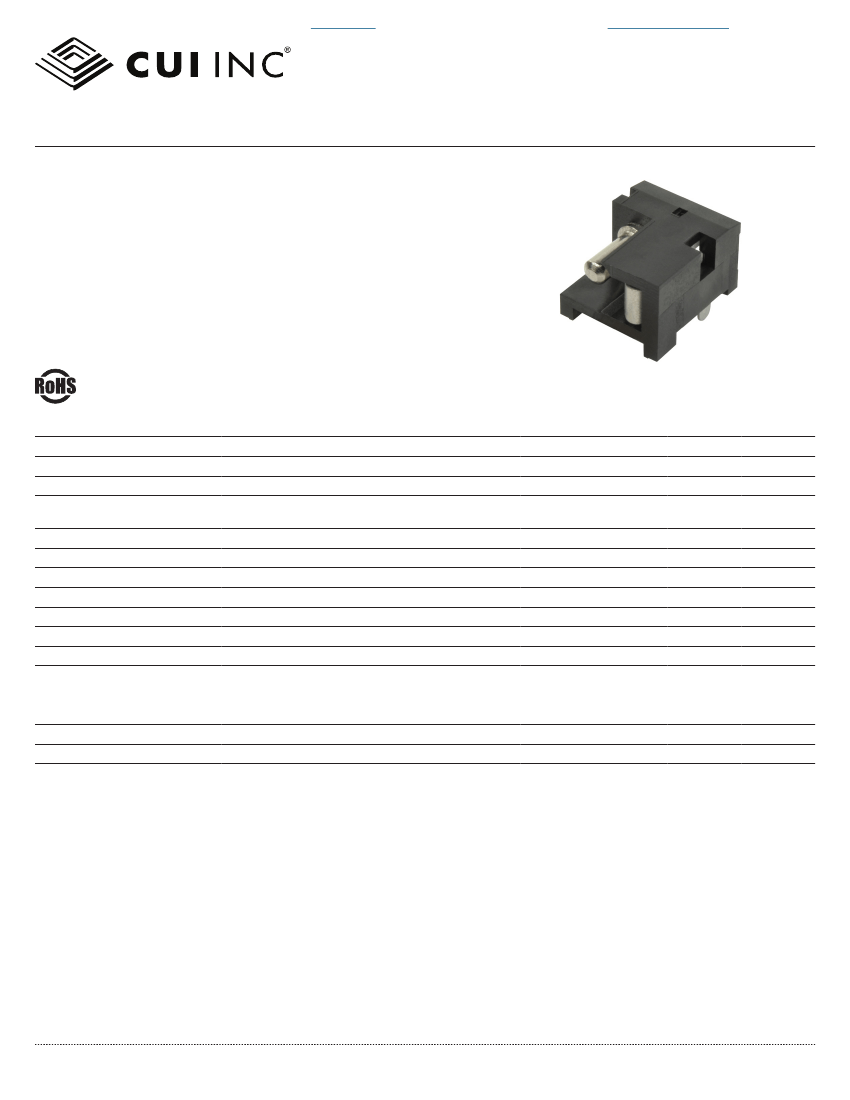

1. When measured at a current of less than 100 mA/1 kHz
2. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
SOLDERABILITY
parameter
wave soldering
conditions/description
dipped in solder pot for 5 ±0.5 seconds
min
255
typ
260
max
265
units
°C
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-003B
│
DESCRIPTION:
DC POWER JACK
date
02/28/2018│
page
2 of 3

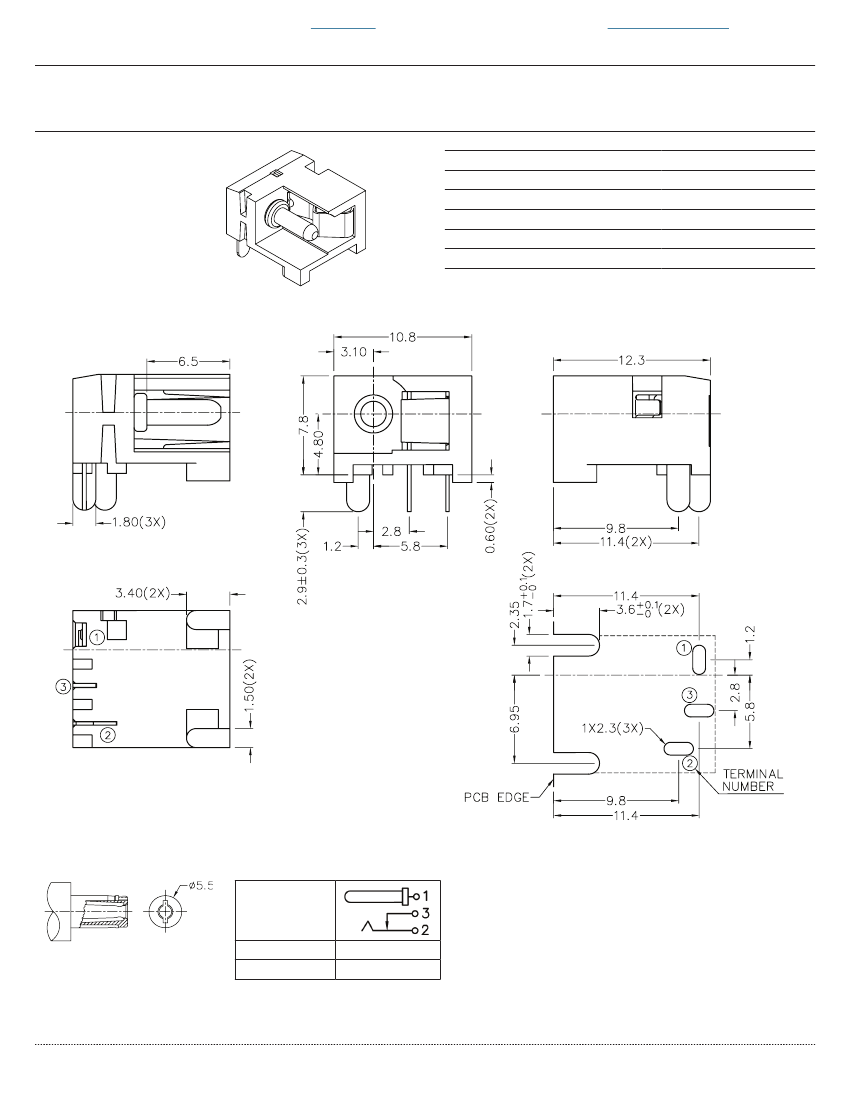

MECHANICAL DRAWING
units: mm
tolerance:
X.X ±0.2 mm
X.XX ±0.10 mm
X.XXX ±0.050 mm
PCB: ±0.05 mm
MATERIAL
center pin
terminal 1
terminal 2
terminal 3
plastic
brass
brass
copper alloy
brass
PBT
PLATING
nickel
tin
tin
tin
Recommended PCB Layout
Top View
SCHEMATIC
Model
Center Pin
PJ-003B
Ø2.5 mm
MATING PLUG
Jack Insertion Depth: 6.5 mm
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-003B
│
DESCRIPTION:
DC POWER JACK
date
02/28/2018│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
1.03
1.04
description
initial release
updated model
applied new spec template
increased voltage rating
changed mold design
date
11/09/2005
04/13/2006
11/04/2013
04/12/2016
02/28/2018
The revision history provided is for informational purposes only and is believed to be accurate.
