RL-3264-6C-R051-JN datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RL-3264-6C-R051-JN

RL-3264-6C-R051-JN: DescriptionFixed Resistor, Metal Strip, 1W, 0.051ohm, 5% +/-Tol, -100,100ppm/Cel, 2512,; CategoryPassive components The resistor; File Size397KB，1 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric View All

RL-3264-6C-R051-JN Overview

Fixed Resistor, Metal Strip, 1W, 0.051ohm, 5% +/-Tol, -100,100ppm/Cel, 2512,

RL-3264-6C-R051-JN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	762632805
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
JESD-609 code	e3
Number of terminals	2
Maximum operating temperature	170 °C
Minimum operating temperature	-55 °C
Package height	0.8 mm
Package length	6.35 mm
Package form	SMT
Package width	3.2 mm
Rated power dissipation(P)	1 W
resistance	0.051 Ω
Resistor type	FIXED RESISTOR
series	RL(METAL PLATE)
size code	2512
technology	METAL STRIP
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn)
Tolerance	5%

Preview

Download Datasheet

View All

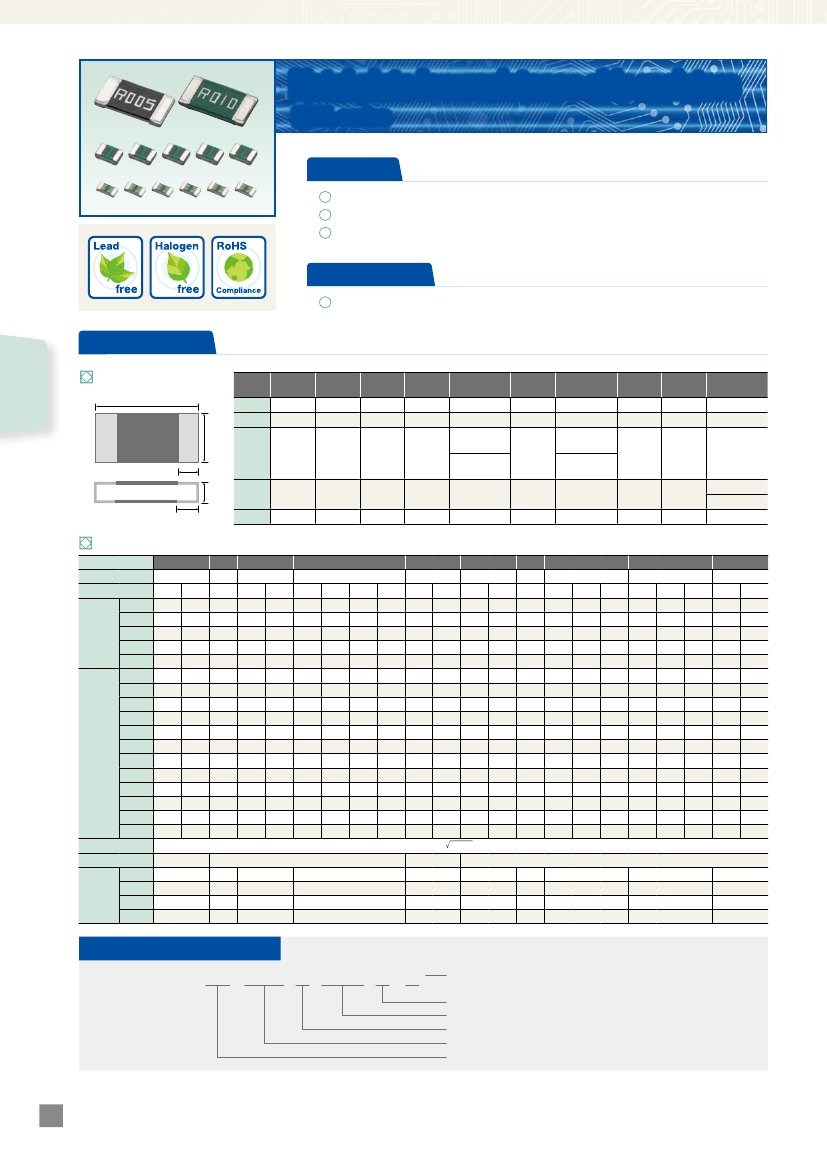

Metal plate low resistance chip resistors

■

RL series

Features

●

Operating temperature: stable up to 170°C

●

Resistance tolerance: +/-1%, TCR +/-50ppm/°C

●

Protective outer coating is halogen-free environment-friendly products.

Applications

●

Power sources, servers, etc.

Current sensing surface

mount resistors

Specifications

▪

Dimensions

＊All made to order.

Dimension RL-0816-3

（mm）

(0603)

RL-1220-4

(0805)

RL1632H

(1206)

RL1632L4

(1206)

RL-1632-6C

(1206)

3.20±0.20

1.60±0.20

1.05±0.20

（5mΩ）

0.90±0.20

（10 〜40mΩ）

0.50±0.15

ー

RL-3264-0W

(2512)

6.35±0.25

3.15±0.25

RL-3264-6C

(2512)

6.35±0.25

3.20±0.20

1.05±0.15

（3m〜5mΩ,7mΩ）

0.80±0.15

（6mΩ,R＞8mΩ）

0.90±0.25

ー

RL-3264-9W RL3264L4

(2512)

6.35±0.25 3.20±0.25

3.15±0.25 6.40±0.25

RL-3637-0

(1514)

9.14±0.25

9.40±0.25

1.60±0.20 2.00±0.20 3.20±0.20 1.50±0.25

0.80±0.20 1.30±0.20 1.60±0.20 3.15±0.25

RL series

0.40±0.15 0.80±0.25 0.80±0.15 0.88±0.25

0.80±0.20

0.80±0.20 0.90±0.25

0.88±0.20

0.35±0.15 0.40±0.20 0.50±0.15 0.35±0.20

0.35±0.15

ー

0.95±0.30

ー

0.95±0.30 0.70±0.20

ー

3.50±0.25(1mΩ）

2.20±0.25(≧2mΩ）

ー

▪

Electrical characteristics

Series name

Power

Resistance range

（Ω）

±0.5

（D）

（F）

Resistance ±1.0

tolerance ±2.0

（G）

（％）

±3.0

（H）

±5.0

（J）

±50

±100

±150

±200

Temperature

coefficient of 0½250

resistance

0½300

（ppm/℃）

0½350

0½500

0½-250

0½-400

0½-700

Maximum voltage

Operating temperature

ー55℃〜125℃

1,000pcs

Packaging

2,000pcs

4,000pcs

5,000pcs

ー

RL-0816-3

1/4W

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

RL-1220-4

1/2W

ー

○

ー

○

ー

○

ー

RL1632H

1/2W

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

RL1632L4

RL-1632-6C

RL-3264-0W

RL-3264-6C

RL-3264-9W

1.2m

2 〜4m 5m〜50m

RL3264L4

RL-3637-0

2〜10m

10m〜20m 21m〜50m 10m〜50m 5m〜10m 11m〜150m 0.5m〜0.75m 1 〜2m 3 〜4m

10m〜40m 2〜4m 5m〜50m 3m〜100m

5m〜15m 1〜＜2m

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

P½R

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

0½150

ー55℃〜170 ℃

ー

ー55℃〜155℃

ー

ー55 ℃〜 170 ℃

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

ー

○

Part numbering system

RL 3264 - 6 - R002 - F - N

Designates RoHS compliance

Resistance tolerance

Resistance value

Power : H

（1/2W）6

, （1W）9

, （2W）

Size

Series code
