are built to meet the specifications of ANSI C50.10-1990, general
requirements for synchronous motors.
Features
Rear Exit, Epoxy Glass Laminated
Elements, Single and Dual:
» Platinum, Copper, Nickel
Leadwire/Cable Options
Applications
Electric Motors
Generators
TESS-ANDO-408-0000054
REV A
SENSOR SOLUTIONS
/// MEAS PADDLE STATOR RTD
Page 1

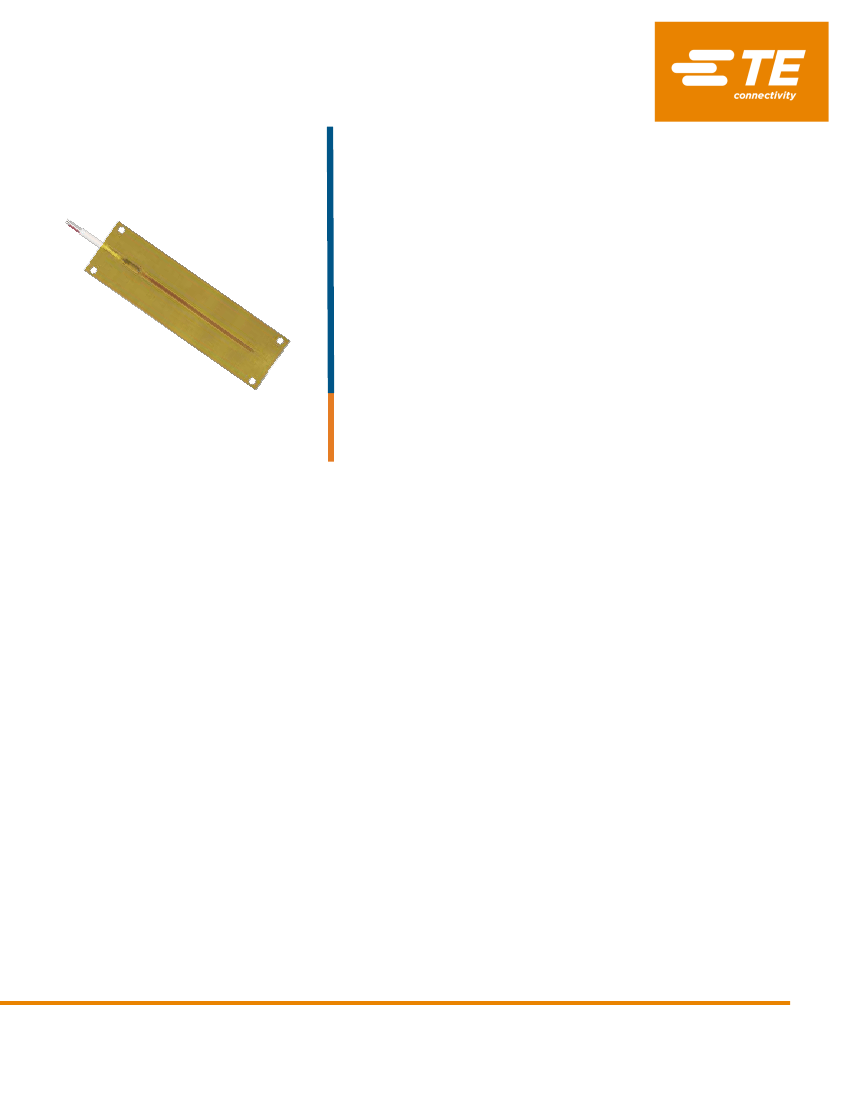

MEAS PADDLE STATOR RTD SENSOR

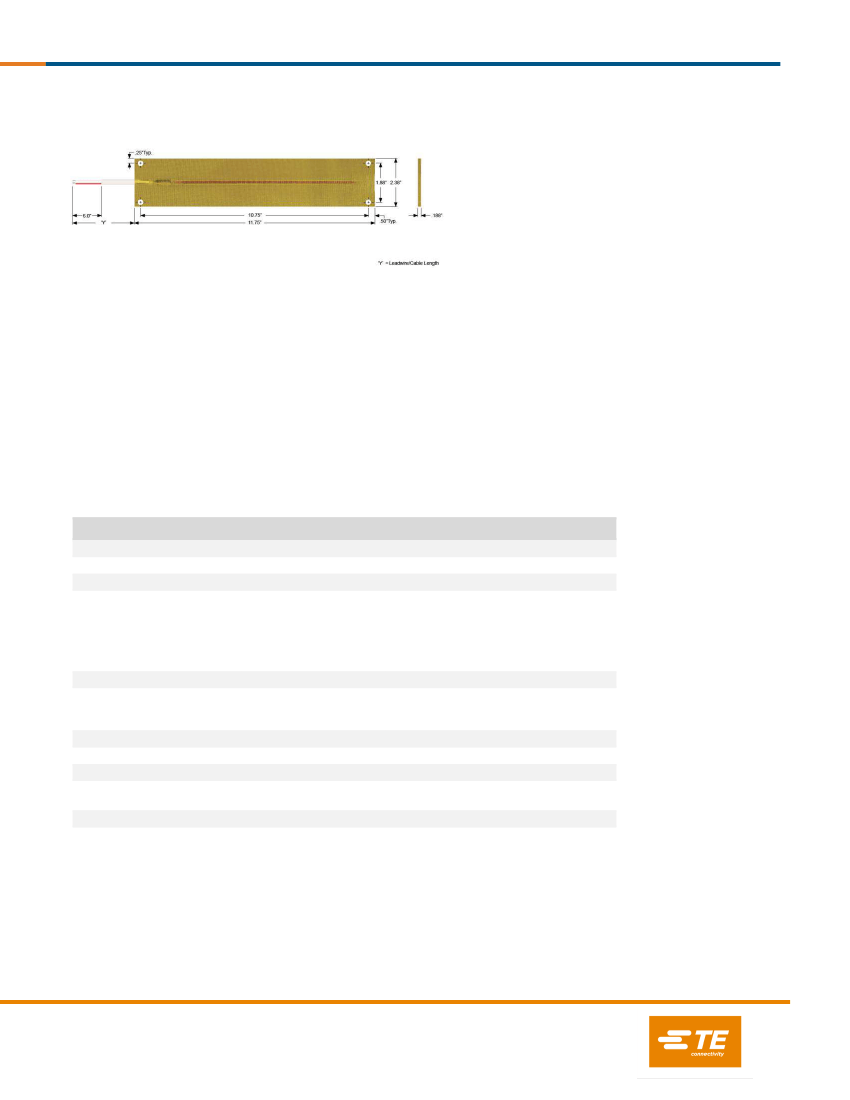

Dimension
Performance Specifications
Dielectric Strength:
Class F: 3,000 volts RMS @ 60 Hz for 1 minute, between leads and external body surface
Class H: 2,000 volts RMS @ 60 Hz for 1 minute, between leads and external body surface
Temperature Limits:
Class F: 155°C (311°F)
RTD Leadwires:
Three Wire or Four Wire
Standard: Stranded Copper plated wire with PTFE insulation
Ordering Information
PADDLE STATOR RTD SENSORS
Model
302F
Model
P2B
P2C
P2D
G2C
C1D
N3C
Model
3S
4S
3D
Model
----
Model
A
B
Model
1
2
Classification
Class F
Element
Temperature Limit
155°C
Accuracy
Material
Dielectric Strength
Epoxy Glass
3,000 Volts
Temperature Coefficient
.00385
.00385
.00385
.00392
.00427
.00672
Color Code
Red/White/White
Red/Red/White/White
Red/White/White // Blue/Yellow/Yellow
Platinum
100 Ohm ±.12% at 0°C
Platinum
100 Ohm ±.5% at 0°C
Platinum
100 Ohm ±.2% at 0°C
Platinum
100 Ohm ±.5% at 0°C
Copper
10 Ohm ±.2% at 25°C
Nickel
120 Ohm ±.5% at 0°C
Leadwires, Element Configuration
Three Wire, Single
Four Wire, Single
Three Wire, Dual
‘Y’ Leadwire/Cable Options
Define ‘Y’ Length in
Whole
Inches (120 = 120.0”; 036 = 36.0”)
Leadwire/Cable Options
Leadwire Only
Leadwire with Cable
Leadwire Termination
Stripped and Tinned
1.0” Staggered with Butt Splice
TESS-ANDO-408-0000054
REV A
SENSOR SOLUTIONS
/// MEAS PADDLE STATOR RTD
Page 2
MEAS PADDLE STATOR RTD SENSOR
