SDA168H thru SDA168N
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
HIGH RELIABILITY
5.0 AMP, 1000 – 5000 VOLTS
STANDARD RECOVERY
THREE PHASE BRIDGE RECTIFIER
FEATURES:
Average Output Current 5.0 Amps @ 55
O
C
PIV 1000 to 5000 Volts Per Leg
Hermetically Sealed Diode Cells
Avalanche Rated
Encapsulated Epoxy Case
Insulated Electrical Connections
Small Size
Mounting Holes for Ease of Installation
Available in Fast, Ultra Fast, and Hyper Fast
Recovery Times
TX, TXV, or S-Level Screening Available
Designer’s Data Sheet
Part Number/Ordering Information
1/
SDA168
__ __
│
└
Screening
│
__
= Not Screened
│
TX = TX Level
│
TXV = TXV
│
S = S Level
│
│
Peak Inverse Voltage
└
H = 1,000 V, I = 1,500 V, J = 2,000 V,
K = 2,500 V, L = 3,000 V, M = 4,000 V,
N = 5,000 V
2/
•
•
•
•
•
•
•
•
•
•
ELECTRICAL CHARACTERISTICS
3/
Part Number
Peak
Inverse
Voltage
(per leg)
Sine Wave
Reverse
4/
RMS
Recovery
Input
Time
Voltage
Max.
Average DC Output Current
T
C
=Case Temp
Average DC Output
Current
T
A
= Ambient Temp
(no heat sink)
Peak
Forward
Surge
Current
(1
Cycle)
Peak
Repetitive
Forward
Current
Maximum
Forward
Voltage
(per leg) @
3 ADC
Maximum
Reverse
Current
(per leg)
@ PIV
Symbol
Units
Conditions
SDA168H
SDA168I
SDA168J
SDA168K
SDA168L
SDA168M
5/
PIV
Volts
1000
1500
2000
2500
3000
4000
5000
V
r
Volts
707
1060
1414
1767
2121
2828
3535
T
rr
μs
Max
5
5
5
5
5
5
5
I
F (AV)
Amps
55
o
C
5.0
5.0
5.0
5.0
5.0
5.0
5.0
3.5
3.5
3.5
3.5
3.5
3.5
3.5
2.0
2.0
2.0
2.0
2.0
2.0
2.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
I
F (AV)
Amps
2.0
2.0
2.0
2.0
2.0
2.0
2.0
1.5
1.5
1.5
1.5
1.5
1.5
1.5
I
FSM
Amps
150
150
150
150
150
150
150
I
FRM
Amps
75
75
75
75
75
75
75
V
F
Volts
25
o
C
1.1
2.2
2.2
3.3
3.3
4.4
5.5
5
5
5
5
5
5
5
I
R
μA
100
o
C
50
50
50
50
50
50
50
100
o
C 125
o
C 25
o
C 55
o
C 100
o
C
SDA168N
5/
SDA168 Package:
NOTES:
1/
For Ordering Information, Price, and Availability- Contact Factory.
2/
Screened to MIL-PRF-19500.
3/
Unless Otherwise Specified, All Electrical Characteristics @25ºC.
4/
Recovery Conditions: I
F
= 0.5 Amp, I
R
= 1.0 Amp rec. to .25 Amp.
5/
Please consult factory for further details on these items.
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RA0031A
DOC
SDA168H thru SDA168N
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com

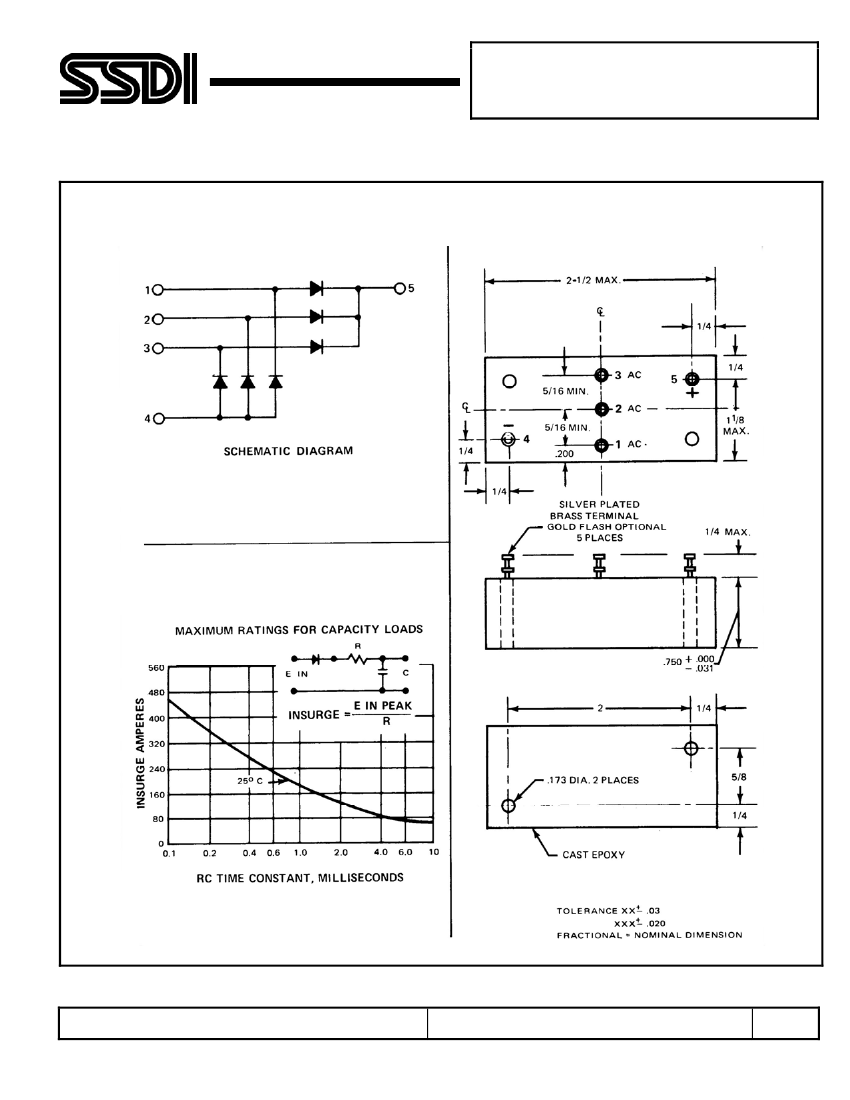

SDA168H through SDA168N*:
*For information on curves, contact the Factory Representative for Engineering Assistance.
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RA0031A
DOC
