RFSA2724SQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> RFSA2724SQ

RFSA2724SQ: Description50 MHz - 4000 MHz RF/MICROWAVE VARIABLE ATTENUATOR; CategoryTopical application Wireless rf/communication; File Size3MB，9 Pages; ManufacturerRF Micro Devices (Qorvo)

Download Datasheet Parametric Compare View All

RFSA2724SQ Overview

50 MHz - 4000 MHz RF/MICROWAVE VARIABLE ATTENUATOR

RFSA2724SQ Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum input power	.5 W
Maximum operating frequency	4000 MHz
Minimum operating frequency	50 MHz
Processing package description	ROHS COMPLIANT, 4.20 × 4.20 MM, Green, QFN-24
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
structure	COMPONENT
terminal coating	NOT SPECIFIED
Rated attenuation	31.75 dB
Microwave RF Type	Variable

Preview

Download Datasheet

View All

RFSA2724Par-

allel Controlled

Digital Step

Attenuator,

50 MHz to

400MHz

RFSA2724

Serial Controlled Digital Step Attenuator,

50MHz to 4000MHz

Package: MCM, 24-Pin, 4.2mm x 4.2mm

DATA

PUP

CLK

Features

GND/NC

VDD

GND/NC

RF1

GND/NC

RF2

GND/NC

Frequency Range 50MHz to

4000MHz

7-Bit, 31.75dB Range, 0.25dB

Step

High Linearity, IP3 > 50dBm

3V and 5V Logic Compatible

Serial-to-Parallel Controller

Serial Programming Interface

Power-up Programming Modes

On-chip ESD Protection Class 2

< 4000V

Single Supply, 3V to 5V Operation

Footprint Compatible with Most

24-Pin, 4mm x 4mm QFNs

SPI

7-Bit DSA

GND/NC

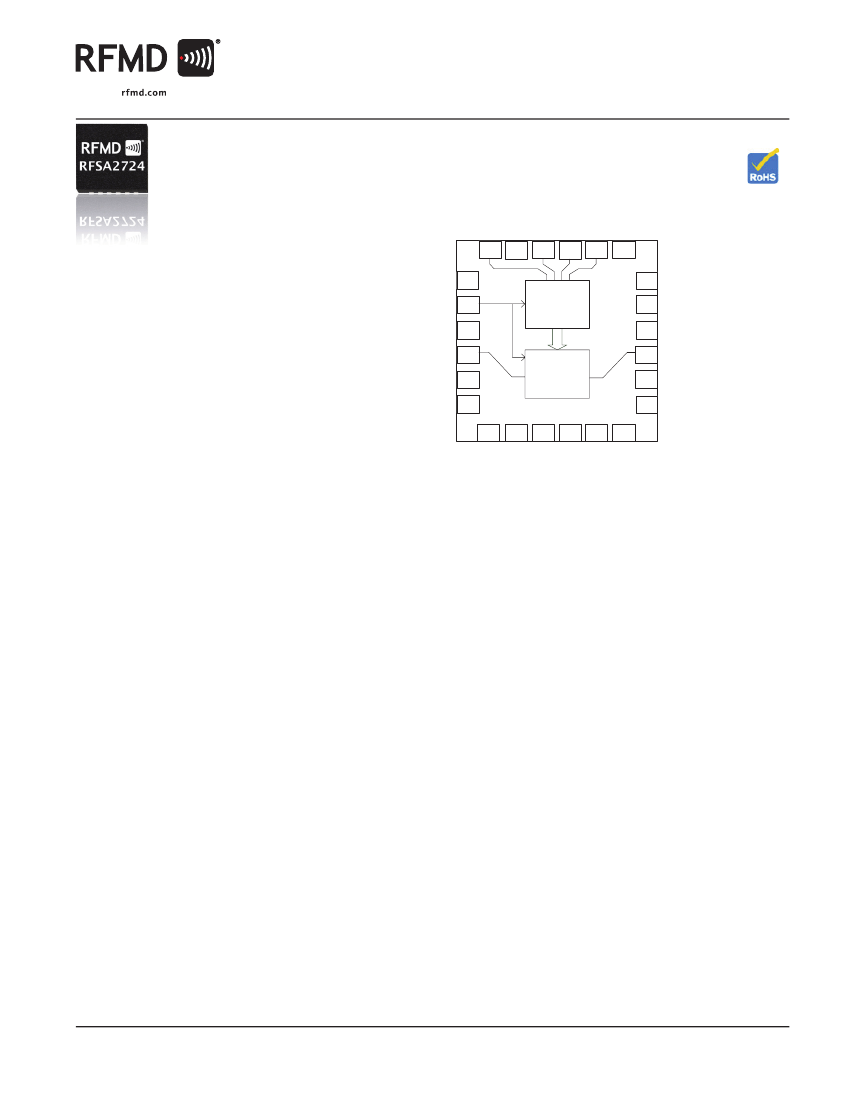

Functional Block Diagram

Product Description

RFMD's RFSA2724 is a 7-bit digital step attenuator (DSA) that features high-linear-

ity over the entire 31.75dB gain control range with excellent step accuracy in

0.25dB steps. The RFSA2724 is programmed via a serial mode control interface

that is both 3V and 5V compatible. The RFSA2724 also offers a rugged Class 1B

HBM ESD rating via on-chip ESD circuitry. The MCM package is footprint compatible

with most 24-pin 4mm x 4mm QFN packages.

Applications

Transceiver IF Applications

Cellular, PCS, GSM, UMTS, LTE,

WiMax/WiFi

Wireless Data, Satellite

Terminals

Test Equipment

Ordering Information

RFSA2724SR

RFSA2724SQ

RFSA2724TR13

RFSA2724PCK-410

7” Sample reel with 100 pieces

Sample bag with 25 pieces

13” Reel with 2500 pieces

50MHz to 4GHz PCBA with 5-piece sample bag

RF MICRO DEVICES®, RFMD®, Optimum Technology Matching®, Enabling Wireless Connectivity™, PowerStar®, POLARIS™ TOTAL RADIO™ and UltimateBlue™ are trademarks of RFMD, LLC. BLUETOOTH is a trade-

mark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. ©2012, RF Micro Devices, Inc.

DS130212

7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical

support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.

GND/NC

1 of 9
