NLI110D471KUTBF datasheet, PDF

Datasheet> All Categories > Passive components> inductor> NLI110D471KUTBF

NLI110D471KUTBF: DescriptionGeneral Purpose Inductor; CategoryPassive components inductor; File Size147KB，14 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NLI110D471KUTBF Overview

General Purpose Inductor

NLI110D471KUTBF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	NLI110D
Base Number Matches	1

Preview

Download Datasheet

View All

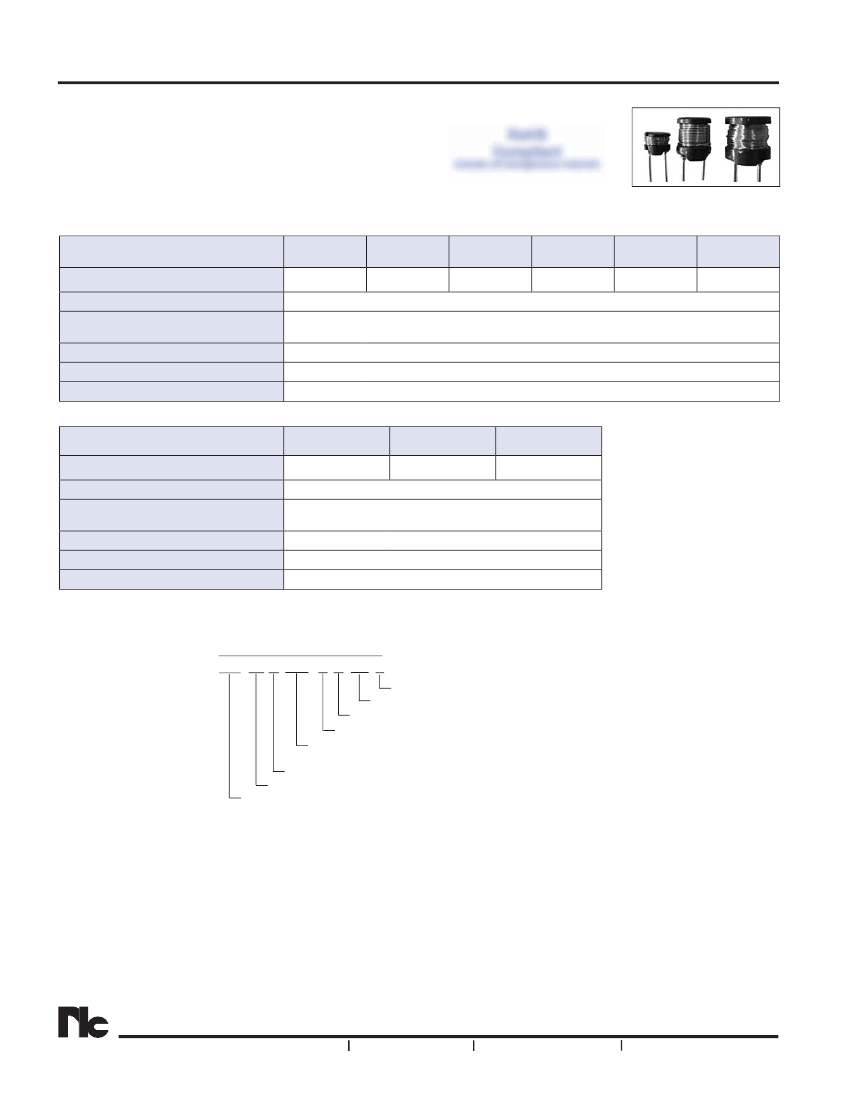

NLI Radial Power Inductors

FEATURES

• RADIAL LEADED POWER INDUCTOR

• WIRE WOUND CONSTRUCTION

• WIDE VALUE RANGE 10μH ~ 47,000μH

• AVAILABLE WITH HIGH TEMPERATURE SLEEVE

• NINE CASE SIZES (5.2X6.5mm ~ 14.4X10.5mm)

• AVAILABLE IN BULK OR TAPE & BOX PACKAGING

TWO LEADED PARTS

Case Code

Inductance Range

Ambient Operating Temperature Range

Maximum Component Temperature

(Ambient + Self-Heating)

Temperature Rise at DCI

Inductance Change at DCI

Inductance Tolerance

NLI65D

22μH ~

1,000μH

NLI66D

22μH ~

1,000μH

NLI85D

NLI87D

NLI__D Series

RoHS

Compliant

includes all homogeneous materials

*See Part Number System for Details

NLI89D

10μH ~

47,000μH

NLI114D

6.3μH ~

39,000μH

10μH ~

10,000μH

-20°C ~ +80°C

+120°C

+40°C

-10%

K (±10%), M (±20%)

FOUR LEADED PARTS

Case Code

Inductance Range (μH)

Ambient Operating Temperature Range

Maximum Component Temperature

(Ambient + Self-Heating)

Temperature Rise at DCI

Inductance Change at DCI

Inductance Tolerance

NLI106D

10μH ~

1,000μH

NLI108D

10μH ~

1,000μH

-20°C ~ +80°C

+120°C

+40°C

-10%

K (±10%), M (±20%)

NLI110D

10μH ~

1,000μH

PART NUMBER SYSTEM

NLI 66 D 220 K U TB F

RoHS Compliant

TB = Optional Packaging Tape & Box (blank for bulk packaging)*

U = Optional Black UL +125°C Sleeving (blank for no sleeving)

Inductance Tolerance Code: J = ±5%, K = ±10%, M = ±20%

Inductance Code (μH): 1st two digits are signiﬁcant,

3rd digit is multiplier for values from 10μH and up.

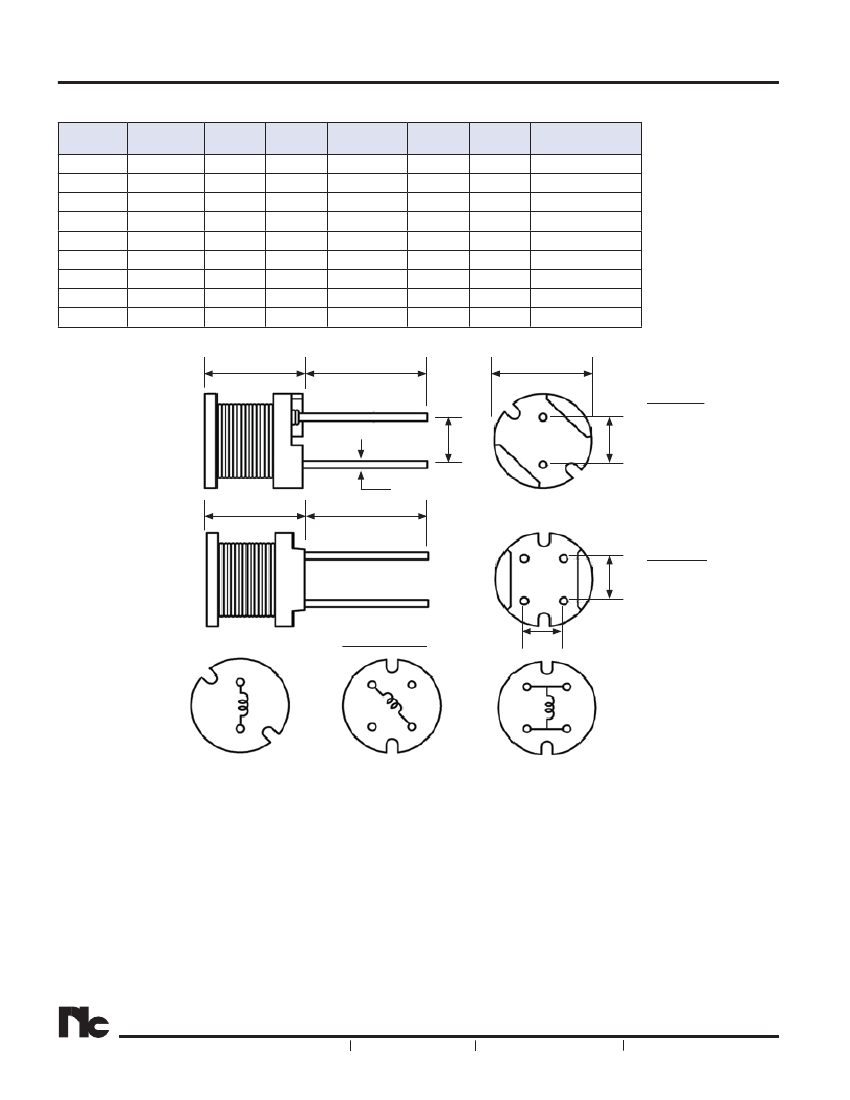

Construction Code (see drawing for details)

Size Code (see table for details)

Series

*Optional Tape & Box packaging not available for case sizes 106, 108 and 110

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

SPECIFICATIONS SUBJECT TO CHANGE
