ZXRE330

Description
PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES
File Size532KB,9 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Compare View All

ZXRE330 Overview

PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES

ZXRE330
PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES
Description
The ZXRE330 is a low knee current 3.3V voltage reference. Offering
tight tolerances and sharp knee characteristics – consuming only 1µA
when the 3.3V reference voltage can no longer be maintained.
Excellent performance is maintained over the 1µA to 5mA operating
current range. The device has been designed to be highly tolerant of
capacitive loads so maintaining excellent stability.
It’s available in small outline SOT23 and TO92 packages. This device
offers a pin for pin compatible alternative to industry standard shunt
voltage reference.

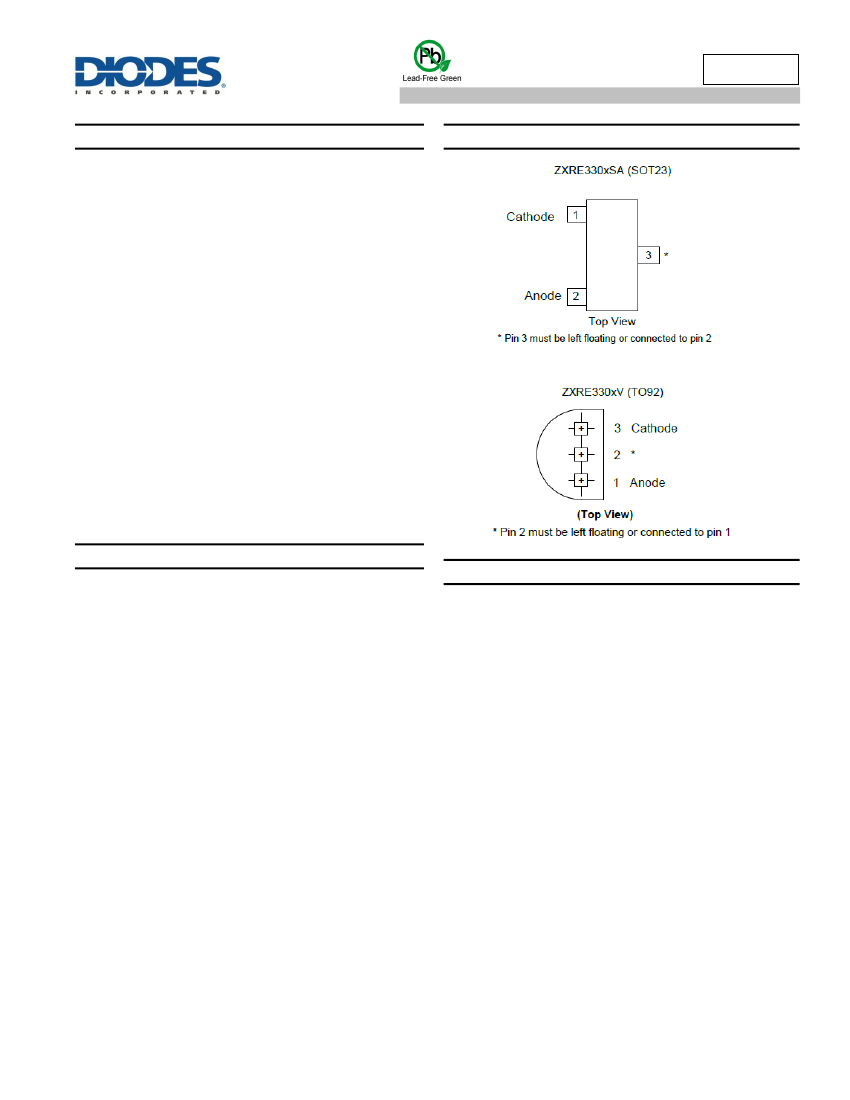

Pin Assignments
Features
Small Packages: SOT23 & TO92
No Output Capacitor Required
Output Voltage Tolerance
ZXRE330E: ±2% at +25°
C
ZXRE330A: ±0.5% at +25°
C
Low Output Noise
55µV
RMS
(10Hz to 10 kHz)
Wide Operating Current Range 1µA to 5mA
Extended Temperature Range -40° to +85°
C
C
Low Temperature Coefficient 20ppm/° (Typ)
C
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Applications
Battery-Powered Equipment
Precision Power Supplies
Portable Instrumentation
Portable Communications Devices
Notebook and Palmtop Computers
Data Acquisition Systems
Low Current Voltage Clamps
Notes:
ZXRE330
Document number: DS36772 Rev 3 - 2
1 of 9
www.diodes.com
July 2018
© Diodes Incorporated
