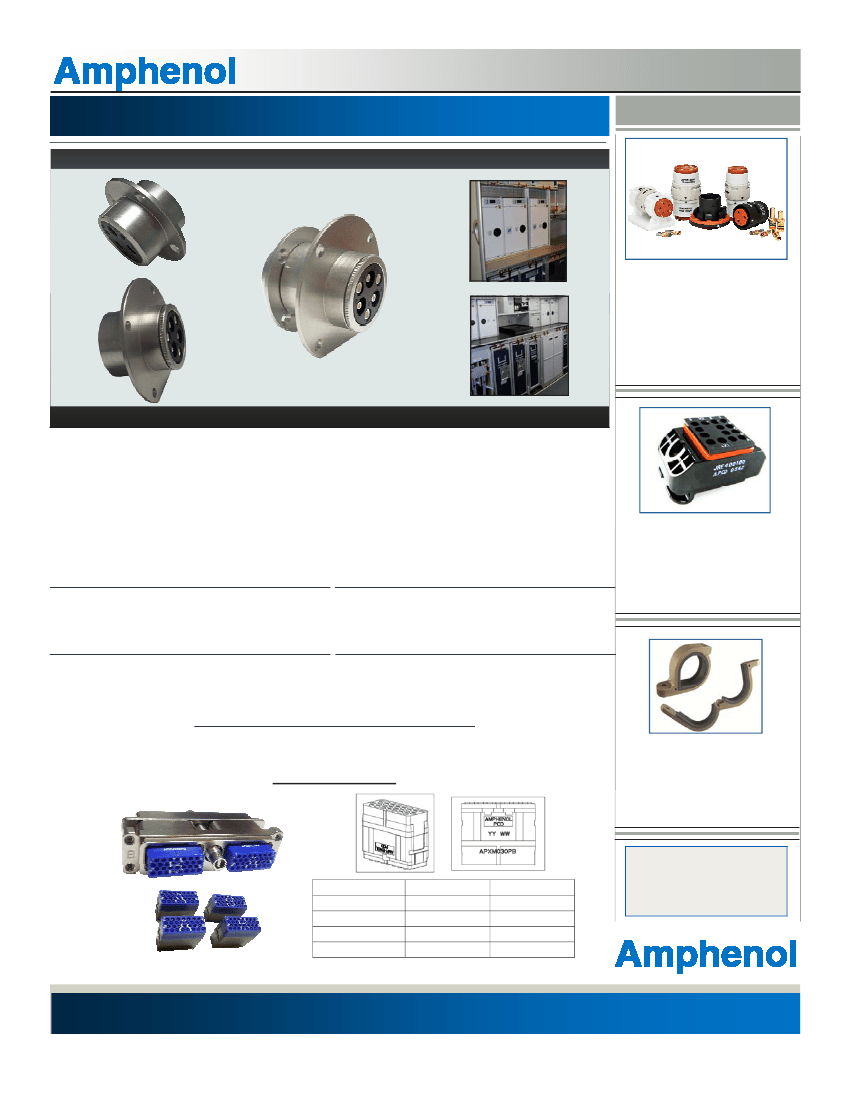

New from Amphenol PCD—APeX
Galley Connector, Circular
Other High Performance Products
Luminus Series
Environmentally sealed
Easy to use
Lightweight
Standard AS39029 contacts
Multiple configurations
The new
APeX Galley Connector, Circular
is the latest circular connector from Amphenol Pcd.
Designed specifically for legacy and new generation galley systems, it was tested to MIL-STD-
1344 connector and EN 2591 contact standards. Highly reliable and easy to use, this blind-mate
connector is also interchangeable and intermateable with other pre-existing equipment in the field.
Benefits at a Glance
Intermateable and Interchangeable
Ability to mate with other pre-existing equipment
in the field
Versatility
Crimp termination connection system with
3 Power (10 AWG) & 3 Control (16 AWG)
Blind-Mate Connection
Designed with a key feature to enable quick and
simple, blind-mating
Highly Reliable and Durable
Tested to MIL-STD 1344 and EN 2591
standards; high frequency mating
Many Choices
Configurable to PCB contacts; plating options
available
Intuitive and Ergonomic
Smooth, low insertion force to mate connector
Quick Mount Relay Sockets
Quick and easy installation
No hardware or tools required
Reduces FOD
Lightweight
Other APeX Rectangular Connectors
High Performance P-Clamps
PEEK polymer
Non-corrosive & Non-conductive
Overmolded silicone cushions
Lightweight & durable
30-pin insert, Size 20
72 Cherry Hill Drive
Beverly, MA 01915 USA
Part Number
APXM030PA
APXM030PB
APXM130PA
APXM130PB
Polarization
A
B
A
B
Contact
none
none
CNP820100
CNP820100
info@amphenolpcd.com
978-624-3400
Contact us or more information
Amphenol Pcd
www.amphenolpcd.com
email: info@amphenolpcd.com
978-624-3400

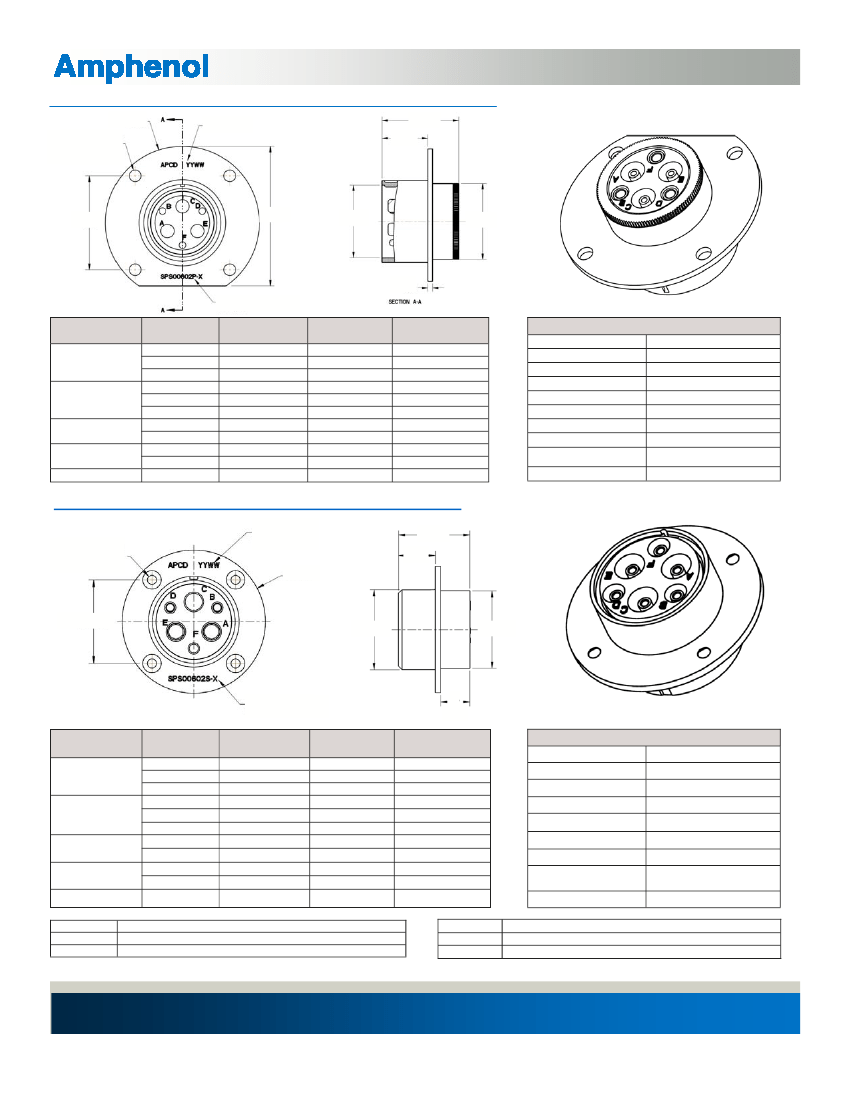

Panel Mount, Plug - 6 position, crimp termination
Ø2.875
4 Mounting Holes
Ø.219
Date Code
.906
1.515
1.765
2.625
1.440
1.500
.093
Part No. See Table
Part No.
SPS00602P-1
SPS00602P-2
SPS00602P-3
SPS00602P-4
SPS00602P-5
Contact Qty
1
2
3
2
1
3
3
3
3
3
Without
Contact Gauge
10
10
4
10
10
4
10
4
10
4
n/a
Crimp Well
Wire Awg
10
14/16
14/16
10
14/16
14/16
10
14/16
14/16
14/16
n/a
Contact Part No.
CNP910100-SZ
CNP910200-SZ
CNP904100-SZ
CNP910100-SZ
CNP910200-SZ
CNP904100-SZ
CNP910100-SZ
CNP904100-SZ
CNP910200-SZ
CNP904100-SZ
n/a
Material
Shell
Shell Finish
Housing
Color, Hsg
Contact Retainer
Color, CR
Internal Contact
Intern. Contact Finish
Seal
Mating Part
Aluminum Alloy 6061 T6
Clear Anodized Finish
PPS-V0 1140A6
Black
Ultem CRS5011
Black
Copper Alloy
Silver Plate
EPDM Rubber
SPS00602S-X
Panel Mount, Receptacle - 6 position, crimp termination
Black Marking
4 Mounting Holes
Ø.144
Ø2.250
Date Code
1.263
.650
1.314 TYP.
Ø1.422
Ø1.375
Part No. See Table
.517
Part No.
SPS00602S-1
Contact Qty
1
2
3
2
1
3
3
3
3
3
Without
Contact Gauge
10
10
4
10
10
4
10
4
10
4
n/a
Crimp Well
Wire Awg
10
14/16
14/16
10
14/16
14/16
10
14/16
14/16
14/16
n/a
Contact Part No.
Shell
CNS910100-SZ
CNS910200-SZ
CNS904100-SZ
CNS910100-SZ
CNS910200-SZ
CNS904100-SZ
CNS910100-SZ
CNS904100-SZ
CNS910200-SZ
CNS904100-SZ
n/a
Tool
Adapter
Adapter
Material
Aluminum Alloy 6061 T6
Clear Anodized Finish
PPS-V0 1140A6
Black
Ultem CRS5011
Black
Copper Alloy
Silver plate
SPS00602P-X
Description
TP1041(for use with CNP and CNS910200-SZ contacts)
TP1042 (for use with CNP and CNS904100-SZ contacts)
Shell Finish
Housing
Color, Hsg
Contact Retainer
Color, CR
Internal Contact
Intern. Contact Finish
Mating Part
SPS00602S-2
SPS00602S-3
SPS00602S-4
SPS00602S-5
Tool
Crimp
Adapter
Description
M310
TP1040 (for use with CNP and CNS904100-SZ contacts)
Note: Tool part numbers from Daniels Manufacturing
March, 2012
Amphenol Pcd
www.amphenolpcd.com
email: info@amphenolpcd.com
978-624-3400
