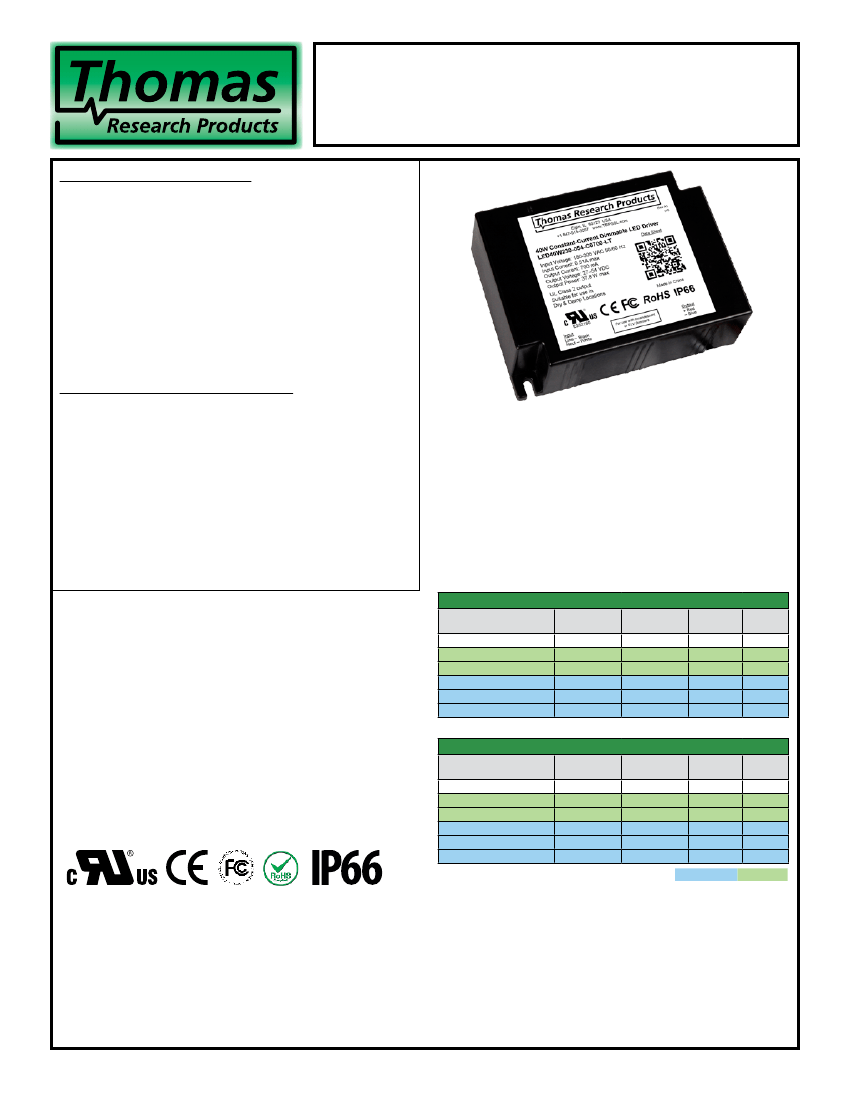

LED-40W Series– Line Voltage Dimmable
Constant Current LED Drivers
CCR Dimming: <10%-100%, both ELV & Inc in the same unit.
Black Magic Thermal Advantage™ Plastic Housing
Electrical Specifications
Input Voltage Range:
120V model 100-120Vac Nom. (90-135V Min/Max)
230V model (with dimmer) 230Vac Nom. (180-264V Min/Max)
230V model (w/o dimmer) 230Vac Nom. (180-305V Min/Max)
Frequency:
Power Factor:
Inrush Current:
Input Current:
Maximum Power:
Line Regulation:
Load Regulation:
Output Protection:
50/60 Hz Nom. (47-63 Hz Min/Max)
>0.90 @ full load, 120Vac (no dimmer)
<15.0 Amps @ 120Vac, cold start 25ºC, max load
0.40 Amps @ 120Vac, 60Hz, max load
40W
± 3%
± 5%
Over-Voltage, Over-Current, and
Short Circuit Protection with Auto Recovery
Environmental Specifications
Maximum Case Temp.
Minimum Starting Temp:
Storage Temperature:
Humidity:
Cooling:
Vibration Frequency:
Sound Rating:
Impact Resistance:
MTBF:
EMC:
Weight:
85°C
-30ºC
-40ºC to +85ºC
5% to 95%
Convection
5 to 55 Hz/2g, 30 minutes
Class A
1g/s
375,000 Hours @ full load, 40ºC ambient conditions
per MIL-217F Notice 2
FCC 47CFR Part 15 Class B compliant
11 oz. (311 g)
• Smallest Footprint Driver for this wattage
• Total Power: 40 Watts
• Input Voltage: 120Vac or 230Vac
• UL Dry & Damp Location Rated
• IP66 & NEMA4
• High Power Factor
120Vac Input - ELV & INC Dimming Specifications
Model Number
LED40W120-114-C0350-LT
LED40W120-054-C0700-LT
LED40W120-040-C1000-LT
LED40W120-036-C1100-LT
LED40W120-030-C1300-LT
LED40W120-024-C1670-LT
Output Voltage Output Current Max. Output Typical
Range
(Vdc)
(mA ±5%)
Power
(W)
Efficiency
57-114
27-54
20-40
18-36
15-30
12-24
350
700
1000
1100
1300
1670
40
37.8
40
39.6
39.0
40
85%
85%
84%
84%
83%
82%
230Vac Input - ELV & INC Dimming Specifications
Model Number
LED40W230-114-C0350-LT
LED40W230-054-C0700-LT
LED40W230-040-C1000-LT
LED40W230-036-C1100-LT
Output Voltage Output Current Max. Output Typical
Range
(Vdc)
(mA ±5%)
Power
(W)
Efficiency
57-114
27-54
20-40
18-36
15-30
12-24
350
700
1000
1100
1300
1670
Class 2:
E332160
40
37.8
40
39.6
39.0
40
US/Canada
86%
86%
85%
85%
84%
83%
US Only
Sign Components Manual
LED40W230-030-C1300-LT
LED40W230-024-C1670-LT
Note:
LED drivers are designed and intended to operate LED loads only.
Non-LED loading may be outside the specified design limits of our
LED drivers, and therefore cannot be covered by any warranty.
If you desire to use our LED drivers to operate non-LED loads
please contact us to discuss compatibility.
Specifications subject to change without notice.
Rev 8-26-15
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
LED40W-LT Series
SSL Solutions Faster Than The Speed Of Light
®

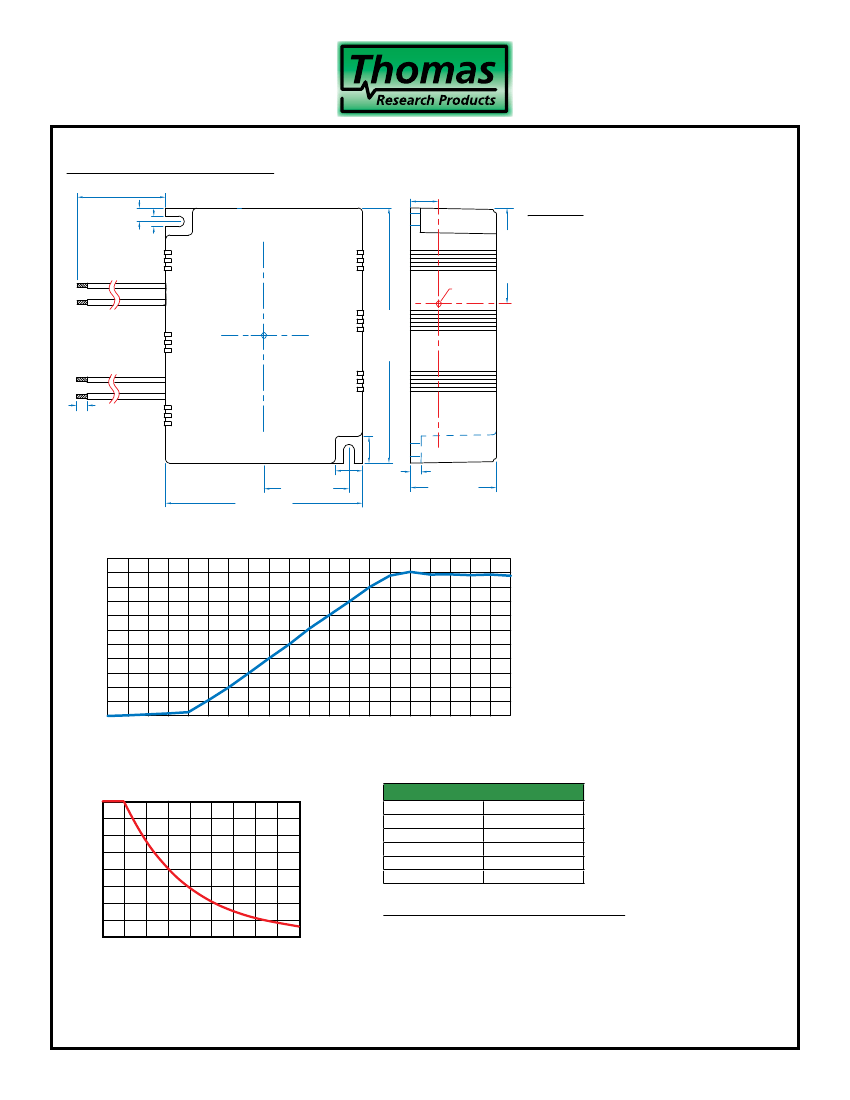

Dimensions - Inches (mm)
5.91 Min [150 Min]
0.45 [11.4]
1.50 [38.1]
WIRE SPECS:
Input Leads:
18 AWG, rated 600 V, 105C, min.
Output Leads:
18 AWG, rated 300 V, 105C, min.
All wires are stranded with solder dipped ends.
0.14 [3.6]
0.2 [5.0]
Tc=90°C
INPUT
White (N)
Black (L)
OUTPUT
Red (+)
Blue (-)
3.78 [96.0]
Output Current %
Lifetime
(kHrs)
Note:
Life calculations are based on reliability with confidence using
a 90% confidence level and <5% failure rate. At a confidence
level of 90% it is expected that <5% of the parts will fail at
the rated life provided. (Failure is defined as a driver drifting
outside specification, rather than fail to operate)
0.39±0.04 [10.0±1]
110
100
90
80
70
60
50
40
30
20
10
0
130
115
90
75
60
45
30
15
0
40
45
50
55
60
65
70
0.39 [10.0]
0.16 [4.0]
1.26 [32.0]
0.39 [10.0]
1.20 [30.5]
2.80 [71.0]
Output Current / Dimmer Conduction Angle
55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155
Triac or ELV Dimmer Angle
(Degrees)
Lifetime / Case Temperature
Safety and EMC Compliance
UL/CUL
CE
FCC, 47CFR Part 15
EN61000-3-2
EN61000-3-3
EN61000-4-5
UL8750, CSA-C22.2
EN 61347
Class B
Class C
2kV/4kV
UL Conditions of Acceptability
See website for additional information
Case Hotspot Temperature
(°C)
75
80
85
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
