SMD ESD Protection Diode
Comchip
SMD Diode Specialist
CPDF12V0U-HF
RoHS Device
Halogen Free
Features
- Uni-directional ESD protection.
- Surface mount package.
- High component density.
0.051(1.30)
0.043(1.10)
1005/SOD-323F
0.102(2.60)
0.095(2.40)
Mechanical data
- Case: 1005/SOD-323F standard package,
molded plastic.
- Terminals: Gold plated, solderable per
MIL-STD-750,method 2026.
- Marking Code: Cathode band & E12
- Mounting position: Any.
- Weight: 0.006 gram(approx.).
0.040(1.00) Typ.
0.012 (0.30) Typ.
0.020(0.50) Typ.
0.035(0.90)
0.027(0.70)
Dimensions in inches and (millimeter)
Maximum Rating AND Electrical Characteristics
(at T
A
=25 C unless otherwise noted)
Parameter
Forward voltage
Diode breakdown voltage
Leakage current
Junction capacitance
ESD capability
O
Conditions
I
F
= 10mA
I
R
= 1mA
V
R
= 12V
V
R
= 0V,f = 1MHz
IEC 61000-4-2(air)
IEC 61000-4-2(contact)
I
PP
= 1A,T
P
=8/20us
I
PP
= 5A,T
P
=8/20us
Symbol Min Typ
Max
Unit
V
F
V
BD
I
L
C
T
ESD
0.8
13.3
15.5
0.1
V
17.5
1.0
60
30
19
24
120
125
V
uA
pF
kV
Clamping voltage
Peak pulse power
Operation temperature
Storage temperature
V
C
P
PP
T
J
T
STG
-55
V
W
O
C
C
150
O
REV:A
QW-G7027
Page 1
Comchip Technology CO., LTD.
SMD ESD Protection Diode
Comchip
SMD Diode Specialist
RATING AND CHARACTERISTIC CURVES (CPDF12V0U-HF)
Fig. 1 - 8/20us Peak pulse current wave
form acc. IEC 61000-4-5
100%
8 us to 100%
Fig. 2 - Power rating derating curve
120
Mounting on glass epoxy PCBs
80%
100
Power rating, (%)
20
30
40
80
60%
I
PPM
20 us to 50us
60
40%
40
20%
20
0%
0
10
0
0
25
50
75
100
125
150
Time, (us)
Ambient temperature, ( °C )
Fig. 3 - Clamping volatage vs.
peak pulse current
30
8/20us waveform
Fig. 4 - Forward volatage vs.
forward current
3
8/20us waveform
25
2.5
Clamping voltage,V
C
(V)
Forward voltage,V
F
(V)
20
2
15
1.5
10
1
5
0
0
1
2
3
4
5
6
0.5
0
0
2
4
6
8
10
12
Peak pulse current,I
PP
(A)
Forward current,I
F
(A)
Fig. 5 - Capacitance between
terminals characteristics
60
Capacitance between terminals, (
P
F)
f=1MHz
T
A
=25°C
50
40
30
20
10
0
0
2
4
6
8
10
12
Reverse voltage, (V)
REV:A
QW-G7027
Page 2
Comchip Technology CO., LTD.
SMD ESD Protection Diode

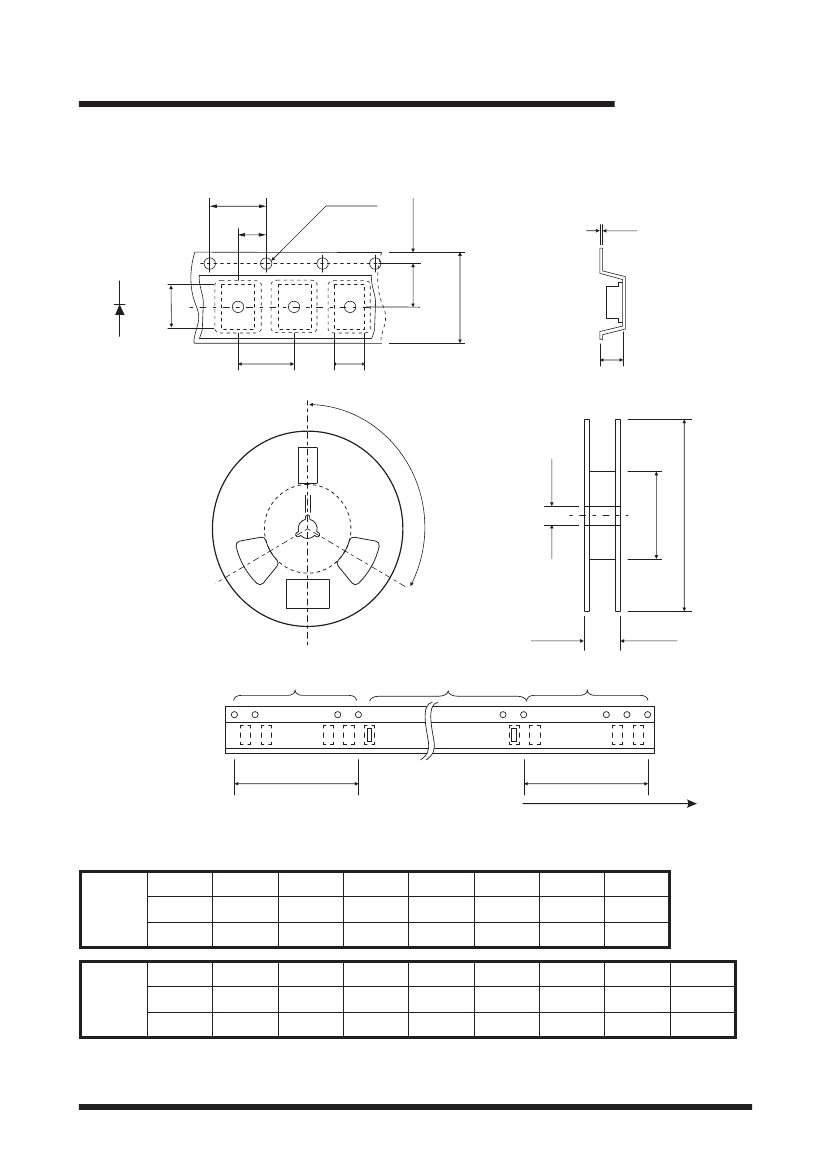

Reel Taping Specification
P
0
P
1
d
Index hole
E
Comchip
SMD Diode Specialist
T
F
B
Polarity
W
C
P
A
12
0
o
D
2
D
1
D
W
1
Trailer
.......
.......
10 pitches (min)
Device
.......
.......
.......
.......
Leader
.......
.......
10 pitches (min)
End
Start
Direction of Feed
SYMBOL
A
1.55 ± 0.10
0.061 ± 0.004
B
2.65 ± 0.10
0.104 ± 0.004
C
1.05 ± 0.10
0.041± 0.004
d
1.55 ± 0.05
0.061 ± 0.002
D
178 ± 1
7.008 ± 0.04
D
1
60.0 MIN.
2.362 MIN.
D
2
13.0 ± 0.20
0.512 ± 0.008
1005
(SOD-323F)
(mm)
(inch)
SYMBOL
E
1.75 ± 0.10
0.069 ± 0.004
F
3.50 ± 0.05
0.138 ± 0.002
P
4.00 ± 0.10
0.157 ± 0.004
P
0
4.00 ± 0.10
0.157 ± 0.004
P
1
2.00 ± 0.05
0.079 ± 0.004
T
0.23 ± 0.05
0.009 ± 0.002
W
8.00 ± 0.20
0.315 ± 0.008
W
1
13.5 MAX.
0.531 MAX.
1005
(SOD-323F)
(mm)
(inch)
REV:A
QW-G7027
Page 3
Comchip Technology CO., LTD.
SMD ESD Protection Diode
Marking Code
Part Number
CPDF12V0U-HF
Marking Code
Comchip
SMD Diode Specialist
E12
E12
Suggested PAD Layout
1005/SOD-323F
SIZE
(mm)
A
B
C
D
E
2.10
1.20
1.20
3.30
0.90
(inch)
0.083
0.047
0.047
0.130
0.035
B
D
A
E
C
Standard Packaging
Case Type
1005/SOD-323F
Qty Per Reel
(Pcs)
4,000
Reel Size
(inch)
7
REV:A
QW-G7027
Page 4
Comchip Technology CO., LTD.
