PJ5800/A Series
500mA CMOS Low Dropout Voltage Regulators
T
he PJ5800/A series are highly precise, low ground current
and fixed output voltage regulators manufactured using
TO-252
PJ5800
Pin 1. In
2. Out
3. Gnd
PJ5800A
Pin 1. Gnd
2. In
3. Out
CMOS process. The series provides large currents with a
significantly small dropout voltage. The PJ5800/A consists of
a current limiting circuit; a thermal limiting, a precision
reference voltage and an error amplifier provide maximal
protection against any fault conditions. Output voltage ranges
are adjustable, 1.5V, 1.8V, 2.5V, 3.3V; TO-252 (1W), SOT-89
(500mW) and SOT-223 (800mW) packages are available.
SOT-89
PJ5800
Pin 1. Out
2. Gnd
3. Int
PJ5800A
Pin 1. Gnd
2. In
3. Out
FEATURES
Maximum Output Current: 500mA
Dropout Voltage: 300mV
Maximum Operating Voltage: 12V
Output Voltage Range:
Adjustable, 1.5V, 1.8V, 2.5V, 3.3V
Highly Accurate: ±2%
Low Ground Current: TYP 100µA
Fast Transient Response
Current Limited and Thermal Limited
Applications
Voltage Regulator for LAN Card, CD-ROM and DVD
Cordless phones
Camera, video recorders
Portable games
Portable AV equipment
Reference voltage
Battery powered equipment
Device
PJ58xxCP
PJ58xxCY
PJ58xxCW
PJ58xxACP
PJ58xxACY
PJ58xxACW
(Heatsink surface connected to Pin 2)
SOT-223
PJ5800
Pin 1. In
2. Out
3. Gnd
PJ5800A
Pin 1. Gnd
2. Out
3. In
ORDER INFORMATION
Operation Temperature
(Ambient)
Package
SOT-252
SOT-89
SOT-223
TO-252
SOT-89
SOT-223
-20℃ ~ +85
o
C

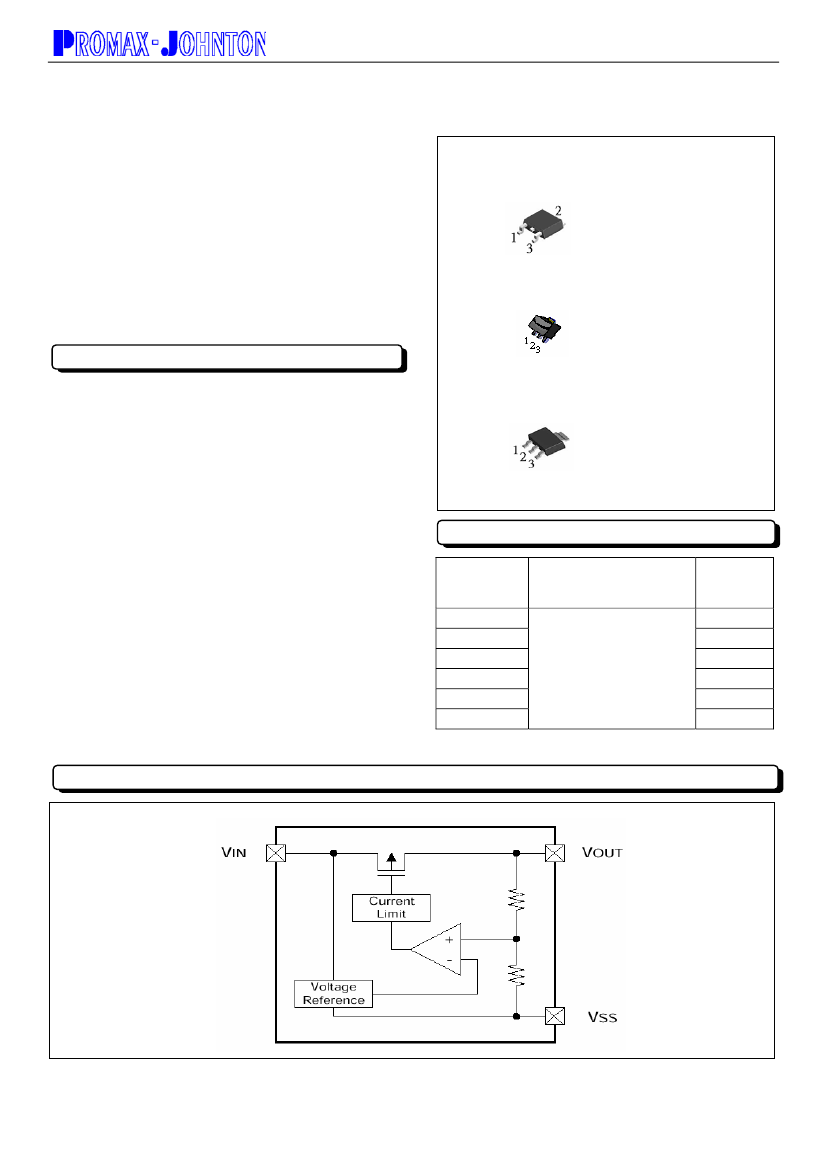

BLOCK DIAGRAM
1-5
2002/10.rev.A
PJ5800/A Series
500mA CMOS Low Dropout Voltage Regulators
ABSOLUTE MAXIMUM RATINGS
Parameter
Input Voltage
Output Current
Output Voltage
Power Dissipation
P
D
@T
A
=25℃
TO-252
SOT-89
SOT-223
Symbol
V
IN
I
OUT
V
OUT
Pd
Topr
Tstg
Value
12
500
Vss-0.3 ~ V
IN
+0.3
1000
500
800
-20 ~ +85
-40 ~ +125
Unit
V
mA
V
mW
Operating Temp. (Ambient)
Storage Temp.
℃
℃
ODERING INFORMATION
Part Number
PJ5800CP/CY/CW
PJ5815CP/CY/CW
PJ5818CP/CY/CW
PJ5825CP/CY/CW
PJ5833CP/CY/CW
Output Voltage
Adjustable
1.5V
1.8V
2.5V
3.3V
Package
SOT-252 / SOT-89 / SOT-223
SOT-252 / SOT-89 / SOT-223
SOT-252 / SOT-89 / SOT-223
SOT-252 / SOT-89 / SOT-223
SOT-252 / SOT-89 / SOT-223
ELECTRICAL CHARACTERISTICS (
Ta = +25°C, Vin=5V unless otherwise noted)
PJ58xx Vout = x.x V
Parameter
Output Voltage
Load Regulation
Symbol
V
OUT
∆V
OUT
Vdif 1
Vdif 2
I
BIAS
I
LIMIT
∆V
OUT
∆V
IN
·
V
OUT
Conditions
I
OUT
=1mA, V
IN
=5V
V
IN
=5V
1mA≦I
OUT
≦500mA
I
OUT
=300mA
I
OUT
=500mA
I
OUT
=0mA
Vin=12V
V
IN
=5V, V
OUT
=0V
I
OUT
=1mA
4.3V≦V
IN
≦10V
(Note 2)
Min
-2
Typ
Vo
20
450
750
100
550
0.2
Max
+2
Unit
%
mV
Circuit
2
2
--
50
Dropout Voltage(Note 1)
--
--
mV
2
Standby Current
Current Limit
Line Regulation
Output Voltage
Temperature Coefficient
Note:
1.Vdif=V
IN
- V
OUT
2. Design Characteristics
--
--
--
110
700
0.3
μA
mA
%/V
1
2
2
--
100
--
ppm/
℃
2
2-5
2002/10.rev.A
PJ5800/A Series
500mA CMOS Low Dropout Voltage Regulators

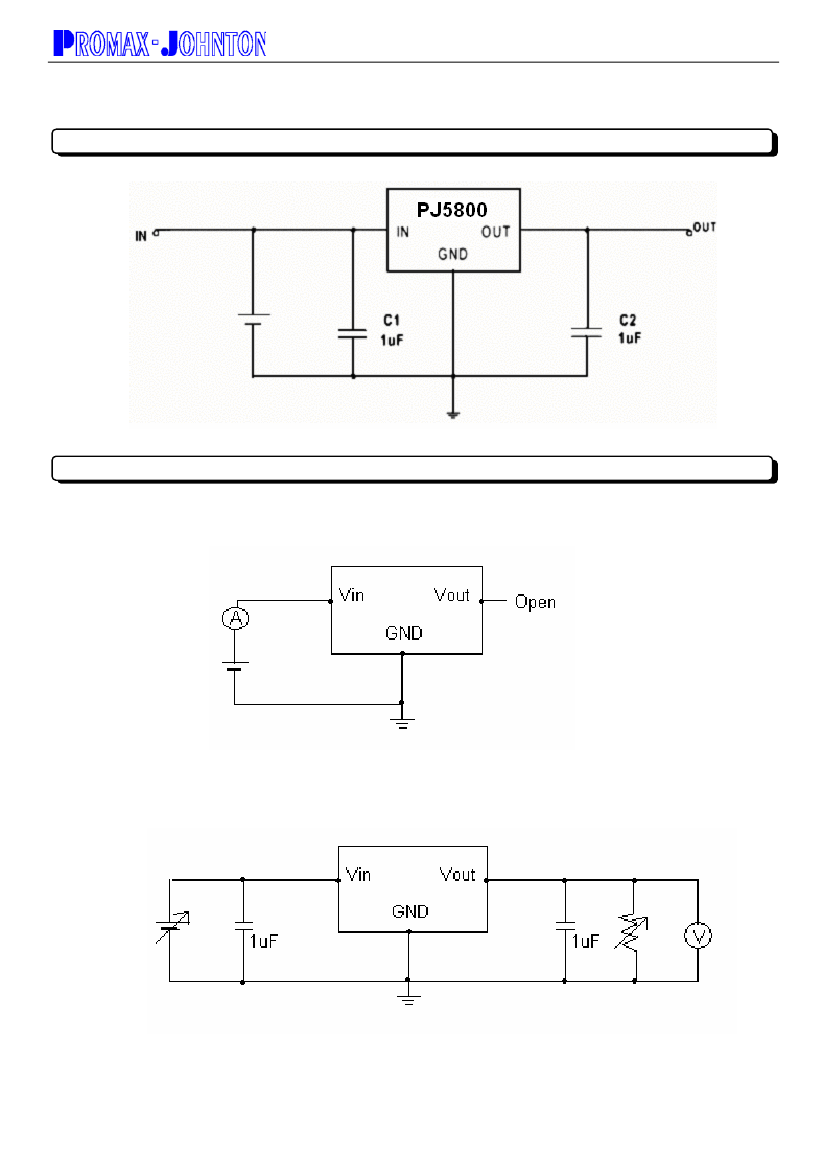

TYPICAL APPLICATIONS
MEASURING CIRCUITS
Measuring Circuit 1: Standby Current
Measuring Circuit 2: Output Voltage, Oscillation Check, Line Regulation, Dropout Voltage, Load Regulation
3-5
2002/10.rev.A
