SHEET 1 OF 1
n
16.00
n
18.00
[.709 in]
n
11.80
[.465 in]
[.630 in]

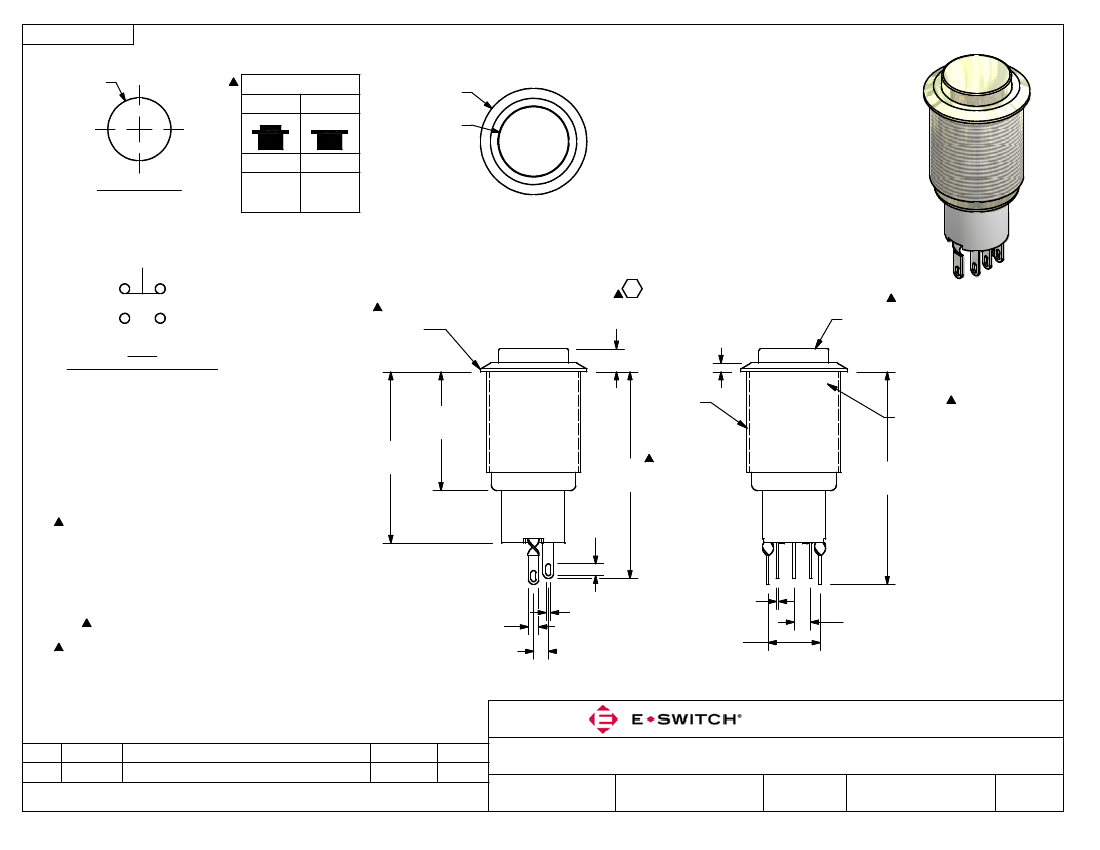

SWITCH FUNCTION
POS. 1
POS. 2
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
14.0mm [.551]
1-3
(ON)
1-2
(ON) = MOMENTARY
1
1
3
2
BODY FINISH
NICKEL PLATED
C
3.90
`
.50
[.154
`
.020
in]
1.50
[.059 in]
ACTUATOR FINISH
NICKEL PLATED
SPDT
CONTACT CONFIGURATION
M16x1.0
20.10
`
1.00
[.791
`
.039
in]
29.00
`
1.00
NOTE:
[1.142
`
.039
in]
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: GOLD
5. RATING: 2A 48VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 M MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20°C to 55°C
11. DENOTES CRITICAL PARAMETER.
12. HARDWARE SUPPLIED: O-RING AND HEXNUT
13. INGRESS RATING: IP40
14. 2002/95/EC (ROHS) COMPLIANT
NOTE 12
HARDWARE SUPPLIED
35.00
`
1.00
[1.378
`
.039
in]
2.00
[.079 in]
36.00
`
1.00
[1.417
`
.039
in]
1
.80
[.031 in]
2.50
[.098 in]
.40
[.016 in]
8.80
[.346 in]
1
2
3
1.80
[.071 in]
2.80
[.110 in]
A
REV
20766
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
9/25/12
DATE
EBP
BY
TITLE
SCALE
PV3H2B0NNG
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
9/25/2012
DR
EBP
DWG
52-PV3H2B0NNG
REV
A
