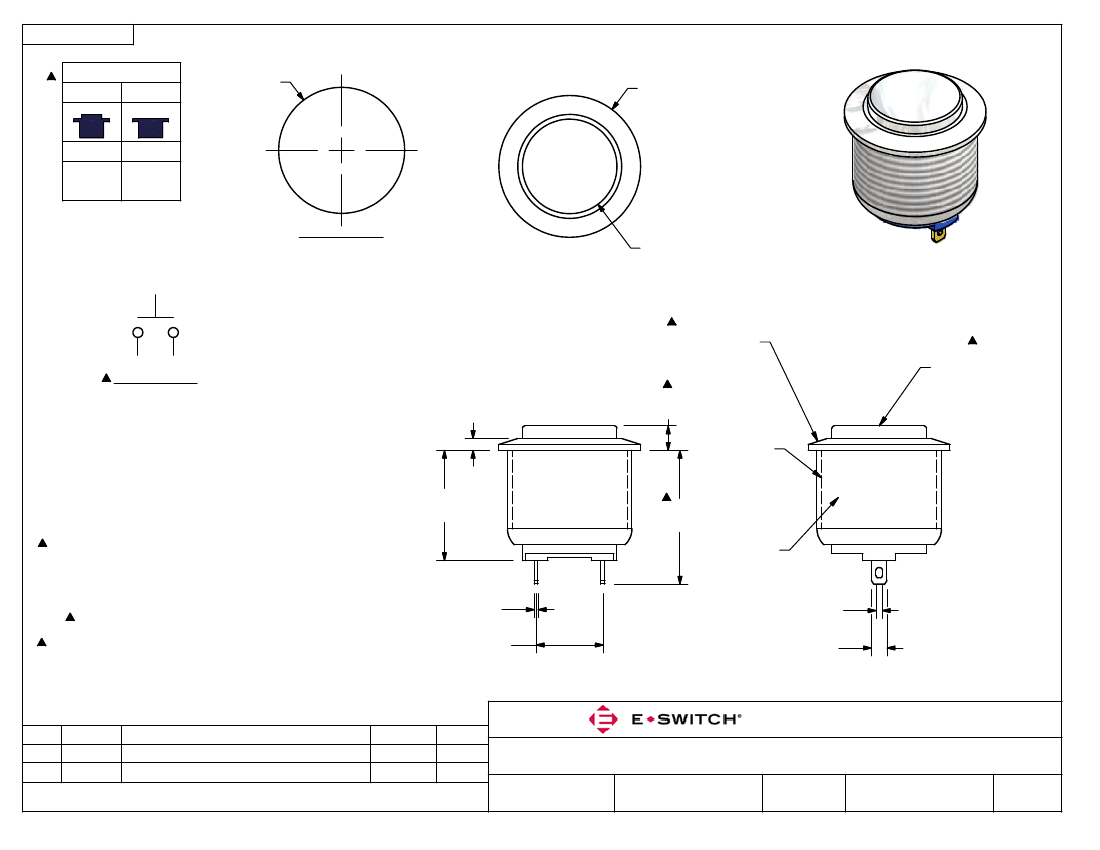

SHEET 1 OF 1
SWITCH FUNCTION
POS. 1
POS. 2
n
16.00
n
18.00
[.709 in]
[.630 in]
OFF
OPEN
(ON)
1-2
(ON) = MOMENTARY
PANEL CUTOUT
MAX. PANEL THICKNESS 6.0mm
n
12.00
[.472 in]
1
2
BODY FINISH
POLISHED STAINLESS STEEL
CIRCUIT: SPST
1.50
`
.50
[.059
`
.020
in]
3.10
`
.50
[.122
`
.020
in]
HIGH ACTUATOR
POLISHED
STAINLESS STEEL
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: GOLD PLATED SILVER
5. RATING: 2A 48VDC
6: TRAVEL: 1.5 ± 0.2mm
7. ELECTRIC LIFE: 200,000 MAKE-AND-BREAK CYCLES
8. INSULATION RESISTANCE: 1,000 MΩ MIN.
9. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
10. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC
11. OPERATING TEMP.: -20°C to 55°C
12. DENOTES CRITICAL PARAMETER.
13. INGRESS PROTECTION: IP65
14. HARDWARE SUPPLIED: O-RING AND HEXNUT
15. 2002/95/EC (ROHS) COMPLIANT
M16x1.0
14.00
`
.50
[.551
`
.020
in]
17.00
`
.50
[.669
`
.020
in]
SEE NOTE 13.
FOR HARDWARE
1
2
.80
[.031 in]
2.00
[.079 in]
2
.50
[.020 in]
8.50
[.335 in]
B
A
REV
20392
20109
PCR NO
UPDATE NOTES, ADD ROHS COMPLIANT
RELEASE FOR PRODUCTION
DESCRIPTION
1/10/12
8/23/11
DATE
BGL
BGL
BY
TITLE
SCALE
PV2H240SSG
2:1
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
8/23/2011
DR
BGL
52-PV2H240SSG
DWG
REV
B
