Mini SMP Female Right Angle Connector Solder
Attachment For PE-SR405AL, PE-SR405FL, RG405
TECHNICAL DATA SHEET
Configuration
Connector
Connector Specification
Connector Interface Type
Attachment Method (Shield/Contact)
Body Style
Mini SMP Female
MIL-STD-348A
PE-SR405AL, PE-SR405FL, RG405
Solder
Right Angle
PE44494
Electrical Specifications
Frequency Range
Impedance
Maximum Operating Voltage
Frequency 1
Frequency
Return Loss
Insertion Loss
Frequency 2
Frequency
Return Loss
Insertion Loss
Frequency 3
Frequency
Return Loss
DC to 65 GHz
50 Ohms
325 Volts
DC to 6 GHz
26 dB
0.12 dB
6 to 12 GHz
20 dB
0.17 dB
12 to 18 GHz
12 dB
Mechanical Specifications
Temperature
Operating Range
Size
Length
Width/Dia.
Height
.
-55 to +155 deg C
0.24 in [6.1 mm]
0.138 in [3.51 mm]
0.24 in [6.1 mm]
0.006 lbs [2.72 g]
Mini SMP Female
Beryllium Copper, Gold
Beryllium Copper, Gold
Brass, Gold
PTFE
Weight
Connector
Type
Contact Material and Plating
Outer Conductor Material and Plating
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant
12/19/2011
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Mini SMP Female Right Angle Connector Solder Attachment For PE-SR405AL, PE-SR405FL,
RG405 PE44494
PE44494 REV 1.1
1
Mini SMP Female Right Angle Connector Solder
Attachment For PE-SR405AL, PE-SR405FL, RG405
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
PE44494
Mini SMP Female Right Angle Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405 from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Mini SMP Female Right Angle Connector Solder Attachment For PE-SR405AL, PE-SR405FL,
RG405 PE44494
URL:
http://www.pasternack.com/mini-smp-female-standard-pe-sr405al-pe-sr405fl-rg405-connector-pe44494-p.aspx
PE44494 REV 1.1
2
Mini SMP Female Right Angle Connector Solder Attachment
For PE-SR405AL, PE-SR405FL, RG405
PE44494

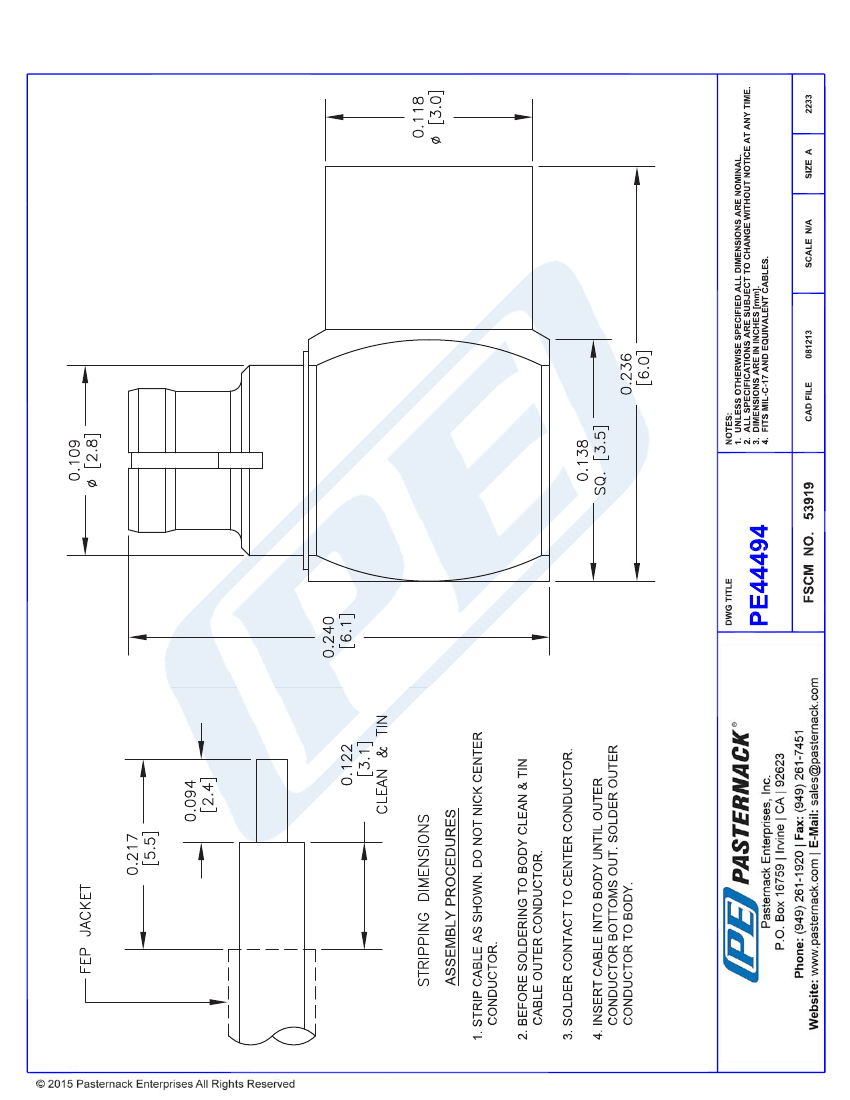

CAD Drawing
PE44494 REV 1.1
3
