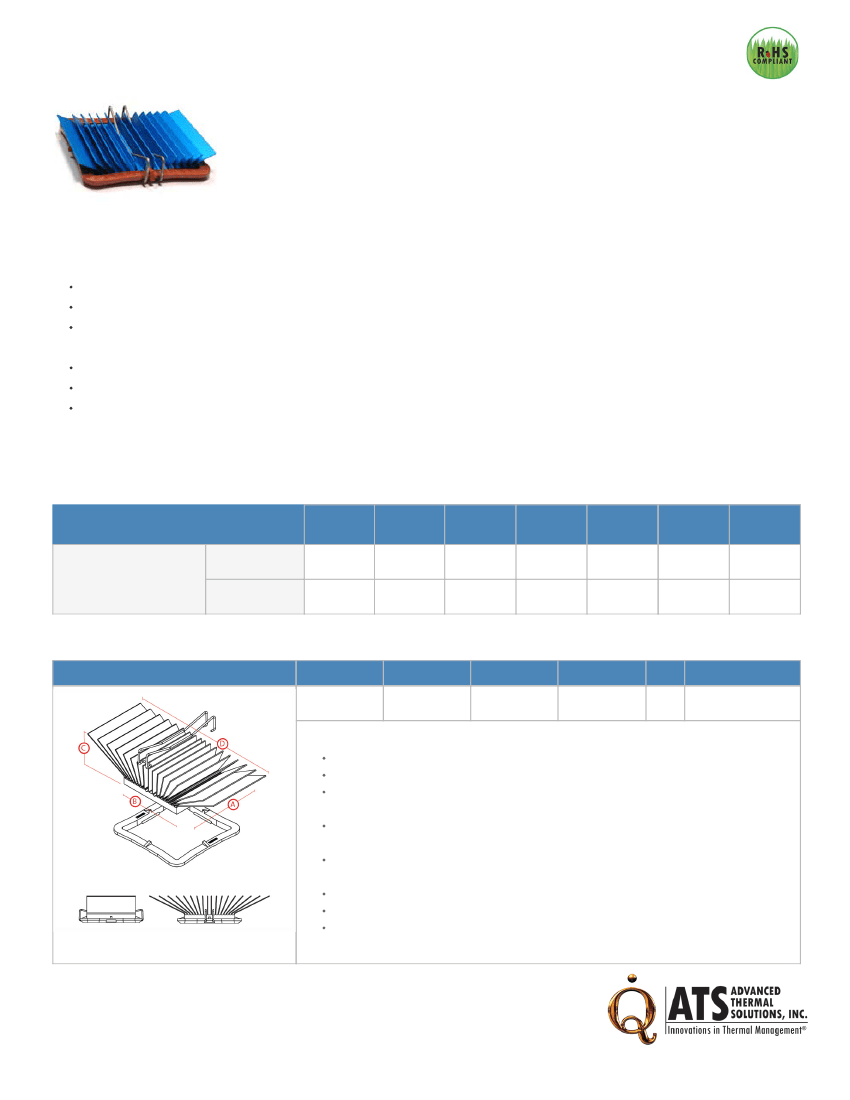

Ultra High Performance BGA Cooling Solutions
w/ maxiGRIP™ Attachment
ATS Part#:
Description:
ATS-50375B-C1-R0
maxiFLOW™ maxiGRIP™ HS Assembly- STD, T766, BLUE-ANODIZED
Heat Sink Type:
Heat Sink Attachment:
Equivalent Part Number:
maxiFLOW
maxiGRIP
ATS-50375B-C2-R0
Discontinued
*Image above is for illustration purpose only.
Features & Benefits
maxiFLOW™
design features a low profile, spread fin array that maximizes surface area for more effective convection (air) cooling
maxiGRIP™
attachment applies steady, even pressure to the component and does not require holes in the PCB
Meets Telcordia GR-63-Core Office Vibration; ETSI 300 019 Transportation Vibration; and MIL-STD-810 Shock and Unpackaged Drop
Testing standards
Comes pre-assembled with high performance, phase changing, thermal interface material
Designed for standard height components from 3 to 4.5mm
"Keep-Out" Requirements: An "Un-Populated" border zone of 5mm around the component is necessary to facilitate the
Installation/Removal of the
maxiGRIP™
. Please refer to the
maxiGRIP™
Keep-Out Guidelines and
maxiGRIP™
Installation/Removal
Instructions for further details.
Thermal Performance
AIR VELOCITY
@200 LFM
1.0 M/S
Unducted Flow
THERMAL RESISTANCE
Ducted Flow
3.28
n/a
n/a
n/a
n/a
n/a
n/a
4.86 °C/W
@300 LFM
1.5 M/S
3.62 °C/W
@400 LFM
2.0 M/S
3.05 °C/W
@500 LFM
2.5 M/S
2.70 °C/W
@600 LFM
3.0 M/S
2.45 °C/W
@700 LFM
3.5 M/S
2.27 °C/W
@800 LFM
4.0 M/S
2.12 °C/W
Product Detail
Schematic Image
Dimension A
37.5 mm
Dimension B
37.5 mm
Dimension C
7.5 mm
Dimension D
51.4 mm
TIM
T766
Finish
BLUE-ANODIZED
Notes:
Dimension
A
and
B
refer to component size.
Dimension
C
is the heat sink height from the bottom of the base to the top of the fin field.
ATS-50375B-C2-R0 is the exact heat sink assembly with an equivalent thermal interface material
(Saint Gobain C1100F). NOTE: Saint Gobain C1100F is discontinued effective 12/31/10.
Thermal performance data are provided for reference only. Actual performance may vary by
application.
ATS reserves the right to update or change its products without notice to improve the design or
performance.
ATS certifies that this heat sink assembly is RoHS-6 and REACH compliant.
Optional
maxiGRIP™
Installation/Removal Tool Set P/N:
MGT375
Contact ATS to learn about custom options available.
*Image above is for illustration purpose only.
For more information, to find a distributor or to place an order, please contact us at
781-769-2800 (North America),
sales@qats.com
or
www.qats.com.
© 2012 Advanced Thermal Solutions, Inc.
| 89-27 Access Road | Norwood MA | 02062 | USA
Rev - 121101
