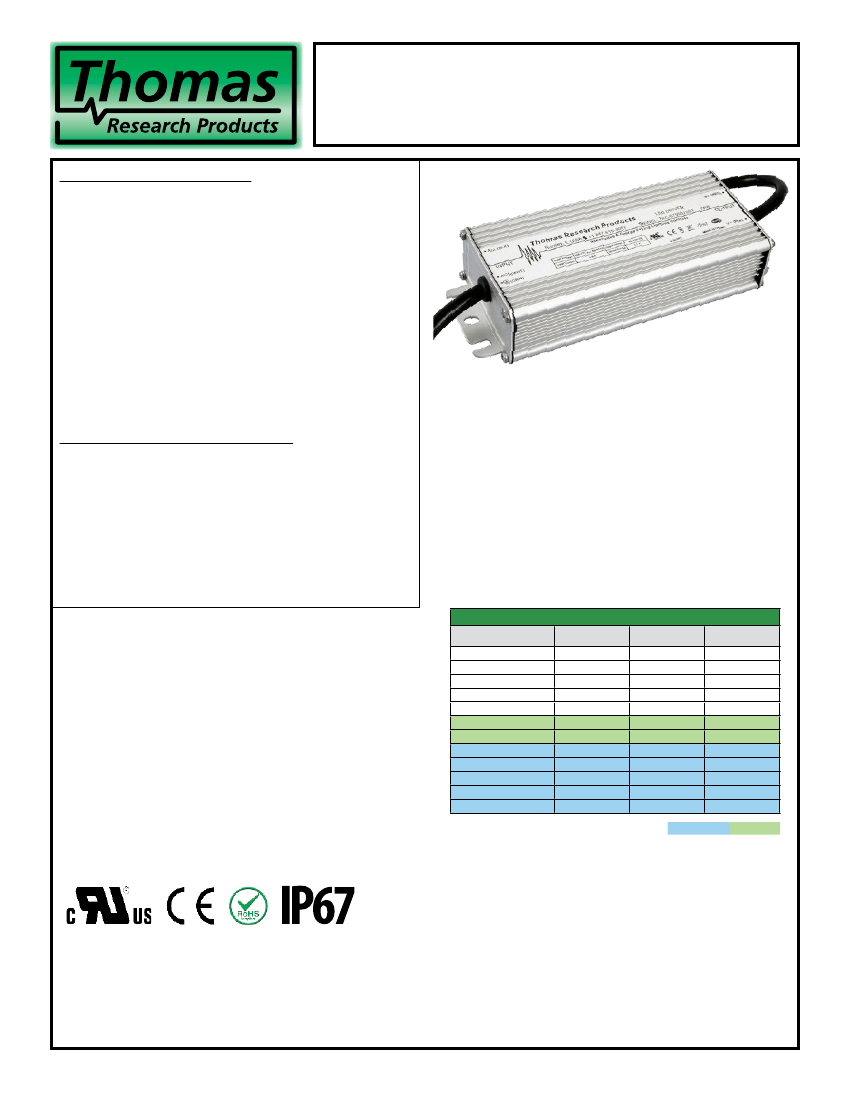

96W TRC-096 Dimmable Series
Switch Mode LED Drivers,
Constant Current
Electrical Specifications
Input Voltage Range:
Frequency:
Power Factor:
Inrush Current:
Input Current:
Leakage Current:
Maximum Power:
Current Accuracy:
Load Regulation:
THD:
Ripple and Noise:
Turn-on Delay:
Protection:
100-277 Vac Nom. (90-305 V Min/Max)
50/60 Hz Nom. (47-63 Hz Min/Max)
>0.90 @ full load, 100V through 277V
69 A @ 230Vac
1.2 A @ 100Vac, 0.6 A @ 220Vac
1 mA @ 277Vac
96W
± 1%
± 3%
< 20% @ full load
_
30% Io
1S @ 110Vac, 0.8S @ 220Vac
Output Over-Voltage, Short Circuit Protection with Self
Recovery, Over-Temperature Protection (110°C)
Environmental Specifications
Minimum Starting Temp:
Storage Temperature:
Maximum Case Temp.
Humidity:
Cooling:
Sound Rating:
MTBF:
Lifetime:
Weight:
-35ºC
-40ºC to +85ºC
89°C
10% to 100%
Convection
Class A
400,000 Hours @ 25ºC, 80% load, 110Vac
per MIL-HDBK-217F
50,000 Hours @ 60ºC
1.87 lbs (850 g)
• Total Power: 96 Watts
• Input Voltage: 100-277 Vac Nom.
• UL Dry, Damp & Wet Location Rated
• IP67
• High Efficiency
• High Power Factor with Active Correction
• Output and Lightning Protection
Constant Current Versions - Product Specifications
Model Number
TRC-096S035DT
TRC-096S045DT
TRC-096S070DT
TRC-096S105DT
TRC-096S140DT
TRC-096S175DT
TRC-096S210DT
TRC-096S245DT
TRC-096S280DT
TRC-096S315DT
TRC-096S350DT
TRC-096S400DT
Output Current
(mA)
350
450
700
1050
1400
1750
2100
2450
2800
3150
3500
4000
Output Voltage
Range
(Vdc)
137-274
106-213
68-137
46-92
35-69
27-54.8
22-45.7
19-39.1
17-34.2
15-30.4
13-27.4
12-24
Class 2:
US/Canada
91%
91%
90%
90%
89%
89%
88%
88%
88%
87%
87%
87%
Typical Efficiency
(full load, 220Vac)
US Only
E332160
Note:
LED drivers are designed and intended to operate LED loads only.
Non-LED loading may be outside the specified design limits of our
LED drivers, and therefore cannot be covered by any warranty.
If you desire to use our LED drivers to operate non-LED loads
please contact us to discuss compatibility.
Specifications subject to change without notice.
Rev 9-1-15
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com

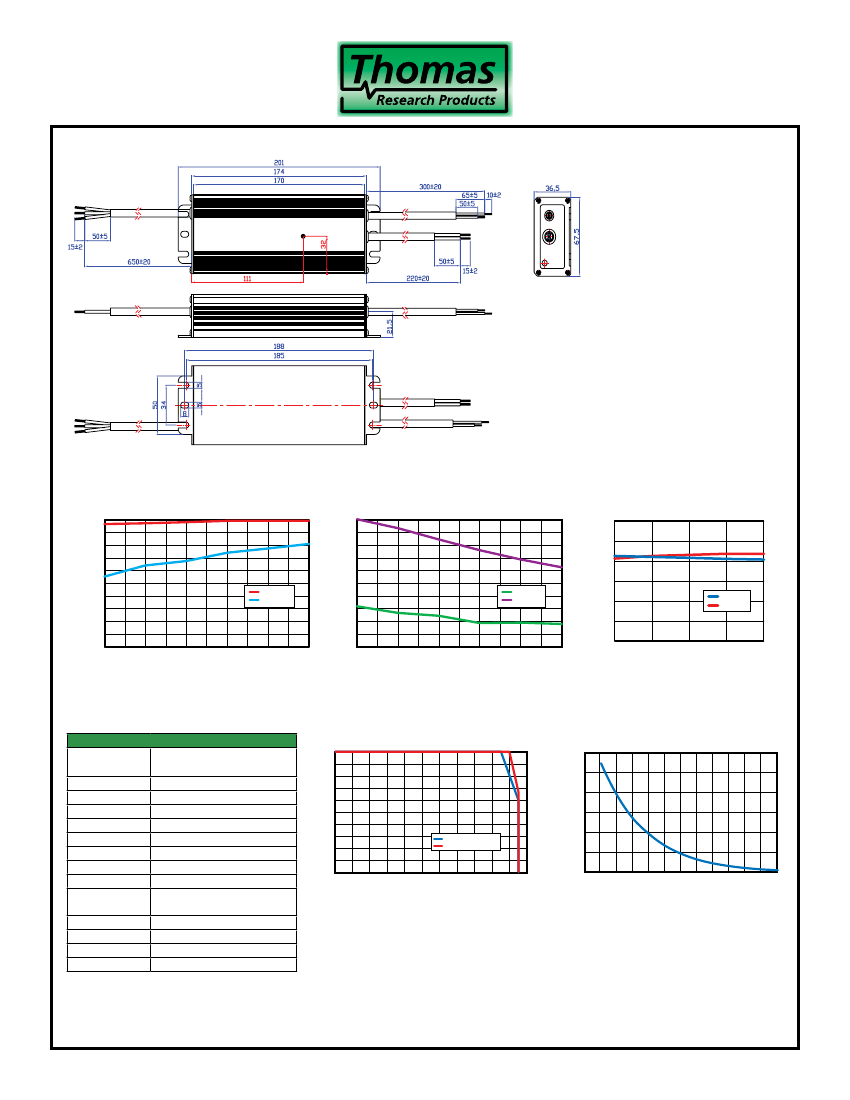

TRC-096 Dimming Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 2 of 3
DIMMING CONTROL WIRE (2*AWG #22)
BLACK (ACL)
WHITE (ACN)
GREEN (GND)
PPL(1-10V)
GRAY(GND)
Tc = 89°C max
DC OUT (2*AWG #18)
RED (V+)
BLUE (V-)
AC IN(3*AWG #18)
1.00
0.95
0.90
0.85
0.80
Power Factor / Load
25%
20%
THD / Load
Typical Efficiency / Load
100%
95%
Efficiency
90%
85%
80%
75%
70%
60%
0.75
0.70
0.65
0.60
0.55
0.50
50%
60%
70%
120Vac
277Vac
THD
15%
10%
5%
0%
50%
120Vac
277Vac
PF
120Vac
277Vac
Load
80%
90%
100%
60%
70%
Load
80%
90%
100%
Normalized Output Voltage
70%
80%
90%
100%
Safety and EMC Compliance
UL/CUL
CE
EN 55015
EN 61000-3-2
EN 61000-3-3
FCC Part 15 Class B
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
EN 61547
Electrostatic Discharge
RFE Field Susceptibility Test
Electrical Fast Transient
Surge Immunity Test: AC Power Line:
line to line 4 kV, line to earth 6 kV
Conducted Radio Frequency
Power Frequency Magnetic Field Test
Voltage Dips
Electromagnetic Immunity
UL8750, UL1310, UL1012,
CSA C22.2 No. 223-M91,
CSA C22.2 No. 107.1
EN 61347-1, EN61347-2-13
Conducted emission
Harmonic current emissions
Voltage fluctuations & flicker
100%
80%
Derating Curve
350
300
Lifetime / Case Temperature
60%
40%
20%
0%
-35
120Vac & 220Vac
277Vac
Lifetime
(kHrs)
250
200
150
100
50
Load
(%)
-25
-15
Ambient Temperature
(°C)
-5
5
15
25
35
45
55
65
75
0
30
40
Case Temperature
(°C)
50
60
70
80
90
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
TRC-096 Dimming Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 3 of 3
Dimming Control Details
Parameters
10V output voltage
Absolute maximum voltage on the 0-10V input pin
Source current on 0-10V input pin
Value of Rin (the resistor inside the LED driver which is
located between the 1-10V input pin and the Vcc output pin)
Minimum
9.8 V
0V
0 mA
19.8K
Typical
10 V
—
—
20K
Maximum
10.2 V
12 V
0.5 mA
20.2K
The dimmer control is operated from an input signal of 1 – 10 Vdc. Recommended implementations are provided below.
Vcc
Rin
Normalized Output Current
Option 1 - DC Input
Output Current / Dimming Voltage
100%
80%
60%
40%
20%
0%
1-10V Input (Purple)
1-10Vdc V
GND (Gray)
TRC-096SxxxxDT
0
1
2
3
4
Option 2 - External Resistor
Vcc
Rin
Vdim
(V)
5
6
7
8
9
10
1-10V Input (Purple)
Rx
GND (Gray)
Normalized Output Current
Io/Ir / Rx
100%
80%
60%
40%
20%
0%
TRC-096SxxxxDT
0
15 30 45 60 75 90 105 120 135 150 165 180 200 220 240
Rx
(kΩ)
Notes:
1. Io is actual output current and Ir is rated current without dimming control.
2. For the driver to operate properly, the load voltage must be maintained above the minimum voltage threshold
(approx. 50% of the max. output voltage for any given model).
3. If the output voltage is maintained above 50% of the maximum output voltage, the dimming control may be operated over
the entire 1-10V range with output current varying from 10% to 100% of Ir.
4. The dimming signal is allowed to be less than 1V, however, when it is 0-1V, the output current is 10%Ir.
5. Do not connect the Gray dimming control lead to the black output-current lead.
